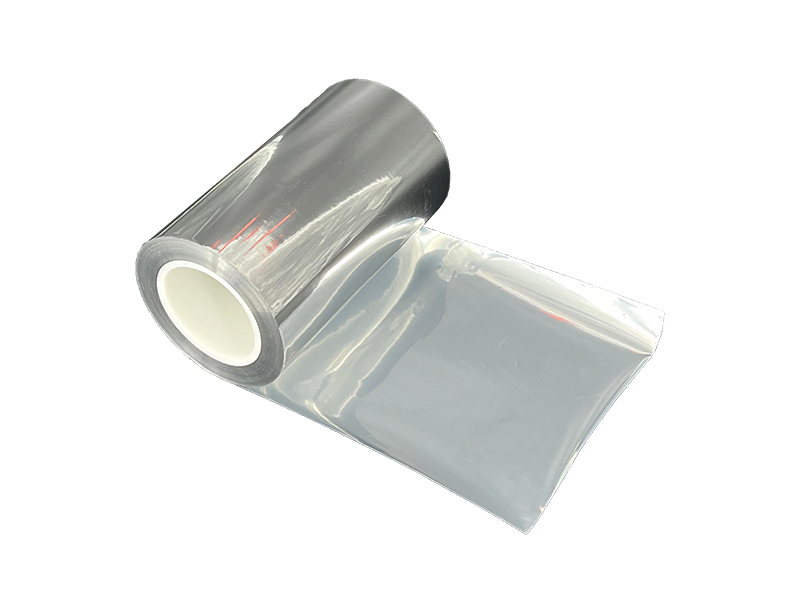

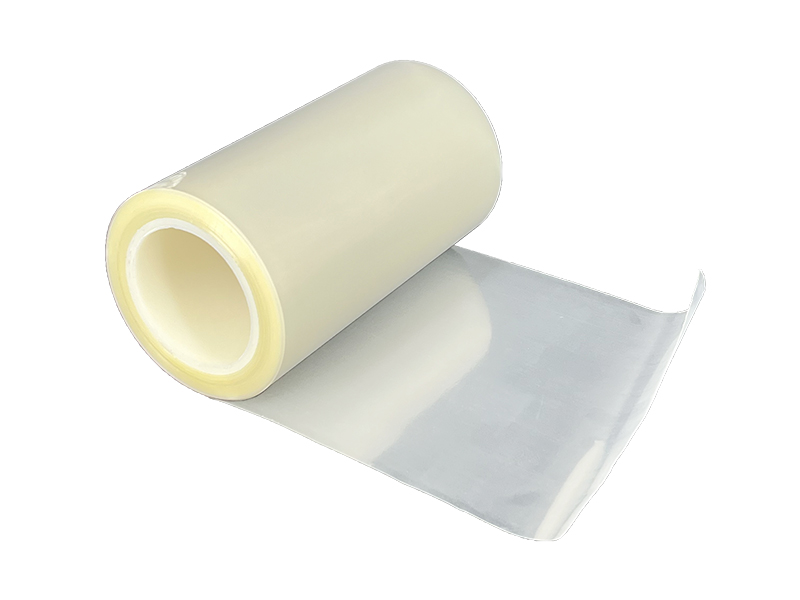

ESD Safe Antistatic Film for Circuit Boards is a transparent, static-dissipative film (thickness: 25–100μm) designed to protect PCBs and electronic components during manufacturing, testing, and storage. Coated with a permanent anti-static layer (graphene-infused acrylic, 1–3μm thickness), it prevents charge accumulation while allowing visual inspection. This film is widely used in PCB fabrication, semiconductor handling, and electronics assembly, with a 70% adoption rate in LCD and PCB inspection stations.
Surface resistivity of 10⁶–10⁸ ohms (per STM11.11) ensures rapid charge neutralization, with electrostatic decay time <0.05 seconds (from 1000V to 100V).
Volume resistivity <10⁷ ohms-cm provides 3D electrostatic control, suitable for wrapping irregularly shaped components.
88% light transmittance (400–700 nm wavelength) allows clear visibility of components, with haze <2% for precise visual inspection of solder joints and traces.
UV stabilization options reduce yellowing, maintaining clarity for >12 months under indoor lighting.
Resists solvents (isopropyl alcohol, ethanol), oils, and weak acids, with no visible degradation after 500 cycles of cleaning.
Short-term temperature resistance up to 120°C (30 minutes) and long-term stability at 60°C, suitable for reflow oven proximity applications.
Pressure-sensitive adhesive (acrylic-based) ensures secure adhesion to surfaces (peel strength: 0.3–0.5 N/cm) without residue, even after 6 months of application.
Available in rolls (width: 300–1000mm, length: 50–500m) or pre-cut sheets for manual or automated application.
PCB Fabrication: Protecting boards during etching, plating, and soldering, with compatibility with automated optical inspection (AOI) systems.
Semiconductor Handling: Covering wafers (4–12 inch) and ICs during inspection, testing, and cleanroom storage.
LCD Manufacturing: Shielding display panels (OLED, LCD) from electrostatic damage during module assembly and backlight attachment.
Medical Device Assembly: Safeguarding sensors (pulse oximeters, glucose monitors) and microelectronics in sterile environments (ISO 14644-1 Class 7).
Q: Can the film be removed without damaging components?
A: Yes, the adhesive is designed for residue-free removal, with 99% clean removal rate even after 6 months of application at 60°C.
Q: Does it block UV light?
A: Some grades offer 90% UV screening (280–400 nm), protecting UV-sensitive materials like photoresists and certain polymers.
Q: What thicknesses are available?
A: Standard thicknesses range from 0.18–1.8 mm (25–100μm base film + 1–3μm coating), with custom thicknesses available for bulk orders (>10,000 m).
Q: Is it RoHS compliant?
A: Yes, the film meets RoHS directives (2011/65/EU) and REACH requirements, with full material declarations available for supply chain transparency.
Production Process
Surface resistance: 106Ω-1011Ω
Regular thickness: 0.05mm - 0.12mm

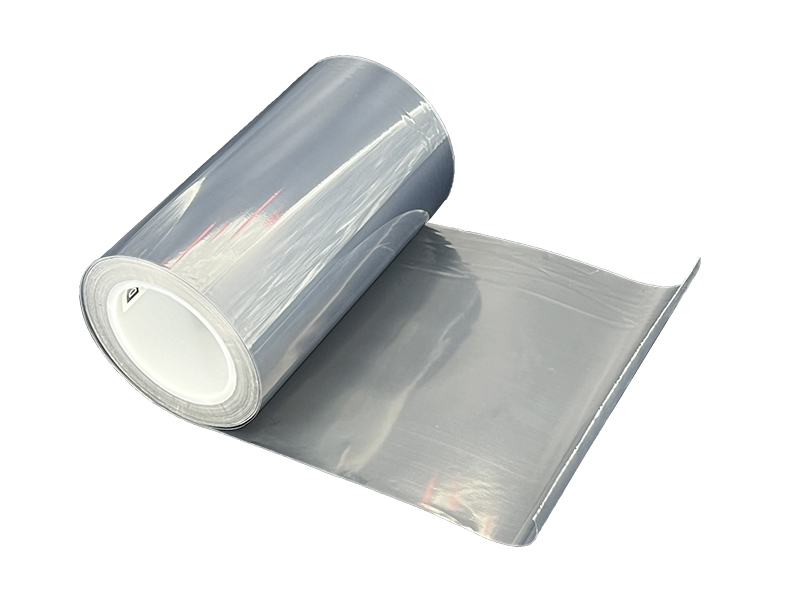

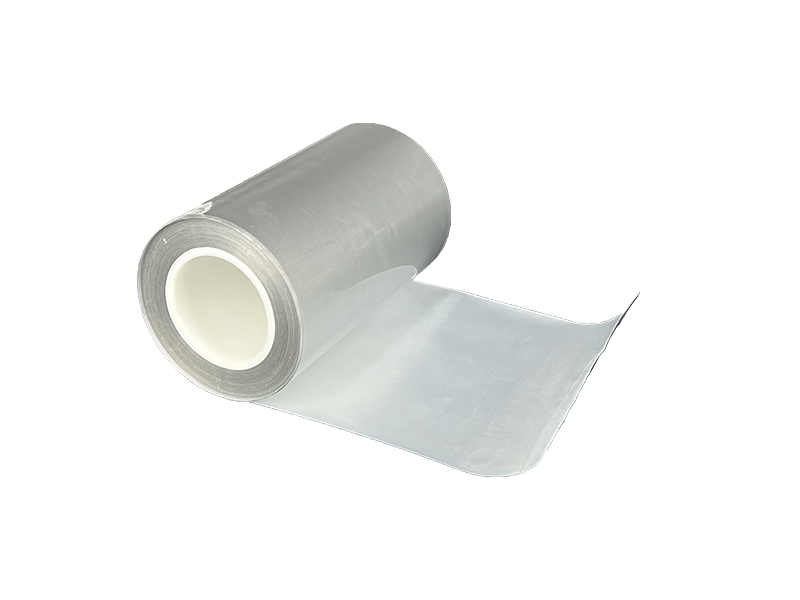

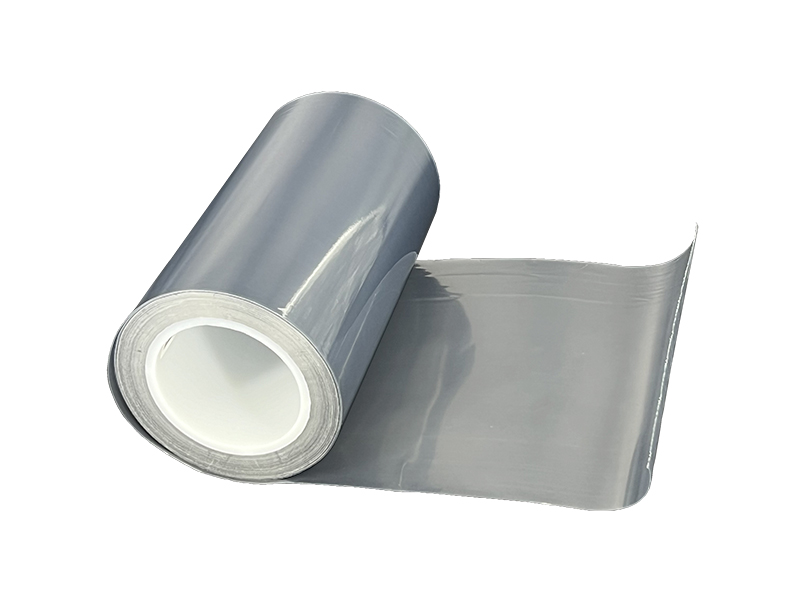

Color: Transparent, Silver grey translucent
Customization: Customized printing is available.
Size: minimum width 50mm, maximum width up to 1500mm
Bag type:
 |
| Roll Material |
Certification: REACH, RoHS, Halogen-Free Certification
Customizable: Resistance value, bag type, size, printing, thickness, etc. can be customized as needed
Material: VMPET/PE, VMPET/CPP, APET/PE, APET/CPP, PA(NY)/PE, PET/PA/PE, LDPE
