Electrostatic discharge (ESD) and uncontrolled electrostatic charge accumulation represent critical yield, reliability, and safety risks in semiconductor packaging processes. As device geometries shrink, materials diversify, and automation density increases, traditional external static control methods are often insufficient for localized, transient, and tool-internal charging phenomena. Miniature ion wind bars—compact ionization devices capable of generating balanced ions in confined spaces—have emerged as an effective solution for internal electrostatic control within semiconductor packaging equipment. This article provides a comprehensive and systematic review of the application of miniature ion wind bars inside semiconductor packaging tools. It analyzes electrostatic charging mechanisms specific to packaging processes, design constraints of in-tool ionization, ion transport behavior in confined geometries, shielding and airflow interactions, reliability and contamination considerations, and integration strategies. Experimental observations, modeling approaches, and future development trends are discussed to provide a technical foundation for next-generation ESD control solutions in advanced semiconductor packaging.
Keywords: semiconductor packaging, miniature ion wind bar, electrostatic discharge, in-tool ionization, static control, advanced packaging
Semiconductor packaging is a critical stage in the integrated circuit (IC) manufacturing flow, transforming fabricated wafers into mechanically protected, electrically connected, and application-ready devices. Modern packaging technologies—including wire bonding, flip-chip, wafer-level packaging (WLP), fan-out wafer-level packaging (FOWLP), and advanced 2.5D/3D integration—require extremely tight control of electrostatic conditions. Even small electrostatic discharges can damage sensitive gate oxides, interconnects, and passivation layers, leading to latent defects and long-term reliability failures.
Historically, electrostatic control in semiconductor manufacturing relied on facility-level measures such as grounded flooring, wrist straps, humidity control, and external ionizers. While these measures remain necessary, they are increasingly insufficient for packaging equipment characterized by high-speed motion, polymeric materials, vacuum or low-pressure environments, and highly localized charge generation. As a result, electrostatic risks often originate inside the equipment itself, beyond the effective reach of external ionization systems.
Miniature ion wind bars—compact, low-profile ionizers designed for installation inside tools—address this challenge by delivering ions directly to charge generation sites. Their application inside semiconductor packaging equipment has expanded rapidly in recent years, driven by yield improvement demands and tighter ESD specifications. This article provides an in-depth analysis of their application, performance characteristics, and design considerations.
Electrostatic charge in packaging equipment arises primarily from triboelectric charging, charge separation, and induction effects. Common sources include:
High-speed tape and film transport
Vacuum pick-and-place operations
Die ejection from dicing frames
Polymer carriers, trays, and feeders
Rapid mechanical motion and friction
These processes can generate localized surface potentials exceeding several kilovolts, even under controlled humidity conditions.
Advanced semiconductor devices, particularly those using thin gate dielectrics and low-k materials, exhibit extreme sensitivity to ESD. Damage thresholds continue to decrease with technology scaling, making effective in-tool static neutralization essential.
External ion wind bars and overhead ionizers often fail to address internal charging due to shielding by tool enclosures, limited airflow penetration, and long ion transport distances. This limitation motivates the use of miniature ion wind bars inside equipment.

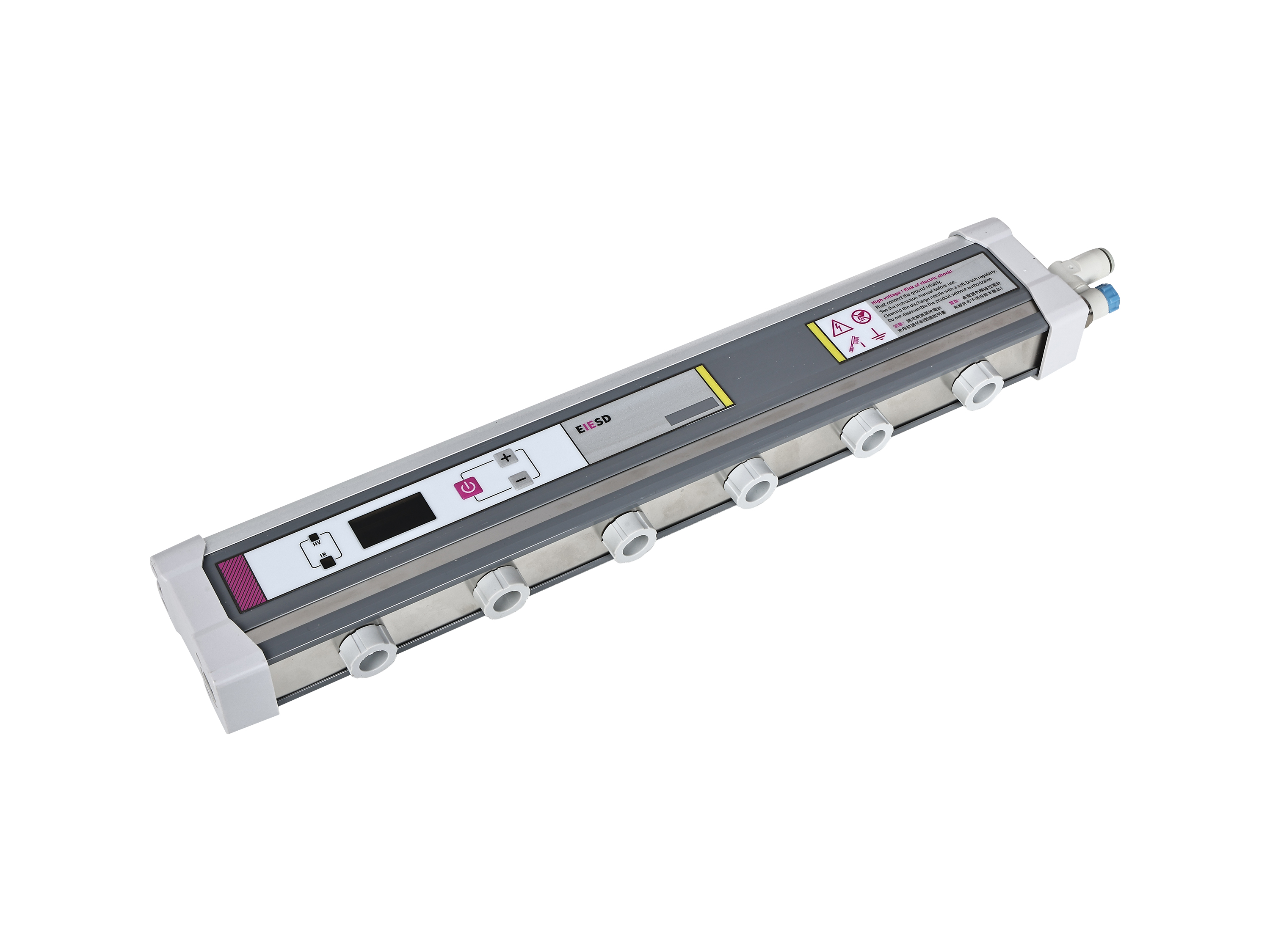

Miniature ion wind bars are compact ionizers typically featuring:
Reduced cross-sectional dimensions
Closely spaced discharge emitters
Low airflow or airflow-free operation
Compatibility with confined and shielded environments
Their small size allows integration near critical process points.
Most miniature ion wind bars rely on corona discharge at needle or pin electrodes. Balanced AC, pulsed DC, or dual-polarity DC power supplies are used to generate positive and negative ions in alternating or controlled sequences.
In the absence of strong ion wind effects, ion transport inside tools is dominated by electric field-driven drift and diffusion, making placement and field geometry critical.
Miniature ion wind bars are commonly installed near die pick heads, ejector pins, and bonding sites to neutralize charge on dies and carriers during handling.
During wire bonding, rapid capillary motion and polymer materials generate charge. Local ionization reduces the risk of ESD during ball formation and bonding.
Tape peeling, indexing, and tray movement are major charge sources. Miniature ion wind bars installed along transport paths provide continuous neutralization.
Tool interiors present narrow gaps, complex geometries, and multiple grounded surfaces. These conditions distort electric fields and create ion shadowing regions.
Metal frames, covers, and actuators act as electrostatic shields, reducing ion penetration. Miniature ion wind bars mitigate this by proximity placement.
Local airflow from tool motion or vacuum systems can either assist or hinder ion delivery, depending on direction and magnitude.
Charge decay time measurements provide a direct assessment of neutralization effectiveness inside tools.
Maintaining low ion balance offset is critical to avoid introducing residual charge on sensitive components.
Uniform ion distribution is challenging in confined spaces and requires careful emitter spacing and placement.
Corona discharge can generate particles through electrode erosion or contamination accumulation. In semiconductor packaging, particle control is paramount.
Emitter materials such as tungsten or coated alloys are used to minimize corrosion and particle shedding.
Miniature ion wind bars must provide stable performance over long maintenance intervals to meet high tool uptime requirements.
Compact power supplies with low electromagnetic interference (EMI) are required for in-tool installation.
Advanced systems synchronize ionization with tool motion, activating ion output only when needed to reduce wear and contamination.
In-tool sensors and remote monitoring enable predictive maintenance and performance verification.
Non-contact electrostatic probes, charge plate monitors, and ESD event detectors are used to evaluate performance.
Studies comparing tools with and without miniature ion wind bars show significant reductions in peak charge and ESD events.
Finite element simulations help optimize emitter placement and predict shielding effects.
Drift-diffusion models provide insight into ion distribution and neutralization efficiency in confined spaces.
Localized ionization near redistribution layer (RDL) handling improves yield and reduces defect rates.
Handling of interposers and stacked dies benefits from precise, localized static control.
Integration must align with SEMI and ANSI/ESD standards governing semiconductor manufacturing environments.
Ion wind bars are evaluated as part of tool ESD qualification processes.
Future development will focus on further miniaturization, smart control algorithms, ultra-low particle designs, and integration with digital twins of packaging equipment.
Remaining challenges include operation in vacuum or low-pressure modules, long-term contamination control, and standardization of in-tool ionization evaluation methods.
The application of miniature ion wind bars inside semiconductor packaging equipment represents a critical advancement in electrostatic control technology. By delivering ions directly to charge generation sites within confined tool environments, these devices address limitations of traditional external ionization methods. Careful consideration of integration location, ion transport physics, shielding effects, reliability, and contamination control is essential for successful deployment. As semiconductor packaging continues to evolve toward greater complexity and sensitivity, miniature ion wind bars will play an increasingly important role in ensuring yield, reliability, and process stability.
