Ionizing air bars are widely used in industrial electrostatic control applications to neutralize static charges on surfaces by generating a balanced flow of positive and negative ions. Among the many structural parameters that determine their performance, the geometry of the discharge electrode—particularly the tip angle and effective radius of curvature—plays a decisive role in electric field enhancement, corona onset voltage, ion generation efficiency, discharge stability, ozone production, and long-term reliability. This document provides a comprehensive, engineering-oriented analysis of discharge electrode tip angle optimization for ionizing air bars. It integrates electrostatic field theory, corona discharge physics, numerical simulation, experimental observations, and manufacturing considerations to establish practical design guidelines. The objective is to help designers and manufacturers achieve an optimal balance between ion output, uniformity, safety, lifetime, and cost.
Static electricity is an unavoidable phenomenon in many industrial processes, especially in high-speed web handling, plastics processing, printing, coating, semiconductor manufacturing, and electronics assembly. Excessive static charge can lead to dust attraction, product defects, electrostatic discharge (ESD) damage, and even ignition hazards in flammable environments. Ionizing air bars, also referred to as ion bars or static eliminators, are among the most commonly deployed active electrostatic neutralization devices.
An ionizing air bar typically consists of a high-voltage power supply and a linear array of discharge electrodes positioned along an insulating housing. When energized with alternating current (AC), pulsed DC, or steady-state DC, the electrodes generate corona discharge in the surrounding air. This corona produces positive and negative ions that are transported by natural diffusion or assisted airflow toward the charged target surface, thereby neutralizing accumulated static charges.
While power supply topology and control strategy significantly affect ion balance and response time, the physical geometry of the discharge electrode fundamentally determines how electric fields are distributed in space. Parameters such as electrode material, tip radius, tip angle, protrusion length, spacing between electrodes, and distance to ground collectively influence corona behavior.
Among these parameters, the discharge electrode tip angle is often underestimated. In practice, it is closely coupled with the effective tip radius and local field enhancement factor. A sharper tip (smaller angle) can lower the corona onset voltage and increase ionization efficiency, but it may also increase ozone generation, accelerate electrode erosion, and compromise long-term stability. Conversely, a blunter tip (larger angle) improves durability and safety but may require higher operating voltage and result in lower ion density.
The goal of this document is to provide a systematic and in-depth discussion of discharge electrode tip angle optimization for ionizing air bars. The focus is not limited to theoretical analysis, but extends to practical engineering trade-offs encountered in real-world product design and manufacturing.
Specifically, this document aims to:
Explain the physical relationship between tip angle, electric field strength, and corona discharge characteristics.
Analyze how tip angle influences ion output, ion balance, and spatial uniformity.
Discuss secondary effects such as ozone generation, noise, contamination sensitivity, and electrode wear.
Present numerical simulation approaches commonly used to study tip geometry optimization.
Summarize experimental findings and empirical design ranges used in industry.
Propose practical guidelines for selecting electrode tip angles under different application scenarios.
Corona discharge is a self-sustaining, non-uniform electrical discharge that occurs when the electric field strength near a conductor exceeds the ionization threshold of the surrounding gas, while the overall conditions are insufficient to produce a complete electrical breakdown or arc. In air at atmospheric pressure, corona discharge typically occurs when the local electric field exceeds approximately 3 × 10^6 V/m, although the exact value depends on humidity, temperature, and electrode surface condition.
In ionizing air bars, corona discharge is intentionally generated at sharp electrode tips. Free electrons accelerated by the strong local electric field collide with neutral air molecules, creating additional ions and electrons through impact ionization. These charged particles form an ion cloud that drifts away from the electrode under the influence of the electric field and ambient airflow.
Positive and negative corona discharges exhibit different physical behaviors. Positive corona tends to be more stable and produces fewer by-products, while negative corona often generates higher levels of ozone and nitrogen oxides due to more energetic electron avalanches. The electrode tip geometry influences both polarities, but its effects can be asymmetrical depending on the power supply mode.
In AC ionizing bars, the electrode alternates between positive and negative polarity, and the geometry must support stable corona in both phases. In DC or pulsed DC systems, separate electrodes may be optimized for each polarity, allowing more flexibility in tip angle selection.
The key reason sharp electrodes are used in ionizing air bars lies in electric field enhancement. When a conductor has a small radius of curvature or a small apex angle, electric field lines concentrate near the tip, resulting in a much higher local field compared to a flat or rounded surface at the same applied voltage.
This field enhancement factor is strongly dependent on the electrode tip angle. As the tip angle decreases, the effective radius of curvature at the apex becomes smaller, and the local electric field increases dramatically. This relationship forms the theoretical foundation for tip angle optimization.
The electrode tip angle is typically defined as the included angle at the apex of a conical or pyramidal electrode. In practice, most discharge electrodes used in ionizing air bars are either conical metal pins or machined needle-like structures.
It is important to note that the tip angle alone does not fully describe the electric field behavior. The effective radius of curvature at the very apex, which may be influenced by manufacturing tolerances and surface finishing, often dominates the corona onset behavior. Nevertheless, the nominal tip angle remains a convenient and controllable design parameter.
Industrial ionizing air bars commonly employ one of the following electrode shapes:
Sharp conical needles with small apex angles (typically 20–40 degrees).
Moderately sharp cones with angles in the range of 40–70 degrees.
Blunt or truncated cones with angles greater than 70 degrees.
Multi-faceted or pyramidal tips produced by stamping or precision machining.
Each shape represents a different compromise between ionization efficiency, mechanical robustness, and manufacturing cost.
From a manufacturing perspective, extremely small tip angles can be difficult to reproduce consistently, especially in high-volume production. Tool wear, burr formation, and surface roughness all affect the actual tip geometry. Therefore, practical optimization must consider not only idealized geometry but also realistic production variability.
Corona onset voltage is the minimum applied voltage at which a stable corona discharge is initiated. According to electrostatic theory, this voltage decreases as the electric field enhancement factor increases. Since smaller tip angles produce higher field enhancement, they generally lead to lower corona onset voltage.
Mathematically, the relationship can be approximated using Peek’s empirical law, modified to account for non-cylindrical geometries. Although Peek’s law was originally developed for smooth wires, its underlying principle—that surface electric field strength governs corona inception—remains valid for needle electrodes.
Lower corona onset voltage offers several advantages, including reduced stress on the high-voltage power supply and improved safety margins. However, operating too close to the onset voltage can result in unstable discharge behavior, especially under varying environmental conditions.
Designers must therefore select a tip angle that ensures reliable corona initiation across the full operating voltage range while avoiding excessive field concentration that could lead to premature breakdown or arcing.
Ion generation efficiency is often quantified by the corona current emitted from the electrode. For a given applied voltage, sharper tips typically produce higher emission currents due to stronger local fields.
However, this increase is not linear. Beyond a certain sharpness, additional field enhancement yields diminishing returns in usable ion output, while significantly increasing undesirable side effects such as ozone generation and electrode erosion.
Tip angle also affects how ions are distributed in space. Extremely sharp tips tend to produce highly localized ion clouds, which may result in non-uniform neutralization across wide target surfaces. Moderately sharp tips often provide a better balance between ion density and spatial coverage.
Ion balance refers to the equality of positive and negative ion output reaching the target surface. In electrostatic neutralization, imbalance can lead to residual charging, surface potential drift, and in sensitive electronics manufacturing, latent ESD risks. While power supply design plays a major role in ion balance, electrode geometry—particularly tip angle—directly affects polarity symmetry at the source.
Due to fundamental differences in charge carrier mobility and ionization dynamics, positive and negative coronas respond differently to electrode sharpness. Sharper tips tend to favor negative corona emission, often resulting in a surplus of negative ions under AC excitation. As the tip angle increases, the disparity between polarities is reduced, leading to improved intrinsic balance.
Empirical studies show that mid-range tip angles (typically 40–60 degrees for conical electrodes) provide a favorable compromise, supporting stable corona generation for both polarities without excessive imbalance. Designers often fine-tune tip angle in conjunction with electrode spacing and drive waveform to achieve balance within ±10 V at the target.
Ozone (O₃) is generated when energetic electrons dissociate oxygen molecules, allowing atomic oxygen to recombine into ozone. This process is strongly correlated with electron energy, which increases with local electric field strength. Consequently, sharper electrode tips with smaller angles tend to generate higher ozone concentrations.
Many industrial environments impose strict limits on allowable ozone concentration, typically in the range of 0.05–0.1 ppm for continuous exposure. Excessive ozone not only poses health concerns but can also degrade polymers and sensitive electronic components.
Increasing the tip angle reduces peak electric field intensity, thereby lowering ozone production. Although this may require higher operating voltage to maintain ion output, the reduction in ozone often justifies the trade-off, particularly in cleanroom and medical manufacturing environments.
Corona discharge inherently produces acoustic noise due to micro-discharges and ion wind effects. Extremely sharp tips tend to generate higher-frequency noise, which can be undesirable in laboratory or office-adjacent production settings.
As tip angle decreases, the margin between stable corona and full electrical breakdown narrows. Variations in humidity, contamination, or electrode wear can push the system into intermittent arcing. Blunter tips provide a wider safety margin and more forgiving operating window.
From a reliability standpoint, moderate tip angles improve discharge stability over time, reducing sensitivity to environmental fluctuations and extending maintenance intervals.
Finite element method (FEM) simulations are widely used to analyze electric field distribution around discharge electrodes. Tools such as COMSOL Multiphysics allow designers to visualize field enhancement as a function of tip angle, radius, and applied voltage.
Typical models include a conical electrode protruding from a grounded insulating surface, with surrounding air treated as a dielectric medium. Boundary conditions simulate AC or DC excitation, and mesh refinement is concentrated near the electrode apex to capture steep field gradients.
Simulation results consistently show exponential growth in peak electric field strength as tip angle decreases below approximately 30 degrees. However, the volume of air exceeding the ionization threshold does not scale proportionally, explaining the diminishing returns observed experimentally.
Corona current provides a direct indicator of ion production. Experiments comparing electrodes with varying tip angles demonstrate higher peak currents for sharper tips, but also greater variability.
Ion density is commonly evaluated using charged plate monitors (CPMs). Tests reveal that while sharp tips reduce decay time at close distances, moderate angles often outperform at larger working distances due to better ion dispersion.
Ozone analyzers and gas sensors are used to quantify by-products. Results consistently correlate smaller tip angles with higher ozone output, reinforcing the need for balanced optimization.
During long-term operation, discharge electrodes are continuously exposed to high electric fields, ion bombardment, ozone, and reactive nitrogen species. These factors contribute to gradual electrode wear through mechanisms such as micro-erosion, oxidation, and surface roughening. Tip angle has a direct influence on the rate of these degradation processes.
Sharper tips concentrate electric fields and discharge current into a very small area, accelerating material loss at the apex. Over time, this leads to blunting of the tip, changes in corona characteristics, and increased variability in ion output. In contrast, electrodes with moderately larger tip angles distribute discharge activity over a broader surface area, resulting in slower wear and more predictable aging behavior.
Industrial environments often contain airborne contaminants such as dust, oil mist, solvent vapors, and polymer particles. Sharp electrode tips are more susceptible to contamination buildup because even a small amount of deposited material can significantly alter the effective radius of curvature and local electric field.
A slightly blunter tip angle improves contamination tolerance by reducing sensitivity to surface irregularities. For independent websites promoting ionizing air bars to a broad range of industries, highlighting contamination-resistant electrode geometry is particularly valuable, as it translates directly into reduced maintenance requirements for end users.
From a lifecycle cost perspective, tip angle optimization can substantially extend cleaning and replacement intervals. Many manufacturers report that increasing the nominal tip angle by 10–20 degrees can double effective electrode lifetime without compromising ion neutralization performance. This benefit is especially relevant for customers operating multiple ion bars across large production lines.
While theoretical models often assume perfectly sharp and smooth electrode tips, real-world manufacturing introduces unavoidable variations. Machining accuracy, tool wear, stamping consistency, and post-processing methods all influence the final geometry. Extremely small tip angles are difficult and costly to maintain within tight tolerances.
Designing for a slightly larger, more forgiving tip angle reduces scrap rates and improves consistency across production batches. This consistency is critical for independent brand websites, as customers expect repeatable performance from unit to unit.
Common electrode materials include stainless steel, tungsten, and special alloys designed for corona resistance. Harder materials allow for sharper angles but increase machining cost. In many cases, a moderate tip angle paired with an optimized material provides a better overall cost-performance balance than an ultra-sharp geometry.
For manufacturers offering customizable ionizing air bars, tip angle optimization enables scalable product families. By standardizing on one or two optimized angle ranges, companies can streamline inventory while still addressing diverse application requirements.

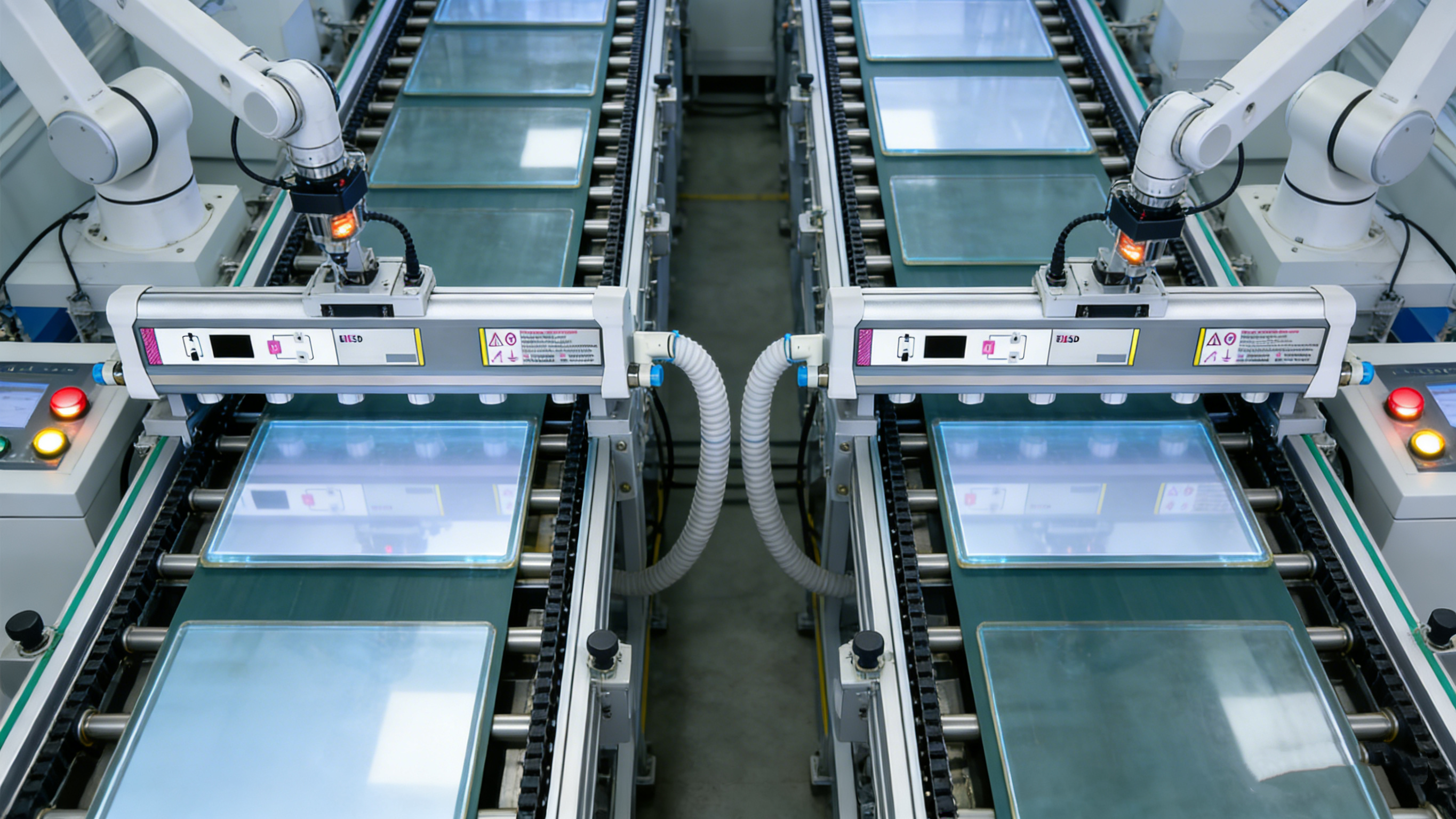

In printing, packaging, and film extrusion applications, ionizing air bars are often installed close to fast-moving substrates. Here, rapid neutralization and wide-area ion coverage are essential. Tip angles in the range of 45–60 degrees are commonly favored, offering strong ion output with good uniformity and acceptable ozone levels.
Electronics manufacturing places strict demands on ion balance and cleanliness. Excess ozone or ion imbalance can damage sensitive components. As a result, slightly larger tip angles, typically 55–70 degrees, are preferred. These geometries promote stable, low-noise operation and long-term balance stability.
Cleanroom applications prioritize ultra-low particle generation and minimal chemical by-products. In these environments, blunter electrode tips combined with optimized power supplies are often used. Although higher operating voltages may be required, the benefits in contamination control and reliability outweigh the trade-offs.
Based on theoretical analysis, simulation, and extensive field experience, several general guidelines can be established:
30–40 degrees: Maximum ion output, fast decay time, higher ozone and wear risk. Suitable for controlled industrial environments with frequent maintenance.
40–60 degrees: Balanced performance range. Strong ionization, good uniformity, manageable ozone levels, and extended electrode life. This range is ideal for most general-purpose ionizing air bars.
60–80 degrees: Enhanced stability, low ozone, excellent durability. Best suited for electronics, cleanroom, and safety-critical applications.
For independent websites, presenting these ranges clearly helps customers understand product positioning and select the appropriate model with confidence.
To overcome the limitations of single-angle geometries, some modern designs employ hybrid or multi-radius tips. These structures combine a moderately sharp apex with a supportive base angle, achieving strong field enhancement while mitigating wear and ozone production.
Advanced coatings such as titanium nitride or ceramic layers are increasingly used to enhance corrosion resistance and stabilize discharge behavior. When combined with optimized tip angles, coatings can further extend electrode lifetime and performance consistency.
Future ionizing air bars will increasingly rely on closed-loop control systems that adapt voltage and frequency based on discharge conditions. In such systems, tip angle optimization remains fundamental, as it defines the baseline discharge characteristics upon which intelligent control operates.
The discharge electrode tip angle is a critical yet often underappreciated design parameter in ionizing air bars. Through its influence on electric field enhancement, corona onset voltage, ion generation efficiency, polarity balance, ozone production, noise, and long-term reliability, tip angle directly determines overall system performance.
For independent websites seeking to communicate technical credibility and product value, a clear explanation of tip angle optimization demonstrates engineering expertise and builds customer trust. Rather than pursuing extreme sharpness, modern design philosophy favors balanced geometries that deliver reliable, durable, and environmentally responsible performance.
By integrating theoretical understanding, numerical simulation, experimental validation, and manufacturing realities, manufacturers can select optimized tip angle ranges that meet diverse application needs while controlling cost and lifecycle impact. As electrostatic control technology continues to evolve, thoughtful electrode geometry design will remain a cornerstone of high-performance ionizing air bars.
