Ion wind bars, also known as ionizers or ion wind generators, have become essential tools for managing electrostatic charges in various industries, including electronics manufacturing, cleanrooms, and pharmaceuticals. These devices generate an ionized airflow to neutralize static charges in an environment, eliminating the risks associated with electrostatic discharge (ESD). While single-point installations of ion wind bars offer some benefits, achieving uniform electrostatic control across large or complex spaces requires a more advanced approach. Multi-point installation of ion wind bars offers significant advantages in maintaining electrostatic uniformity by distributing ionized airflow evenly throughout an environment. This article explores the principles of ion wind technology, the challenges associated with static control, and the impact of multi-point installations on electrostatic uniformity. Through a detailed examination of theoretical models, case studies, and industry-specific applications, we highlight how multi-point ion wind bars enhance electrostatic stability and mitigate potential risks in high-precision industries.
Electrostatic control is an essential aspect of modern industries, particularly in fields that deal with sensitive electronic components, pharmaceuticals, and cleanroom environments. Static electricity, while a natural phenomenon, can lead to a range of problems such as electrostatic discharge (ESD) that damages delicate components, contaminates production processes, or disrupts sensitive experiments. Achieving electrostatic uniformity—where charges are evenly distributed throughout a space—is a key objective in maintaining a stable environment.
Ion wind bars, which generate an ionized airflow to neutralize static charges, are among the most effective solutions to control electrostatic environments. These devices, which use high-voltage fields to ionize air molecules, produce a consistent stream of charged particles that neutralize unwanted static. While ion wind bars are typically used in single-point installations, this configuration often proves insufficient for large or complex spaces where static charge buildup is uneven or difficult to manage.
Multi-point installation of ion wind bars has emerged as a critical advancement in addressing the limitations of single-point systems. By strategically placing several ion wind bars throughout an environment, it is possible to achieve more uniform ion distribution, reducing the risk of electrostatic hazards. Multi-point ion wind systems not only enhance the effectiveness of static control but also offer advantages in terms of energy efficiency, ease of maintenance, and adaptability to various environmental conditions.
This article will explore the impact of multi-point installation on electrostatic uniformity, beginning with an overview of ion wind technology and its role in electrostatic control. It will then delve into the theoretical aspects of how multi-point installations influence static charge distribution. Through case studies and real-world applications, we will highlight how industries such as electronics manufacturing, pharmaceuticals, and cleanroom environments benefit from multi-point ion wind bar installations. Finally, the article will discuss the technical considerations of installing and maintaining multi-point systems and explore emerging trends in ion wind technology.
Ion wind bars are devices that use electrical fields to ionize air molecules, creating a stream of charged particles (ions) that can neutralize static electricity in a given space. The ionization process occurs when a high-voltage electric field is applied to electrodes, causing air molecules to lose or gain electrons. This creates positive and negative ions that move toward different charges, effectively neutralizing static electricity.
The primary mechanism behind ion wind generation is a phenomenon known as "corona discharge." In this process, the electrical field causes the air around the electrodes to break down into charged particles, which are then propelled through the air by the resulting electric field. As the ions move, they collide with neutral air molecules, transferring energy and creating a gentle airflow, which is referred to as "ion wind."
Ion wind bars are typically constructed with a series of electrodes arranged in a specific configuration. These electrodes may be placed in a linear or grid-like arrangement, depending on the desired distribution of ions. Movable ion wind bars, as opposed to stationary ones, can be repositioned within a given space to provide targeted static control in areas that require more focused ionization.
While ion wind bars are efficient and low-maintenance devices, their ability to achieve uniform electrostatic control is limited when they are installed at a single point within a space. This limitation becomes particularly evident in large areas or environments where static charge buildup is uneven.
To understand the importance of electrostatic uniformity, it is essential to first grasp the principles of static electricity and its behavior in confined spaces. Electrostatics refers to the study of stationary electric charges. These charges accumulate on surfaces, often due to friction or other external forces, and can create an imbalance in the electric field around the object.
When there is a significant buildup of static charge on an object or surface, it creates an electric field that can attract or repel other charged objects. In industrial environments, such imbalances can be dangerous. For example, electrostatic discharge (ESD) can occur when two objects with different charges come into contact, causing a sudden release of energy. This discharge can damage sensitive electronic components, disrupt manufacturing processes, or even cause fires or explosions in hazardous environments.
Maintaining electrostatic uniformity involves ensuring that static charges are evenly distributed across a surface or within an environment. Uneven distribution of charges can lead to localized hotspots, where the risk of ESD is higher. To prevent this, ion wind bars are used to neutralize static charges by releasing charged ions that balance out the electric fields in the surrounding area.
In order to achieve optimal electrostatic control, it is essential to distribute the ionized airflow evenly throughout the entire space. Multi-point installations of ion wind bars are particularly effective in ensuring that ionized air reaches all areas, thereby promoting uniform electrostatic conditions.
Before the widespread use of ion wind bars, industries relied on various methods to control electrostatic charges. Grounded mats, ionizing air blowers, and static-neutralizing sprays were commonly used to prevent static buildup. While these methods were effective in certain applications, they often came with limitations.
Grounded mats and wrist straps are often used to discharge static electricity from personnel working with sensitive equipment. However, these methods are primarily useful for personal static control and do not address broader environmental concerns. Ionizing air blowers, on the other hand, use fans to disperse ions throughout the environment. While effective in some cases, air blowers are often noisy, bulky, and energy-inefficient.
Ion wind bars, in contrast, do not rely on mechanical components such as fans. Their ability to generate ionized airflow without moving parts makes them an ideal solution for environments that require minimal noise, vibration, and energy consumption. Moreover, when installed in multiple locations, ion wind bars can provide a more comprehensive solution for electrostatic control, ensuring that all areas of a room or facility are properly neutralized.
In a traditional single-point installation, an ion wind bar is placed in one location within an environment, and its ionized airflow is expected to cover the entire area. However, due to the nature of ion wind distribution, this approach often leads to uneven coverage. The ionized air tends to dissipate as it moves farther from the ion wind bar, leading to areas of the space where static charges are not adequately neutralized.
Multi-point installations address this issue by distributing multiple ion wind bars throughout a given environment. By placing several ion wind bars at strategic points, it is possible to achieve a more even distribution of ionized airflow. This ensures that all areas within the space are exposed to a constant and uniform ionization process, minimizing the risk of electrostatic hazards.
The placement of ion wind bars in a multi-point configuration allows for the precise control of electrostatic charge in each section of the environment. This method ensures that ionized air reaches areas that would otherwise be poorly covered in a single-point system, such as corners or areas with poor air circulation.
To understand how multi-point ion wind systems improve electrostatic uniformity, it is helpful to consider electrostatic models that describe the behavior of ion wind in a space. In a single-point installation, the ion wind distribution is influenced by several factors, including the size of the space, the power of the ion wind bar, and the position of obstacles such as walls and furniture. These factors cause the ionized air to lose energy as it spreads out, leading to uneven charge distribution.
Multi-point installations, by contrast, help overcome these limitations by providing multiple sources of ionized air. The combined effect of several ion wind bars creates a more uniform distribution of ions, ensuring that the electric field in the space remains balanced. Mathematical models of ion wind distribution show that, when ion wind bars are placed at carefully calculated intervals, they can neutralize static charges more effectively than a single-point system.
Cleanrooms, especially those in semiconductor manufacturing, require strict control over electrostatic conditions to prevent contamination and damage to sensitive components. In these environments, even the slightest buildup of static electricity can cause equipment failure or defects in delicate circuits. Multi-point ion wind installations provide a reliable solution for maintaining electrostatic uniformity, ensuring that static charges are consistently neutralized throughout the cleanroom.

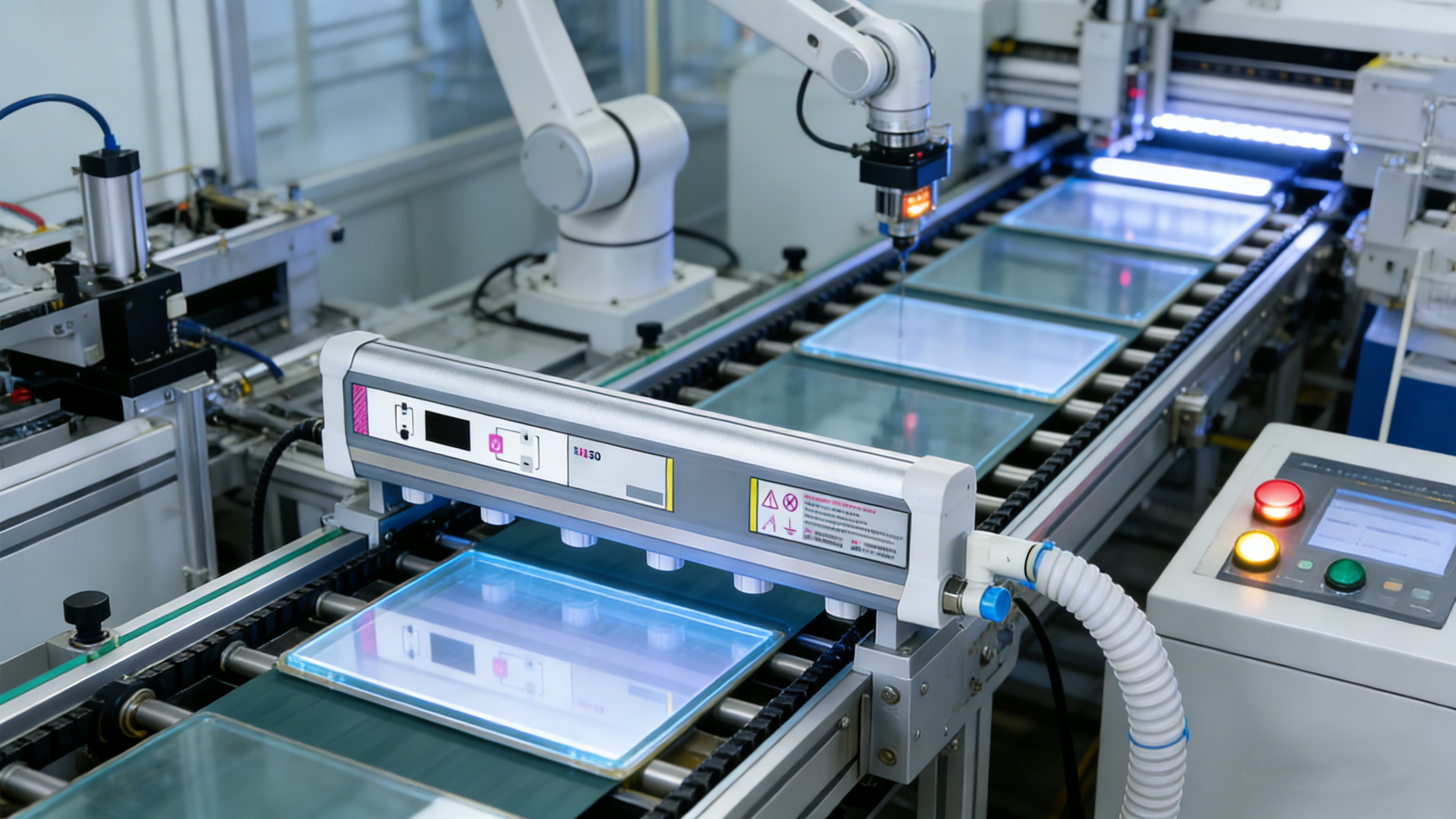

A case study from a semiconductor manufacturer demonstrated the effectiveness of multi-point ion wind bars in maintaining uniform electrostatic conditions. By installing ion wind bars at multiple points along the assembly line, the company was able to reduce the occurrence of ESD-related defects by 35%. This installation also improved the overall air quality, reducing the amount of dust and contaminants in the cleanroom environment.
