How Ionizing Bars Enhance the Surface Quality of Printed Materials
In modern printing processes—whether packaging, labels, flexible electronics, or high-end graphics—surface quality is critical. Even minor static charges can attract dust, cause ink splattering, or lead to uneven coating, affecting both aesthetics and functional performance. Ionizing bars are a proven solution to neutralize static and ensure consistent print quality.
1. The Challenge: Electrostatic Problems in Printing
Static electricity can arise during several stages of printing:
Paper, film, or plastic movement: Friction between rollers, sheets, and conveyors generates charge.
Ink and coating application: Charged surfaces repel or attract droplets unevenly, leading to smearing or mottling.
Die-cutting, folding, or laminating: Charged sheets cling to each other, causing misalignment.
Consequences include:
Dust or debris attraction to the substrate
Surface defects like streaks, uneven gloss, or pinholes
Reduced adhesion of inks and coatings
Increased rework or scrap

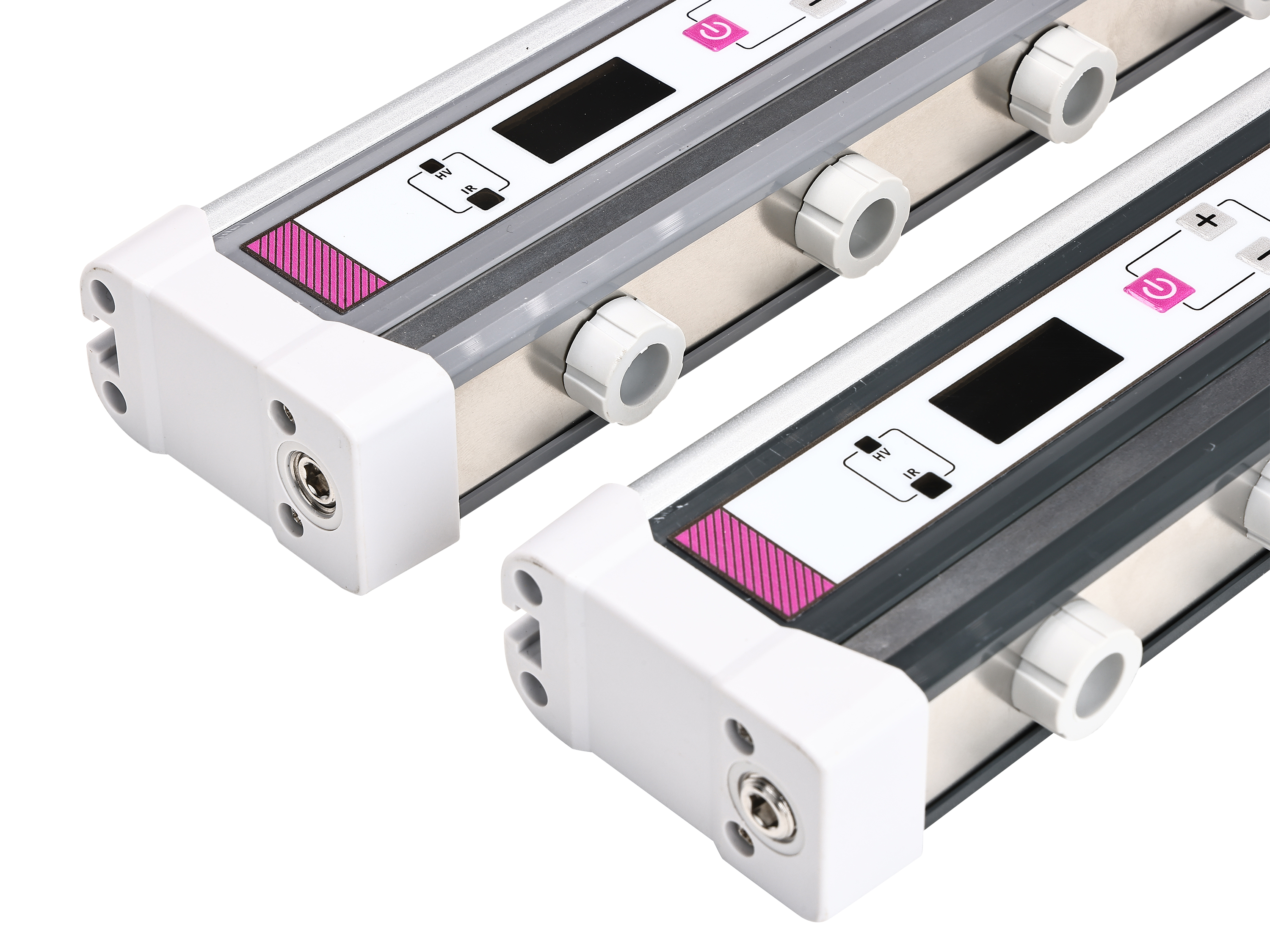

2. How Ionizing Bars Work
Ionizing bars emit positive and negative ions that neutralize static charges on surfaces in real time:
Fixed installation over conveyor belts or feeding stations ensures continuous neutralization.
Close proximity to the substrate allows fast decay of high voltage levels.
Balanced ions prevent local overcharging or offset voltage, reducing the risk of uneven ink deposition.
By maintaining a neutral surface, the substrate becomes receptive to inks, coatings, and adhesives, leading to smoother application.
3. Specific Benefits for Printing Quality
3.1 Dust and Particle Reduction
Neutral surfaces do not attract airborne dust or fibers.
Cleaner surfaces reduce blemishes and improve optical clarity in coated or glossy prints.
3.2 Improved Ink and Coating Adhesion
Charges that repel ink droplets are eliminated, ensuring uniform deposition.
Surface energy is stabilized, allowing coatings and laminates to bond consistently.
3.3 Reduced Static-Induced Defects
No misfeeds, sheet sticking, or curling due to electrostatic clinging.
Fewer jams and smoother handling, especially in high-speed presses.
3.4 Enhanced Productivity
Lower scrap rates and less rework.
Consistent print quality reduces post-processing adjustments.
Enables the use of thinner substrates or specialty films that are more prone to static issues.
4. Practical Implementation in Printing Lines
Placement and Height
Above the substrate path at 200–400 mm depending on material width and thickness.
Orientation parallel to movement ensures uniform coverage.
Integration
Fixed bars over rollers, feeding stations, or die-cutters.
Complemented by ionizing blowers for wider areas or irregularly shaped sheets.
Maintenance
Regular cleaning of emitter needles.
Verification of ion balance and decay time.
Integration with line monitoring for continuous static control.
5. Case Example
Flexible packaging line: A 600 mm ionizing bar installed above the film unwind station reduced pinholes and ink smearing by over 40%, enabling higher-quality laminates and faster throughput.
High-speed label printing: Ionizing bars over each feeding and die-cut station ensured perfect sheet separation and eliminated static cling, resulting in smoother printing and fewer rejects.
6. Conclusion
Ionizing bars are essential for high-quality printing in industries where precision, surface appearance, and functional coatings matter. By neutralizing static, they prevent particle attraction, enhance ink adhesion, and improve surface uniformity, while simultaneously increasing productivity and reducing waste. Proper layout, monitoring, and maintenance ensure consistent results across the production line.
