How to Use an Electrostatic Tester to Calibrate an Ionizing Bar (Comprehensive Guide)


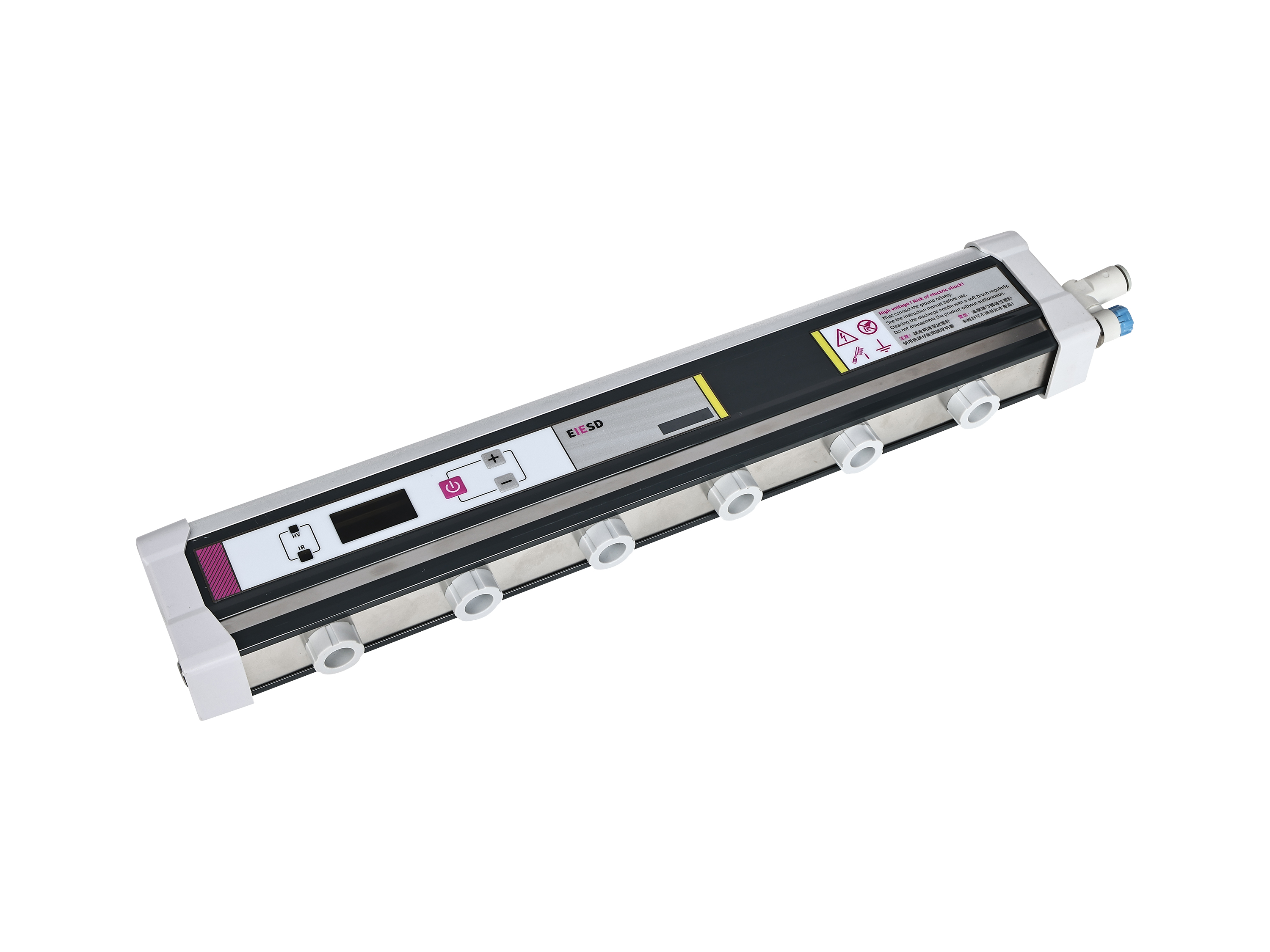

Ionizing bars are essential tools for neutralizing static electricity in electronics manufacturing, semiconductor processes, printing, optics, packaging, and other industries. To ensure optimal performance, ionizing bars must be regularly calibrated using professional electrostatic test instruments.


An electrostatic tester—such as a charged plate monitor (CPM) or a static field meter—is used to measure ion balance, decay time, and overall ionization performance. Proper calibration ensures that the ionizing bar maintains stable, accurate neutralization and meets industrial ESD (Electrostatic Discharge) standards.


This article provides a step-by-step, in-depth guide on how to use an electrostatic tester to calibrate an ionizing bar, including setup, measurement, fine-tuning, verification, and documentation.


1. Understanding the Electrostatic Test Instruments

1.1 Charged Plate Monitor (CPM)


A CPM is the standard instrument used for:


Ion balance measurement


Positive/negative decay time measurement


Performance verification of ionizers


It contains:


A grounded base


A metal plate (charge plate)


A built-in or external sensor


High-voltage charging module


Digital display


1.2 Handheld Static Field Meter


Used for:


Quick verification


Simple ion balance checks


While not as precise as a CPM, it is useful for field-level maintenance.


2. Tools and Materials Required


Before calibration, prepare the following:


Ionizing bar


Charged Plate Monitor (preferred) or static field meter


Ground cords


Stable DC power supply or ionizer controller


Compressed air (for air-assisted ion bars)


Isopropyl alcohol (IPA 99%) and lint-free swabs for needle cleaning


Air pressure regulator


Temperature & humidity meter


3. Preparation Before Calibration


Correct setup is essential for accurate results.


3.1 Environmental Requirements


Temperature: 20–26°C


Humidity: 40–60% RH


No excessive airflow, fans, or drafts


ESD-safe workbench properly grounded


3.2 Equipment Preparation


Clean the ionizing needles

Remove dust, carbon buildup, or oxidation using IPA and swabs.


Verify grounding

Both the CPM and ionizer must be grounded (<1 Ω recommended).


Power on the ionizer

Allow 5–15 minutes for the ionizer to stabilize.


Adjust airflow (if using an air ionizing bar)

Use manufacturer-recommended pressure (e.g., 0.2–0.6 MPa).


4. Setting Up the Testing Configuration


Correct geometrical setup ensures reliable measurements.


4.1 Positioning the Ionizing Bar


Place the ionizing bar:


Directly aligned with the center of the CPM plate


Typical distance: 200–300 mm


Ensure no tilt, obstruction, or angle deviation


4.2 Preparing the CPM


Connect the CPM to a ground point.


Verify the zero reading with the CPM plate neutral.


Charge the plate manually (depending on CPM mode):


+1000 V


–1000 V


Confirm that the CPM is operating in Ion Balance Mode for the first test.


5. Calibration Step 1: Ion Balance Measurement


The ion balance test determines whether the ionizing bar outputs equal amounts of positive and negative ions.


Procedure


Switch the CPM to Ion Balance (Offset Voltage) mode.


Let the ionizer operate normally for 2–5 minutes.


Observe and record the reading:


Example: +35 V (positive offset)


Example: –42 V (negative offset)


Interpreting Results


Good ion balance for sensitive electronics: ±10–20 V


General-purpose requirement: ±50 V


Poor balance: Above ±50 V (requires tuning)


6. Calibration Step 2: Adjusting the Ionizing Bar


Ion balance adjustments vary by model.


6.1 Using a Trim Pot or Screw Adjustment


Most ion bars have:


“Positive” and “Negative” balance screws


A single combined offset adjustment screw


Rules:


If CPM shows positive voltage, decrease positive output or increase negative output.


If CPM shows negative voltage, decrease negative output or increase positive output.


Adjust in 1–3 degree increments.


6.2 Digital or Software Adjustment


Some advanced bars allow:


Electronic bias adjustment


Software-based fine tuning


Automatic self-balancing


Follow manufacturer’s instructions.


6.3 High-Voltage Supply Adjustment


If the ion bar uses an external HV supply:


Adjust positive HV


Adjust negative HV


Keep both within rated specifications


After Each Adjustment


Allow 5–10 seconds for stabilization


Observe CPM reading again


Repeat until the ion balance falls within the target range


7. Calibration Step 3: Decay Time Measurement


Decay time measures how fast the ionizing bar neutralizes a static charge.


Procedure


Charge the CPM plate to +1000 V.


Start decay timer; measure time to reach 0 V.


Repeat for –1000 V.


Typical Expected Results


High-performance ion bars: <1.5 seconds


Medium-grade ion bars: 1.5–5 seconds


Poor performance: >5 seconds


If decay times are too long:


Clean needles


Increase airflow


Check HV module stability


Re-check grounding


8. Verification and Stability Testing


After completing adjustments:


Monitor the CPM reading for 1–2 minutes.


Ensure ion balance does not drift outside the acceptable range.


Recheck both +1000 V and –1000 V decay times.


Perform a second test at a different location along the ionizing bar's length (if long).


Stable results confirm successful calibration.


9. Documentation and Reporting


Record the following:


Ionizer model and serial number


CPM model and serial number


Date, time, and operator name


Environmental conditions (temperature & humidity)


Distance between ionizer and CPM


Air pressure settings (if applicable)


Initial ion balance


Final ion balance


Decay time (+1000 V and –1000 V)


Pass/Fail conclusion


Affix a calibration label indicating:


Calibration date


Next maintenance date


Technician initials


10. Common Problems and Solutions

Issue Root Cause Solution

Ion balance drifts during measurement Unstable airflow, poor grounding Stabilize environment, tighten ground

High positive/negative offset HV imbalance Adjust trim pots or HV supply

Slow decay time Dirty needles, low airflow Clean needles, increase pressure

Large variation along ion bar length Internal contamination, nozzle blockage Clean or repair ion bar

Conclusion


Using an electrostatic tester—especially a charged plate monitor—is the most accurate and reliable method for calibrating ionizing bars. By following a structured workflow including setup, measurement, tuning, verification, and documentation, technicians can ensure consistent static control performance, prevent charge-induced damage, and maintain compliance with ESD standards such as ANSI/ESD S20.20.
