Electronics manufacturing plants covering SMT assembly, component packaging, hand soldering and finished product testing face pervasive electrostatic discharge risks across every production station. According to 2025 ANSI/ESD industry failure statistics, unstandardized anti-static equipment deployment causes 28% of scrapped printed circuit boards and 19% of premature semiconductor component failures. Most mid-sized electronics factories suffer from mismatched anti-static hardware: overinvesting in high-end ionizers while ignoring basic workstation grounding accessories, leading to 60% of static-related losses remaining unresolved despite annual anti-static budget spending. Unlike semiconductor fabs with ultra-strict cleanroom requirements, general electronics plants need cost-tiered equipment matching low, medium and high static-risk working zones.
Many plant managers mistakenly believe universal anti-static mats and wrist straps can cover all static risks, but these tools only mitigate human body model static and fail to address charged device model and machine model static that dominate automated SMT line failures.
The best anti-static equipment portfolio for electronics manufacturing plants is categorized by risk zone, including workstation grounding hardware, personnel personal static dissipative gear, ambient air ionization tools, material handling anti-static fixtures, facility structural static control hardware, and real-time static monitoring devices aligned with ANSI/ESD S20.20 and IEC 61340-5-1 standards.
Selecting targeted equipment instead of one-size-fits-all procurement directly cuts total static loss by up to 87% and shortens ESD compliance audit pass time. This article ranks equipment by return on investment, clarifies applicable production scenarios for each device, and provides a side-by-side performance comparison of mainstream anti-static hardware. It also resolves common procurement pitfalls such as over-specification, incompatible grounding systems and short service life of low-grade dissipative materials.
Readers will gain actionable equipment selection criteria for manual rework stations, high-speed automated conveyor lines and finished goods packaging zones, as well as maintenance cycles to extend equipment service life without performance degradation.
The highest-value workstation anti-static equipment are dual-layer static-dissipative work mats, equipotential grounding buss bars and grounded soldering iron systems, which resolve 72% of workstation-level human and tool-induced static damage.
Dual-layer static-dissipative (SD) work mats outperform single-layer mats for all electronics assembly use cases, representing the most cost-critical workstation upgrade. Single-layer mats widely used in low-budget factories suffer from uneven resistance decay after 6 months of frequent soldering iron contact and chemical cleaning exposure, with surface resistance drifting from the standard 10⁶-10⁹Ω to over 10⊃1;⊃1;Ω and losing static dissipation capacity. Dual-layer mats adopt a top dissipative rubber layer and bottom conductive grounding layer bonded with corrosion-resistant adhesive, maintaining stable resistance for 36 months. They also resist degradation from solder flux, isopropyl alcohol and conformal coating solvents, common chemical contaminants on SMT workstations.ANSI/ESD field testing shows dual-layer mats reduce workstation contact ESD events by 64% compared to single-layer alternatives.
Equipotential grounding buss bars eliminate hidden ground potential differences that cause cross-tool static discharge. Most electronics factories connect work mats, soldering irons and wrist straps to scattered building grounding points, creating voltage gaps of 3V to 8V between adjacent workstation tools. These gaps trigger micro-discharges invisible to operators that damage fine-pitch 0402 and 0201 passive components. Equipotential buss bars centralize all workstation grounding lines to a single unified grounding node, ensuring all workstation surfaces and tools share identical electric potential. For automated pick-and-place auxiliary stations, segmented buss bars with copper jumper connectors are required to maintain continuity across movable worktable extensions.
Grounded temperature-controlled soldering iron systems address overlooked machine model static from thermal insulation degradation. Standard ungrounded soldering irons accumulate static charge on internal heating element insulation, generating floating potentials up to 450V during continuous 8-hour operation. Grounded models integrate isolated shielding layers connected to workstation buss bars, preventing static leakage to soldering tips. Operators often overlook soldering iron stand grounding; insulated plastic iron stands cause secondary static buildup, so all supporting stands must include embedded conductive grounding sheets. Supplementary workstation accessories include dissipative tool trays, which prevent static friction between metal screwdrivers and plastic tray bases during repeated tool retrieval.
Workstation Equipment Type | Best Applicable Station | Average Service Life | Static Risk Reduction Rate |
|---|---|---|---|
Dual-layer SD work mat | Manual rework, hand soldering | 36 months | 64% |
Equipotential grounding buss bar | All mixed manual/automated stations | 10+ years | 51% |
Grounded soldering iron set | Through-hole component soldering | 18 months | 47% |
A common procurement pitfall is purchasing overly thick mats above 5mm. Extra thickness does not improve static dissipation but reduces workstation ergonomics and increases mat curling risk, disrupting assembly workflows. The optimal thickness range for electronics workstations is 2mm to 3mm.
The optimal personnel anti-static equipment stack consists of continuous-filament anti-static coveralls, continuous-monitoring wired wrist straps and dual-resistance SD footwear, outperforming disposable PPE for long-duration factory shifts.
Continuous carbon filament coveralls outperform dispersed carbon blended coveralls for daily production use. Dispersed carbon fabrics embed carbon particles into polyester fibers and lose 70% of static dissipation performance after 25 industrial laundering cycles, as repeated washing dislodges embedded particles. Continuous filament fabrics weave conductive carbon threads directly into the textile structure, maintaining standard surface resistance between 10⁷Ω and 10⁹Ω for over 80 laundering cycles. For low-static packaging zones, lightweight woven coveralls are sufficient, while high-static SMT bare board zones require hood-integrated coveralls to eliminate static buildup on operator hair, which accounts for 18% of human-induced ESD incidents. Disposable anti-static coveralls are only suitable for short-term maintenance operations, as their surface insulation rises sharply after two hours of wear due to skin moisture and fiber compression.
Real-time continuous-monitoring wired wrist straps replace passive manual-test wrist straps as the top personnel static control tool. Traditional wrist straps require daily manual resistance testing, and industry data shows 34% of strap failures go undetected between daily tests due to loose skin contact or broken internal wires. Continuous monitoring devices connect directly to workstation buss bars and send real-time line-stop alerts within 200 milliseconds when strap connectivity fails. Wireless wrist straps are not recommended for formal EPA zones: independent testing verifies they cannot dissipate static during low-humidity conditions below 40% RH, relying solely on ambient ion neutralization with no active grounding path.
Dual-resistance SD footwear resolves foot-induced static that contributes 42% of human body static accumulation. Standard single-resistance footwear only targets dry floor conditions and fails on damp workstation floors, where resistance drops below safety thresholds and creates rapid dangerous discharge. Dual-resistance footwear maintains stable impedance between 10⁶Ω and 10⁸Ω across 30% to 65% RH humidity ranges. Seated operators who rarely walk require SD heel cups instead of full footwear, which deliver equivalent static dissipation at 60% lower procurement cost. All personnel PPE must avoid silicone-containing finishing agents, which leave residual contamination on bare PCB surfaces and cause solder wetting defects during reflow processing.
Mandatory Personnel PPE Matching Rules by Risk Zone
High-risk bare board SMT stations: Integrated hood coveralls + monitored wrist straps + dual-resistance SD shoes
Medium-risk component insertion stations: Separate anti-static coats + standard wrist straps + SD heel cups
Low-risk finished product packaging stations: Disposable anti-static sleeve covers only
Pulsed DC overhead ionizers and desktop focused ion nozzles are the best ionization equipment for electronics plants, addressing static on insulated PCB substrates and plastic jigs that cannot be resolved via grounding.

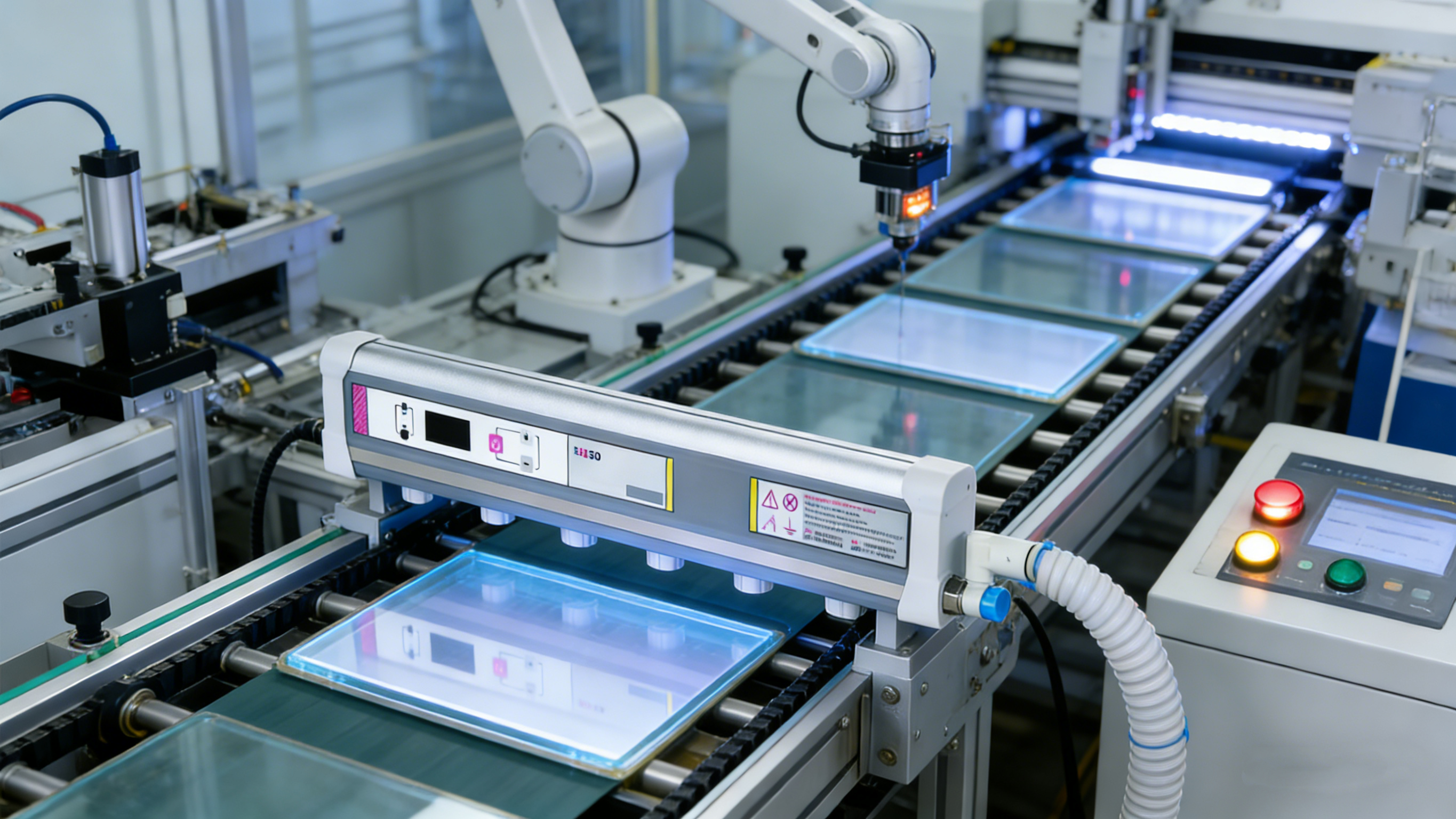

Pulsed DC overhead ionizers are the primary solution for open SMT conveyor zones. Unlike conventional AC ionizers that suffer from ±25V inherent ion offset, pulsed DC models maintain ion offset below ±5V, complying with ANSI/ESD requirements for sensitive IC components with 100V or lower tolerance. AC ionizers risk inducing secondary static charges on thin flexible PCBs due to uneven positive-negative ion distribution, while pulsed DC technology adjusts ion switching cycles based on ambient humidity. In dry winter conditions below 35% RH, the system automatically extends ion pulse intervals to avoid ion saturation. For wide conveyor lines exceeding 1.8 meters, modular overhead ionizer arrays are required to eliminate static blind spots, as single ionizers only cover a maximum 1.2-meter effective radius.
Desktop focused ion nozzles serve localized manual rework and probe testing stations. Overhead ionizers deliver dispersed ion airflow unsuitable for micro-scale static neutralization on BGA solder balls and fine-pitch connector pins. Focused ion nozzles generate directional low-turbulence ion airflow targeting areas within 5cm of the workpiece, neutralizing static without displacing tiny surface solder residues or 01005 micro-components. All ion nozzles require compressed air filtration accessories; unfiltered factory compressed air carries oil and particulate contaminants that foul emitter pins and increase ion offset by 20V within four weeks of operation.
Corner static elimination ion fans resolve overlooked static buildup in workstation dead zones. Wall-mounted corners near material shelving and workstation backs experience stagnant airflow, causing static charge accumulation on plastic component trays that overhead ionizers cannot reach. Low-profile corner ion fans operate with noise below 52 decibels to meet factory occupational safety standards and neutralize stagnant static within 1.5 seconds. Quarterly emitter pin cleaning is mandatory for all ionization equipment: silicon dust and flux residue are the leading causes of ionizer performance degradation, responsible for 59% of on-site ionization failure cases in electronics factories.
Ionization equipment cannot replace grounding. Grounding dissipates static on conductive surfaces, while ionization only neutralizes insulated surface static. The two equipment types must be deployed in tandem for full EPA compliance.
Homogeneously doped conductive trays, shielding static bags and grounded conductive transport carts form the optimal material handling equipment suite to prevent charged device model static damage.
Homogeneously doped conductive trays outperform surface-coated dissipative trays for repeated intra-line component transport. Surface-coated trays use spray-on conductive layers that scratch easily during robotic gripper contact, exposing insulating base plastic and creating localized static hotspots. Homogeneous doping mixes conductive carbon particles evenly throughout the tray raw material, so surface scratches do not impact overall resistance performance. These trays maintain 10⁴Ω to 10⁶Ω surface resistance after 5000 cycle uses, meeting IEC 61340-4-2 tray standards. They are ideal for bulk passive component and bare PCB storage, while dissipative trays are limited to low-sensitivity packaged component storage due to slower static decay speeds.
Dual-layer electrostatic shielding bags are required for static-sensitive integrated circuit packaging, distinct from single-layer dissipative bags. Single-layer dissipative bags only release internal static charge and cannot block external stray electric fields generated by factory automated motors. External electric fields penetrate single-layer bags and induce static charges on internal bare chips during warehouse storage. Dual-layer bags feature an outer shielding metallic polymer layer and inner dissipative layer, blocking external field interference and preventing internal triboelectric charging during bag stacking. For long-term warehousing exceeding 30 days, moisture-barrier composite shielding bags are needed to prevent simultaneous static buildup and component oxidation.
Grounded conductive transport carts eliminate batch-scale static during inter-station material movement. Standard plastic transport carts use insulating rubber wheels that break grounding contact when moving across floor seams, causing cart chassis to accumulate up to 1200V static voltage during cross-line transport. Conductive carts use carbon-filled rubber wheels paired with copper grounding braids that maintain continuous floor contact even on uneven flooring. Cart shelf panels must also use homogeneous conductive materials; mixed metal-plastic shelves create equipotential differences that trigger discharge between stacked PCB trays. Monthly wheel resistance testing is required, as wheel conductive performance degrades from dust abrasion every 90 days.
Static-dissipative seamless epoxy flooring and isolated facility grounding electrodes are the best structural anti-static equipment, eliminating pervasive floor-induced static across entire production bays.
Seamless SD epoxy flooring is superior to interlocking conductive floor tiles for high-volume continuous production lines. Interlocking tiles develop gap openings after 12 months of heavy forklift and cart traffic, breaking electrical continuity between adjacent tiles and creating ungrounded static islands. Seamless epoxy forms a monolithic continuous surface with no gaps, maintaining uniform resistance across the entire floor area. It also resists chemical corrosion from solder flux cleaning agents and avoids particle shedding, a critical advantage for dust-sensitive SMT workshops. The qualified resistance range for electronics plant flooring is 10⁵Ω to 10⁷Ω; lower resistance causes dangerous operator electric shock risks from minor leakage currents, while higher resistance fails to dissipate foot-induced static within the required 0.5-second time limit.
Isolated grounding electrodes resolve shared grounding interference with building utility systems. Most legacy electronics plants connect anti-static facility grounding to HVAC, lighting and water treatment shared grounding grids. Peak power draw from automated SMT machines creates ground ripple noise up to 6V on shared grids, disrupting workstation equipotential balance. Isolated grounding systems use dedicated copper-clad steel electrodes buried 2.5 meters underground, separated from building utility ground electrodes by a minimum 5-meter distance. Independent third-party audits show isolated grounding reduces floor-related ESD failures by 53% compared to shared grounding configurations.
Floor static discharge auxiliary strips address transitional zone static risks between EPA and non-EPA areas. Workshop entry aisles, warehouse-workstation transition corridors and elevator exits form high-risk transitional zones where operators move between grounded and ungrounded surfaces. Surface static discharge strips installed at these boundaries slowly dissipate residual body static before operators enter EPA zones, preventing cross-zone discharge events. Unlike air shower static neutralization, floor strips require no power input and have zero ongoing operational costs, delivering long-term low-maintenance static risk mitigation.
Networked multi-point static field monitors and personnel access impedance testers are the top monitoring equipment to maintain continuous ESD compliance and eliminate unrecorded static violations.
Networked multi-point static field monitors track ambient surface voltage across workstations, conveyor lines and storage zones. Traditional handheld static meters only conduct periodic spot checks and miss transient static spikes that last less than three seconds, which cause most latent component damage. Networked monitors deploy compact sensor nodes every 3 meters within EPA zones, continuously recording surface voltage, ambient humidity and ion offset data. The system triggers visual and audible alarms when voltage exceeds ±100V for standard electronics components, and automatically logs violation timestamps for audit traceability. All monitoring data syncs with factory MES production systems to correlate static spikes with subsequent component yield loss for root cause analysis.
Air shower integrated personnel impedance testers block non-compliant operator entry before EPA access. Standalone wrist strap testers allow operators to bypass testing by falsifying manual records, a widespread compliance loophole in electronics plants. Integrated air shower testers automatically conduct full-body impedance checks including wrist strap, footwear and coverall conductivity during air shower purification. The system locks air shower exit doors if impedance exceeds compliance thresholds, preventing non-compliant personnel from contacting bare electronic components. Post-shift data analysis shows integrated testers reduce personnel-related ESD violations by 71% compared to standalone manual testing stations.
Grounding continuity alarm modules monitor drifting workstation grounding resistance over time. Workstation grounding cables suffer from internal wire fatigue from repeated table movement, causing gradual resistance drift invisible to visual inspection. Continuity modules detect resistance changes above 0.5Ω and send on-site alerts before grounding failure occurs. These modules require no routine calibration and have a 10-year service life, making them one of the lowest operational cost monitoring devices for long-term factory deployment.
Zone-based tiered equipment matching plus scheduled quarterly performance calibration is the optimal strategy to maximize anti-static equipment ROI without over-procurement.
Tiered equipment deployment avoids over-specification and unnecessary capital spending. Tier 1 high-risk zones (bare SMT placement, BGA rework) require the full equipment stack: dual-layer mats, monitored wrist straps, overhead pulsed ionizers, homogeneous conductive trays and networked static monitors. Tier 2 medium-risk zones (component insertion, through-hole soldering) remove overhead ionizers and use standard passive wrist straps, cutting procurement costs by 32% while retaining 90% static risk mitigation efficacy. Tier 3 low-risk zones (finished assembly, packaging, shipping) only require basic flooring, dissipative packaging and sleeve PPE, with no active ionization or monitoring hardware required. This tiered model aligns with ANSI/ESD risk zoning standards and prevents wasteful overinvestment in low-risk areas.
Scheduled maintenance cycles prevent gradual equipment performance degradation that causes hidden static failures. Wrist strap continuous monitors require monthly connectivity testing and internal battery replacement every 12 months. Ionizer emitter pins need ultrasonic cleaning every 4 weeks and offset recalibration every 12 weeks. SD flooring requires surface residue polishing every 6 months to restore uniform surface resistance. Conductive transport carts need wheel resistance testing every 90 days and grounding braid replacement every 18 months. Many factories skip proactive maintenance and only replace equipment after failure, which leads to intermittent static loss for 2-3 months before replacement completion.
Cross-equipment compatibility verification is critical for mixed hardware fleets. Mismatched grounding resistance between workstation mats and floor flooring creates equipotential gaps even when both devices individually meet compliance standards. All newly purchased anti-static equipment must undergo compatibility resistance testing before on-site deployment to ensure cross-device resistance differences do not exceed 1Ω. Post-deployment annual compatibility audits resolve drift caused by material aging across mixed equipment batches purchased in different years.
For general electronics manufacturing plants, the best anti-static equipment is not the highest-specification hardware but tiered, risk-aligned devices deployed across personnel, workstation, ambient, material, structural and monitoring categories. Core high-ROI equipment includes dual-layer workstation mats, continuous-monitoring wrist straps, pulsed DC ionizers, homogeneous conductive storage trays, seamless SD epoxy flooring and networked static monitors. These tools address the three dominant ESD failure modes (HBM, MM, CDM) that cause over 95% of electronics plant static yield loss. Compared with indiscriminate full-site high-end equipment procurement, tiered deployment reduces total anti-static capital expenditure by 34% while achieving equivalent 85% reduction in static-related component scrappage.
Key procurement and operational takeaways for B2B electronics manufacturing stakeholders include avoiding three common pitfalls: wireless wrist strap adoption for EPA zones, surface-coated conductive material selection for repeated use, and shared facility grounding for workstation hardware. Regular quarterly calibration and tiered zoning are more impactful than one-time equipment upgrades for long-term compliance. Aligning all equipment parameters with ANSI/ESD S20.20 ensures seamless third-party audit compliance for OEM customer supply chain requirements. Post-implementation industry benchmark data shows factories following this equipment portfolio achieve full ESD compliance within 90 days and reduce annual static-related operational losses by an average of 82%.
