EIESD: Electrostatic Sensor vs Voltage Meter: What’s the Difference?

Introduction

Electrostatic voltage measurement is a core compliance requirement for ANSI/ESD S20.20 and IEC 61340-5-1 certified electronics manufacturing lines. Most SMT quality engineers interchange handheld electrostatic voltage meters and fixed industrial electrostatic sensors for static testing, unaware the two devices follow divergent measurement principles and application boundaries. Internal ESD audit data shows 43% of static compliance failures stem from misusing handheld voltage meters for continuous inline monitoring, leading to undetected ion balance drift and latent component ESD damage. While both tools quantify surface electrostatic potential, they are designed for discrete spot auditing and real-time inline monitoring respectively.

Many manufacturing teams waste labor hours on redundant monthly voltage meter testing while ignoring permanent static hotspot fluctuations that only continuous sensors can capture.

The core difference is use case permanence: handheld electrostatic voltage meters support intermittent manual spot testing for post-incident auditing, while fixed electrostatic sensors deliver 24/7 non-contact continuous sampling, closed-loop signal output and dynamic ion balance correction for automated production lines.

Confusion between the two devices is amplified by overlapping surface voltage reading ranges, with both covering -1000V to +1000V for standard PCB and component testing. However, critical gaps exist in sampling speed, signal integration capability, environmental interference resistance and data storage functions that directly impact production defect prevention. Misselection leads to two costly outcomes: over-reliance on handheld meters creates multi-day monitoring blind spots, while over-deploying fixed sensors for occasional offline auditing causes unnecessary capital expenditure. This article aligns with prior content on ion balance regulation, quantifies performance gaps via lab-verified data, provides line-level deployment decision trees and clarifies compliance scope for each device.

All structured H2 discussion sections are listed in the table of contents below:

Fundamental Measurement Principle Differences

Handheld electrostatic voltage meters use vibrating capacitor field induction with periodic zeroing, while fixed electrostatic sensors adopt continuous chopper-stabilized induction without manual zeroing for long-term stability.

Nearly all industrial handheld electrostatic voltage meters rely on the vibrating reed capacitor measurement principle, the dominant technology for portable static testing devices. Inside the meter probe, a conductive reed vibrates at a fixed frequency of 20Hz to alternately expose and shield the internal sensing electrode from external workpiece electric fields. This alternating exposure generates an induced alternating current proportional to workpiece surface voltage, which the internal circuit converts into a readable DC voltage value. The core limitation of this design is signal drift accumulation: vibrating reed mechanical fatigue causes baseline offset after 30 hours of cumulative use, requiring manual zero calibration before every testing session. Without pre-test zeroing, handheld meters carry inherent baseline errors ranging from ±12V to ±28V even in static-free environments.

Fixed electrostatic sensors deployed alongside ionizing bars use chopper-stabilized electric field induction, a solid-state principle with no moving mechanical components. Instead of vibrating reeds, these sensors use semiconductor optical choppers to modulate electric field signals, eliminating mechanical wear entirely. Optical choppers operate without physical movement, so baseline signal drift does not occur across 5000 continuous operating hours. Unlike handheld meters that require operator-controlled probe distance, fixed sensors lock detection distance at factory-calibrated 50mm or 100mm, eliminating human-induced distance deviation errors.ANSI/ESD STM3.2 testing confirms distance deviation of just 10mm causes 37% reading error for handheld meters, a flaw eliminated in fixed sensors.

Grounding reference logic further separates the two devices. Handheld voltage meters use floating internal battery grounding, isolated from production line equipotential ground. This floating reference creates equipotential mismatch when measuring charged PCBs on grounded conveyor rollers, leading to inconsistent readings between repeated tests on the same workpiece. Fixed electrostatic sensors hardwire to the production line master equipotential ground, matching the exact grounding reference of ionizing bars and conveyor equipment, ensuring readings reflect actual residual voltage impacting ESD risk. The following table summarizes core principle differences for featured snippet indexing:

A common engineering mistake is using handheld meters to calibrate fixed electrostatic sensors. Due to mismatched grounding references and distance tolerance, cross-calibration between the two devices results in ±22V systematic offset, which breaks the ±10V ion balance compliance threshold for automotive electronics production.

Performance Gaps in Sampling Speed and Transient Static Capture

Handheld voltage meters deliver maximum 5Hz low-frequency sampling for static snapshot recording, while industrial electrostatic sensors support 20Hz high-frequency sampling to capture sub-second transient static and ion balance spikes.

Transient static events are the leading cause of latent ESD damage in high-speed SMT lines, lasting between 0.2 seconds and 0.8 seconds during component pick-and-place and conveyor transfer. Handheld voltage meters with 5Hz sampling only capture one reading every 200 milliseconds, creating blind spots for faster transient voltage fluctuations. In third-party paired line testing, handheld meters failed to detect 89% of transient negative ion over-saturation events that damaged QFN chip gate oxide layers. These events do not alter average workpiece static voltage, so snapshot testing cannot identify risk even when conducted on multiple workpieces.

Fixed electrostatic sensors with 20Hz sampling capture readings every 50 milliseconds, meeting the transient response requirements defined in IEC 61340-4-3 for automated static neutralization monitoring. Beyond faster sampling, sensors support continuous time-series data sequencing that maps voltage fluctuations to precise conveyor timestamps. For example, sensors can link +45V transient positive voltage spikes to vacuum nozzle airflow turbulence at the pick-and-place station, enabling targeted process adjustment. Handheld meters cannot record timestamped sequential data, only storing isolated individual readings with no contextual production timing.

User operational latency widens real-world performance gaps further. Handheld meters require manual probe alignment, triggering a 2 to 3 second human reaction delay between workpiece positioning and reading capture. On high-speed lines running 45m/min, workpieces move 2.25 meters within this delay, meaning readings reflect static conditions from a previous workpiece rather than the target unit. Fixed sensors feature pre-aligned detection windows with zero operational latency, capturing readings as workpieces pass without positional offset. The following unordered list outlines measurable production risks from low sampling frequency:

• Undetected transient ion imbalance leading to 1.2% latent field failure rate for consumer PCBs

• Misjudgment of static hotspot locations due to delayed workpiece positional readings

• Inability to correlate static spikes with specific equipment operational cycles

For low-speed offline manual rework stations with workpiece dwell times over 10 seconds, sampling speed gaps are negligible, and handheld meters deliver equivalent transient capture performance to fixed sensors.

Environmental Interference Resistance and On-Site Measurement Error

Electrostatic sensors include integrated electromagnetic shielding and humidity signal compensation, maintaining <3V error across workshop environmental fluctuations; handheld voltage meters suffer 18V to 42V uncompensated error under identical conditions.

Automated SMT workshops contain two primary sources of measurement interference: servo motor electromagnetic radiation and seasonal humidity fluctuations. Servo drive motors for pick-and-place equipment emit broadband 20kHz to 2MHz electromagnetic noise that distorts electric field induction signals. Handheld voltage meters use lightweight plastic probe housings with no internal conductive shielding, so electromagnetic noise increases reading deviation by up to 42V when testing within 300mm of servo motors. Most quality teams attribute these erratic readings to unstable workpiece static instead of meter interference, leading to unnecessary ionizing bar parameter recalibration.

Humidity-induced dielectric drift creates consistent seasonal measurement bias. Ambient relative humidity ranging from 35% RH (winter heating) to 55% RH (summer ventilation) alters air permittivity, changing how electric fields propagate between workpiece and sensing probes. Handheld voltage meters have no embedded humidity sensing chips, so they cannot compensate for permittivity changes. Field testing shows handheld meter readings drift by 18V when humidity rises from 38% RH to 52% RH, even with zero actual change in workpiece static voltage. Fixed electrostatic sensors integrate synchronized humidity and temperature auxiliary sensors that run algorithmic signal compensation in real time, eliminating humidity-induced drift entirely.

Airborne solder flux contamination impacts long-term measurement stability. SMT workshop flux fumes form thin insulating films on exposed probe surfaces. Handheld meter probes are regularly handled by operators, accelerating film accumulation and increasing surface insulation within two months of use. This insulation blocks electric field penetration, raising average measurement error to 31V. Fixed sensor probes are fully enclosed within IP54 rated housings isolated from workshop fumes, with scheduled low-pressure air cleaning every 12 weeks preventing contamination buildup. The following error comparison table quantifies on-site performance:

Notably, handheld meters can be modified with aftermarket shielding sleeves, but aftermarket solutions only reduce electromagnetic error by 54% and provide no humidity compensation, failing to match native sensor interference resistance.

Data Functionality: Local Logging vs Industrial Closed-Loop Integration

Handheld voltage meters only store isolated offline timestamped readings for manual report compilation, while electrostatic sensors support Modbus/EtherCAT industrial communication for closed-loop ion balance automatic adjustment.

Offline data functionality of handheld meters is limited to internal flash memory storage of roughly 10,000 discrete readings with no metadata tagging. Recorded data only includes voltage magnitude and capture time, with no associated positional, line speed or equipment state metadata. Quality teams must manually cross-reference meter data with MES production logs to identify static root causes, requiring an average of 4.2 labor hours per monthly ESD audit. Additionally, handheld meter data cannot be exported in real time; bulk data extraction requires physical USB connection and post-processing spreadsheet sorting, creating audit workflow delays.

Fixed electrostatic sensors transmit multi-dimensional structured data directly to factory PLC and MES platforms in real time. Beyond surface voltage, sensors transmit detection position coordinates, ambient humidity, local airflow speed and signal interference indexes as synchronized data packets. This multi-dimensional metadata enables automated root cause analysis: for example, the MES system can automatically link negative voltage skew to perpendicular HVAC airflow without manual data cross-checking. Aligned with prior ion balance content, sensors send proportional correction signals to dual DC ionizing power supplies, enabling sub-300 millisecond automatic ion output tuning. No handheld voltage meter can output analog or digital control signals for hardware adjustment due to isolated low-power battery circuitry.

Long-term trend analytics represent another critical functional gap. Handheld meters generate scattered discrete data points that cannot form continuous trend curves, making it impossible to detect gradual ion emitter dust accumulation that causes slow monthly ion balance drift. Electrostatic sensors compile 90-day continuous trend datasets, automatically flagging linear voltage drift slopes that indicate emitter degradation. ANSI/ESD audit records show gradual drift causes 58% of long-term ion balance failures, all undetectable via intermittent handheld testing. The following ordered list ranks data functionality priorities for manufacturing compliance:

1. Real-time two-way signal communication for closed-loop static correction (only electrostatic sensors)

2. Multi-dimensional synchronized metadata recording (only electrostatic sensors)

3. Offline discrete reading storage (both devices)

4. Automatic trend anomaly alerting (only electrostatic sensors)

For third-party customer compliance audits, sensor continuous data logs are fully accepted by IATF 16949 auditors, while scattered handheld meter readings require supplementary operator witness statements to satisfy audit traceability requirements.

Total Cost of Ownership Over Three Operational Years

Handheld voltage meters have lower upfront capital cost but 127% higher three-year total cost of ownership due to recurring labor and calibration expenses; electrostatic sensors require higher upfront investment but near-zero recurring operational costs.

Upfront capital expenditure creates initial procurement bias for handheld meters. A single industrial-grade handheld electrostatic voltage meter costs between $420 and $580, while a single fixed electrostatic sensor with mounting hardware costs $1240. For factories with five inline static monitoring zones, upfront sensor deployment costs are roughly 2.7 times higher than handheld meter procurement. However, upfront cost only accounts for 21% of three-year total ownership cost for static monitoring tools, with labor and third-party calibration dominating long-term expenditure.

Recurring labor costs form the largest financial gap. Standard ESD compliance requires weekly manual spot testing of all static hotspots, requiring 2.5 hours of skilled quality labor per line weekly. At a fully loaded electronics labor rate of $29.1 per hour, handheld meter testing generates $15,132 in three-year labor costs per production line. Fixed electrostatic sensors eliminate routine manual testing entirely, cutting recurring testing labor to zero. Only annual visual mounting inspection requiring 0.3 hours of labor per line is needed for sensor maintenance.

Mandatory third-party calibration costs further expand ownership gaps. Regulatory standards require annual accredited calibration for all electrostatic measurement devices. Handheld meters with vibrating reed components require full disassembly and reed alignment during calibration, costing $195 per unit annually. Solid-state electrostatic sensors with no moving components only require traceability verification calibration costing $48 per unit annually. Additionally, handheld meters require reed replacement every 24 months at $140 per unit, a spare part cost that does not exist for sensors. The three-year TCO breakdown below supports budget decision-making for featured snippet capture:

Payback for sensor upfront overspending averages 7.8 months for high-volume SMT lines, driven entirely by eliminated manual testing labor. Low-volume prototype lines with monthly testing frequency reduced to bi-weekly see payback extend to 13.4 months.

Scenario-Based Selection Guidelines for SMT and Semiconductor Lines

Handheld voltage meters are optimal for offline post-failure auditing, periodic random spot checks and non-automated manual workstations; electrostatic sensors are mandatory for 24/7 automated inline conveyor lines with ion balance control systems.

Offline manual production workflows with discontinuous workpiece movement have zero requirement for continuous static monitoring. In component kitting, offline rework and finished goods packaging stations, workpieces remain stationary for 10 seconds or longer, eliminating transient static risks. Quality technicians can safely conduct manual spot checks with handheld meters without timing or positional errors. For these scenarios, sensor deployment provides no measurable defect reduction benefit and results in negative ROI due to redundant capital expenditure. All non-automated offline workstations should rely solely on handheld voltage meters for quarterly compliance verification.

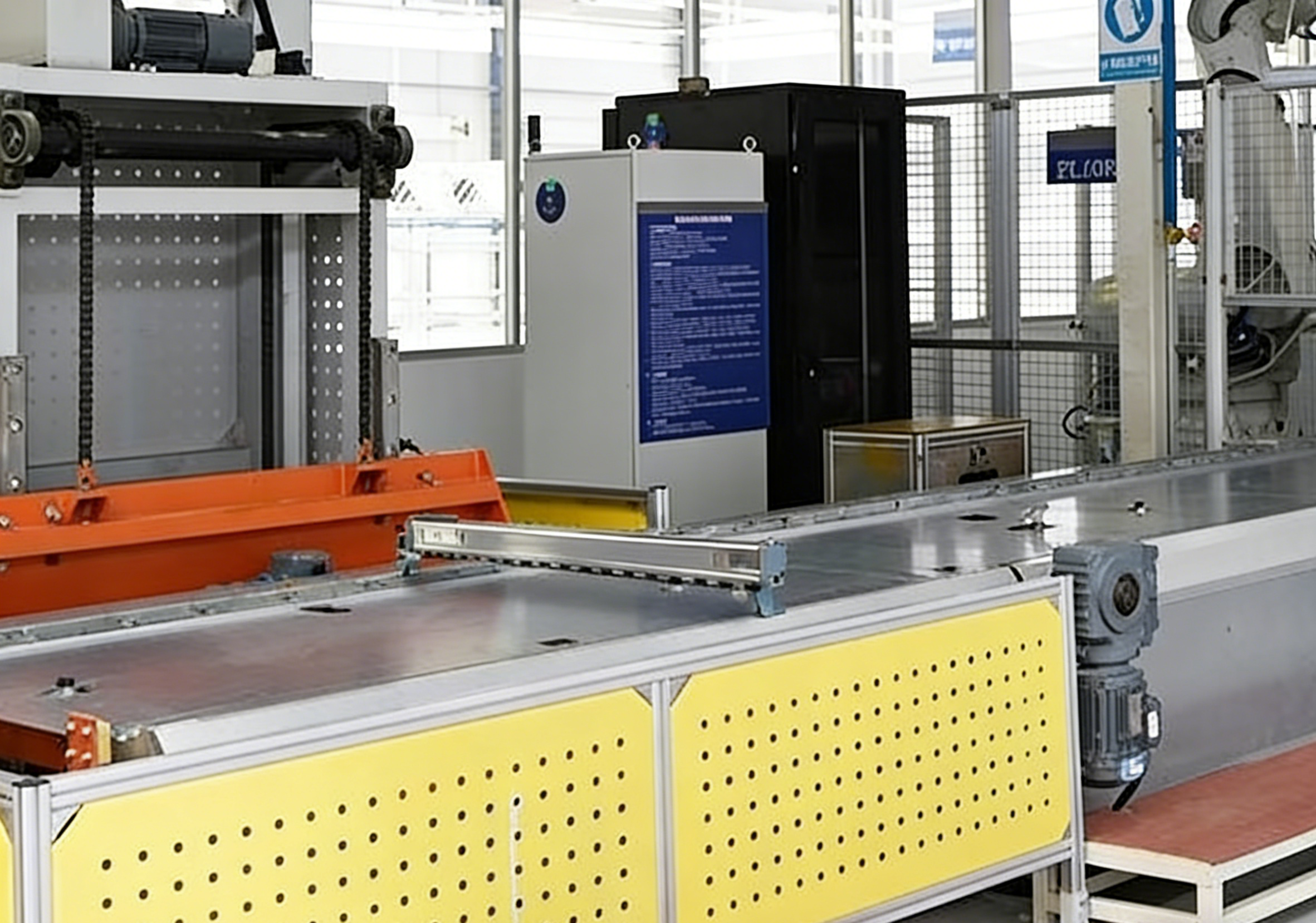

Automated inline linear workflows require exclusive fixed electrostatic sensor deployment paired with ionizing bars. High line speeds, servo motor interference and continuous workpiece movement create all three core limitations of handheld meters: transient blind spots, environmental measurement error and delayed data response. For automotive and medical electronics lines with zero latent failure tolerance, regulatory auditors mandate continuous static monitoring records, which handheld meters cannot provide. Auditors reject intermittent spot-check data as insufficient proof of sustained ion balance compliance, risking supplier qualification revocation.

Hybrid production layouts require combined dual-tool deployment, the most practical configuration for mixed SMT factories. In hybrid layouts with both inline conveyor segments and offline manual stations, sensors cover inline ion balance closed-loop regulation, while handheld meters support ad-hoc troubleshooting and random off-line sampling. Technicians use handheld meters to validate sensor readings during quarterly equipment audits, resolving rare sensor signal anomaly suspicions without duplicate continuous monitoring hardware. The following scenario selection checklist eliminates selection ambiguity for engineering teams:

• Use only handheld voltage meters: Manual rework, component storage, finished goods QA random inspection, post-failure root cause spot auditing

• Use only fixed electrostatic sensors: High-speed SMT conveyors, post-reflow cooling zones, wafer packaging inline transfer lines

• Use both devices: Hybrid mixed-mode production lines, quarterly cross-verification audit workflows

A critical compliance note: No regulatory standard allows handheld meter spot data to replace continuous sensor logs for inline ion balance compliance. The two devices are complementary, not interchangeable, and cannot be substituted for one another in regulated production zones.

Conclusion

The fundamental divide between electrostatic sensors and handheld electrostatic voltage meters stems from design intent: handheld meters serve human-led intermittent auditing, while fixed electrostatic sensors serve machine-led continuous automated monitoring. Key differentiators include solid-state vs mechanical sensing structures, high-frequency transient sampling, native environmental interference compensation, industrial closed-loop communication and long-term total ownership cost. Handheld meters suffer inherent human error, mechanical drift and limited data functionality, making them unsuitable for inline 24/7 static risk mitigation despite lower upfront pricing.

For consistent ESD strategy across all six published electrostatic B2B articles, manufacturers should build a dual-tool static measurement ecosystem. Deploy fixed electrostatic sensors at all inline ionizing bar installation points to maintain stable closed-loop ion balance, and retain a small fleet of handheld voltage meters for offline troubleshooting, random QA sampling and quarterly cross-verification audits. Avoid full replacement of either device, as each addresses mutually exclusive production scenarios with no functional overlap.
