Static electricity is an invisible but costly challenge in many industrial environments. From electronics manufacturing and plastic processing to printing, packaging, medical device production, and semiconductor assembly, electrostatic charges can reduce product quality, attract contaminants, damage sensitive components, and even create safety risks. As manufacturing standards become increasingly demanding, controlling static electricity has become an essential part of modern production.
Among the many static control solutions available today, the anti-static ionizing air bar has become one of the most effective and widely adopted technologies. It provides continuous ionized airflow that neutralizes static charges without making physical contact with products. This allows manufacturers to improve production efficiency while reducing defects and equipment downtime.
An anti-static ionizing air bar works by generating balanced positive and negative ions through a high-voltage electric field. Compressed air carries these ions toward the charged object, where they neutralize excess static electricity on the surface. Once the electrical charge is balanced, dust attraction decreases, electrostatic discharge risks are minimized, and production quality improves.
Understanding how an ionizing air bar functions helps engineers, purchasing managers, and maintenance personnel choose the right static elimination solution for their production lines. While the operating principle appears straightforward, several components work together to produce reliable ionization, maintain charge balance, and deliver consistent airflow across different industrial applications.
This guide explains the working principle of anti-static ionizing air bars, their internal components, operating process, applications, advantages, maintenance requirements, and key considerations when selecting the appropriate system for industrial use.
An anti-static ionizing air bar eliminates static electricity by producing balanced positive and negative ions and directing them onto charged surfaces using compressed air, allowing electrical charges to neutralize rapidly and safely.
The operating principle begins with a high-voltage power supply connected to a series of emitter needles inside the air bar. These sharp emitters create an intense electric field around their tips. As air molecules pass through this field, they become ionized, meaning electrons are either removed or added, creating positively and negatively charged ions.
Compressed air flowing through the air bar transports these ions toward the target surface. Unlike passive anti-static devices that rely solely on environmental conditions, the forced airflow ensures ions reach products quickly, even over relatively long distances or in enclosed production equipment.
When the ionized airflow reaches a charged object, the excess electrical charge attracts ions of the opposite polarity. A positively charged object attracts negative ions, while a negatively charged object attracts positive ions. This process continues until the electrical potential approaches zero, effectively removing static buildup without damaging the product.
Static elimination occurs through electrical charge balancing rather than grounding, making ionizing air bars suitable for insulating materials that cannot easily dissipate static electricity.
An ionizing air bar consists of several integrated components that work together to generate ions, distribute airflow, and ensure consistent static neutralization.
Although designs vary depending on industrial requirements, most ionizing air bars share a similar internal structure. Understanding these components helps users evaluate product quality and maintenance requirements.
The primary components include:
Component | Function |
|---|---|
High-voltage power supply | Provides electrical energy for ion generation |
Emitter needles | Create corona discharge that ionizes air molecules |
Air manifold | Distributes compressed air evenly |
Protective housing | Protects internal components from contamination |
Grounding system | Maintains operational safety |
Mounting brackets | Allow installation on production equipment |
The emitter needles are among the most important components. Manufactured from durable conductive materials, they continuously generate corona discharge while resisting wear. Their spacing determines the uniformity of ion distribution across the working area.
The air channel design also plays a significant role. Uniform airflow ensures ions are distributed consistently across the full width of the air bar, maximizing static elimination efficiency while reducing compressed air consumption.
Positive and negative ions are generated through a phenomenon called corona discharge, where high voltage creates an electric field strong enough to ionize surrounding air molecules.
Corona discharge occurs at the tips of sharp emitter needles because electric fields naturally concentrate around pointed conductive objects. When the applied voltage exceeds the ionization threshold of air, nearby molecules become electrically charged.
Some molecules lose electrons and become positive ions, while others gain electrons and become negative ions. A balanced ionizer carefully controls this process to generate nearly equal quantities of both polarities, preventing charge imbalance during operation.
Modern power supplies continuously monitor output voltage to maintain stable ion production even when environmental conditions such as humidity or temperature fluctuate. Stable ion balance contributes directly to faster neutralization times and higher production consistency.
Without proper balance, an ionizer may unintentionally leave residual charges on products. Therefore, precision power management has become an important design consideration in industrial static elimination equipment.
Ionized air neutralizes static electricity by supplying opposite electrical charges that combine with excess surface charges until electrical equilibrium is reached.
Static electricity develops when electrons transfer between materials through friction, separation, or handling. Since many industrial materials are electrical insulators, these charges remain trapped on product surfaces for extended periods.
When ionized airflow reaches the charged surface, electrostatic attraction causes opposite ions to migrate toward the surface while like-charged ions are repelled. This natural attraction allows neutralization to occur without physical contact.
The compressed air not only transports ions efficiently but also helps remove loose dust particles that may already be attached by electrostatic forces. Consequently, ionizing air bars often perform both static elimination and surface cleaning simultaneously.
The speed of neutralization depends on several variables including airflow velocity, distance from the target, ion concentration, environmental humidity, and the magnitude of the original static charge.
Ionizing air bars are widely used in industries where static electricity affects product quality, equipment performance, cleanliness, or operator safety.
Because they provide non-contact static elimination, ionizing air bars can be installed above conveyor belts, production lines, winding machines, inspection stations, packaging systems, and automated assembly equipment.
Typical industries include:
Electronics manufacturing
Semiconductor fabrication
Plastic extrusion
Film converting
Printing
Packaging
Textile manufacturing
Medical device production
Automotive component manufacturing
Optical equipment assembly

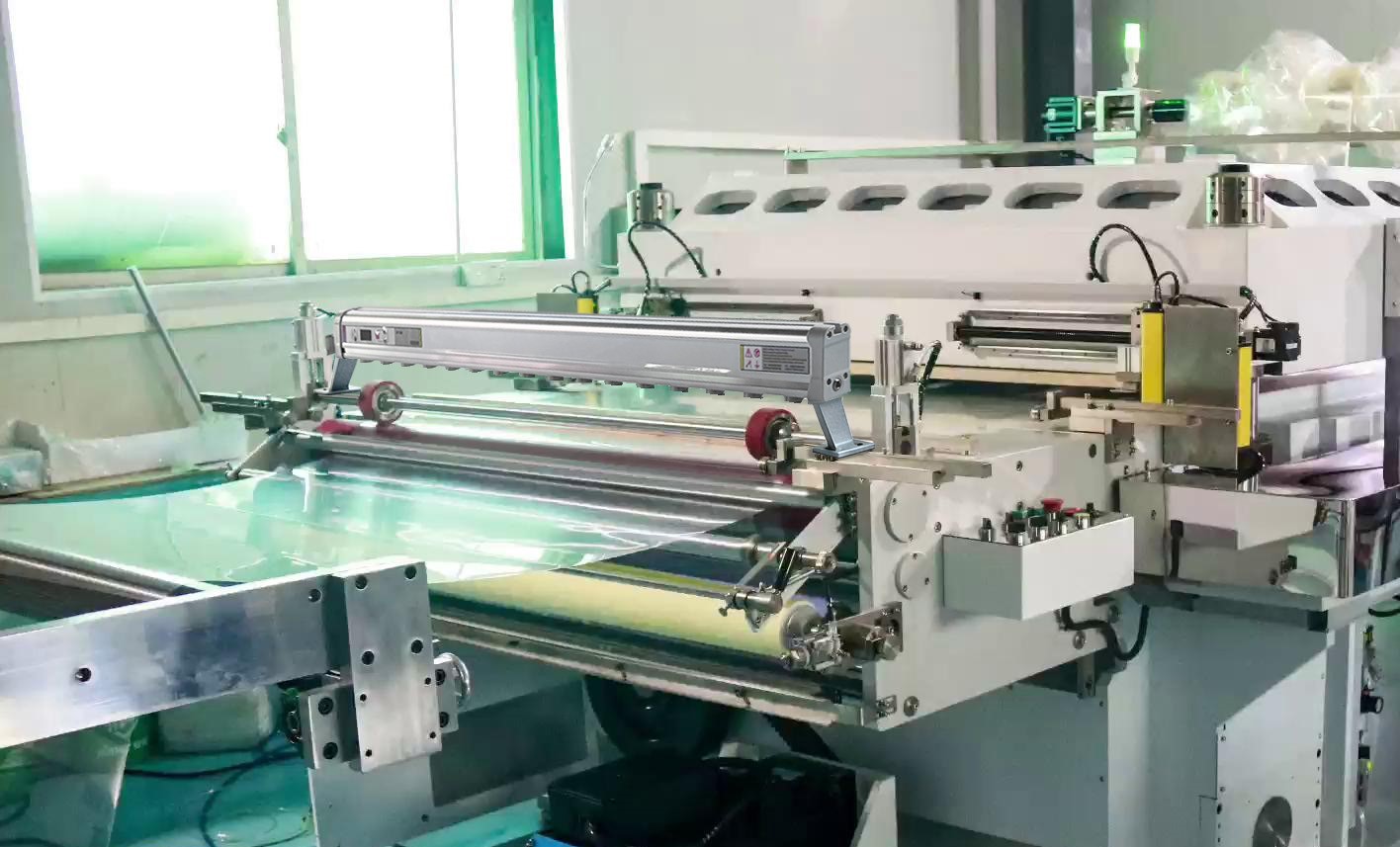

For example, during plastic film production, static electricity can cause films to cling together, attract contaminants, or interfere with winding tension. An ionizing air bar installed near the winding section significantly reduces these issues while improving overall production efficiency.
Similarly, electronics assembly requires careful electrostatic discharge control because even relatively small static discharges can permanently damage sensitive integrated circuits before defects become immediately visible.
Ionizing air bars provide fast, reliable, and non-contact static elimination while improving product quality, reducing contamination, and increasing manufacturing efficiency.
Manufacturers increasingly choose ionizing air bars because they address multiple production challenges simultaneously. Beyond eliminating static electricity, they help create cleaner manufacturing environments and reduce production interruptions.
Major benefits include:
Benefit | Impact |
|---|---|
Static elimination | Reduces electrostatic charge buildup |
Cleaner products | Minimizes dust attraction |
Lower defect rates | Improves manufacturing quality |
ESD protection | Protects sensitive electronics |
Higher productivity | Reduces downtime |
Non-contact operation | Suitable for delicate materials |
Because no mechanical contact occurs, fragile materials such as thin films, coated surfaces, optical lenses, and electronic assemblies remain protected throughout the static elimination process.
Many facilities also report reduced cleaning frequency since airborne particles are less likely to adhere to products after static charges have been neutralized.
Selecting the appropriate ionizing air bar depends on application requirements including working distance, airflow needs, installation space, production speed, and environmental conditions.
The first consideration is the size of the target area. Wider production lines generally require longer air bars or multiple units positioned strategically for complete coverage.
Engineers should also evaluate operating distance. Some applications require close-range installation, while others need ionized airflow to travel greater distances inside enclosed machinery.
Other important selection factors include:
Working voltage
Air pressure requirements
Ion balance performance
Static decay speed
Operating temperature
Humidity tolerance
Maintenance accessibility
Production environment cleanliness
Facilities with cleanroom requirements may also prioritize low particle generation, corrosion-resistant materials, and compatibility with stringent contamination control standards.
Regular maintenance ensures stable ion output, extends equipment lifespan, and maintains consistent static elimination performance.
Although ionizing air bars require relatively little maintenance, emitter needles gradually accumulate dust, oil mist, and airborne contaminants. These deposits reduce corona discharge efficiency and can affect ion balance.
Routine inspection should include visual examination of emitter needles, compressed air quality, electrical connections, and grounding systems. Clean compressed air significantly reduces contamination inside the air bar.
Recommended maintenance schedule:
Inspect emitter needles weekly
Clean ionizing points monthly
Verify grounding periodically
Check air pressure regularly
Measure ion balance according to production requirements
Replace worn emitter needles when necessary
Preventive maintenance not only improves equipment reliability but also reduces unexpected production downtime caused by declining static elimination performance.
Ionizing air bars provide faster and more versatile static elimination than many passive methods, particularly for insulating materials and high-speed manufacturing processes.
Several technologies are available for controlling static electricity, each suited to different applications.
Method | Advantages | Limitations |
|---|---|---|
Grounding | Simple and inexpensive | Only effective for conductive materials |
Anti-static brushes | Low cost | Requires contact with product |
Ionizing air bar | Fast, non-contact, effective | Requires compressed air and power supply |
Ionizing blower | Covers large work areas | Lower airflow precision |
Static control chemicals | Easy application | May leave surface residue |
For automated manufacturing lines processing plastics, films, electronics, and coated materials, ionizing air bars typically provide the best balance of speed, efficiency, reliability, and installation flexibility.
Their ability to combine ion generation with directed airflow makes them especially effective where high production speeds demand rapid static neutralization without interrupting workflow.
Anti-static ionizing air bars have become an indispensable solution for controlling electrostatic charges across modern industrial production. By generating balanced positive and negative ions through corona discharge and delivering them with compressed air, these systems neutralize static electricity quickly, safely, and without physical contact. This process not only minimizes electrostatic discharge risks but also reduces dust contamination, improves product quality, and enhances manufacturing efficiency.
Whether used in electronics, plastics, printing, packaging, medical manufacturing, or precision assembly, an appropriately selected and properly maintained ionizing air bar can significantly improve production stability and reduce costly defects. Understanding its operating principle, internal components, application scenarios, maintenance requirements, and advantages enables manufacturers to implement more effective static control strategies and achieve consistent long-term performance.
