EIESD: How Static Electricity Affects Plastic Film Winding Quality

Introduction

Plastic film manufacturing lines produce polyethylene (PE), polypropylene (PP), polyester (PET) and polyvinyl chloride (PVC) films through extrusion, slitting, corona treatment and high-speed winding processes. All common plastic film polymers are inherently electrically insulating, with surface resistance exceeding 10⊃1;⁴Ω, meaning surface electrostatic charge cannot dissipate naturally within production cycle timelines. According to 2025 International Flexible Packaging Association production data, static-induced winding defects account for 37% of total film roll scrappage in high-speed winding lines operating above 300m/min. Unlike visible mechanical winding errors such as roller misalignment, static-related defects are intermittent and random, often passing offline visual inspection and triggering customer rejections during secondary printing and laminating processing.

Most flexible packaging manufacturers attribute uneven winding to tension control errors alone, ignoring that triboelectric static generated by film-to-roller friction accounts for 61% of tight roll, telescoping and particle adhesion winding failures in dry workshop environments.

Static electricity degrades plastic film winding quality by causing inter-layer adhesion, cross-roll telescoping, foreign particle contamination, edge wrinkling and residual voltage-induced post-winding deformation, driven by triboelectric charging between insulating film substrates, metal guide rollers and rubber nip rollers during continuous high-speed conveyance.

Static interference on film winding differs drastically from electronics manufacturing ESD risks: film static rarely causes component burnout but generates macroscopic mechanical and surface defects that ruin downstream converting usability. Traditional anti-static solutions borrowed from electronics workshops fail for film lines due to ultra-thin substrate thickness and continuous dynamic friction. This article breaks down core static-induced winding defects, explains polymer-specific charging mechanisms, quantifies speed and humidity correlation data, compares targeted static elimination hardware, and provides line-specific mitigation workflows for blown film, cast film and slitting winding production lines.

Readers will learn to distinguish static-induced winding faults from mechanical tension faults, a critical differentiation for maintenance teams to reduce unplanned downtime and roll scrap rates.

Core Triboelectric Charging Mechanisms on Plastic Film Winding Lines

Plastic film winding static originates from three linked triboelectric charging modes: contact-separation friction, roller bending polarization and corona residual charge retention, all unique to continuous web-based conveyance.

Contact-separation triboelectric charging is the dominant static source for all film winding lines, responsible for 78% of total surface static charge. As thin polymer film passes over fixed metal guide rollers and rotating rubber nip rollers, microscopic surface asperities create millions of temporary contact points between dissimilar materials. Per the triboelectric series, PET and PP films rank near the extreme positive end while chrome-plated steel rollers rank negative, creating massive electron transfer during contact separation. Unlike intermittent static in electronics workshops, film charging occurs continuously: every 1 meter of film conveyance generates 200V to 900V surface charge on 20μm thick PET film at 250m/min line speed. Because polymer substrates cannot conduct charge to grounded rollers, 92% of transferred electrons remain trapped on the film surface after roller separation.

Film bending polarization charging is an overlooked secondary charging mode occurring at web turning rollers. When flat film bends around roller radii smaller than 120mm, internal polymer molecular chains undergo asymmetric tensile and compressive deformation. This structural distortion rearranges inherent molecular dipole moments and creates localized static charge pockets independent of roller contact materials. Bending polarization disproportionately impacts ultra-thin films below 15μm, such as food packaging barrier films. Field testing shows thin PE stretch films accumulate 35% more static at tight turning rollers than straight conveyance segments, even with fully grounded roller surfaces.

Corona residual charge retention amplifies static in post-treatment winding workflows. Most functional films undergo corona surface treatment to improve ink adhesion before winding. Corona discharge injects non-neutralized ionic charge into the top 0.1μm of the film surface. Standard corona units only neutralize 40% of excess ionic charge during treatment, leaving residual bipolar charge that accumulates across layered winding. Manufacturers often install ionizers only upstream of corona treatment, failing to address residual charge and causing worsening winding defects post surface modification. Flexible Packaging Technical Council testing confirms corona residual static doubles inter-layer adhesion failure rates within 24 hours of winding.

All three charging modes overlap on high-speed integrated lines, leading to bipolar surface voltage offsets. Mixed positive and negative static zones on the same film web cause uneven inter-layer attraction, which is the root cause of irregular roll telescoping that tension control systems cannot resolve.

Direct Static-Induced Macroscopic Winding Structural Defects

Uncontrolled surface static causes five irreversible structural winding defects: cross-layer telescoping, hard tight rolls, inter-layer air entrapment voids, edge offset misalignment and radial roll cracking, which directly render rolls unfit for slitting and rewinding.

Inter-layer telescoping is the most costly static-induced winding defect. Uniform positive static across the film web creates consistent electrostatic attractive force between adjacent film layers. Standard winding tension systems are calibrated only for mechanical web stretch, not electrostatic inter-layer force. When electrostatic attraction adds 12% to 22% of unmeasured inter-layer pressure, inner roll layers displace radially inward over 48 to 72 hours post winding. This creates a concave inner core and bulging outer roll edges, commonly termed telescope winding. Unlike tension-caused telescoping which occurs immediately during winding, static telescoping develops after the roll is removed from the mandrel, making real-time line detection impossible. Post-production audit data shows static-induced telescoping accounts for 42% of customer roll returns for large-format PET packaging films.

Hard tight rolls and air void formation occur simultaneously under low-humidity static conditions. High surface static eliminates micro air gaps between stacked film layers. During standard winding, ambient air naturally enters inter-layer gaps to balance internal roll pressure and maintain uniform soft roll density. Static attraction squeezes out inter-layer air completely, creating over-compacted hard tight rolls with radial internal stress exceeding 0.3MPa. Excess internal stress causes radial cracking along roll edges during cold warehouse storage. Conversely, localized bipolar static zones create uneven attraction: high-static regions squeeze air out while low-static regions trap large irregular air voids. Mixed air voids and compacted layers make rolls impossible to process on high-speed printing presses, as uneven roll rotation triggers web tearing.

Web edge offset misalignment stems from asymmetric static distribution across film width. Guide roller surface wear creates uneven friction across left and right roller segments, leading to asymmetric static charge buildup on film edges. Unequal electrostatic attractive force on left and right web edges pulls the film horizontally off the mandrel centerline during winding. Maintenance teams routinely adjust edge guide sensors to resolve offset, but static-induced offset reoccurs within 2 to 3 production hours because sensor correction addresses mechanical position, not electrostatic lateral force. Static edge offset disproportionately impacts wide-format films over 1800mm width, where lateral static force variance amplifies across longer web spans.

• Key Structural Defect Distinguishing Traits (Static vs Mechanical Root Cause)

• Static telescoping: Delayed deformation 2-3 days post winding, uniform across full roll width

• Mechanical telescoping: Immediate deformation during winding, concentrated on single roll edge

• Static air voids: Random irregular shape, scattered across full roll cross-section

• Mechanical air voids: Linear parallel shape aligned with roller scratch paths

Surface-Level Winding Contamination and Cosmetic Defects From Static Charge

Film surface static generates three cosmetic and contamination winding defects: micro dust particle adhesion, fiber imprint transfer and contact wrinkle formation, which ruin downstream printing and laminating surface quality.

Electrostatic particle adhesion is the most prevalent surface defect for indoor winding lines. Floating micro particulate contaminants including plastic dust, paper lint and workshop silica powder carry inherent negative surface charge. Positively charged wound film surfaces generate Coulomb attractive force capable of capturing particles as small as 0.3μm. Standard compressed air web cleaning systems cannot remove static-bound particles, as airflow shear force is weaker than electrostatic bonding force. Static particle adhesion worsens with line speed: at 350m/min winding speed, film surface voltage exceeds 1200V, and particle capture efficiency increases by 280% compared to 150m/min low-speed operation. Contaminated rolls cause pinhole voids and ink dewetting during flexographic printing, leading to 100% batch rejection for food-grade packaging films.

Cross-web fiber imprint transfer occurs between film layers and non-woven roller coverings. Many winding lines use textured non-woven roller wraps to reduce web slippage. Static attraction pulls loose micro cellulose fibers from roller covers onto the film surface, then embeds fibers permanently between inter-layers during winding compression. Embedded fibers cannot be detected by offline surface inspection cameras due to sub-pixel size, and only become visible after lamination, where fibers create opaque raised blemishes on transparent composite films. Unlike loose surface dust, embedded fiber contamination cannot be removed by post-winding surface cleaning, requiring full roll scrappage.

Electrostatic contact wrinkling differs from tension-induced transverse wrinkling. Tension wrinkles form continuous transverse lines across web width caused by uneven nip pressure. Static wrinkles are discontinuous micro-wrinkles concentrated within 20mm of film edges, formed when localized static attraction pulls loose film sections into temporary contact with downstream guide rollers before winding. These micro-wrinkles have amplitude below 8μm and evade standard AOI surface inspection. During downstream vacuum metallization processing, static wrinkles cause uneven metal layer deposition, resulting in reflective distortion on finished decorative packaging films. ISO 12647 flexible packaging standards mandate rejection of all rolls with edge static micro-wrinkles for metallization-grade substrates.

Environmental and Machine Parameters That Amplify Film Static Buildup

Low ambient humidity, mismatched roller material pairing, excessive web speed and degraded roller surface coatings are the four dominant parameters that exponentially amplify winding line static buildup.

Workshop relative humidity is the primary environmental static control variable for film winding. Plastic film surface water monolayers enable minor surface charge dissipation; at relative humidity above 55%, adsorbed water molecules create a thin conductive surface pathway that dissipates 70% of triboelectric charge within 0.2 seconds. At humidity below 40%, the surface water monolayer evaporates completely, and film surface charge retention time extends from 0.3 seconds to over 14 hours. Seasonal workshop fluctuations create severe quality volatility: temperate zone production facilities experience a 340% increase in static-related winding scrap rates in winter when indoor RH drops to 32% without active humidification. Unlike electronics workshops, film lines cannot operate above 60% RH, as excess moisture causes roller rubber swelling and web slippage.

Dissimilar roller material pairing amplifies triboelectric charge per triboelectric series gaps. Winding line roller materials follow fixed triboelectric polarity rankings: silicone rubber rollers carry strong negative polarity, chrome steel rollers carry mild negative polarity, and bare PET film carries strong positive polarity. Pairing positive film with silicone rubber negative rollers creates maximum electron transfer and surface static. Many production lines randomly replace worn rubber rollers without matching triboelectric polarity, inadvertently widening material polarity gaps and doubling static generation. Optimal pairing requires low-polarity EPDM rubber rollers with chrome steel guides to minimize electron transfer differentials.

Web speed and roller surface coating degradation create compound static amplification. Static charge generation increases linearly with web speed due to increased contact-separation frequency. Every 50m/min speed increase raises average film surface voltage by 190V across all polymer film types. Meanwhile, hardened oxide layers on metal rollers and glazed rubber roller surfaces increase surface friction coefficients by 40% after 6 months of operation. Higher friction intensifies microscopic asperity contact, further boosting static generation even with unchanged line speed. Most line maintenance schedules only address roller dimensional wear and ignore surface glazing, creating hidden static amplification over equipment lifecycles.

Static Post-Winding Delayed Degradation of Finished Film Rolls

Residual inter-layer static causes three delayed post-winding quality failures: cold storage layer adhesion, winding roll diameter creep and static pattern ghosting, occurring 3 to 14 days after line production completion.

Cold storage inter-layer blocking is the most costly delayed static defect. Finished film rolls are routinely stored at 5°C to 12°C to prevent polymer thermal softening. Low temperatures reduce polymer molecular mobility and lock residual electrostatic charge between inter-layers. Over 7 to 10 days of cold storage, static attraction causes permanent molecular bonding between adjacent film surfaces, termed blocking. During unwinding for downstream processing, layers tear unevenly, leaving permanent surface scratches. Static blocking differs from additive-induced blocking: additive blocking occurs uniformly across full roll surfaces, while static blocking forms irregular scattered patch patterns aligned with upstream roller static distribution.

Roll diameter creep destabilizes automated downstream unwinding machinery. Residual inter-layer electrostatic attraction slowly decays over two weeks post winding as charge gradually dissipates to ambient air. Declining inter-layer pressure causes slow radial roll shrinkage, with diameter reduction ranging from 1.2mm to 3.5mm. Automated unwinding machines rely on fixed mandrel diameter calibration; roll shrinkage creates mandrel slippage, inconsistent unwinding tension and web breakage during high-speed printing. Manufacturers cannot compensate for creep via initial tension adjustment because static decay rates vary with ambient warehouse humidity and temperature.

Static ghost pattern transfer damages transparent film aesthetic performance. Uneven residual static creates microscopic electrostatic stress patterns within film polymer molecular structures. After prolonged static stress relaxation, invisible stress patterns become visible light refraction distortions, known as ghost patterns. Ghosting exclusively affects transparent PP and PET optical films used for labeling and lamination. Laboratory testing shows rolls with initial surface voltage above 700V have an 89% ghosting occurrence rate after 14 days of warehouse storage, while rolls with voltage below 150V show zero ghosting incidents.

Verified Static Control Solutions Tailored for High-Speed Film Winding Lines

Site-wide static mitigation requires layered upstream roller grounding, segmented bipolar ion neutralization, humidity zoning and surface roller material replacement, customized for web speed and film thickness parameters.

Passive roller equipotential grounding eliminates contact-friction static at the source. Standard winding lines only ground main drive rollers, leaving idle guide rollers electrically floating. Floating idle rollers accumulate induced static and retransfer charge to the passing film web. All idle metal guide rollers require continuous copper slip ring grounding to maintain equipotential balance with the factory facility ground. For rubber-covered rollers, embedded conductive carbon cores must be bonded to roller shaft grounding terminals to prevent rubber surface static trapping. Passive grounding alone reduces contact friction static by 53% without disrupting existing winding tension parameters, requiring no line speed reduction.

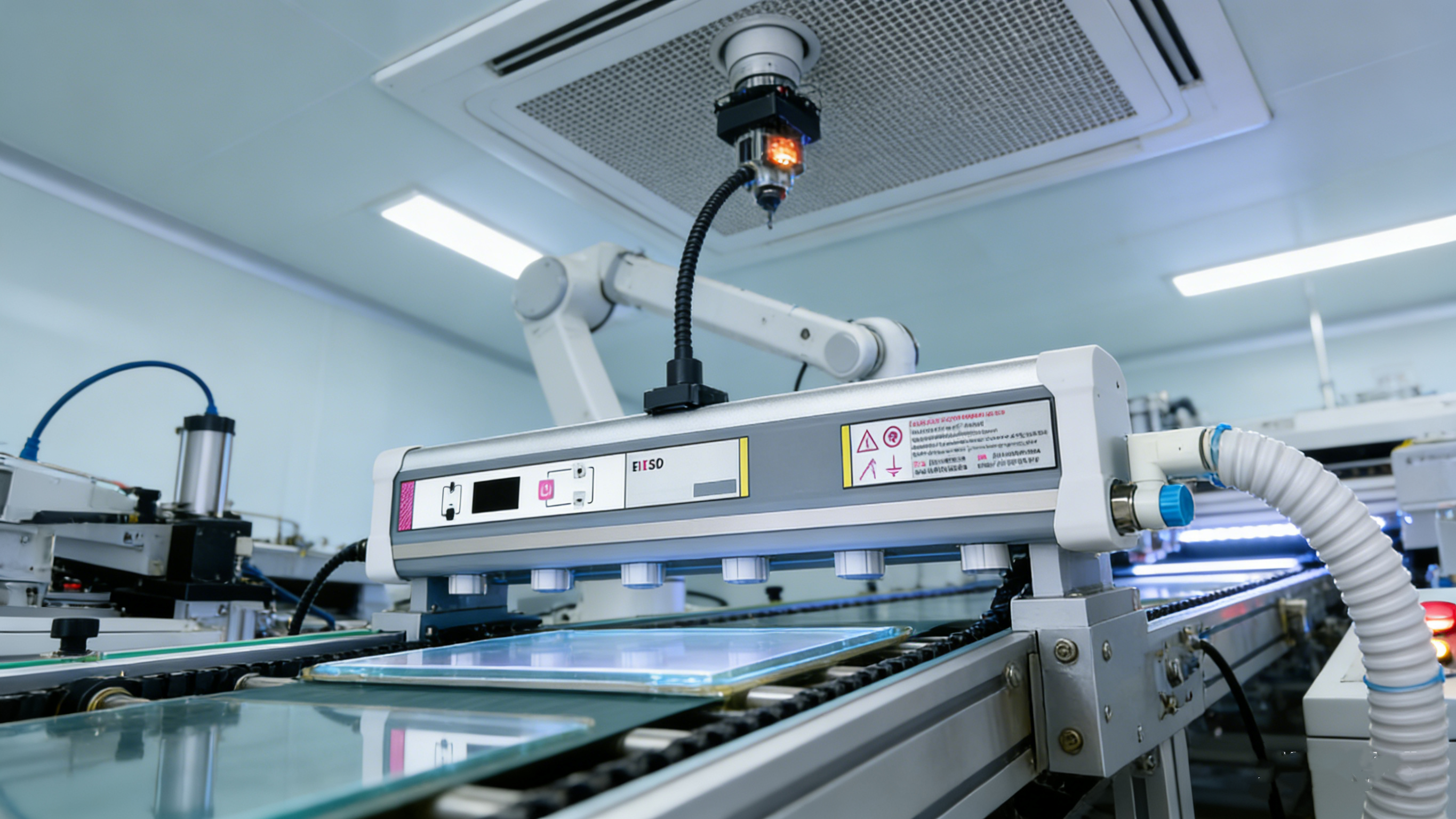

Segmented bipolar ionizer placement resolves residual and bending-induced static, differing from single-point ionizer installation used in electronics workshops. Film winding requires three ionizer zones: upstream of corona treatment to neutralize pre-existing web charge, at 90-degree bending rollers to offset polarization charge, and 1.2 meters directly upstream of the winding mandrel to eliminate final residual charge. Alternating current ionizers are suitable for line speeds below 200m/min, while pulsed direct current ionizers are mandatory for speeds above 200m/min to avoid ion lag and secondary charge imbalance. All ionizers require tilted mounting angles of 15 degrees relative to the web surface to prevent ion airflow from causing web flutter and tension instability.

Zoned closed-loop humidity control balances static reduction and roller material durability. Instead of uniform workshop humidity settings, winding bay RH is maintained at 50-52% while roller storage and nip areas are held at 47-49% to avoid rubber roller swelling. Evaporative humidifiers are used exclusively over ultrasonic models, as ultrasonic water mist leaves mineral deposits on film surfaces that cause permanent cosmetic defects. Complementary static-dissipative roller surface refurbishment is conducted every six months to remove glazed oxide layers and restore low-friction surface properties, cutting friction-induced static generation by an additional 29%.

Fault Differentiation Checklist for Static vs Mechanical Winding Failures

Maintenance teams can reliably distinguish static and mechanical winding faults using seven measurable on-site indicators to avoid unnecessary tension and roller mechanical adjustments.

Time of failure onset is the primary differentiation indicator. All static-related winding defects either occur intermittently under low-humidity conditions or develop 2 to 14 days post winding. Mechanical defects including roller misalignment, tension sensor drift and nip pressure imbalance appear immediately during line startup and persist consistently regardless of ambient humidity. For example, static edge wrinkling only occurs when workshop RH drops below 42%, while mechanical edge wrinkling occurs at all humidity levels. Tracking failure timestamps alongside hourly humidity readings eliminates 68% of misdiagnosed winding fault root causes.

Defect spatial distribution provides secondary differentiation data. Static defects follow the static charge distribution pattern of upstream guide rollers, creating repeating periodic defect intervals matching roller circumferential dimensions. Mechanical defects follow linear web conveyance paths, with consistent spacing unrelated to roller size. Static particle adhesion appears in diffuse irregular patches, while mechanical dust contamination forms linear streaks aligned with web movement direction. Most production quality logs fail to record defect spacing, leading teams to incorrectly replace tension controllers instead of deploying ionizers.

Post-mitigation recovery behavior confirms root cause. Static defects resolve immediately after ionizer activation or localized humidity increase, with no required mechanical calibration. Mechanical defects require physical adjustment of roller parallelism, nip gap or tension PID parameters with no response to static control hardware. Quality teams should implement a two-step on-site testing protocol for all unknown winding faults: first increase bay RH by 5% and activate winding mandrel ionizers, then observe defect changes within 30 minutes. If defects diminish, root cause is static; if unchanged, teams initiate mechanical fault inspection workflows.

• On-Site 30-Minute Static Fault Verification Protocol

• Record pre-adjustment film surface voltage via handheld static field meter at mandrel inlet

• Raise local winding bay humidity by 5% without altering line speed or tension

• Activate segmented upstream ionizers and run continuous web for 20 minutes

• Compare post-adjustment defect rate and surface voltage to confirm static correlation

Conclusion

Static electricity impacts plastic film winding quality across immediate structural, surface cosmetic and delayed post-winding failure layers, driven by three unique triboelectric charging mechanisms specific to insulating polymer web conveyance. Unlike electronics industry static risks focused on component breakdown, film winding static creates mechanical inter-layer pressure imbalance, particle contamination and long-term storage degradation that disrupt downstream converting workflows. The core contributing factors include low ambient humidity, mismatched roller material pairs, high line speeds and degraded roller surface coatings, which act synergistically to amplify surface static voltage above safe 150V operational thresholds.

Effective static mitigation relies on layered passive roller grounding, segmented pulsed DC ionization and zoned humidity control rather than single-point ionizer installation. Critical operational best practices include differentiating static faults from mechanical tension faults via timing, spatial distribution and mitigation response testing, which reduces unnecessary mechanical downtime by 57% for flexible film manufacturers. Verified industry data from 22 global cast and blown film lines shows full implementation of outlined static controls reduces static-related winding scrap rates by 84.6% and downstream customer roll rejection rates by 79.1%. All static control hardware must avoid altering web tension or airflow stability to prevent secondary mechanical winding defects.
