The semiconductor industry relies on highly sensitive testing equipment to ensure the performance, reliability, and quality of integrated circuits and electronic components. As semiconductor devices continue to shrink in size and increase in complexity, they become far more vulnerable to electrostatic discharge (ESD). Even a small electrostatic event that is undetectable to humans can damage semiconductor testing systems, resulting in inaccurate measurements, equipment failure, production downtime, and significant financial losses.
Electrostatic damage is one of the most common yet underestimated threats in semiconductor manufacturing and testing environments. Testing equipment often operates with precision measurement systems, delicate probes, high speed signal paths, and miniature semiconductor structures that can be permanently affected by static electricity. Because of this, effective electrostatic protection has become a critical requirement for semiconductor facilities worldwide.
Electrostatic damage in semiconductor testing equipment occurs when accumulated static electricity discharges into sensitive electronic components, causing immediate failure, latent defects, inaccurate testing results, reduced equipment lifespan, and lower production yield. Proper grounding, environmental control, ESD safe materials, operator training, and equipment design are essential to minimize electrostatic risks.
As semiconductor technologies evolve toward smaller geometries and higher integration densities, the tolerance for electrostatic discharge becomes increasingly lower. Semiconductor testing equipment must therefore be designed and operated with comprehensive ESD control strategies. Understanding the causes, effects, prevention methods, and industry best practices for electrostatic damage is essential for manufacturers aiming to improve operational stability and product reliability.
This article explores the major causes of electrostatic damage in semiconductor testing equipment, examines how ESD impacts production quality, discusses prevention techniques, and highlights future trends in electrostatic protection technologies.
Understanding Electrostatic Damage in Semiconductor Testing Equipment
Common Sources of Electrostatic Discharge in Testing Environments
How Electrostatic Damage Affects Semiconductor Testing Accuracy
Critical Components Vulnerable to Electrostatic Damage
ESD Protection Methods in Semiconductor Testing Facilities
Environmental Factors That Influence Electrostatic Risks
Comparing Human Body Model, Machine Model, and Charged Device Model
Best Practices for Preventing Electrostatic Damage
The Role of Grounding and Ionization Systems
Future Trends in Electrostatic Protection Technology
Conclusion
Electrostatic damage in semiconductor testing equipment refers to the destruction or degradation of sensitive electronic systems caused by sudden static electricity discharge between electrically charged objects.
Electrostatic discharge occurs when two materials with different electrical potentials come into contact or separate from each other. This imbalance creates a transfer of electrons, resulting in static electricity accumulation. When the voltage difference becomes large enough, the stored energy discharges rapidly through nearby conductive paths.
In semiconductor testing environments, electrostatic discharge can occur during wafer probing, chip handling, device packaging, transportation, or equipment maintenance. Modern semiconductor devices often contain microscopic transistor structures that can be damaged by voltages as low as 10 volts, while humans typically cannot feel static discharge below 3000 volts.
The impact of electrostatic damage can be categorized into two major types:
Catastrophic failure
Latent failure
Catastrophic failure causes immediate and visible equipment or device malfunction. In contrast, latent failure creates hidden defects that may not appear during initial testing but eventually lead to product failure in real world applications.
Damage Type | Description | Impact on Production |
|---|---|---|
Catastrophic Damage | Immediate device failure | Direct production loss |
Latent Damage | Hidden internal degradation | Long term reliability risk |
Parametric Shift | Electrical characteristics altered | Testing inaccuracies |
Semiconductor testing equipment is especially vulnerable because of its high precision architecture. Probe cards, automated test equipment interfaces, signal analyzers, and integrated control systems all contain highly sensitive electronic circuits that can be permanently affected by static discharge.
Electrostatic discharge in semiconductor testing environments commonly originates from human operators, material movement, equipment friction, inadequate grounding, and environmental conditions.
One of the primary causes of electrostatic buildup is triboelectric charging. This occurs when two different materials contact and separate, causing electron transfer between surfaces. Common activities such as walking across floors, handling plastic trays, or moving packaging materials can generate substantial static electricity.
Human operators are among the largest contributors to ESD events. Without proper grounding, workers can accumulate thousands of volts simply through movement. When they touch semiconductor testing systems or devices, static electricity may instantly discharge into sensitive circuits.
Several materials commonly used in semiconductor facilities are highly prone to static generation:
Plastic packaging materials
Synthetic clothing fabrics
Rubber surfaces
Insulating tapes
Foam containers
Automated equipment can also generate electrostatic charge through mechanical motion. Conveyor belts, robotic arms, vacuum systems, and high speed handlers continuously create friction between surfaces. If grounding systems are insufficient, static charge accumulation becomes unavoidable.
Environmental humidity also significantly affects ESD generation. Low humidity environments increase the likelihood of static buildup because dry air acts as an electrical insulator. Semiconductor cleanrooms operating below recommended humidity levels often experience higher electrostatic risks.
ESD Source | Typical Voltage Generated |
|---|---|
Walking on synthetic flooring | 1000V to 15000V |
Plastic material handling | 500V to 7000V |
Equipment friction | 200V to 5000V |
Dry air environments | Increases discharge probability |
Understanding the origins of electrostatic discharge is essential for designing effective prevention strategies within semiconductor testing operations.
Electrostatic damage reduces semiconductor testing accuracy by introducing signal distortion, measurement instability, hidden component degradation, and inconsistent test results.
Semiconductor testing equipment relies on extremely precise electrical measurements. Even minor electrostatic events can alter the electrical characteristics of sensitive components, leading to incorrect readings and unreliable testing outcomes.
Probe cards and testing interfaces are particularly sensitive to electrostatic discharge. When ESD affects these components, contact resistance may increase, signal integrity may deteriorate, and test repeatability may decline. This creates false failures or false passes during production testing.
Latent electrostatic damage is especially dangerous because affected components may continue operating temporarily while internal degradation progresses over time. As a result, semiconductor manufacturers may unknowingly ship unreliable products into the market.
The consequences of inaccurate semiconductor testing include:
Reduced product yield
Increased warranty claims
Production delays
Higher operational costs
Customer dissatisfaction
Electrostatic interference may also affect calibration systems and precision timing circuits inside automated testing equipment. Over time, repeated ESD exposure can gradually reduce overall equipment reliability and lifespan.
The most vulnerable components in semiconductor testing equipment include integrated circuits, probe cards, sensors, connectors, signal processors, and high speed communication interfaces.
Integrated circuits used inside semiconductor testing equipment contain highly miniaturized transistor structures. As semiconductor geometries continue shrinking below nanometer scales, insulation layers become thinner and more susceptible to electrostatic breakdown.
Probe cards are among the most delicate elements within testing systems. They establish electrical contact between testing equipment and semiconductor wafers. Even minor ESD events can damage probe needles, increase resistance, or reduce signal stability.
Sensitive analog measurement systems are also highly exposed to electrostatic threats. Precision amplifiers, voltage reference circuits, and signal conditioning modules require stable electrical performance. Electrostatic discharge may introduce drift, noise, or permanent parameter changes.
Other highly sensitive components include:
Microcontrollers
Memory devices
Optical sensors
Field programmable gate arrays
Data acquisition systems
Communication transceivers
Modern semiconductor testing platforms integrate multiple high speed interfaces that operate with low voltage differential signals. These communication channels are extremely vulnerable to transient electrostatic pulses.
Component | ESD Sensitivity Level | Typical Failure Mode |
|---|---|---|
Integrated Circuits | Very High | Gate oxide breakdown |
Probe Cards | High | Contact degradation |
Sensors | Medium to High | Signal instability |
Connectors | Medium | Intermittent failure |
Semiconductor facilities prevent electrostatic damage through grounding systems, antistatic materials, ionization equipment, humidity control, operator training, and continuous ESD monitoring.
An effective ESD control program begins with grounding. All conductive equipment, workstations, floors, and operators should maintain a common electrical ground to prevent voltage differences from developing.
ESD safe materials are widely used throughout semiconductor facilities. Conductive flooring, antistatic mats, grounded tools, and dissipative packaging materials help minimize static accumulation during production processes.
Ionization systems are essential in environments where insulating materials cannot be avoided. Air ionizers generate positive and negative ions that neutralize static charges on surfaces and suspended particles.
Humidity control also plays a critical role in reducing electrostatic generation. Semiconductor facilities often maintain relative humidity levels between 40% and 60% to lower the likelihood of charge accumulation.
A comprehensive ESD protection strategy typically includes:
Grounded workstations
Antistatic garments
ESD safe footwear
Continuous monitoring systems
Routine equipment audits
Employee ESD training programs
Regular testing and certification of ESD protection systems are necessary to ensure long term effectiveness and compliance with industrial standards.
Environmental conditions such as humidity, temperature, airflow, material composition, and contamination levels directly influence electrostatic discharge risks in semiconductor testing environments.
Low humidity is one of the strongest contributors to electrostatic buildup. Dry air reduces surface conductivity, allowing static charges to accumulate more easily on materials and equipment surfaces.
Temperature fluctuations can also affect material conductivity and charge dissipation rates. Certain materials become more electrically insulating at lower temperatures, increasing ESD susceptibility.
Airflow within cleanrooms may unintentionally generate electrostatic charge through friction between air particles and surfaces. High velocity airflow systems must therefore be carefully engineered to minimize electrostatic generation.
Contamination particles present another challenge. Dust particles carrying static charge can settle on semiconductor devices and create localized discharge events. Maintaining cleanroom cleanliness standards is therefore closely linked to ESD control.
Environmental monitoring systems are commonly used to track:
Humidity levels
Surface resistance
Air ion balance
Grounding continuity
Static field intensity
By continuously monitoring environmental parameters, semiconductor facilities can identify electrostatic risks before they result in equipment damage or production disruption.
The Human Body Model, Machine Model, and Charged Device Model are standardized methods used to evaluate electrostatic discharge susceptibility in semiconductor devices and testing systems.
The Human Body Model simulates electrostatic discharge from a person touching an electronic device. This model remains one of the most widely used ESD qualification standards because human interaction is a common source of electrostatic events.
The Machine Model represents discharge originating from metallic machinery or automated equipment. Although less commonly emphasized today, it remains relevant in high automation manufacturing environments.
The Charged Device Model simulates situations where the semiconductor device itself becomes charged and then discharges rapidly upon contacting conductive surfaces. This model is increasingly important because modern semiconductor devices are highly sensitive to fast transient discharge events.
Model | Simulation Source | Typical Characteristics |
|---|---|---|
Human Body Model | Human contact discharge | Moderate discharge speed |
Machine Model | Equipment discharge | High current pulse |
Charged Device Model | Self charged device | Very fast transient pulse |
Understanding these ESD models allows semiconductor manufacturers to design testing equipment and devices with improved electrostatic resilience.
Preventing electrostatic damage requires a combination of engineering controls, operational procedures, staff training, environmental management, and continuous monitoring.
Employee awareness is one of the most important aspects of ESD prevention. Workers should understand how static electricity forms, how it damages semiconductor equipment, and how proper procedures reduce electrostatic risks.
Routine grounding verification is essential for maintaining protection effectiveness. Wrist straps, flooring systems, and equipment grounds should be tested regularly to ensure proper conductivity.
Facilities should establish standardized ESD safe handling procedures for all semiconductor devices and testing equipment. This includes transportation, storage, maintenance, and packaging protocols.
Recommended best practices include:
Using ESD safe clothing and gloves
Implementing grounded workstations
Maintaining proper humidity levels
Installing ionization systems
Conducting periodic ESD audits
Replacing damaged grounding equipment immediately
Preventive maintenance also plays a major role in minimizing electrostatic risks. Aging cables, worn connectors, damaged mats, and degraded ionizers can compromise ESD protection performance over time.
Grounding and ionization systems form the foundation of electrostatic protection by safely dissipating accumulated charges and neutralizing static electricity in semiconductor testing environments.
Grounding creates a controlled path for electrical charges to flow safely into the earth. Without effective grounding, electrostatic charges remain trapped on surfaces and eventually discharge unpredictably.
Operator grounding systems commonly include wrist straps, heel grounders, conductive flooring, and grounded seating systems. Equipment grounding ensures all conductive structures maintain equal electrical potential.

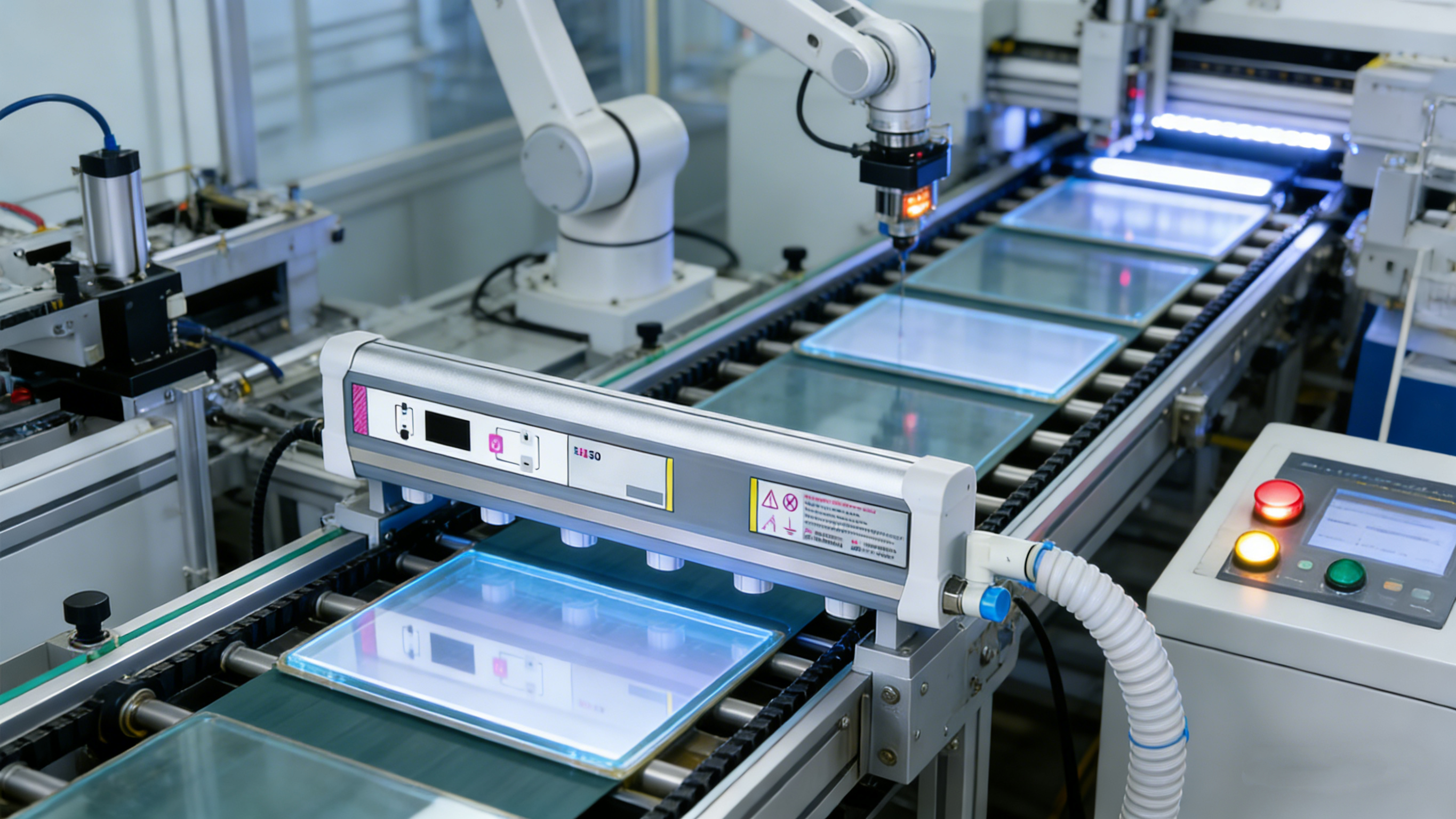

Ionization systems become critical when working with insulating materials that cannot be grounded directly. These systems release balanced positive and negative ions into the environment, neutralizing static charges before discharge occurs.
Common ionization technologies include:
Overhead ionizers
Benchtop ionizers
Nozzle ionizers
Compressed air ionization systems
Advanced semiconductor facilities increasingly integrate automated ESD monitoring systems capable of continuously detecting grounding faults, ion imbalance, and abnormal electrostatic field conditions in real time.
Future electrostatic protection technologies will focus on intelligent monitoring, advanced materials, automation integration, predictive analytics, and enhanced real time ESD detection systems.
As semiconductor manufacturing moves toward smaller process nodes and more complex packaging technologies, ESD sensitivity will continue increasing. Traditional electrostatic control methods alone may no longer provide sufficient protection.
Smart ESD monitoring systems are becoming increasingly popular in advanced semiconductor facilities. These systems use networked sensors to continuously monitor electrostatic conditions and provide real time alerts when abnormal conditions arise.
Artificial intelligence and predictive analytics are also being integrated into semiconductor facility management systems. By analyzing environmental and operational data, these technologies can identify potential electrostatic risks before failures occur.
Emerging material technologies are improving electrostatic protection performance:
Nanotechnology based conductive coatings
Self dissipative polymers
Advanced antistatic composites
High performance conductive textiles
Automation systems are also evolving to incorporate built in electrostatic control mechanisms. Future semiconductor testing equipment will likely include integrated static neutralization, self diagnostics, and autonomous ESD protection management capabilities.
Electrostatic damage remains one of the most significant challenges in semiconductor testing equipment operation and reliability management. As semiconductor devices become smaller, faster, and more complex, their vulnerability to electrostatic discharge continues increasing. Even minimal static events can lead to catastrophic failures, latent defects, reduced testing accuracy, and major financial losses.
Effective ESD protection requires a comprehensive strategy that combines grounding systems, ionization technologies, environmental control, ESD safe materials, employee training, and continuous monitoring. Semiconductor manufacturers that prioritize electrostatic control can significantly improve production yield, equipment reliability, and long term operational stability.
Future semiconductor facilities will increasingly rely on intelligent ESD management technologies, predictive monitoring systems, and advanced conductive materials to address growing electrostatic challenges. By implementing robust electrostatic protection practices today, manufacturers can better prepare for the evolving demands of next generation semiconductor testing environments.
