Electrostatic discharge has become one of the most critical hidden risks in modern electronics manufacturing. As electronic components continue to shrink in size while increasing in complexity and sensitivity, the soldering process has evolved into a highly controlled operation where even minor electrostatic events can lead to serious product failures. In many production facilities, electrostatic discharge during soldering processes causes invisible damage that may not be immediately detected during inspection or testing.
From printed circuit board assembly to semiconductor packaging and precision electronics manufacturing, controlling electrostatic discharge is essential for maintaining product reliability, reducing defect rates, and improving manufacturing efficiency. Even a very small static discharge can damage integrated circuits, weaken component structures, or shorten the operational lifespan of electronic products.
Electrostatic discharge during soldering processes occurs when accumulated static electricity transfers suddenly between objects with different electrical potentials, potentially damaging sensitive electronic components, reducing soldering quality, and increasing manufacturing defects. Proper grounding, humidity control, ESD safe tools, operator protection, and workstation management are essential for preventing electrostatic damage during soldering operations.
As production standards become stricter and electronic devices become more sensitive, manufacturers must understand how electrostatic discharge develops during soldering and how to minimize its impact. Effective ESD control not only protects components but also reduces operational costs, improves product consistency, and enhances customer satisfaction.
This article explores the causes of electrostatic discharge during soldering processes, the risks associated with ESD events, the industries most affected, prevention methods, workstation requirements, and best practices for maintaining safe and efficient soldering environments.
What Is Electrostatic Discharge During Soldering Processes?
How Does Static Electricity Develop During Soldering?
Why Are Electronic Components Sensitive to ESD?
What Damage Can Electrostatic Discharge Cause?
Which Factors Increase ESD Risks During Soldering?
How Can ESD Be Prevented During Soldering Processes?
What Equipment Is Required for ESD Safe Soldering?
How Does Workplace Environment Affect Electrostatic Control?
What Industries Are Most Affected by Soldering Related ESD?
How Should Manufacturers Build an Effective ESD Control Program?
Conclusion
Electrostatic discharge during soldering processes refers to the sudden transfer of static electricity between objects, tools, operators, or electronic components during assembly and soldering operations.
Electrostatic discharge, commonly known as ESD, occurs when two materials with different electrical charges come into contact or close proximity. During soldering operations, static electricity can accumulate on operators, soldering tools, work surfaces, packaging materials, or electronic assemblies. When this accumulated charge discharges suddenly, it may pass through sensitive electronic components and damage their internal structures.
Modern electronic components are significantly smaller and more sensitive than older technologies. Microprocessors, integrated circuits, sensors, and semiconductor devices often operate with extremely low voltage tolerances. In some cases, an electrostatic discharge too small for humans to feel can permanently damage these components.
Soldering processes are especially vulnerable because they involve direct contact between operators, soldering irons, printed circuit boards, and conductive materials. Friction from movement, airflow, synthetic clothing, and equipment handling can continuously generate static electricity during production.
ESD events are generally categorized into several types:
Human body discharge
Charged device discharge
Machine related discharge
Tool induced discharge
Surface charge transfer
Understanding how electrostatic discharge occurs during soldering is the first step toward establishing effective ESD control systems in electronics manufacturing environments.
Static electricity develops during soldering through friction, material separation, airflow movement, operator activity, and interactions between conductive and non conductive surfaces.
Static electricity generation is a natural physical phenomenon that occurs whenever materials contact and separate from each other. In soldering environments, many routine production activities create electrostatic charges without operators realizing it.
One of the most common causes is triboelectric charging. This occurs when two materials rub together and exchange electrons. Examples include:
Walking across flooring surfaces
Handling plastic packaging materials
Moving trays or containers
Friction between clothing and chairs
Air movement from fans or ventilation systems
Environmental conditions strongly influence static buildup. Low humidity environments are especially problematic because dry air reduces the natural dissipation of electrostatic charges. During winter seasons or in climate controlled manufacturing facilities, static accumulation can increase significantly.
Soldering tools themselves can also contribute to ESD risks if they are not properly grounded. Ungrounded soldering irons may leak electrical charges into sensitive assemblies, creating direct discharge pathways into components.
The following table illustrates common static generation sources during soldering:
Static Source | Potential Risk Level | Common Production Area |
|---|---|---|
Operator Movement | High | Assembly Stations |
Plastic Packaging | High | Material Handling |
Ungrounded Soldering Iron | Very High | Soldering Workstations |
Dry Air Conditions | Moderate to High | Cleanrooms |
Conveyor Belt Friction | Moderate | Automated Production Lines |
Compressed Air Cleaning | High | PCB Cleaning Stations |
Because soldering environments involve continuous movement and material interaction, ESD prevention requires constant monitoring and control.
Electronic components are sensitive to ESD because their microscopic internal structures can be damaged by extremely small electrical discharges.
Modern electronic devices rely on miniature semiconductor structures that operate with very low electrical thresholds. As component sizes shrink, the insulation layers inside integrated circuits become thinner and more vulnerable to electrical overstress.
A human operator may not feel a discharge below 3000 volts, but many electronic components can be damaged by discharges below 100 volts. Some advanced semiconductor devices may be affected by charges as low as 10 volts.
ESD sensitivity varies depending on component design and application. Particularly sensitive devices include:
Microprocessors
Integrated circuits
Semiconductor chips
MOSFET devices
Memory modules
Sensors
Optoelectronic components
Damage caused by ESD may appear in two forms:
Catastrophic failure occurs when the component stops functioning immediately after the discharge event. This type of damage is usually easier to identify during testing and inspection.
Latent failure is more dangerous because the component continues operating temporarily after being weakened by ESD. The product may later fail during customer use, causing reliability problems, warranty claims, and reputational damage.
The increasing complexity of electronics manufacturing has made ESD protection a critical quality control requirement throughout the soldering process.
Electrostatic discharge can cause immediate component failure, hidden reliability defects, poor solder joint quality, production downtime, and increased manufacturing costs.
ESD damage affects both individual electronic components and overall production performance. The financial impact can be substantial because electrostatic failures often result in rework, scrap, warranty returns, and customer dissatisfaction.
One major concern is microscopic damage inside semiconductor structures. Electrostatic discharge can melt internal conductive pathways, damage insulating layers, or weaken electrical junctions within integrated circuits.
In soldering operations, ESD may also influence solder joint quality. Static discharge can interfere with signal integrity testing, damage partially assembled boards, or create inconsistent electrical connections.
Common ESD related problems include:
Destroyed integrated circuits
Reduced component lifespan
Intermittent operational failures
Signal instability
Data corruption
Increased product returns
Production delays
The economic impact of ESD is often underestimated because latent defects may not appear until products are already shipped to customers. This makes preventive ESD control significantly more cost effective than post failure repairs.
Low humidity, improper grounding, synthetic materials, poor workstation design, and inadequate operator training significantly increase ESD risks during soldering processes.
Many manufacturing facilities unintentionally create conditions that encourage static buildup. Environmental and operational factors can dramatically increase the likelihood of electrostatic discharge events.
Low humidity is one of the most important risk factors. Dry environments reduce surface conductivity, preventing electrostatic charges from dissipating naturally. Relative humidity below 40 percent often increases ESD risks considerably.
Improper grounding is another critical issue. If soldering irons, workstations, chairs, floors, or operators are not properly grounded, electrostatic charges may accumulate and discharge unpredictably.
The following factors commonly increase ESD risks:
Risk Factor | Impact on ESD |
|---|---|
Low Humidity | Increases Static Accumulation |
Synthetic Clothing | Generates Friction Charges |
Plastic Containers | Stores Electrostatic Charges |
Ungrounded Equipment | Creates Discharge Paths |
Poor Operator Training | Increases Human Error |
Improper Flooring | Reduces Static Dissipation |
Workplace awareness is equally important. Operators who do not understand ESD risks may unknowingly introduce electrostatic hazards through routine handling procedures.
ESD can be prevented during soldering through grounding systems, ESD safe equipment, humidity control, operator training, and continuous monitoring procedures.
Effective ESD prevention requires a comprehensive approach rather than relying on a single protective measure. Successful ESD control systems combine environmental management, equipment protection, and operator discipline.
Grounding is the foundation of ESD prevention. Operators, workstations, soldering irons, and conductive surfaces should all be connected to a common electrical ground to safely dissipate static charges.
Common ESD prevention methods include:
Grounded wrist straps
ESD safe flooring
Anti static workstation mats
Grounded soldering tools
Ionizing air blowers
Humidity control systems
ESD protective clothing

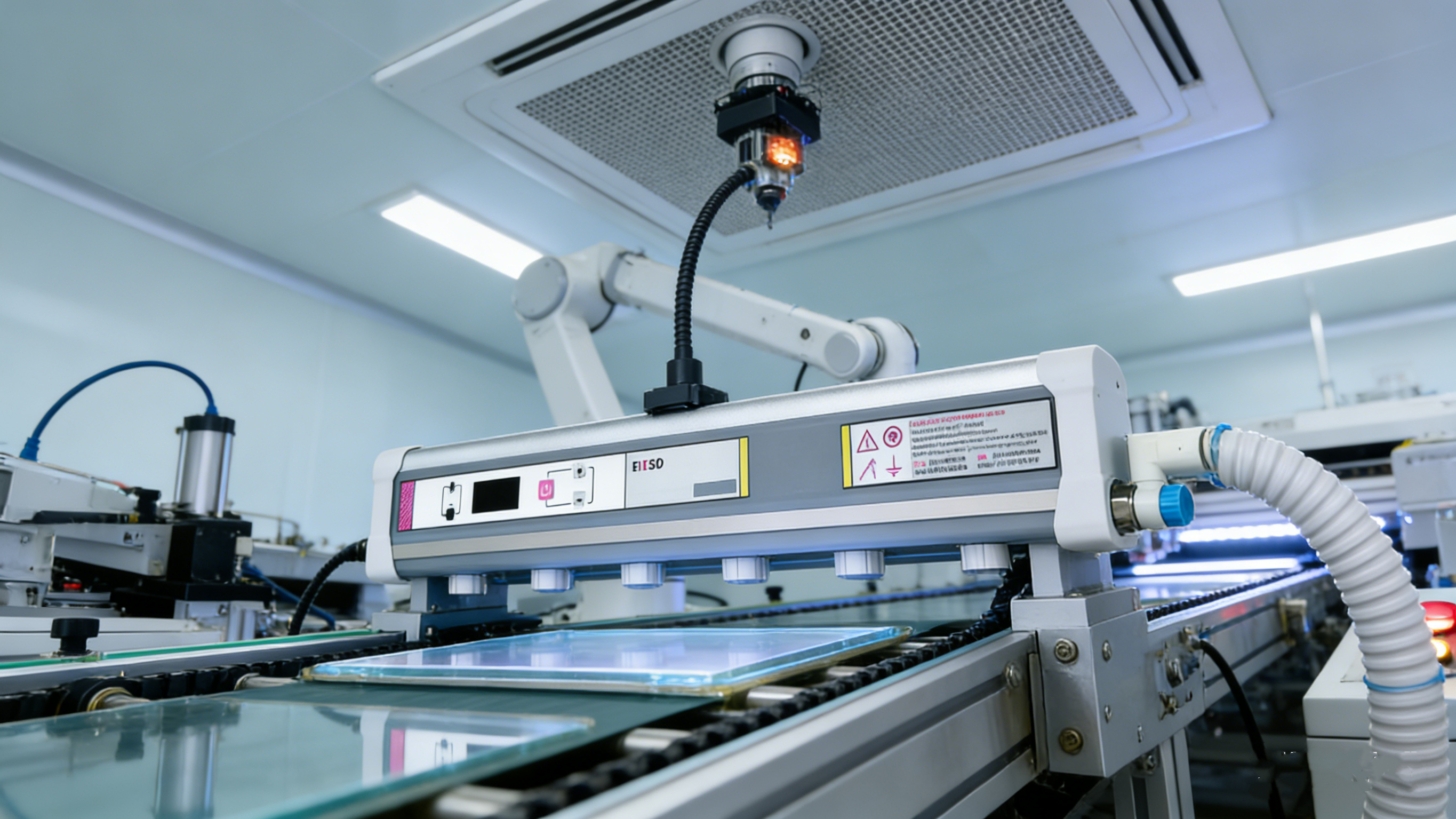

Ionizers are particularly useful in environments where non conductive materials cannot be eliminated. These systems generate balanced ions that neutralize electrostatic charges on surrounding surfaces and components.
Regular employee training is also essential. Operators must understand proper handling procedures, grounding verification methods, and the importance of maintaining ESD safe work habits.
ESD safe soldering requires grounded soldering irons, anti static mats, wrist straps, ionizers, conductive flooring, and monitoring systems.
Proper equipment selection plays a major role in reducing electrostatic risks during soldering operations. Each workstation component should contribute to a controlled static safe environment.
Grounded soldering irons are especially important because they directly contact electronic assemblies. These tools are designed to prevent leakage voltage and safely dissipate electrostatic charges.
Essential ESD safe soldering equipment includes:
ESD safe soldering stations
Grounding cords
Wrist straps
Conductive work surfaces
ESD protective gloves
Static dissipative chairs
Ionizing air equipment
Ground continuity testers
The following table summarizes key ESD equipment functions:
Equipment | Main Function |
|---|---|
Grounded Soldering Iron | Prevents Electrical Leakage |
Wrist Strap | Grounds Operator Body Charge |
Anti Static Mat | Dissipates Surface Charges |
Ionizer | Neutralizes Airborne Charges |
Conductive Flooring | Reduces Static Accumulation |
Ground Monitor | Verifies Continuous Grounding |
Investing in appropriate ESD equipment reduces long term manufacturing losses and improves production reliability.
The workplace environment directly affects electrostatic control by influencing charge accumulation, dissipation rates, contamination levels, and operator safety.
Environmental management is a critical aspect of ESD control during soldering processes. Even well designed equipment may not perform effectively if workplace conditions are poorly controlled.
Humidity is one of the most important environmental factors. Relative humidity between 40 percent and 60 percent is generally considered optimal for reducing electrostatic accumulation while maintaining equipment safety.
Airflow systems can also affect electrostatic behavior. High velocity air movement may generate static charges through friction, especially in dry environments.
Important environmental control considerations include:
Humidity regulation
Temperature stability
Air filtration systems
Dust contamination control
Proper lighting conditions
Clean workstation layouts
A controlled workplace environment supports consistent soldering quality while reducing the likelihood of electrostatic discharge events.
Industries producing sensitive electronic devices are the most affected by soldering related electrostatic discharge risks.
As electronic systems become more advanced, more industries rely on effective ESD control during manufacturing and assembly operations.
Industries highly affected by soldering related ESD include:
Consumer electronics manufacturing
Semiconductor production
Medical device assembly
Telecommunications equipment manufacturing
Automotive electronics production
Aerospace electronics
Industrial automation systems
In automotive electronics, for example, ESD damaged control modules may create serious reliability and safety concerns. In medical electronics, electrostatic failures could potentially affect critical diagnostic or monitoring systems.
The growing demand for miniaturized high performance electronics continues to increase the importance of strict ESD management throughout soldering operations.
Manufacturers should build effective ESD control programs through standardized procedures, employee training, environmental monitoring, equipment maintenance, and continuous compliance verification.
An effective ESD control program requires company wide coordination rather than isolated protective measures. Every stage of the soldering process should follow clearly documented electrostatic protection standards.
A successful ESD program usually includes:
Workstation grounding verification
Regular equipment inspections
Employee ESD awareness training
Environmental condition monitoring
Protective material selection
Routine compliance audits
Continuous process improvement
Manufacturers should also establish measurable performance indicators such as:
Defect rate reductions
Grounding compliance rates
Humidity stability measurements
Equipment calibration accuracy
Warranty return analysis
Continuous improvement is essential because production technologies and component sensitivities continue evolving over time.
Electrostatic discharge during soldering processes is a major challenge in modern electronics manufacturing. As electronic components become increasingly sensitive, even minor electrostatic events can cause serious damage, product failures, and financial losses.
Understanding how static electricity develops during soldering operations allows manufacturers to implement effective prevention strategies. Proper grounding systems, ESD safe equipment, environmental control, employee training, and continuous monitoring all play critical roles in reducing electrostatic risks.
Although ESD control requires investment in equipment and operational management, the long term benefits are substantial. Reduced defect rates, improved product reliability, lower warranty costs, and enhanced production efficiency make electrostatic protection an essential part of modern soldering operations.
Manufacturers that establish comprehensive ESD control programs can better protect sensitive electronic components, maintain consistent product quality, and strengthen their competitive position in increasingly demanding global electronics markets.
