EIESD Ion Air Bar: ESD Auditing Procedures in Semiconductor Facilities

Electrostatic discharge (ESD) remains one of the most critical reliability concerns in semiconductor manufacturing facilities. As semiconductor devices continue to shrink in geometry and increase in complexity, the sensitivity of integrated circuits to static electricity has grown significantly. Even a small electrostatic event that is invisible to human operators can cause catastrophic device failure, latent defects, yield loss, and costly production interruptions.

Modern semiconductor facilities operate within highly controlled manufacturing environments where every workstation, tool, material, and employee interaction must comply with strict ESD protection requirements. Because of this, ESD auditing procedures have become an essential operational practice for fabs, assembly plants, testing laboratories, and electronics manufacturing environments. Proper auditing ensures compliance with international standards, protects sensitive components, and improves long term manufacturing reliability.

ESD auditing procedures in semiconductor facilities involve systematic inspections, measurements, verification processes, documentation reviews, and compliance checks designed to ensure all ESD control systems effectively protect sensitive semiconductor devices from electrostatic damage throughout manufacturing operations.

An effective ESD audit program does more than identify noncompliance issues. It creates a culture of continuous improvement, strengthens process consistency, reduces product failures, and supports customer quality requirements. Semiconductor manufacturers that implement robust auditing frameworks can significantly reduce yield loss while maintaining stable production performance.

This article explores the complete ESD auditing process in semiconductor facilities, including audit preparation, workstation inspection methods, personnel compliance verification, environmental monitoring, equipment validation, documentation requirements, common challenges, and best practices for maintaining a highly effective ESD control program.

Table of Contents

• Understanding the Importance of ESD Auditing in Semiconductor Facilities

• Key Components of an ESD Audit Program

• Preparing for an ESD Audit in Semiconductor Manufacturing

• Auditing ESD Protected Areas and Workstations

• Personnel Compliance Verification During ESD Audits

• Testing and Monitoring ESD Control Equipment

• Environmental Monitoring in Semiconductor ESD Audits

• Documentation and Reporting Procedures for ESD Audits

• Common ESD Audit Failures and Corrective Actions

• Best Practices for Continuous ESD Compliance Improvement

• Conclusion

Understanding the Importance of ESD Auditing in Semiconductor Facilities

ESD auditing is essential in semiconductor facilities because it verifies the effectiveness of electrostatic control systems, reduces device failures, protects production yield, and ensures compliance with industry standards.

Semiconductor devices are extremely sensitive to electrostatic discharge events. Advanced integrated circuits can be damaged by static voltages far below the threshold detectable by humans. A single uncontrolled discharge can destroy a chip instantly or create latent damage that leads to field failures later in the product lifecycle.

ESD auditing provides manufacturers with a structured method for evaluating whether their ESD protection program is functioning correctly. Audits help identify weaknesses in grounding systems, personnel handling procedures, ionization equipment, flooring systems, packaging materials, and environmental controls before failures occur.

In semiconductor manufacturing, yield improvement is directly connected to process stability. Poor ESD controls can create intermittent and difficult to diagnose defects that negatively affect production efficiency. Through routine audits, manufacturers can detect hidden vulnerabilities that would otherwise contribute to scrap, rework, and customer complaints.

ESD auditing also supports compliance with international standards commonly used in electronics manufacturing environments. Facilities often align their programs with recognized ESD management frameworks that define technical requirements for grounding, resistance measurements, workstation setup, and operator compliance.

Key Components of an ESD Audit Program

An effective ESD audit program includes workstation inspections, grounding verification, personnel compliance checks, environmental monitoring, equipment testing, documentation review, and corrective action management.

A comprehensive ESD audit program must evaluate every component involved in electrostatic protection. Semiconductor facilities contain numerous interconnected systems, and weaknesses in one area can compromise the entire manufacturing environment.

One of the most important audit components is grounding verification. Auditors must confirm that workstations, tools, shelving systems, carts, and conductive surfaces are properly connected to verified ground points. Inadequate grounding paths can allow electrostatic charges to accumulate and discharge into sensitive devices.

Personnel compliance is another major area of focus. Employees working inside ESD protected areas must wear approved garments, footwear, wrist straps, gloves, and other protective equipment. Auditors evaluate whether operators follow proper handling procedures and whether testing stations accurately validate wearable grounding devices.

Environmental controls also play a critical role in ESD management. Relative humidity, airflow, ionization performance, and particulate control can influence electrostatic charge generation. Auditors often review environmental monitoring systems to ensure stable operating conditions throughout the facility.

The following list highlights common audit elements in semiconductor facilities:

1. Grounding continuity testing

2. Resistance measurement verification

3. Workstation compliance inspections

4. Personnel grounding checks

5. Ionizer performance testing

6. Packaging material verification

7. Humidity monitoring validation

8. Calibration record review

9. Training documentation assessment

10. Corrective action tracking

Preparing for an ESD Audit in Semiconductor Manufacturing

Proper preparation for an ESD audit involves defining audit scope, reviewing standards, gathering documentation, scheduling inspections, and ensuring measurement equipment is calibrated.

Preparation is one of the most important phases of a successful ESD audit. Semiconductor facilities typically involve multiple production areas, each with unique process requirements and electrostatic sensitivity levels. Audit planning ensures that inspections remain organized, accurate, and comprehensive.

The first step involves defining the audit scope. Some audits focus on specific production lines, while others evaluate the entire facility. Audit teams must determine which manufacturing stages, cleanrooms, assembly stations, storage areas, and testing laboratories will be inspected.

Documentation review is another critical preparation activity. Auditors examine ESD control procedures, employee training records, calibration certificates, previous audit findings, and corrective action reports. This information helps auditors identify recurring issues and prioritize high risk areas.

Measurement instruments used during audits must also undergo calibration verification. Resistance meters, charge plate monitors, field meters, and ionizer testers must produce accurate readings to ensure reliable audit results. Uncalibrated equipment can compromise the validity of the entire auditing process.

Facilities often use pre audit checklists to improve efficiency. These checklists help ensure no critical inspection areas are overlooked during evaluation activities.

Auditing ESD Protected Areas and Workstations

Auditing ESD protected areas involves verifying workstation grounding, surface resistance, signage, handling procedures, packaging materials, and overall compliance with electrostatic control requirements.

ESD protected areas represent the core operational zones where sensitive semiconductor devices are handled. These environments must maintain strict electrostatic controls to minimize the risk of discharge events during manufacturing processes.

Auditors begin by examining workstation grounding systems. Conductive and dissipative surfaces should connect to verified electrical grounds through approved resistance paths. Workbench mats, shelves, and equipment surfaces must demonstrate acceptable resistance values during testing procedures.

Packaging materials are another major focus area. Semiconductor devices should only be stored or transported in approved ESD protective containers, trays, shielding bags, or conductive carriers. Noncompliant materials can generate static charges that threaten product integrity.

Visual inspections also play an important role during workstation audits. Auditors verify that ESD warning signs are clearly displayed, grounding cords remain intact, and prohibited materials are absent from controlled environments. Simple issues such as damaged cords or unauthorized plastic items can significantly increase electrostatic risk.

Workstation organization directly affects compliance performance. Cluttered or poorly maintained stations may interfere with grounding paths and create unsafe handling conditions. Auditors evaluate housekeeping standards alongside technical compliance measurements.

Personnel Compliance Verification During ESD Audits

Personnel compliance verification ensures employees properly use ESD protective equipment, follow handling procedures, and maintain grounding integrity while working with sensitive semiconductor devices.

Human operators are among the largest sources of electrostatic charge generation in semiconductor facilities. Walking, clothing movement, and routine handling activities can create substantial static buildup if proper controls are not enforced.

Auditors closely examine employee compliance with ESD procedures. This includes verifying proper use of wrist straps, heel grounders, conductive footwear, gloves, smocks, and grounding cords. Personnel entering ESD protected areas must pass grounding verification tests before beginning work.

Training records are also evaluated during personnel audits. Employees should receive regular instruction on ESD awareness, handling techniques, workstation procedures, and emergency response protocols. Refresher training is particularly important when facilities introduce new manufacturing processes or updated compliance standards.

Behavioral observations provide valuable insight into operational discipline. Auditors monitor whether employees properly handle semiconductor devices, avoid unnecessary contact with sensitive components, and follow established material transfer procedures.

The following checklist illustrates common personnel audit criteria:

• Wrist strap testing compliance

• Proper footwear usage

• Approved garment utilization

• Correct handling techniques

• Training certification validity

• Compliance with entry procedures

• Use of approved tools and materials

Testing and Monitoring ESD Control Equipment

ESD control equipment testing verifies the functionality and performance of grounding systems, ionizers, monitoring devices, flooring systems, and protective materials used in semiconductor manufacturing.

Semiconductor facilities rely on numerous ESD control devices to maintain stable manufacturing conditions. Regular testing ensures these systems continue operating within acceptable performance limits.

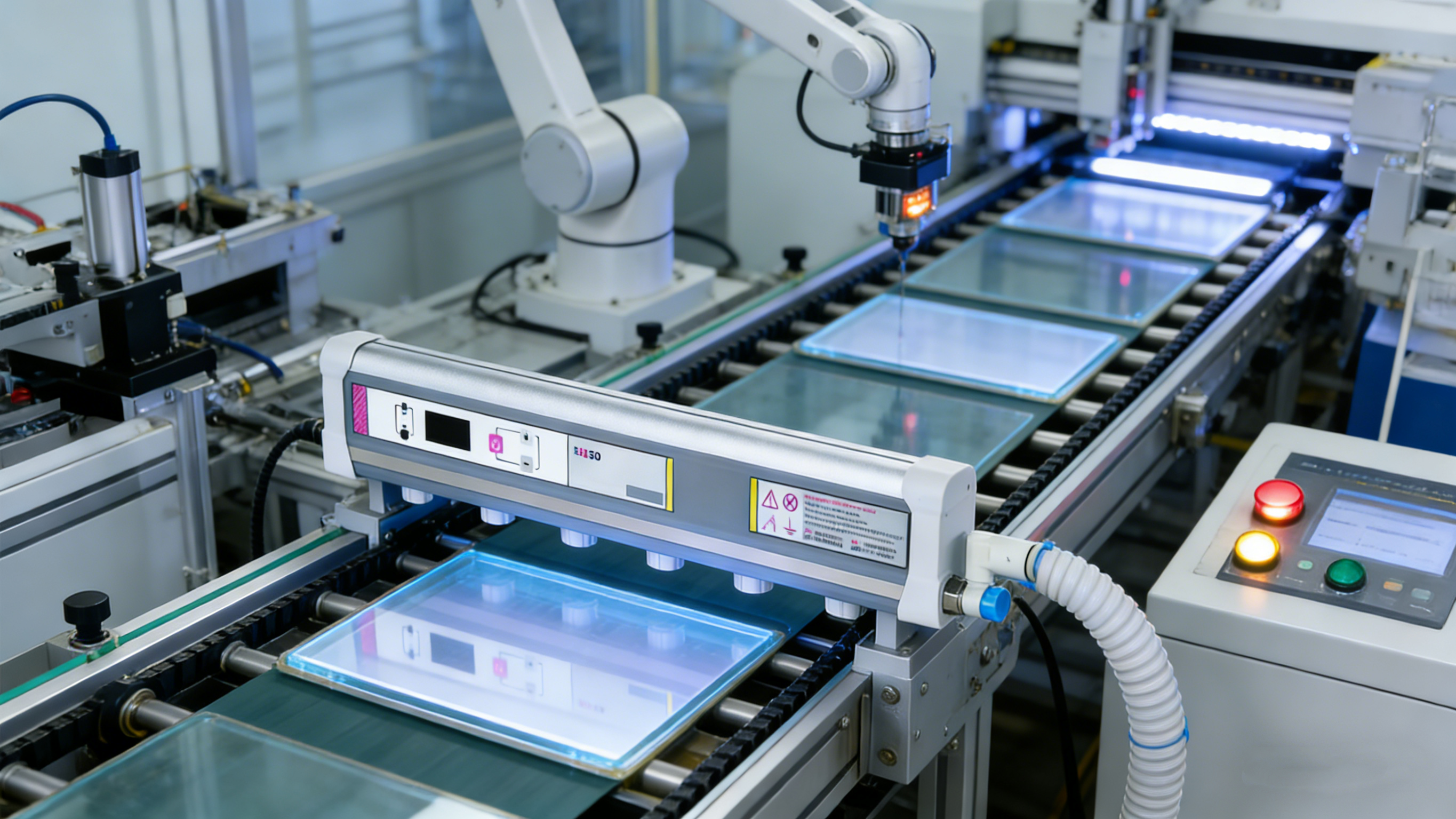

Ionizers are particularly important in environments where insulating materials cannot be eliminated. Auditors measure ion balance, discharge times, and airflow performance to confirm ionizers effectively neutralize electrostatic charges. Poorly maintained ionizers may create uneven charge distribution and increase electrostatic risks.

Continuous monitoring systems also require evaluation. Many facilities use automated grounding monitors connected to workstations and operators. Auditors inspect alarm functionality, calibration status, and response accuracy to ensure immediate detection of grounding failures.

Flooring systems represent another critical audit area. Conductive and dissipative floors must maintain proper electrical resistance characteristics. Auditors test flooring resistance under controlled conditions and verify compatibility with approved footwear systems.

Measurement consistency is essential during equipment audits. Facilities typically establish scheduled testing intervals for all ESD protection devices to ensure long term reliability and compliance stability.

Environmental Monitoring in Semiconductor ESD Audits

Environmental monitoring during ESD audits focuses on humidity, temperature, airflow, cleanliness, and ionization conditions that influence electrostatic charge generation and dissipation.

Environmental conditions significantly affect electrostatic behavior inside semiconductor facilities. Low humidity environments increase charge generation, while unstable airflow patterns may disrupt ionization effectiveness and particle control.

Relative humidity monitoring is one of the most common environmental audit activities. Semiconductor manufacturers often maintain controlled humidity ranges to minimize electrostatic charge buildup while supporting cleanroom operational requirements.

Temperature stability also influences ESD performance. Rapid environmental fluctuations can affect material resistance properties, employee comfort, and equipment reliability. Auditors review environmental monitoring systems to confirm stable operating conditions across production areas.

Airflow evaluation is particularly important in cleanroom environments. Improper airflow can create friction related charge generation and interfere with ionizer performance. Auditors may inspect ventilation systems, filter maintenance schedules, and airflow balancing records.

Environmental monitoring data should be continuously recorded and reviewed for abnormal trends. Historical analysis allows facilities to identify recurring issues and implement preventive corrective actions before significant compliance failures occur.

Documentation and Reporting Procedures for ESD Audits

Documentation and reporting procedures ensure ESD audit findings are properly recorded, analyzed, tracked, and used to support corrective actions and continuous compliance improvement.

Accurate documentation is essential for maintaining an effective ESD control program. Semiconductor manufacturers must demonstrate traceability, accountability, and consistent compliance across all operational areas.

Audit reports typically include inspection results, measurement data, identified nonconformities, corrective action recommendations, and verification timelines. Detailed reporting allows management teams to prioritize risk reduction activities and allocate resources effectively.

Trend analysis is another important function of audit documentation. By reviewing historical audit results, facilities can identify recurring weaknesses, high risk production areas, and process variations that require additional controls.

Corrective action tracking systems help ensure identified issues are resolved promptly. Auditors often review whether corrective measures were implemented successfully and whether follow up inspections confirmed long term effectiveness.

Digital reporting systems are increasingly common in semiconductor manufacturing environments. Automated databases improve record accessibility, simplify compliance reviews, and support real time monitoring of audit performance indicators.

Common ESD Audit Failures and Corrective Actions

Common ESD audit failures include improper grounding, inadequate personnel compliance, damaged protective equipment, poor documentation, and insufficient environmental controls, all of which require structured corrective actions.

Even advanced semiconductor facilities encounter recurring ESD compliance challenges. Identifying these weaknesses early through auditing helps prevent production losses and customer reliability issues.

One of the most common audit findings involves damaged or improperly connected grounding systems. Broken cords, disconnected mats, and worn connectors can interrupt grounding continuity and increase electrostatic risk. Corrective actions usually involve immediate replacement and enhanced inspection schedules.

Personnel noncompliance is another frequent issue. Employees may fail to wear approved protective equipment correctly or bypass grounding verification procedures during busy production periods. Facilities often address these issues through retraining programs and stricter supervisory oversight.

Documentation deficiencies can also affect audit performance. Missing calibration records, incomplete training logs, and inconsistent inspection reports may create compliance gaps during customer or regulatory evaluations. Standardized reporting systems help reduce these administrative weaknesses.

The following table summarizes common audit failures and corrective actions:

Best Practices for Continuous ESD Compliance Improvement

Continuous ESD compliance improvement requires routine audits, employee training, preventive maintenance, data analysis, management involvement, and proactive process optimization.

Sustainable ESD protection programs depend on continuous improvement rather than isolated inspection activities. Semiconductor manufacturing environments evolve rapidly, making ongoing adaptation essential for long term compliance success.

Routine internal audits help facilities identify emerging issues before they become major operational problems. Many manufacturers implement layered audit systems that include daily operator checks, weekly supervisor reviews, monthly engineering inspections, and annual comprehensive assessments.

Employee engagement is equally important. Personnel who understand the importance of ESD control are more likely to follow procedures consistently. Facilities that invest in regular training programs often achieve higher compliance rates and lower defect levels.

Preventive maintenance programs support long term equipment reliability. Scheduled testing and servicing of ionizers, monitors, flooring systems, and grounding infrastructure reduce unexpected failures and improve process stability.

Data driven decision making further strengthens ESD programs. Facilities that analyze audit trends, defect data, environmental readings, and corrective action performance can identify opportunities for optimization and risk reduction.

1. Conduct regular scheduled audits

2. Maintain strong employee training programs

3. Implement preventive maintenance systems

4. Use digital compliance tracking tools

5. Review historical audit trends

6. Improve cross department communication

7. Standardize inspection procedures

8. Encourage continuous operational improvement

Conclusion

ESD auditing procedures are a foundational element of semiconductor manufacturing reliability and quality assurance. As semiconductor devices become increasingly sensitive to electrostatic discharge, facilities must maintain highly disciplined control systems supported by structured auditing practices.

A comprehensive ESD audit program includes workstation inspections, personnel compliance verification, environmental monitoring, equipment testing, documentation review, and corrective action management. Together, these activities help manufacturers reduce yield loss, improve operational consistency, and strengthen customer confidence.

Semiconductor facilities that prioritize continuous ESD compliance improvement are better positioned to maintain production stability, minimize latent defects, and support long term business growth in an increasingly demanding electronics industry.
