Automated Optical Inspection (AOI) systems have become indispensable core equipment in high-precision manufacturing industries, including semiconductor wafer processing, SMT circuit board assembly, precision electronic component production, and automotive electronics manufacturing. These intelligent inspection devices rely on high-resolution optical cameras, precision LED light source modules, high-speed image processing algorithms, and automated material handling mechanisms to achieve non-contact, high-efficiency, and high-accuracy defect detection. AOI systems are primarily used to identify surface defects, dimensional deviations, assembly errors, and soldering anomalies on finished and semi-finished products, serving as the final quality barrier for standardized mass production and effectively reducing the error rate of traditional manual inspection.
As manufacturing processes continue to advance toward miniaturization, high density, and ultra-precision, the tolerance of electronic products and precision components to electrostatic discharge (ESD) decreases exponentially. Modern AOI workstations integrate automated feeding, transmission, positioning, and scanning processes, which involve frequent material friction, contact separation, and high-speed mechanical movement. These operational characteristics make AOI inspection environments prone to static charge accumulation. Without standardized ESD control, invisible static electricity will trigger product damage, inspection data distortion, equipment precision drift, and batch production quality risks, severely undermining the quality assurance value of AOI systems.
Effective ESD control in Automated Optical Inspection (AOI) systems relies on standardized static risk assessment, full-link static elimination configurations, compliant environmental management, standardized operational protocols, and regular equipment maintenance, which eliminates static-induced product defects, equipment malfunctions, and data errors to ensure long-term stable and accurate operation of AOI inspection workflows.
Most manufacturing enterprises focus on optimizing AOI optical recognition accuracy, algorithm iteration, and inspection efficiency while ignoring the hidden ESD hazards of inspection workstations. Many AOI static control measures are limited to simple anti-static ground wiring, lacking systematic full-process management. Local static accumulation in feeding, transmission, positioning, and scanning links still causes intermittent quality problems that are difficult to trace and resolve. These unaddressed static risks greatly restrict the yield improvement of high-precision production lines.
To maximize the quality inspection value of AOI systems and eliminate static-induced hidden production dangers, it is necessary to systematically analyze the generation mechanisms and unique hazards of static electricity in AOI working scenarios, clarify industry standard specifications, and implement targeted hierarchical prevention and control strategies. This article comprehensively elaborates on ESD generation causes, core hazards, standard requirements, and practical control solutions for AOI workstations, providing professional guidance for enterprise standardized production management.
Unique Causes of ESD Generation in AOI Working Environments
Core Negative Impacts of Uncontrolled ESD on AOI Systems and Inspected Products
Industry ESD Control Standards and Compliance Requirements for AOI Workstations
Key ESD Control Points for AOI Hardware and Structural Components
Environmental and Personnel ESD Management Specifications for AOI Inspection Zones
Long-Term ESD Maintenance and Continuous Optimization Mechanisms for AOI Systems
ESD generation in AOI workstations mainly stems from triboelectric charging during automated material transmission and positioning, non-anti-static auxiliary structural components, cleanroom low-humidity environments, high-frequency continuous scanning operations, and incomplete local static dissipation pathways unique to optical inspection equipment.
Automated material handling and positioning movements are the primary source of static charge generation in AOI systems. Different from ordinary production equipment, AOI devices require high-precision clamping, adsorption, and transmission of precision workpieces such as PCBs, wafers, and micro-components. In the automated feeding process, workpieces continuously contact and separate from conveyor belts, vacuum suction fixtures, and positioning jigs. Each contact-separation cycle between dissimilar materials triggers triboelectric electron transfer. AOI equipment operates at high-frequency continuous circulation during mass production, completing thousands of positioning and transmission actions per hour. Repeated microscopic friction and separation generate a large number of residual static charges, which accumulate rapidly on the surfaces of workpieces and equipment fixtures, forming high-potential static fields.
Non-anti-static structural and auxiliary components form the foundational condition for persistent static accumulation in AOI systems. To meet the requirements of wear resistance, corrosion resistance, and light weight, many internal and external auxiliary parts of AOI equipment, including ordinary plastic transmission rollers, polymer positioning gaskets, insulating fixture surfaces, and cable insulating sleeves, are made of high-resistance insulating materials. These materials have surface resistivity exceeding 10^12 ohms, with no free charge carriers inside, making it impossible to naturally dissipate static charges. Unlike metal conductive structures that can release static electricity through grounding, insulating components will trap static charges for a long time, forming fixed static hazard points in the inspection area. Long-term operation leads to continuous charge superposition, greatly increasing the probability of ESD discharge.
Precision optical scanning operations produce secondary static induction effects that aggravate static risks. AOI core working links include high-speed reciprocating scanning of optical lenses and light source modules. The high-speed movement of internal mechanical structures of the equipment drives the flow of surrounding air, and air friction generates additional floating static charges. Meanwhile, the high-precision circuit control system and optical sensor components inside AOI equipment are extremely sensitive to external static fields. Local static accumulation around the scanning area will induce opposite charges on the surfaces of optical modules and circuit boards, causing static superposition in the limited internal space of the equipment and further expanding the scope of static hazards.
Cleanroom environmental parameters amplify static accumulation efficiency in AOI work areas. Most high-precision AOI inspection links are deployed in dust-free cleanrooms with strict cleanliness control. To prevent workpiece oxidation, dust adhesion, and optical lens contamination, cleanrooms usually maintain low-humidity operating conditions below 40% relative humidity. Low-humidity air lacks effective water vapor conductive layers, resulting in extremely low natural static dissipation capacity. Industry test data shows that the static voltage of workpiece surfaces in AOI low-humidity working environments is 3 to 6 times higher than that in normal humidity environments. Dry air completely loses the effect of auxiliary static dissipation, making static charge accumulation more rapid and concentrated.
Incomplete grounding and static dissipation blind spots are the key reasons for frequent ESD events in AOI equipment. Many enterprises only ground the main metal frame of AOI equipment during installation but ignore the grounding treatment of movable components such as transmission fixtures, vacuum suction nozzles, and adjustable positioning brackets. These ungrounded movable parts form independent static accumulation units. In addition, long-term equipment operation will cause aging of grounding wires, oxidation of contact points, and increased grounding resistance, blocking static discharge pathways. Local static charges cannot be released in time, and when the potential difference exceeds the air breakdown threshold, sudden ESD discharge will occur between the equipment and the workpiece.
Manual auxiliary operations also bring occasional static interference risks. In the process of equipment debugging, workpiece sampling, and fixture replacement, operators will generate static charges due to body movement and clothing friction. Without complete anti-static protection, human body static will be transferred to AOI workbenches and precision workpieces, triggering instantaneous high-voltage ESD impact. Although manual-induced static events are low-frequency, the discharge voltage is high, which is extremely harmful to ultra-precision micro-components.
Uncontrolled ESD in AOI workstations causes three major types of losses: irreversible damage to precision inspected products, reduced AOI inspection accuracy and data distortion, and accelerated aging and precision degradation of AOI core equipment components.
ESD discharge causes catastrophic and latent damage to precision electronic workpieces inspected by AOI systems. The workpieces processed and inspected by AOI are mostly high-precision electronic components such as SMT chips, ultra-thin circuit boards, and semiconductor wafer dies, which have extremely low static tolerance. Most microelectronic devices can only withstand static voltages below 10V. Instantaneous high-current pulses generated by ESD discharge will break down the ultra-thin gate oxide layer of the device, melt internal micro-circuits, and cause permanent short circuit or open circuit faults, resulting in direct workpiece scrapping. Different from visible mechanical damage, latent ESD damage is more harmful. Sub-threshold static impact will cause subtle structural changes inside the device, which cannot be identified by conventional AOI surface inspection. These defective products will pass inspection and flow into subsequent processes, leading to batch failure of terminal products and huge after-sales quality risks.
Static electrostatic attraction causes workpiece surface contamination and interferes with AOI defect judgment accuracy. Charged workpiece and equipment surfaces formed by static accumulation will strongly adsorb suspended micro-dust, fiber debris, and tiny particle impurities in the cleanroom. These tiny pollutants adhere tightly to the workpiece surface, forming tiny light and shadow spots under the irradiation of AOI high-precision light sources. The AOI image recognition system will mistake static-induced particle contamination for real defects such as solder paste deviation and surface scratches, resulting in false defect detection. In addition, static adsorption will cause workpiece adhesion and position offset during transmission, leading to incomplete scanning and missed detection of real defects, seriously reducing the reliability of AOI inspection results.
Static electromagnetic interference distorts AOI optical signal and data processing results. AOI systems rely on high-sensitivity optical sensors and high-speed image acquisition chips to capture micron-level defect information. ESD discharge will generate instantaneous high-frequency electromagnetic pulses, which interfere with the weak optical signal transmission and electrical signal operation inside the equipment. Electromagnetic static noise will cause image blurring, gray-scale distortion, and signal loss, resulting in inconsistent repeated detection data of the same workpiece. In actual production, this interference often leads to frequent false alarms, repeated inspections, and manual re-judgment, greatly reducing the operating efficiency of automated production lines and increasing labor costs.
Long-term static impact accelerates the aging and precision drift of AOI core components. The optical lens, precision positioning platform, and image processing module of AOI equipment require long-term stable calibration accuracy to ensure inspection consistency. Repeated ESD pulse impact will change the electrical zero-point parameters of sensors and the resistance characteristics of precision circuit components, resulting in continuous drift of equipment calibration values. Uncontrolled static accumulation will also cause dust adsorption on the lens surface, affecting light source transmittance and imaging clarity. Long-term cumulative effects will reduce the inspection resolution and service life of AOI equipment, increase the frequency of equipment calibration and maintenance, and raise enterprise operational costs.
ESD hidden dangers will also trigger unplanned downtime of AOI production lines and reduce overall production capacity. Severe static interference will cause sudden system crashes, scanning interruptions, and equipment self-protection shutdowns of AOI equipment. These random equipment faults are difficult to reproduce and troubleshoot, resulting in intermittent stagnation of automated production lines. For continuous mass production workshops, frequent unplanned downtime will directly reduce daily output and disrupt standardized production rhythms.
The following table summarizes the specific hazard manifestations and production impacts of uncontrolled ESD in AOI workstations:
ESD Hazard Object | Specific Manifestations | Production Impact Severity | Detection Difficulty |
|---|---|---|---|
Precision Inspected Workpieces | Circuit breakdown, latent parametric drift, static adsorption contamination | Extremely High (batch quality risks) | High (latent defects cannot be identified by AOI) |
AOI Inspection Data | False detection, missed detection, inconsistent repeated data | High (reduces inspection credibility) | Medium (requires manual verification) |
AOI Equipment Components | Sensor calibration drift, lens contamination, circuit aging | Medium (increases maintenance costs) | Low (can be found in regular maintenance) |
Production Line Operation | Sudden equipment shutdown, reduced operational efficiency | Medium (affects production capacity) | Low (obvious operational abnormalities) |
AOI workstations involved in precision electronic manufacturing and cleanroom operations must comply with ANSI/ESD S20.20, SEMI E78, and ISO 14644 series standards, which specify mandatory requirements for equipment static performance, environmental parameters, and on-site management.
The ANSI/ESD S20.20 standard is the core universal specification for ESD control of electronic manufacturing equipment, covering all static management requirements for AOI workstation equipment, environment, and personnel. The standard clearly stipulates that all workpiece contact components and working surfaces of precision inspection equipment such as AOI must adopt static-dissipative materials with surface resistance between 10^6 and 10^9 ohms to ensure stable and safe static charge dissipation. It also requires that the overall grounding resistance of AOI equipment must not exceed 1 ohm, realizing zero-delay leakage of static charges. In addition, ANSI/ESD S20.20 mandates regular static potential testing of equipment working surfaces and static hazard troubleshooting to avoid long-term unmanaged charge accumulation.
The SEMI E78 standard specially formulates ESD and electrostatic attraction control specifications for semiconductor and microelectronic inspection equipment, which is highly targeted for wafer and high-precision component AOI inspection scenarios. The standard requires that the static potential of all AOI equipment surfaces in contact with semiconductor workpieces must be controlled within ±10V to avoid low-voltage static discharge damage to nanoscale device structures. At the same time, it prohibits the use of high-insulation materials with resistance higher than 10^12 ohms in the workpiece scanning area and positioning fixtures of AOI equipment, and requires the deployment of real-time static monitoring devices in key inspection areas.
The ISO 14644 cleanroom standard puts forward clear environmental matching requirements for AOI static control. The standard specifies that the relative humidity of precision AOI inspection cleanrooms should be stably maintained between 40% and 60%. This humidity range can form a microscopic conductive water layer on the surface of equipment and workpieces, ensuring natural static dissipation efficiency while avoiding excessive humidity-induced workpiece oxidation and optical lens fogging. Long-term operation in environments with humidity below 40% is deemed non-compliant, as it will cause rapid static accumulation and seriously threaten inspection quality and product safety.
Downstream high-end industry certification puts forward higher customized requirements for AOI ESD control. Automotive electronics, aerospace precision manufacturing, and medical electronic device industries have extremely strict supplier audit standards for static management of production and inspection links. These industries require enterprises to provide complete AOI equipment ESD certification documents, daily static monitoring records, and maintenance logs. Any non-compliance in workstation static control will directly lead to failure of supplier qualification review and loss of high-end customer orders.
The following list sorts the core mandatory ESD control compliance indicators for standard AOI workstations:
Qualified surface resistance of AOI workpiece contact components: 10^6–10^9 ohms (ANSI/ESD S20.20 & SEMI E78)
Maximum allowable surface static potential of inspection area: ±10V (SEMI E78)
Overall equipment grounding resistance threshold: ≤1 ohm (ANSI/ESD S20.20)
Standard cleanroom humidity control range for AOI operation: 40%–60% RH (ISO 14644)
Mandatory quarterly static performance testing and calibration of AOI equipment (ANSI/ESD S20.20)
Full anti-static protection for all on-site operators and maintenance personnel (ANSI/ESD S20.20)
AOI hardware ESD control focuses on material upgrading of contact components, full-coverage grounding optimization, deployment of active static neutralization equipment, and elimination of structural static blind spots to block static generation and accumulation from the source.
Upgrade static-dissipative materials for all workpiece contact components of AOI equipment to eliminate source static generation. Replace traditional insulating plastic fixtures, ordinary rubber suction nozzles, and polymer positioning gaskets with high-quality anti-static materials that meet SEMI E78 standards. For high-precision semiconductor AOI inspection equipment, ultra-low static composite materials should be selected to strictly control the surface resistance within the optimal dissipation range of 10^6 to 10^9 ohms. This material configuration can effectively conduct and release static charges generated by friction and contact separation while avoiding excessive conductivity-induced electrical leakage risks, achieving balanced static protection and operational safety.
Implement full-coverage standardized grounding transformation to eliminate static dissipation blind spots. Conduct comprehensive inspection and sorting of all structural components of AOI equipment, including main frames, movable positioning brackets, transmission rollers, vacuum fixture components, and auxiliary support parts. All metal movable parts and functional components must be connected to the unified equipment grounding system to eliminate isolated ungrounded components. Regularly inspect grounding wire aging, contact oxidation, and loose connection problems, polish contact surfaces to ensure good conductive contact, and test grounding resistance monthly to ensure compliance with the 1-ohm standard. For multi-module segmented AOI equipment, set up multi-point grounding nodes to avoid local static accumulation caused by excessive line resistance.

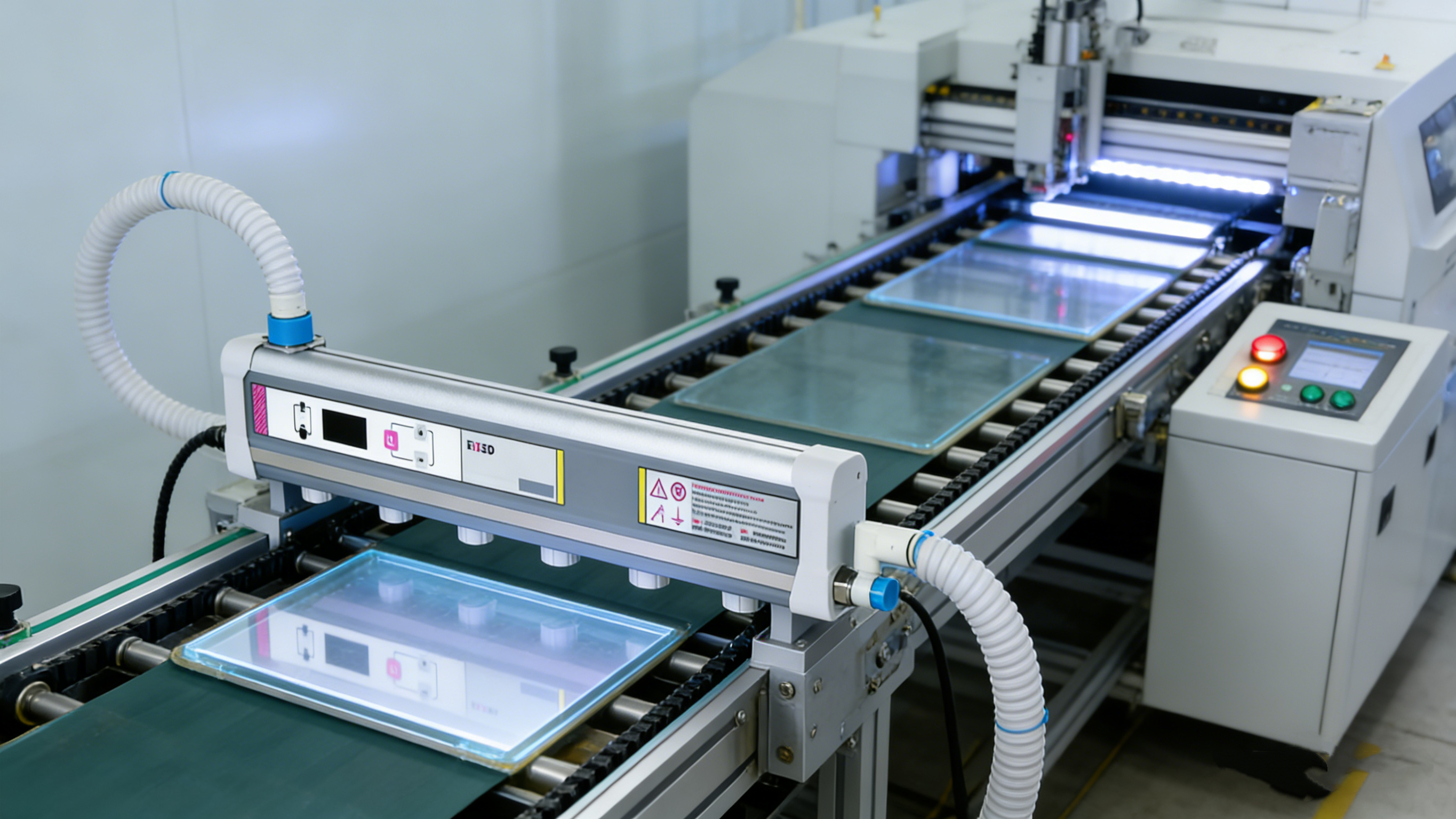

Deploy professional active static neutralization equipment in key inspection areas. Install high-precision ion static eliminators and ion air blowers at the feeding end, scanning working area, and discharging end of AOI equipment. The ion equipment can release balanced positive and negative air ions, which instantly neutralize static charges on the surfaces of workpieces and equipment fixtures, rapidly reducing surface static potential and eliminating electrostatic attraction and discharge risks. For high-speed online AOI production lines, intelligent static monitoring linkage systems can be configured to automatically adjust ion output according to real-time static potential data of the working area, realizing precise and dynamic static elimination.
Optimize the internal structural design of AOI equipment to reduce static induction effects. Seal the internal optical scanning module and circuit control area reasonably to reduce air friction and external static interference. Optimize the moving speed and operation rhythm of the scanning mechanism to avoid high-frequency violent friction-induced static superposition. Isolate high-sensitivity optical sensors and image processing circuits from easily charged mechanical components through anti-static shielding materials to prevent static electromagnetic interference from affecting signal transmission stability.
Regularly replace aging anti-static components to maintain long-term stable static control performance. Anti-static materials will gradually age and fail after long-term friction and operation, with surface resistance gradually exceeding the standard range. Establish a regular replacement mechanism for AOI anti-static fixtures, suction nozzles, and conductive accessories, and conduct resistance testing before and after replacement to ensure that all contact components always meet industry anti-static standards, avoiding hidden hazards caused by component aging and failure.
Standardized environmental parameter regulation and personnel operation management are critical auxiliary means to control AOI workstation static risks, which can effectively reduce static generation frequency and avoid human-induced ESD interference.
Stabilize cleanroom environmental humidity parameters to optimize natural static dissipation conditions. Install intelligent constant humidity control systems in AOI inspection cleanrooms to maintain relative humidity stably between 40% and 60% throughout the year. For dry winter environments and air-conditioned closed workshops, deploy local micro-humidification equipment near AOI equipment to avoid local low-humidity static amplification. Stable humidity can form a uniform conductive water layer on the surfaces of equipment and workpieces, improving natural static dissipation efficiency and inhibiting static charge accumulation from the environmental level.
Strengthen cleanroom air purification management to reduce static-induced particle contamination. Match efficient high-precision filtration systems to reduce suspended dust and micro-particles in the air. On the one hand, it avoids particle adsorption on AOI optical lenses to ensure imaging clarity and inspection accuracy; on the other hand, it reduces static-induced workpiece surface contamination and false defect detection. Maintain stable and clean air circulation in the working area to avoid static charge stratification and accumulation caused by static air layers.
Formulate strict personnel anti-static operation specifications for AOI posts. All operators, maintenance personnel, and inspectors must wear certified anti-static clothing, anti-static gloves, and anti-static wristbands before entering the workstation, and conduct real-time static detection of personal protective equipment. Prohibit personnel from wearing chemical fiber clothing, ordinary rubber gloves, and other high-static daily supplies to enter the working area. Standardize operation behaviors, prohibit unauthorized contact with AOI optical components and workpiece surfaces, and avoid human body static transfer and artificial scratch contamination.
Carry out regular ESD professional training and on-site assessment. Conduct systematic static risk knowledge training for on-site operators and maintenance personnel, focusing on the ESD hazard mechanism of AOI workstations, standard operation procedures, and daily risk identification methods. Improve the static prevention awareness and standardized operation level of employees. Establish a post assessment mechanism to ensure that all staff on duty master anti-static operation specifications, eliminating human-induced static hazards caused by irregular operations.
Set up independent anti-static working platforms and isolation areas. Lay professional anti-static floor mats and anti-static workbenches in the AOI inspection area to form a unified static dissipation system with equipment grounding. Isolate the inspection area from ordinary production areas to avoid static interference from external equipment and operations, ensuring the relative independence and stability of the static environment in the AOI working area.
Long-term stable ESD control of AOI systems requires standardized daily maintenance, regular performance detection, fault closed-loop management, and process continuous optimization to avoid attenuation of static control effects and recurring hidden dangers.
Establish daily ESD inspection and maintenance mechanisms for AOI workstations. Formulate dedicated daily static control inspection checklists, including equipment grounding status, anti-static component integrity, working area static potential, environmental humidity parameters, and personnel protective equipment compliance. Arrange special personnel to conduct daily inspections and record data truthfully. Immediately rectify non-compliant problems such as loose grounding, aging accessories, and substandard humidity to eliminate hidden dangers in advance.
Carry out regular ESD performance testing and equipment calibration. Conduct quarterly professional static performance testing on AOI equipment, including surface resistance detection of contact components, grounding resistance testing, working area static potential monitoring, and ion static elimination equipment efficiency calibration. Compare test data with industry standard indicators to timely replace failed anti-static components and recalibrate equipment parameters to ensure that the static control capacity of the workstation always meets compliance requirements.
Build ESD fault filing and closed-loop management system. Record all static-induced equipment abnormalities, inspection data errors, and product quality problems in detail, including fault time, phenomenon, location, and rectification measures. Regularly sort out and analyze fault data, summarize high-frequency static hazard points and weak links in control, and formulate targeted optimization plans to avoid repeated faults. Realize full-process traceability and closed-loop management of ESD risks.
Optimize ESD control schemes iteratively with production process upgrading. With the upgrading of production processes and the replacement of AOI equipment, the static sensitivity of inspected workpieces and workstation operation modes will change accordingly. Regularly evaluate the applicability of existing static control schemes, adjust material configuration, equipment deployment, and environmental management parameters according to new process requirements, and continuously improve the refinement level of ESD control to adapt to high-precision production and inspection needs.
Improve enterprise internal ESD management system documents. Sort out AOI workstation static control operation guidelines, maintenance specifications, and compliance standards, form standardized management documents, and integrate ESD control into the daily production management system. Take static control effect as one of the assessment indicators of production quality management to ensure the long-term implementation and effective execution of various anti-static measures.
Automated Optical Inspection (AOI) systems, as the core quality inspection equipment for high-precision electronic manufacturing, have extremely strict requirements for working environment stability and equipment operational accuracy. The high-frequency automated transmission, positioning, and scanning characteristics of AOI workstations make them inherently prone to static charge generation and accumulation. Uncontrolled ESD hazards will not only cause irreversible damage to high-precision inspected workpieces and latent batch quality risks but also interfere with AOI optical imaging and data processing accuracy, reduce equipment service life, and increase enterprise operational and maintenance costs.
Effective AOI ESD control must adhere to systematic and full-link management ideas, strictly comply with ANSI/ESD S20.20, SEMI E78, and ISO 14644 industry standards. Through source optimization such as anti-static material upgrading and full-coverage grounding transformation, auxiliary control such as environmental humidity stabilization and standardized personnel management, and long-term guarantee mechanisms such as regular detection and closed-loop fault management, it can completely eliminate static hidden dangers in AOI inspection links.
Standardized ESD control is a low-cost and high-return quality optimization measure for AOI production lines. It can effectively stabilize inspection accuracy, reduce product defective rates and rework costs, extend the service life of precision inspection equipment, help enterprises meet industry compliance certification and high-end customer audit requirements, and provide solid technical support for stable quality control and efficient operation of modern automated precision manufacturing production lines.
