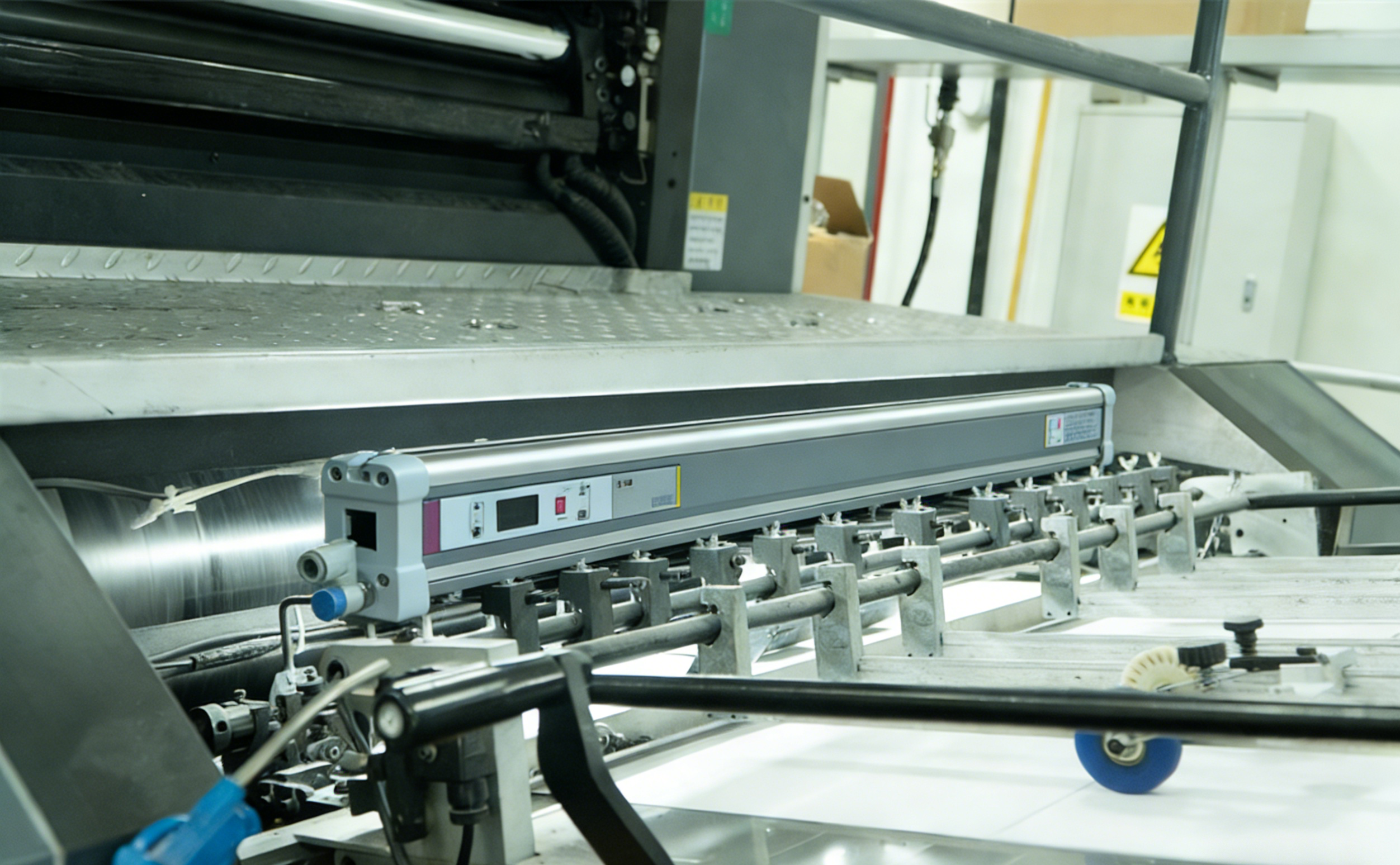

EIESD Ion Air Bar: ESD Event Logging and Data Analysis
The semiconductor and electronic manufacturing industries face persistent reliability challenges from Electrostatic Discharge (ESD), a transient electrical stress that causes both catastrophic component failure and latent parametric degradation across production, testing, and operational lifecycles. As modern semiconductor devices adopt advanced nanoscale processes, high-density integration, and high-frequency operating architectures, their tolerance to unregulated static discharge continues to decline dramatically. Traditional ESD management strategies rely on passive protection structures and post-failure troubleshooting, which fail to identify recurring ESD risks, trace root causes, and prevent batch-level product defects. In high-precision manufacturing scenarios including wafer fabrication, chip packaging, automated testing, and terminal equipment operation, invisible and random ESD events have become a leading cause of reduced product yield, shortened service life, and increased after-sales failure rates.
ESD event logging and systematic data analysis have emerged as core active reliability management technologies in the semiconductor industry, transforming ESD control from passive failure remediation to proactive risk prevention. By capturing complete ESD event parameters, recording environmental and operational context, and conducting multi-dimensional data mining, enterprises can accurately locate ESD hazard sources, optimize protection schemes, and standardize production control processes. This data-driven ESD management mode is essential for high-end semiconductor manufacturing, automotive electronics, and industrial control system production that require ultra-high reliability and stability.
ESD event logging realizes full lifecycle capture of static discharge occurrence characteristics, while targeted data analysis converts discrete ESD event data into actionable risk insights, enabling precise ESD risk control, reliability optimization, and continuous improvement of semiconductor product yield.
Most small and medium-sized electronic manufacturing enterprises currently adopt sporadic ESD detection and manual record-keeping methods, which suffer from incomplete data capture, missing latent events, and subjective data deviation. Disorganized ESD data cannot reflect the correlation between production environment, operational behavior, equipment status, and ESD occurrence, resulting in repeated ESD failures and long-term unresolved process defects. With the continuous improvement of industrial intelligent manufacturing levels, standardized ESD event logging and professional data analysis systems have become indispensable components of modern semiconductor quality management systems.
This article systematically elaborates on the core value, key logging parameters, standardized implementation processes, mainstream data analysis methods, industrial application pain points, and optimization strategies of ESD event logging and data analysis. It provides practical technical references and process guidelines for industry practitioners engaged in semiconductor reliability management, production quality control, and ESD protection design, helping enterprises build data-driven ESD risk prevention systems.
Core Value of ESD Event Logging and Data Analysis in Semiconductor Manufacturing
Standardized Implementation Workflow of Industrial ESD Event Logging
Common Industrial Pain Points in ESD Logging and Data Analysis
Optimization Strategies for High-Precision ESD Data Management Systems
Industry Development Trends of Intelligent ESD Logging and Analysis
ESD event logging and data analysis deliver core industrial value including precise root cause tracing, batch risk early warning, process standardization optimization, and quantitative reliability evaluation, fundamentally solving the blindness of traditional passive ESD management.
The first core value is accurate root cause tracing of ESD failure events. Traditional ESD troubleshooting relies on manual experience and post-failure phenomenon observation, which can only judge the superficial cause of device damage but cannot locate the fundamental source of static discharge. ESD events are triggered by multiple factors including environmental humidity, equipment grounding status, personnel operation specifications, material characteristics, and production line running status. Complete event logging records all dimensional context data of each discharge occurrence, and subsequent data analysis can establish the correlation between different variables and ESD events. For example, data comparison can confirm whether frequent ESD failures are caused by low workshop humidity, ungrounded testing fixtures, or non-standard personnel operation, eliminating the ambiguity of artificial judgment and realizing precise root cause positioning.
The second prominent value is batch risk early warning and mass defect prevention. Discrete ESD events in production lines often have hidden cumulative rules. A single occasional ESD discharge may not cause large-scale product failure, but continuous low-frequency ESD interference in fixed stations and time periods will lead to latent parametric degradation of batch chips. Through long-term logging and statistical analysis of ESD event frequency, voltage magnitude, and regional distribution, enterprises can identify abnormal ESD risk areas in advance, carry out targeted rectification before mass defective products appear, and effectively reduce production scrap rates and rework costs. This proactive early warning capability is particularly critical for mass production of high-precision semiconductors and automotive-grade electronic components.
Thirdly, ESD data management supports standardized optimization of production processes. ESD event data can intuitively reflect the rationality of production line ESD protection configuration, operational specification execution, and environmental control level. By analyzing the ESD event density of different production stations, process links, and equipment units, quality management personnel can identify weak links in ESD control, optimize equipment grounding schemes, adjust environmental humidity control parameters, and improve operational standard guidelines. Long-term data accumulation can form customized ESD process standards suitable for enterprise production characteristics, realizing standardized and refined ESD management rather than empirical management.
Fourthly, it provides quantitative data support for product reliability evaluation and design optimization. Traditional semiconductor ESD reliability evaluation only relies on standard HBM, MM, and CDM test results, which cannot reflect the actual ESD stress level of products in real production and application scenarios. On-site ESD event logging data can truly record the actual discharge voltage, pulse characteristics, and occurrence frequency that products bear during the whole lifecycle. Chip design engineers can optimize on-chip ESD protection structure parameters according to actual stress data, making protection design more consistent with industrial application scenarios and avoiding over-protection performance loss or under-protection reliability risks.
In addition, complete ESD logging and analysis data can serve as important certification materials for industrial quality audits and customer supplier assessments. High-reliability fields such as automotive electronics, aerospace semiconductors, and industrial control chips have strict traceability requirements for product production processes. Complete ESD event records and data analysis reports can prove the effectiveness of enterprise ESD management systems, improve product qualification credibility, and enhance market competitiveness in B2B supplier cooperation.
Accurate ESD event logging requires comprehensive collection of four core parameter dimensions including event characteristic parameters, environmental parameters, equipment parameters, and product state parameters, forming a complete data portrait of each static discharge event.
Effective ESD data analysis depends on comprehensive and standardized logging parameters. Incomplete or single-dimensional data will lead to distorted analysis results and failed risk judgment. Industrial standardized ESD event logging covers multi-dimensional parameter indicators, and the core logging parameters and data collection requirements are sorted in the following table:
Parameter Dimension | Core Logging Indicators | Data Collection Requirements | Data Analysis Value |
|---|---|---|---|
ESD Event Characteristic Parameters | Discharge voltage peak, discharge current magnitude, pulse duration, discharge polarity, event occurrence time, discharge frequency | Real-time high-frequency sampling, accurate to microsecond level, record single and cumulative events | Judge ESD hazard level, distinguish catastrophic and latent damage risks |
Production Environmental Parameters | Workshop temperature, ambient humidity, air cleanliness, regional electrostatic field strength | Synchronous real-time recording, linked with ESD event timestamp | Analyze environmental inducement rules of ESD events |
Equipment & Operation Parameters | Equipment grounding resistance, fixture surface resistance, personnel anti-static equipment status, equipment operating load | Real-time monitoring and recording of equipment status before and after ESD events | Locate equipment and operational behavioral risk sources |
Product & Process Parameters | Affected product model, process node, production station, processing procedure, product batch number | One-to-one association with ESD events, full batch traceability | Realize batch risk screening and targeted process optimization |
ESD event characteristic parameters are the most core basic data for risk evaluation. The discharge voltage peak and current magnitude directly determine the damage degree of static discharge to semiconductor devices. Different from standard laboratory ESD test parameters, on-site ESD events have random pulse widths and irregular voltage fluctuation ranges. High-precision logging equipment needs to capture transient pulse signals of microsecond level to avoid missing subtle low-magnitude ESD events that cause latent device damage. Discharge polarity recording is also crucial, as positive and negative static discharge have different damage mechanisms to chip gate oxides and PN junctions, providing differentiated data support for subsequent failure analysis.
Environmental parameters are key inducement factors for ESD events. Workshop humidity is the most critical environmental indicator; when ambient relative humidity is lower than 40%, the static dissipation rate of air drops sharply, and the probability of triboelectric charging increases exponentially. Synchronous recording of temperature and humidity changes and ESD event frequency can form quantitative correlation data, helping enterprises formulate scientific environmental control standards. In addition, abnormal electrostatic field strength in local areas of the workshop often indicates unreasonable equipment layout or failed static elimination facilities, which can be accurately identified through environmental parameter linkage analysis.
Equipment and operation parameters solve the problem of human and equipment error tracing. Most intermittent ESD events in automated production lines are caused by aging equipment grounding lines, increased fixture surface resistance, or non-standard personnel operation. Real-time logging of equipment grounding resistance and anti-static tool status can effectively screen out equipment failure risks. Recording operator information and operation time can trace human-induced ESD events, providing basis for operational training and specification optimization.
Product and process parameters realize full lifecycle traceability of ESD risks. Associating each ESD event with product batch, process station, and processing procedure can quickly lock affected product batches when abnormal events occur, avoid the circulation of defective products, and summarize ESD risk-prone process links through long-term data accumulation, realizing targeted process optimization and risk prevention.
Industrial ESD event logging follows a standardized closed-loop workflow of pre-system configuration, real-time data collection, data sorting and calibration, classified archiving, and synchronous linkage recording, ensuring data authenticity, completeness, and traceability.
The first step is pre-logging system configuration and scheme formulation. Before formal ESD event logging, enterprises need to complete the deployment of intelligent monitoring and logging equipment covering all key production stations including wafer transmission, chip testing, packaging, and assembly. According to production process characteristics and product reliability grades, formulate differentiated logging frequency and parameter acquisition accuracy standards. For high-precision RF semiconductors and automotive-grade chips, set high-frequency microsecond-level sampling mode; for general consumer-grade chip production, adopt conventional sampling standards to balance data accuracy and operating efficiency. At the same time, unify data recording formats, parameter definitions, and event classification standards to avoid data confusion caused by inconsistent statistical calibers.
The second step is full-coverage real-time synchronous data collection. The intelligent logging system automatically captures all ESD transient events in the production process 24 hours a day, including occasional low-magnitude discharge events and high-intensity dangerous discharge events that are difficult for manual observation. The system synchronously records the timestamp, spatial location, and corresponding production status of each ESD event, and binds environmental parameters, equipment status data, and product batch information to form associated multi-dimensional data sets. Different from manual intermittent recording, automatic intelligent collection avoids data missing and time deviation, ensuring the comprehensiveness and real-time performance of event data.
The third step is post-collection data sorting and error calibration. In actual industrial scenarios, external electromagnetic interference and equipment signal fluctuation may cause individual invalid data and abnormal noise points. Professional technicians need to calibrate the collected original data regularly, eliminate invalid interference data, and supplement missing parameter records of individual events. Classify effective ESD events according to hazard levels, dividing them into minor latent risk events, medium performance impact events, and severe catastrophic failure events, laying a foundation for subsequent hierarchical data analysis and risk management.
The fourth step is standardized data archiving and traceability management. All calibrated ESD event data are uniformly archived in the industrial quality management database, establishing independent data files for each production line, each process station, and each product batch. The archived data supports full-condition retrieval, including event time, location, parameter characteristics, and affected products. Long-term data storage forms enterprise ESD risk big data, which can be called at any time for process optimization, failure analysis, and quality audit work.
The fifth step is linkage recording of abnormal event processing results. For all logged dangerous ESD events, the system synchronously records subsequent troubleshooting processes, rectification measures, and improvement effects, forming a closed-loop management mechanism of event logging, risk early warning, problem rectification, and effect verification. This closed-loop workflow ensures that each ESD event has clear processing results and improvement records, realizing continuous optimization of ESD management level.
Industrial ESD event data analysis adopts four core methods including statistical trend analysis, correlation analysis, comparative difference analysis, and hierarchical risk analysis, realizing deep mining of hidden risk rules in discrete ESD data.
Statistical trend analysis is the most basic and widely used ESD data analysis method, focusing on mining the temporal and spatial distribution rules of ESD events. By sorting out the daily, weekly, and monthly change trends of ESD event frequency and average discharge voltage, analysts can judge the stability of on-site ESD control levels. For example, the continuous rise of ESD event frequency in a certain period indicates that the production environment or equipment status has abnormal changes, requiring timely inspection and rectification. Spatial statistical analysis can count the event density of different production stations, quickly locate high-risk ESD stations with frequent discharge events, and realize targeted regional risk management. Trend analysis can also summarize seasonal ESD change rules, formulate seasonal targeted environmental control schemes, and reduce the fluctuation range of production ESD risks.
Correlation analysis is used to identify the internal causal relationship between ESD events and influencing factors. Most ESD events are caused by the superposition of multiple factors, and simple statistical trends cannot distinguish independent influencing factors. Through correlation analysis between ESD event frequency and environmental humidity, equipment grounding resistance, and operational frequency, quantitative correlation coefficients of each factor can be calculated. This method can effectively screen key dominant factors leading to ESD abnormalities, eliminate interference of irrelevant variables, and avoid blind rectification. For example, correlation data can accurately confirm whether low humidity or aging equipment is the core cause of frequent ESD events in winter production.
Comparative difference analysis realizes optimization benchmarking of processes and equipment. This analysis method carries out horizontal comparison of ESD event data between different production lines, different equipment of the same type, and different operational teams, as well as vertical comparison of historical data before and after process optimization and equipment upgrading. Horizontal comparison can find out the gap between high-risk and low-risk management units, learn from excellent management experience, and standardize unified operational standards. Vertical comparison can quantitatively verify the improvement effect of ESD rectification measures, accurately evaluate the effectiveness of process optimization and equipment transformation, and provide data support for continuous iterative improvement of ESD management schemes.
Hierarchical risk analysis realizes classified management and precise response of ESD events. According to the discharge voltage magnitude, event frequency, and affected product types, ESD events are divided into different risk levels, and differentiated analysis and response strategies are formulated. High-risk catastrophic ESD events focus on root cause tracing and emergency rectification to avoid batch scrapping; medium-risk performance impact events focus on process optimization to reduce event recurrence probability; low-risk latent events focus on long-term trend monitoring to prevent cumulative damage risks. Hierarchical analysis avoids resource waste caused by unified over-processing of all events and improves the efficiency and pertinence of ESD risk management.
In addition, batch correlation analysis for product failure can establish a linkage mechanism between ESD event data and product yield data. By comparing the ESD event occurrence frequency of high-defect batches and low-defect batches, the direct impact of ESD micro-events on product yield and long-term reliability can be quantified, further proving the importance of latent ESD risk control and providing stronger data support for enterprise ESD management investment.
Current industrial ESD logging and data analysis face prominent pain points including incomplete data dimension, low data authenticity, single analysis dimension, insufficient data utilization, and disconnected analysis and rectification, restricting the effectiveness of data-driven ESD risk control.
Incomplete data collection dimension is the most common basic problem in industrial ESD management. Many enterprises only record macroscopic ESD failure events that cause product scrapping, while ignoring low-magnitude latent ESD events that do not cause immediate failure. These subtle events are the main cause of long-term product performance degradation and latent reliability defects. In addition, most traditional logging systems only record event occurrence time and location, lacking synchronous collection of environmental, equipment, and operational associated parameters. Single-dimensional event data cannot support multi-factor correlation analysis, resulting in inability to accurately trace the root cause of recurring ESD problems.
Low data authenticity and consistency affect the credibility of analysis results. Part of the production line still adopts manual logging mode, which is prone to missing records, false records, and subjective data deviation. Different operators have inconsistent judgment standards for ESD event classification and parameter recording, resulting in chaotic data statistical calibers. Even for automatic logging equipment, long-term operation without regular calibration will lead to signal sampling deviation, resulting in inconsistent data accuracy between different equipment and different time periods, seriously affecting the objectivity and comparability of data analysis results.
Single data analysis dimension leads to shallow risk mining. Most enterprises only carry out simple statistical sorting of ESD event quantity and frequency, lacking in-depth correlation analysis, trend prediction, and batch risk mining. The superficial data analysis can only summarize surface phenomenon, but cannot dig out hidden long-term risk rules and potential process defects. For example, it is impossible to predict future ESD risk trends through historical data, and cannot identify gradual equipment aging and environmental degradation problems that cause slow growth of ESD events, resulting in long-term lingering of potential hazards.
Insufficient data utilization and serious data silos are prominent industry pain points. ESD event data, product yield data, equipment operation data, and environmental monitoring data of many enterprises are stored in independent systems without effective data interconnection. The isolated data cannot form a complete production risk portrait, resulting in a large amount of valuable ESD data not being converted into management value. Enterprises invest in monitoring and logging equipment but fail to realize data-driven process optimization, resulting in wasted equipment and data resources.
Disconnection between analysis results and on-site rectification forms ineffective closed-loop management. Some enterprises complete daily ESD data statistics and trend analysis, but lack a clear mechanism for converting analysis conclusions into on-site rectification measures. The discovered ESD risk problems cannot be processed and improved in a timely manner, and the analysis results cannot guide operational standard optimization and equipment maintenance. The disconnection between data analysis and on-site application makes ESD data management stay in the statistical stage and fail to realize the core goal of risk prevention and control.
High-precision ESD data management system optimization focuses on full-dimensional data collection, intelligent automatic calibration, multi-depth data mining, cross-system data interconnection, and closed-loop result application, solving various pain points of traditional ESD logging and analysis.
Build a full-dimensional synchronous data collection system to make up for missing data dimensions. Upgrade traditional single-point monitoring equipment to full-coverage intelligent ESD monitoring terminals, realizing synchronous collection of ESD characteristic parameters, environmental temperature and humidity, equipment grounding status, and operational behavior data for all key production stations. Add high-sensitivity sensors to capture low-magnitude latent ESD events that are easily ignored by traditional equipment, realizing zero missing of all static discharge events in the production process. Unify enterprise-wide data collection standards and parameter calibration specifications to ensure consistent data statistical calibers and improve data completeness and uniformity.
Realize intelligent automatic data calibration and quality screening. Deploy intelligent data preprocessing modules in the ESD management system, which can automatically identify and eliminate interference noise data generated by electromagnetic signal fluctuation and equipment failure. Set up data abnormal threshold early warning rules, automatically mark abnormal data that deviate from the normal range, and prompt technicians to verify and calibrate. Regularly carry out unified calibration of all logging equipment to ensure consistent sampling accuracy of all terminals, fundamentally improving the authenticity and credibility of ESD event data.
Expand multi-depth data mining and hierarchical risk analysis capabilities. On the basis of basic statistical analysis, add correlation analysis, factor contribution rate analysis, and trend prediction analysis modules. Quantify the influence weight of different environmental, equipment, and human factors on ESD events, accurately lock core risk factors, and provide targeted rectification directions. Establish an intelligent grading early warning mechanism for ESD risks, automatically push different levels of early warning information according to event severity and recurrence trend, and realize active advance risk prevention instead of passive post-event processing.
Break data silos and build cross-system data interconnection mechanisms. Realize data docking and synchronous sharing between ESD monitoring systems, production equipment management systems, product quality detection systems, and environmental monitoring systems. Integrate multi-source data to form a full-link production risk database, realize linkage analysis between ESD events, product yield, and equipment failure rate, and accurately evaluate the economic loss and reliability impact of ESD risks, providing data support for enterprise management decision-making and resource allocation.
Improve the closed-loop management mechanism of analysis results and on-site rectification. Establish a one-to-one matching mechanism between ESD data analysis conclusions, risk early warning information, and on-site improvement tasks. Clarify the responsible department, processing time limit, and improvement standard for each abnormal risk point. The system automatically tracks the rectification progress and verifies the improvement effect through subsequent data trend changes. Form a complete closed-loop management workflow of data logging, risk analysis, early warning release, rectification implementation, and effect verification, ensuring that all ESD hidden dangers are effectively resolved.
The future development of ESD event logging and data analysis presents four major trends: full-scene intelligent perception, big data predictive early warning, refined customized analysis, and full-lifecycle data traceability management.
Full-scene intelligent automatic perception will completely replace traditional manual and semi-automatic logging modes. With the popularization of industrial Internet of Things and high-precision sensing technology, future semiconductor production workshops will realize full-coverage, unmanned, and real-time ESD event monitoring. Intelligent sensing terminals can automatically adapt to different production processes and product characteristics, dynamically adjust sampling accuracy and frequency, and capture all subtle static discharge events in complex industrial environments. The intelligent system can independently complete data collection, calibration, and classification without manual intervention, greatly improving the efficiency and accuracy of ESD data logging.
Big data predictive analysis will realize forward-looking ESD risk prevention. Traditional ESD data analysis belongs to post-event summary analysis, which can only solve existing problems. Future ESD management systems will apply big data trend prediction and machine learning algorithms to mine long-term historical data rules, predict the change trend of workshop ESD risk levels, and pre-judge potential equipment failure and environmental abnormal risks. The system can automatically remind the management team to carry out equipment maintenance, environmental parameter adjustment, and operational standard optimization before ESD abnormal events occur, realizing fundamental transformation from post-remediation to pre-prevention.
Refined customized analysis will become the mainstream of industrial applications. Different semiconductor processes, product types, and production scenarios have differentiated ESD occurrence rules and risk characteristics. The general unified analysis mode will be replaced by scenario-customized intelligent analysis schemes. The system can automatically match targeted analysis models and risk evaluation standards according to product process nodes, application reliability grades, and production line characteristics, realizing one-to-one accurate analysis of different scenarios and greatly improving the pertinence and effectiveness of risk mining.
Full-lifecycle data traceability will realize comprehensive reliability guarantee of products. Future ESD data management will extend from production and manufacturing links to the whole lifecycle of product transportation, testing, and terminal operation. Realize continuous logging and analysis of ESD events in all links of product lifecycle, establish complete ESD stress files for each product batch, and provide accurate data support for product reliability evaluation, failure analysis, and after-sales problem tracing. The full-lifecycle data system will become an important standard configuration for high-reliability semiconductor manufacturing enterprises.
In summary, ESD event logging and data analysis are core technical means for modern semiconductor enterprises to achieve refined ESD reliability management. With the continuous upgrading of industrial intelligent manufacturing technology, data-driven ESD risk control will gradually replace traditional empirical management, effectively reduce product ESD failure rates, improve production yield and product long-term reliability, and promote the high-quality development of the global semiconductor and electronic manufacturing industries.
