EIESD Ion Air Bar: ESD Hazards in Flip-Chip Packaging


Flip-chip packaging has become one of the most important technologies in advanced semiconductor manufacturing. As electronic devices continue to shrink in size while increasing in performance, manufacturers rely on flip-chip packaging to achieve higher input and output density, better electrical performance, and improved thermal efficiency. However, with these advantages comes a significant challenge that can severely impact device reliability and production yield: electrostatic discharge hazards.

Electrostatic discharge, commonly referred to as ESD, is one of the leading causes of semiconductor damage during assembly, handling, testing, transportation, and operation. In flip-chip packaging, the sensitivity to ESD becomes even greater because of the miniaturized interconnect structures, delicate solder bumps, and high-density circuit configurations. Even a small electrostatic event that is undetectable to humans can destroy or weaken semiconductor devices.

ESD hazards in flip-chip packaging can lead to immediate device failure, latent reliability issues, reduced manufacturing yield, and increased production costs. Effective ESD control requires proper material selection, grounding systems, humidity management, process optimization, and strict handling procedures throughout the packaging process.

As industries such as automotive electronics, artificial intelligence hardware, telecommunications infrastructure, and high-performance computing continue to demand more advanced packaging technologies, ESD protection becomes increasingly critical. Manufacturers must understand how ESD occurs, where vulnerabilities exist within flip-chip structures, and what preventive measures can minimize risks.

This article explores the major ESD hazards in flip-chip packaging, their causes, effects, prevention methods, testing standards, and future challenges in semiconductor manufacturing environments.

Table of Contents

  • Understanding Flip-Chip Packaging Technology

  • What Is Electrostatic Discharge in Semiconductor Packaging

  • Main Sources of ESD Hazards in Flip-Chip Packaging

  • Why Flip-Chip Structures Are Highly Sensitive to ESD

  • Common ESD Failure Mechanisms in Flip-Chip Devices

  • ESD Risks During Manufacturing and Assembly Processes

  • Methods for Preventing ESD Hazards in Flip-Chip Packaging

  • ESD Materials and Equipment Used in Semiconductor Facilities

  • Testing and Standards for ESD Protection

  • Future Challenges of ESD Control in Advanced Packaging

  • Conclusion

Understanding Flip-Chip Packaging Technology

Flip-chip packaging is an advanced semiconductor assembly method where the integrated circuit chip is flipped upside down and directly connected to the substrate using conductive bumps instead of traditional wire bonding.

Unlike conventional packaging technologies, flip-chip packaging allows shorter electrical paths between the chip and substrate. This improves signal transmission speed, reduces inductance, and enhances overall electrical performance. Because of these advantages, flip-chip technology is widely used in processors, graphics units, communication devices, and automotive electronics.

The flip-chip process generally includes wafer bumping, die preparation, chip placement, solder reflow, underfill dispensing, and final encapsulation. Each step introduces potential electrostatic discharge risks because semiconductor surfaces and conductive structures are exposed during handling and assembly.

One of the key advantages of flip-chip packaging is the ability to achieve high input and output density. However, this dense arrangement of microbumps and fine-pitch interconnections increases the probability of ESD-induced damage. Smaller circuit geometries also reduce the voltage threshold required to damage the device.

The following table compares traditional wire bonding and flip-chip packaging structures:

Feature

Wire Bonding

Flip-Chip Packaging

Connection Method

Wire Interconnects

Solder Bumps

Electrical Path Length

Longer

Shorter

Signal Performance

Moderate

High

Thermal Performance

Lower

Better

ESD Sensitivity

Medium

High

Package Density

Lower

Higher

What Is Electrostatic Discharge in Semiconductor Packaging

Electrostatic discharge is the sudden transfer of static electricity between objects with different electrical potentials, which can damage sensitive semiconductor devices.

Static electricity naturally accumulates when materials rub together, separate, or move across surfaces. In semiconductor facilities, static charges can build up on workers, tools, carriers, packaging materials, and automated equipment. When the accumulated charge suddenly discharges into a semiconductor component, extremely high current flows through delicate internal structures.

Even though the energy involved may appear small, semiconductor devices are highly sensitive to these discharge events. A discharge as low as a few tens of volts may permanently damage advanced integrated circuits. Human beings generally cannot feel static discharge below approximately 3000 volts, which means damaging ESD events often occur unnoticed.

There are several major ESD models commonly referenced in semiconductor manufacturing:

  1. Human Body Model

  2. Machine Model

  3. Charged Device Model

Among these, the Charged Device Model is particularly important in flip-chip packaging because the device itself may accumulate electrical charge during automated manufacturing processes. Once grounded, the discharge occurs rapidly and can severely damage solder bump structures and internal circuits.

Electrostatic discharge can create both immediate catastrophic failures and latent defects. Catastrophic failures are easily identified during testing because the device stops functioning entirely. Latent defects are more dangerous because the device may initially pass inspection but fail later during field operation.

Main Sources of ESD Hazards in Flip-Chip Packaging

The primary sources of ESD hazards in flip-chip packaging include human handling, automated equipment, material friction, environmental conditions, and improper grounding systems.

Human operators are one of the most common causes of electrostatic buildup. Walking across floors, handling plastic materials, or touching non-grounded surfaces can generate thousands of volts of static electricity. Without proper grounding measures such as wrist straps and conductive footwear, this charge may transfer directly to semiconductor devices.

Automated manufacturing systems also contribute significantly to ESD generation. Pick-and-place machines, robotic arms, conveyor belts, and vacuum tools can generate static charge through repetitive motion and material contact. In high-speed manufacturing environments, these discharge events may occur frequently if proper ionization systems are not installed.

Environmental conditions greatly influence static electricity generation. Low humidity environments are especially problematic because dry air reduces charge dissipation. Semiconductor cleanrooms often require carefully controlled humidity levels to minimize ESD risks while maintaining contamination standards.

Packaging materials are another critical factor. Non-conductive trays, tapes, carriers, and containers may accumulate charge during transportation and storage. The use of ESD-safe materials is essential throughout the entire supply chain.

Common ESD sources include:

  • Plastic carriers and packaging materials

  • Conveyor belt friction

  • Operator clothing and footwear

  • Improperly grounded equipment

  • Low humidity conditions

  • Automated robotic handling systems

  • Vacuum nozzles and transfer tools

  • Electrical testing equipment

Why Flip-Chip Structures Are Highly Sensitive to ESD

Flip-chip structures are highly sensitive to ESD because they use fine-pitch interconnects, smaller geometries, thin dielectric layers, and densely packed conductive paths.

As semiconductor technology advances, integrated circuits become smaller and more complex. The miniaturization of transistor structures reduces the electrical tolerance of the device. Thin gate oxides and narrow conductive traces can break down easily when exposed to sudden voltage spikes.

Flip-chip packaging introduces additional sensitivity because solder bumps are directly connected to active circuitry. Traditional wire bonding sometimes provides limited buffering against electrical stress, but flip-chip interconnections create shorter and more direct conductive paths. This means ESD energy can reach sensitive internal structures more rapidly.

Another important factor is the increased number of input and output connections. Modern flip-chip packages may contain thousands of microbumps arranged in dense arrays. This increases the number of possible discharge pathways and complicates ESD protection design.

The following factors contribute to higher ESD vulnerability:

Factor

Impact on ESD Sensitivity

Smaller Transistor Size

Lower Breakdown Voltage

Thin Dielectric Layers

Higher Damage Probability

Dense Interconnects

Increased Current Concentration

Shorter Electrical Paths

Faster Energy Transfer

Microbump Structures

Localized Thermal Stress

Advanced applications such as artificial intelligence processors and high-speed communication devices often require extremely high-density packaging. These products operate at lower voltages and tighter tolerances, making ESD control even more important.

Common ESD Failure Mechanisms in Flip-Chip Devices

ESD events can cause junction breakdown, metal melting, dielectric rupture, solder bump damage, and latent reliability defects in flip-chip devices.

One of the most common ESD failure mechanisms is thermal damage caused by rapid current flow. When electrostatic discharge occurs, localized heating may melt metal interconnects or solder bump structures. Even microscopic damage can interrupt electrical continuity.

Dielectric breakdown is another major issue. Thin insulating layers within semiconductor structures may rupture under high electric fields. Once damaged, leakage currents increase, resulting in degraded device performance or complete failure.

Latch-up is also a serious concern in CMOS devices. ESD events may trigger parasitic structures inside the chip, creating unintended current paths that lead to excessive power consumption and overheating.

Some failures are not immediately visible. Latent defects may weaken internal structures without causing immediate malfunction. Over time, thermal cycling and operational stress can worsen the damage, eventually causing field failures.

Typical ESD failure symptoms include:

  • Short circuits

  • Open circuits

  • Increased leakage current

  • Reduced signal integrity

  • Thermal instability

  • Intermittent operation

  • Premature device aging

ESD Risks During Manufacturing and Assembly Processes

ESD risks exist throughout the entire flip-chip manufacturing process, from wafer fabrication to final testing and transportation.

During wafer bumping, semiconductor wafers undergo multiple processing steps involving chemical treatment, metal deposition, and mechanical handling. Static charge may accumulate on wafer surfaces during transportation between processing stations.

Die placement operations are particularly sensitive because chips are exposed during transfer and alignment. Vacuum pickup tools, robotic systems, and substrate movement can all generate electrostatic charge.

Underfill dispensing and curing processes also create ESD concerns. Material flow, friction, and equipment operation may contribute to charge generation. If grounding systems are inadequate, discharge events can occur near exposed interconnect regions.

Final testing introduces additional hazards because devices are connected to electrical test equipment. Improper grounding or equipment calibration may expose devices to unintended voltage spikes.

The following manufacturing stages require strict ESD protection:

  1. Wafer fabrication

  2. Wafer probing

  3. Die singulation

  4. Flip-chip bonding

  5. Solder reflow

  6. Underfill processing

  7. Electrical testing

  8. Final packaging

  9. Shipping and storage

Methods for Preventing ESD Hazards in Flip-Chip Packaging

Effective ESD prevention requires a combination of grounding systems, environmental controls, operator training, ESD-safe materials, and process monitoring.

Grounding is one of the most fundamental ESD control methods. All personnel, tools, workstations, and equipment should be properly grounded to prevent charge accumulation. Operators commonly use wrist straps, conductive footwear, and grounded garments in semiconductor facilities.

Humidity control is another important strategy. Maintaining relative humidity within controlled ranges helps dissipate static charges more effectively. Extremely dry environments increase the likelihood of electrostatic buildup.

Ionization systems are widely used in areas where grounding alone is insufficient. Air ionizers release positive and negative ions that neutralize static charges on non-conductive surfaces and isolated objects.

ESD-safe materials should be used throughout manufacturing and transportation processes. Conductive trays, antistatic packaging, grounded tools, and dissipative work surfaces reduce charge accumulation risks.

Key ESD prevention methods include:

Prevention Method

Purpose

Grounding Systems

Eliminate Charge Accumulation

Ionization Equipment

Neutralize Static Electricity

Humidity Control

Improve Charge Dissipation

ESD Protective Clothing

Protect Sensitive Devices

Antistatic Packaging

Prevent Transportation Damage

Operator Training

Reduce Human Error

Continuous monitoring is equally important. Facilities often use real-time ESD monitoring systems to track grounding effectiveness, environmental conditions, and electrostatic field levels.

ESD Materials and Equipment Used in Semiconductor Facilities

Semiconductor facilities use specialized ESD-safe materials and equipment to minimize electrostatic charge generation and discharge risks.

Conductive flooring systems are commonly installed in cleanrooms to safely dissipate static electricity generated by personnel movement. Workers also wear conductive footwear to maintain continuous grounding contact.

Workstations are equipped with dissipative mats and grounded tools. These surfaces prevent charge accumulation while protecting sensitive semiconductor components during assembly and inspection.

Packaging and transportation materials are carefully selected to minimize static generation. Antistatic trays, conductive carriers, shielding bags, and dissipative tapes help protect devices during movement through manufacturing lines and logistics networks.

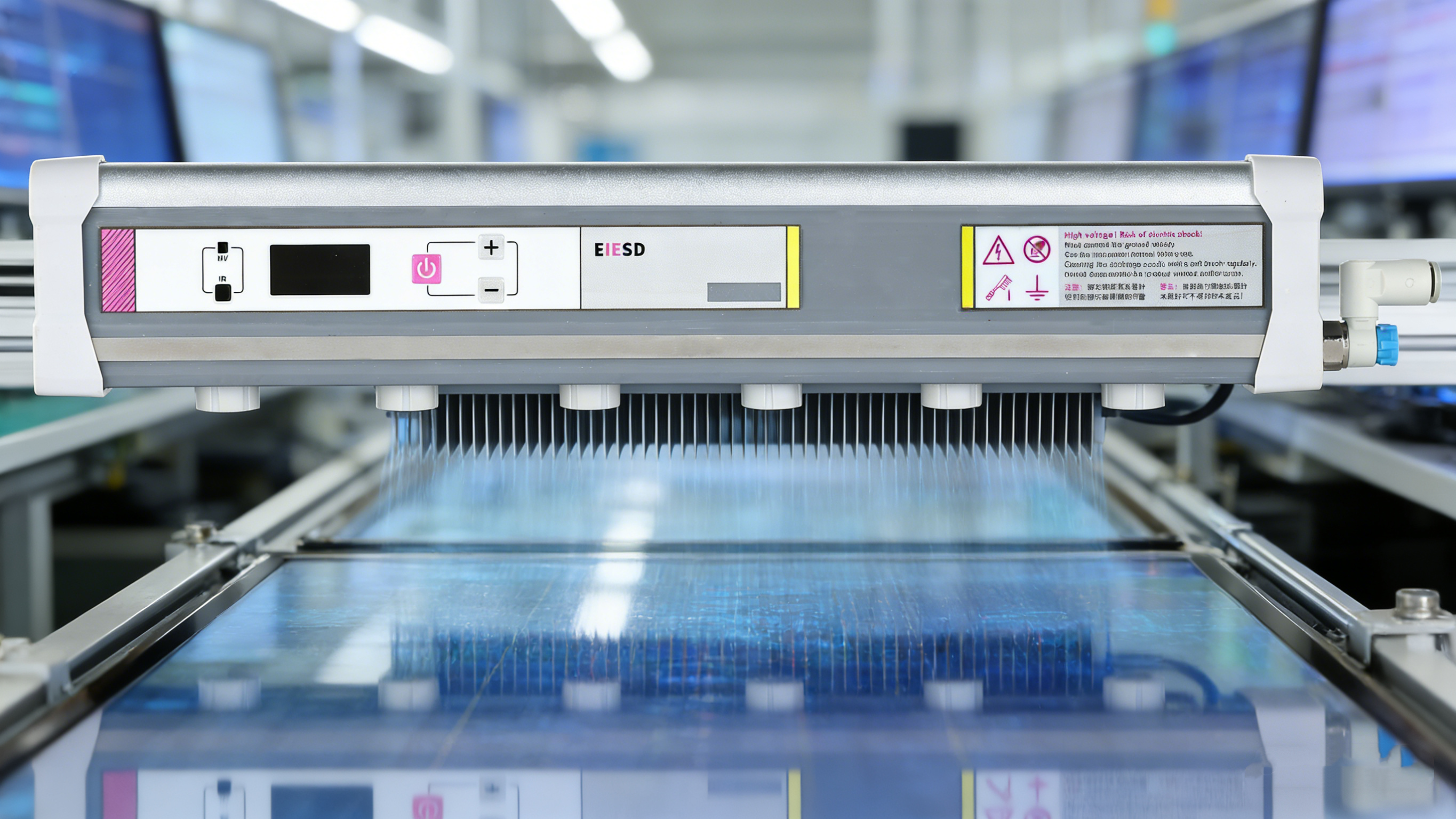

Ionization systems play an essential role in advanced packaging environments. Overhead ionizers and localized nozzles continuously neutralize airborne charges near sensitive processes.

Typical ESD control equipment includes:

  • Grounded wrist straps

  • Conductive gloves

  • ESD-safe garments

  • Ionizers

  • Conductive flooring

  • Static field meters

  • Ground monitoring systems

  • Antistatic storage containers

Testing and Standards for ESD Protection

ESD testing and international standards help manufacturers evaluate device robustness and establish consistent protection procedures.

Semiconductor manufacturers perform ESD qualification testing to determine how much electrostatic stress a device can tolerate before failure occurs. These tests simulate real-world discharge scenarios using standardized models.

The Human Body Model evaluates discharge events caused by human contact. The Machine Model simulates discharges from manufacturing equipment, while the Charged Device Model focuses on self-charging semiconductor components.

International standards organizations provide guidelines for ESD control programs in semiconductor manufacturing facilities. These standards define grounding requirements, packaging specifications, personnel training procedures, and audit methods.

Important areas covered by ESD standards include:

  1. Facility grounding systems

  2. Operator handling procedures

  3. ESD-safe packaging materials

  4. Equipment qualification

  5. Environmental monitoring

  6. Compliance verification

Regular audits and inspections are necessary to maintain compliance. Even well-designed ESD programs can become ineffective if procedures are not consistently followed.

Future Challenges of ESD Control in Advanced Packaging

Future ESD control challenges will increase as semiconductor devices become smaller, faster, and more densely integrated.

Advanced packaging technologies such as three-dimensional integration, heterogeneous integration, and wafer-level packaging introduce new ESD vulnerabilities. These structures contain increasingly delicate interconnect systems that are more susceptible to electrostatic damage.

Artificial intelligence processors and high-performance computing devices require extremely high transistor density and faster data transfer rates. Lower operating voltages reduce ESD tolerance, making protection strategies more complex.

Automation is also increasing in semiconductor manufacturing. While automated systems improve efficiency, they introduce additional opportunities for electrostatic charge generation through robotic movement, material handling, and high-speed processing.

Future ESD management strategies may involve advanced monitoring technologies, artificial intelligence-based predictive systems, and new conductive materials capable of improving static dissipation without compromising manufacturing cleanliness.

Manufacturers will need to balance several competing factors:

  • Higher device performance

  • Smaller package dimensions

  • Lower operating voltages

  • Increased automation

  • Stricter reliability requirements

  • Cost reduction pressures

Conclusion

Electrostatic discharge hazards remain one of the most serious threats in flip-chip packaging and advanced semiconductor manufacturing. The combination of miniaturized circuit structures, dense interconnect systems, and high-speed production environments makes flip-chip devices particularly vulnerable to ESD damage.

Without effective ESD control, manufacturers may face reduced yield, product failures, increased warranty costs, and long-term reliability problems. Preventing electrostatic discharge requires a comprehensive strategy involving grounding systems, humidity management, ionization equipment, ESD-safe materials, operator training, and continuous monitoring.

As semiconductor technology continues evolving toward smaller geometries and more advanced packaging architectures, ESD protection will become even more important. Companies that invest in strong ESD management systems will improve product reliability, manufacturing efficiency, and long-term competitiveness in the electronics industry.
