EIESD Ion Air Bar: ESD Hazards in Wafer Inspection Systems

The semiconductor industry operates on ultra-precision manufacturing standards, where microscopic defects and minor electrical anomalies can compromise the functionality of advanced wafer-based devices. Modern wafer inspection systems are engineered to detect nanoscale surface irregularities, structural defects, and material inconsistencies that impact semiconductor chip performance, yield, and reliability. These high-sensitivity automated systems integrate precision optical sensors, high-speed motion control modules, delicate electronic circuitry, and automated wafer handling mechanisms to meet the stringent quality control demands of 5G, artificial intelligence, automotive electronics, and high-performance computing chip production.

Despite rigorous cleanroom management and standardized operational protocols, electrostatic discharge (ESD) remains one of the most overlooked yet destructive hidden risks in wafer inspection workflows. Unlike visible physical damage or obvious equipment malfunctions, ESD events occur in nanoseconds, leaving minimal immediate traceable evidence while triggering irreversible product damage, intermittent equipment failures, and long-term process instability. As semiconductor manufacturing nodes shrink to 3nm, 2nm, and below, wafer gate oxide layers become thinner and device structures more compact, making wafers and inspection system components exponentially more vulnerable to low-voltage ESD fluctuations that were previously negligible in larger process nodes.

ESD hazards in wafer inspection systems primarily manifest as catastrophic wafer device damage, latent component failure, electrostatic attraction-induced particle contamination, inspection data inaccuracies, and unplanned equipment downtime, all of which severely reduce semiconductor production yield and increase operational costs in high-precision cleanroom environments.

Wafer inspection processes involve frequent mechanical movement, material contact, and high-speed equipment operation—all primary triggers for static electricity accumulation. Cleanroom environments, designed to maintain low humidity and high air purity to prevent particle contamination, further exacerbate static charge buildup, creating an ideal condition for frequent ESD occurrences. Most manufacturing teams prioritize cleanroom temperature control, particle filtration, and mechanical equipment maintenance but neglect targeted ESD monitoring and control for inspection stations, leading to chronic hidden hazards.

These unaddressed ESD risks do not only damage finished or semi-finished wafers but also degrade the precision calibration and service life of high-value inspection equipment. Over time, inconsistent ESD control leads to unstable inspection results, increased defective product outflow, and repetitive production rework, hindering the stable operation of the entire semiconductor manufacturing process. Understanding the root causes, specific hazard manifestations, and systematic mitigation strategies of ESD in wafer inspection systems is critical for semiconductor manufacturers to optimize process stability and maximize production yield.

Table of Contents

• Fundamental Causes of ESD Generation in Wafer Inspection Systems

• Core ESD Hazards Impacting Wafers During Inspection Processes

• ESD-Induced Malfunctions and Degradation of Inspection Equipment

• Hidden Long-Term Operational and Economic Risks of Uncontrolled ESD

• Industry Standard Requirements for ESD Control in Wafer Inspection Workstations

• Practical ESD Mitigation Strategies for Wafer Inspection Systems

Fundamental Causes of ESD Generation in Wafer Inspection Systems

ESD generation in wafer inspection systems stems from triboelectric charging during mechanical movement, non-compliant material usage, suboptimal cleanroom environmental parameters, and incomplete grounding and static dissipation configurations across inspection workstation hardware.

Triboelectric charging is the most prevalent source of static electricity in wafer inspection workflows, occurring whenever two different materials make contact and separate. Wafer inspection systems rely heavily on automated handling processes, including wafer transfer between cassettes and inspection platforms, robotic arm positioning, vacuum suction fixation, and high-speed scanning movement of optical detection modules. Each contact-separation cycle between wafer surfaces, plastic wafer trays, ceramic handling fixtures, and rubber vacuum nozzles generates residual static charge. In high-frequency continuous production environments, these repeated microscopic charging events accumulate rapidly, creating high-potential static charges on wafer surfaces and equipment components that eventually trigger ESD discharge.

Non-conductive material application in inspection workstations further amplifies static accumulation. Many auxiliary components of wafer inspection equipment, including wafer storage trays, handling jigs, cable insulation layers, and protective covers, are manufactured from insulating polymer materials with extremely low conductivity. These materials cannot naturally dissipate static charge, causing electric potential to build up continuously on contact surfaces. Unlike metal conductive components that release static instantly through grounding, insulating materials retain static charge for hours or even days, forming persistent ESD trigger sources in the inspection workspace.

Cleanroom environmental conditions are a critical yet frequently underestimated factor in ESD formation. Standard semiconductor cleanrooms maintain relative humidity between 30% and 50% to prevent moisture-induced wafer oxidation and particle adhesion. However, low-humidity environments reduce air conductivity, weakening the natural static dissipation effect of air molecules. In winter or dry regional climates, cleanroom humidity can drop below 30%, drastically increasing static charge accumulation efficiency. Industry test data shows that static voltage on wafer surfaces in 25% humidity environments is more than three times higher than that in 55% humidity environments, significantly raising ESD occurrence probability.

Imperfect grounding and static dissipation configurations constitute the structural root cause of persistent ESD risks. High-precision wafer inspection equipment consists of multiple independent modules, including optical detection units, motion control systems, and data acquisition components. In many legacy or improperly maintained workstations, partial module grounding failures, loose grounding wires, excessive grounding resistance, or isolated ungrounded auxiliary fixtures create static blind spots. Even if individual components generate minimal static charge, the lack of effective discharge pathways leads to continuous charge accumulation until the voltage gap exceeds the air breakdown threshold, causing sudden ESD discharge between equipment and wafers.

Human operational factors also contribute to occasional ESD events in manual auxiliary inspection processes. Operators wearing non-anti-static gloves, clothing, or shoes carry static charges generated by body movement. During manual wafer loading, unloading, or equipment calibration, direct or indirect contact with wafers and inspection modules transfers static charge. While human-induced ESD events are less frequent than equipment-generated ones, they often involve higher instantaneous voltage, posing greater threats to ultra-thin gate oxide layers on advanced-process wafers.

Core ESD Hazards Impacting Wafers During Inspection Processes

ESD events during wafer inspection cause two primary types of wafer damage—catastrophic permanent failure and latent parametric degradation—alongside secondary electrostatic attraction contamination that distorts inspection accuracy and reduces wafer yield.

Catastrophic ESD damage refers to irreversible physical and structural damage to wafer internal devices caused by high-energy instantaneous discharge, directly rendering wafers defective and unrepairable. Advanced semiconductor wafers feature nanoscale device structures with extremely low ESD tolerance; most modern chip devices can only withstand static voltages below 10V. When ESD discharge occurs between the inspection equipment and wafer surface, the instantaneous high-current pulse generates extreme local temperatures exceeding 1000 degrees Celsius within nanoseconds. This intense thermal impact melts wafer internal metal interconnects, breaks down gate oxide layers, and destroys PN junction structures, forming permanent circuit open or short circuits. Unlike process defects that can be identified through routine inspection, ESD catastrophic damage often occurs randomly on individual dies, leading to scattered defective units across the entire wafer and reducing overall yield.

Latent ESD damage is more insidious and harmful to mass production stability than catastrophic failure. Sub-threshold ESD discharges that do not completely destroy wafer devices can cause subtle structural damage, including partial gate oxide layer thinning, micro-cracks in internal circuits, and altered semiconductor doping characteristics. Wafers with latent ESD damage can pass routine wafer inspection and functional testing, entering subsequent packaging and assembly processes normally. However, these hidden defects will gradually amplify under operational stress such as power cycling and temperature changes after chip packaging, leading to premature device failure, unstable operating performance, and shortened service life in end-user applications. This type of delayed failure causes huge after-sales quality risks for semiconductor manufacturers and damages brand credibility.

Electrostatic attraction (ESA) induced by static charge is a secondary but high-frequency ESD-related hazard in wafer inspection. Charged wafer surfaces generated by static accumulation strongly adsorb sub-micron airborne particles, including dust, fiber debris, and metal micro-particles in the cleanroom. These tiny particles adhere tightly to wafer surfaces and cannot be removed by conventional air purification systems. During inspection scanning, adsorbed particles form false defect points such as bright spots, dark spots, and pattern distortion on wafer surfaces. This not only interferes with the accurate judgment of real wafer defects by inspection systems but also causes permanent surface contamination. In severe cases, particle adhesion leads to lithography alignment errors and etching pattern abnormalities in subsequent processes, triggering batch product defects.

ESD interference also causes inconsistent wafer inspection detection results. Local static charge distribution on wafer surfaces changes the surface electrical characteristics of semiconductor devices, interfering with the electrical parameter testing and optical scanning calibration of inspection systems. The same wafer may show different defect detection data in multiple inspections, resulting in repeated testing, misjudgment of defective products, and missed detection of real defects. Unstable inspection data forces manufacturers to increase sampling inspection rates and repeated verification processes, reducing inspection efficiency and increasing labor and time costs.

The following table summarizes typical ESD-related wafer damage types, characteristics, and production impacts in inspection processes:

ESD-Induced Malfunctions and Degradation of Inspection Equipment

ESD hazards do not only damage wafer products but also cause electromagnetic interference, sensor calibration drift, circuit module aging, and mechanical component precision degradation in wafer inspection systems, shortening equipment service life and increasing maintenance costs.

Electromagnetic interference (EMI) generated by ESD discharge is the most common equipment abnormality in wafer inspection systems. ESD events produce instantaneous high-frequency electromagnetic pulses that interfere with the weak signal transmission of high-precision optical sensors, image acquisition modules, and electrical detection units in inspection equipment. Wafer inspection systems rely on ultra-sensitive signal recognition to identify nanoscale defects; even minor electromagnetic interference can cause signal distortion, image blurring, and data loss. In actual production, ESD-induced EMI often triggers phantom system errors, automatic equipment shutdowns, and scanning interruptions, leading to intermittent production line stagnation. These random equipment abnormalities are difficult to reproduce and troubleshoot, consuming a large amount of equipment maintenance time.

Long-term ESD impact causes permanent calibration drift of inspection system core components. Optical scanning lenses, precision positioning platforms, and electrical testing probes of wafer inspection equipment require micron-level or even nanometer-level calibration accuracy to ensure detection reliability. Repeated ESD pulse impacts change the electrical zero-point parameters of sensor modules and the resistance characteristics of precision circuit components. Over time, the equipment’s original calibration standard deviates, resulting in reduced detection resolution and accuracy. Uncalibrated equipment cannot effectively identify tiny wafer defects, leading to missed detection of subtle process flaws and outflow of unqualified products. Regular recalibration is required to compensate for ESD-induced parameter drift, increasing daily equipment maintenance costs and downtime loss.

ESD discharge accelerates the aging and damage of internal electronic modules of inspection equipment. The instantaneous high voltage and current of ESD impact vulnerable integrated circuit boards, data processing chips, and power supply modules inside the equipment. Short-term single ESD events may only cause temporary system anomalies, while long-term cumulative ESD impacts cause metal circuit oxidation, component thermal fatigue, and insulation layer aging. This leads to reduced equipment stability, increased failure frequency, and shortened overall service life. High-precision wafer inspection equipment belongs to high-value industrial equipment with high replacement and maintenance costs; ESD-induced premature equipment aging brings significant invisible asset losses to manufacturing enterprises.

Automated wafer handling components are also severely affected by ESD hazards. Robotic arm fixtures, vacuum suction nozzles, and transmission guide rails of inspection systems are frequently involved in triboelectric charging and ESD discharge. Static charge accumulation causes tiny electrostatic adsorption force on mechanical components, leading to dust adhesion and increased mechanical friction resistance. Long-term accumulation results in unsmooth equipment operation, positioning deviation, and wafer clamping errors. In severe cases, ESD discharge causes local ablation of mechanical component surfaces, damaging precision matching structures and directly affecting the stability of wafer transmission and positioning accuracy during inspection.

The abnormal operation of inspection equipment caused by ESD further triggers chain production problems. Frequent equipment failures and calibration deviations lead to unplanned production downtime, disrupting the continuous production rhythm of semiconductor fabs. For mass production semiconductor lines, each unplanned shutdown causes substantial output loss. Meanwhile, unstable equipment operation increases the risk of batch wafer misdetection, further amplifying production quality risks and economic losses.

Hidden Long-Term Operational and Economic Risks of Uncontrolled ESD

Uncontrolled ESD in wafer inspection systems leads to sustained yield decline, increased operational costs, unstable product quality, and weakened enterprise market competitiveness, forming long-term hidden risks that restrict sustainable production optimization.

The most direct economic loss caused by unregulated ESD is continuous wafer yield attenuation. In semiconductor mass production, even a slight increase in ESD-induced defective rate will bring huge cumulative material losses. Advanced-process wafers involve complex multi-step manufacturing processes and high raw material and processing costs. Wafer scrapping in the final inspection stage means all previous process investment is wasted. Different from fixed process defects that can be optimized through process adjustment, ESD damage is random and scattered, making it difficult to eliminate through conventional process improvement. Without targeted ESD control, the wafer defective rate caused by static hazards will remain at a high level for a long time, continuously eroding production profits.

Uncontrolled ESD significantly increases enterprise operational and maintenance costs. On the one hand, ESD-induced equipment aging and failures require more frequent component replacement, calibration maintenance, and fault troubleshooting, increasing equipment maintenance labor costs and spare part procurement costs. On the other hand, unstable inspection data caused by ESD interference increases repeated testing, manual re-inspection, and product rework volume, reducing production efficiency and increasing time and labor costs. In addition, latent ESD damage leads to chip failure in the terminal application stage, triggering customer returns, after-sales compensation, and product recall costs, bringing additional economic burdens to enterprises.

Long-term ESD control deficiencies cause unstable product quality and damage corporate brand reputation. Semiconductor downstream industries such as automotive electronics, industrial control, and aerospace have extremely strict requirements for chip reliability. Latent ESD-damaged chips that flow into the market will cause equipment operation failures in terminal applications, triggering customer complaints and order disputes. Long-term quality instability will reduce customer trust, affect long-term cooperative relationships, and weaken the enterprise’s market competitiveness in the high-precision semiconductor supply chain. In the highly competitive semiconductor industry, stable product yield and reliability are core competitive advantages, and ESD-induced quality fluctuations will become key constraints on enterprise development.

ESD hazards also hinder the iterative upgrading of production processes. With the continuous upgrading of semiconductor manufacturing processes to smaller nodes, wafer device structures are more sensitive to static electricity, and ESD tolerance thresholds continue to decrease. Old inspection workstations without standardized ESD control cannot adapt to the production and inspection requirements of advanced process wafers, forcing enterprises to delay process upgrading or invest heavily in equipment renovation. This creates a technical and cost bottleneck for enterprises to expand high-end product production capacity.

Moreover, unstandardized ESD management will cause enterprises to fail to meet industry certification and customer audit requirements. Mainstream semiconductor industry standards and downstream customer supplier audit systems have clear ESD control specifications for production and inspection links. Long-term ESD control loopholes will lead to failure of factory audits, loss of high-end customer orders, and restriction of enterprise business expansion.

Industry Standard Requirements for ESD Control in Wafer Inspection Workstations

Global semiconductor industry unified standards represented by SEMI E78 and ISO 14644 series clearly define ESD control indicators, equipment configuration, and environmental management requirements for wafer inspection workstations, forming mandatory specifications for standardized static risk prevention and control.

The SEMI E78 standard is the core industry specification for ESD and electrostatic attraction control of semiconductor manufacturing equipment, specially formulated for static risk management of wafer processing and inspection equipment. This standard clearly stipulates that all wafer contact components, handling fixtures, and workstation platforms of inspection equipment must meet specified static dissipation performance indicators, with surface resistance controlled within the range of 10^6 to 10^9 ohms to ensure timely static charge dissipation. It also requires that the electrostatic potential of all equipment working surfaces in contact with wafers must not exceed ±10V, avoiding low-voltage static discharge damage to advanced-process wafers. In addition, SEMI E78 mandates real-time static monitoring and regular performance testing of inspection equipment to ensure the long-term stability of ESD control capabilities.

The ISO 14644 series cleanroom standards combine environmental management with ESD control, putting forward clear humidity and static management requirements for wafer inspection cleanrooms. The standards specify that the relative humidity of semiconductor inspection cleanrooms should be stably maintained between 40% and 50% to balance cleanroom cleanliness and static dissipation efficiency, avoiding excessive static accumulation caused by low humidity. At the same time, it requires all personnel, equipment, and auxiliary materials entering the inspection workstation to meet anti-static specifications, prohibiting the use of high-insulation materials that are prone to static accumulation.

The ANSI/ESD S20.20 standard, a universal ESD management specification for electronic manufacturing, provides standardized requirements for personnel operation, grounding system configuration, and daily monitoring of wafer inspection workstations. The standard requires all inspection station operators to wear certified anti-static protective equipment, including anti-static wristbands, gloves, and clothing, to eliminate human-induced static charge transfer. It also stipulates that the grounding resistance of all inspection equipment must be less than 1 ohm, ensuring that static charge can be quickly discharged to the ground without accumulation.

Downstream industrial chain certification standards further strengthen ESD control requirements for wafer inspection links. Automotive-grade chips, aerospace-grade semiconductors, and high-reliability industrial chips have more stringent ESD protection specifications in supplier audits. These high-end application fields require wafer manufacturers to provide complete ESD control records, equipment certification documents, and regular static testing reports for inspection processes. Any non-compliance in ESD management will directly lead to supplier qualification cancellation and order suspension.

The following list summarizes the core mandatory ESD control indicators for wafer inspection workstations specified by mainstream industry standards:

• Maximum allowable surface electrostatic potential of wafer contact equipment: ±10V (SEMI E78)

• Surface resistance of anti-static workstation components: 10^6–10^9 ohms (SEMI E78)

• Cleanroom stable relative humidity range: 40%–50% (ISO 14644)

• Equipment grounding resistance threshold: ≤1 ohm (ANSI/ESD S20.20)

• Mandatory regular ESD performance testing and real-time static monitoring (SEMI E78)

• Full anti-static protection for on-site operators (ANSI/ESD S20.20)

Practical ESD Mitigation Strategies for Wafer Inspection Systems

Effective ESD control for wafer inspection systems requires a systematic solution covering equipment optimization, environmental adjustment, personnel standardization, and daily monitoring, eliminating static generation, accumulation, and discharge risks from all links.

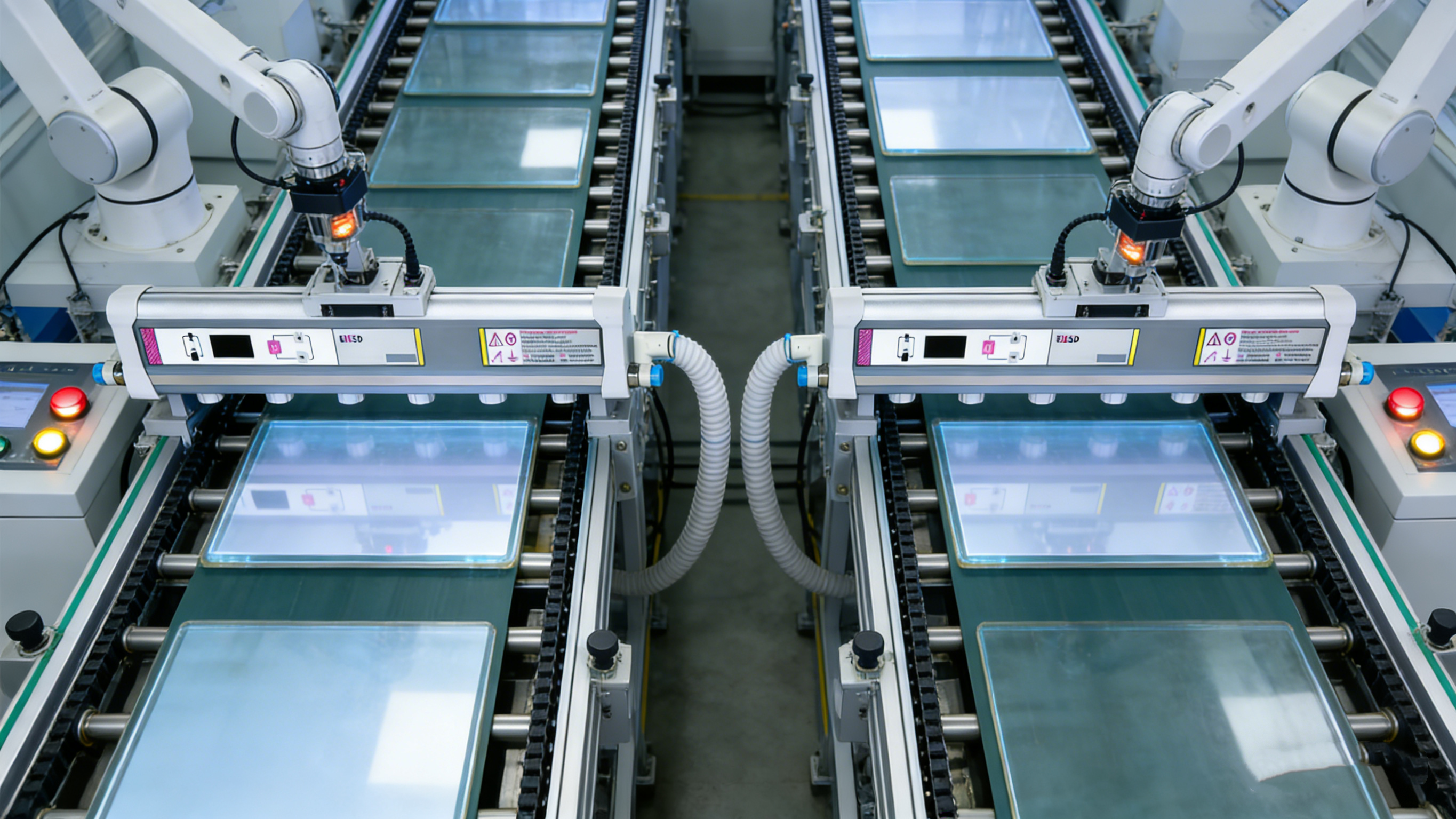

First, optimize inspection equipment hardware configurations to eliminate static generation sources and build reliable static dissipation pathways. Replace all high-insulation auxiliary components such as wafer trays, handling jigs, and vacuum nozzles in inspection workstations with anti-static materials that meet SEMI E78 standards to reduce triboelectric charging efficiency. Conduct comprehensive grounding inspection and rectification for all inspection equipment modules, repair loose and aging grounding wires, and eliminate ungrounded isolated components to ensure zero dead ends in static discharge. Install professional ion static eliminators at key wafer handling and inspection positions; ion fans can neutralize surface static charge in real time, effectively reducing wafer surface potential and avoiding ESD discharge and ESA particle adsorption.

Second, optimize cleanroom environmental parameters to suppress static accumulation. Adopt intelligent humidity control systems for inspection cleanrooms to stably maintain relative humidity between 40% and 50%, avoiding excessive static accumulation caused by low humidity while preventing high humidity from inducing wafer oxidation and particle adhesion. Regularly clean and maintain cleanroom air filtration systems to reduce airborne micro-particles, which not only improves inspection accuracy but also weakens electrostatic attraction contamination caused by static charge. Maintain stable cleanroom air circulation speed to avoid static charge accumulation caused by static air layers.

Third, standardize personnel operation specifications to eliminate human-induced ESD risks. Formulate dedicated ESD operation guidelines for wafer inspection posts, requiring all operators to wear qualified anti-static clothing, gloves, and wristbands before entering the workstation, and conduct real-time testing of anti-static equipment performance. Prohibit unauthorized contact with wafer surfaces and precision equipment components to avoid artificial static charge transfer. Conduct regular ESD professional training for operators to improve their awareness of static risk prevention and standardize daily operation behaviors.

Fourth, establish a full-cycle ESD monitoring and maintenance mechanism. Deploy high-precision static potential monitoring sensors in inspection workstations to realize 24-hour real-time monitoring of equipment surface and wafer surface static voltage, with automatic alarm functions for over-standard potential. Formulate a regular equipment maintenance plan, conduct quarterly ESD performance testing and calibration of inspection equipment, and replace aging anti-static components in a timely manner. Establish ESD hazard filing and analysis mechanisms, track and summarize all static-related equipment abnormalities and product defects, continuously optimize control strategies, and form a closed-loop management system.

Fifth, build standardized ESD management documents and certification systems. Sort out ESD control processes that meet SEMI E78 and ANSI/ESD S20.20 standards, form complete operational guidelines, inspection records, and maintenance files, and ensure that daily ESD management is standardized and traceable. Regularly participate in industry ESD certification audits to ensure that workstation control capabilities meet industry and customer requirements, supporting long-term stable order cooperation and production capacity upgrading.

Conclusion

ESD hazards are invisible but critical threats that restrict the yield stability and long-term operational optimization of wafer inspection systems. In the context of continuous shrinking semiconductor process nodes and continuously improving chip precision requirements, the tolerance of wafer devices to static electricity is decreasing year by year, making ESD control an indispensable core link in wafer inspection quality management. The triboelectric charging generated by equipment operation, unstandardized material configuration, suboptimal cleanroom environment, and incomplete management mechanisms jointly trigger ESD events, leading to catastrophic and latent wafer damage, inspection equipment precision degradation, data distortion, and a series of long-term economic and operational risks.

Compliant with industry standards such as SEMI E78 and ANSI/ESD S20.20, systematic ESD control covering hardware optimization, environmental adjustment, personnel standardization, and full-cycle monitoring can completely eliminate hidden static hazards in wafer inspection links. Effective ESD management not only directly improves wafer production yield and inspection accuracy, reduces equipment maintenance costs and product rework losses, but also helps enterprises meet industry certification and customer audit requirements, stabilize product quality, and enhance core market competitiveness. For semiconductor manufacturing enterprises, investing in standardized ESD control for wafer inspection systems is a low-cost and high-return strategic measure to realize long-term stable production and quality optimization.
