Electrostatic discharge has become one of the most critical contamination and reliability challenges in modern fabrication facilities. As semiconductor manufacturing processes continue to shrink to nanometer scale dimensions, even minor electrostatic events can damage sensitive components, reduce yield rates, and interrupt highly automated production systems. Among the many materials used inside fabrication environments, plastics are widely recognized as one of the most common sources of electrostatic charge accumulation.

Plastic materials are extensively used throughout fabrication facilities because of their lightweight structure, chemical resistance, low manufacturing cost, and versatility. They appear in wafer carriers, packaging trays, conveyor systems, storage containers, tubing, cleanroom tools, protective barriers, and numerous production accessories. However, while plastics offer many operational advantages, they also present significant electrostatic discharge risks due to their insulating properties.

Plastic materials in fabrication facilities create significant ESD risks because they easily accumulate and retain static charges, potentially leading to electrostatic discharge events that damage sensitive devices, attract contaminants, reduce production yield, and compromise manufacturing reliability. Proper material selection, grounding strategies, ionization systems, and ESD control procedures are essential for minimizing these risks.

As fabrication technologies become increasingly advanced, controlling electrostatic hazards associated with plastics has evolved from a basic safety requirement into a strategic manufacturing priority. ESD related failures can result in immediate device destruction, latent defects, equipment malfunction, contamination problems, and expensive production downtime. Consequently, manufacturers must thoroughly understand how plastic materials behave in controlled environments and how electrostatic risks can be minimized.

This article explores the major ESD risks associated with plastic materials in fabrication facilities, including charge generation mechanisms, contamination issues, material properties, operational impacts, mitigation strategies, and future trends in ESD safe material technologies. By understanding these challenges in detail, manufacturers can improve process stability, protect sensitive devices, and optimize long term production efficiency.

Table of Contents

• Why Are Plastic Materials Commonly Used in Fabs?

• How Do Plastic Materials Generate Electrostatic Charges?

• What ESD Risks Do Plastics Create in Fabrication Facilities?

• How Does Electrostatic Discharge Damage Semiconductor Devices?

• What Types of Plastic Materials Present the Highest ESD Risks?

• How Does Plastic Related Static Electricity Affect Cleanroom Contamination?

• What Industries Are Most Vulnerable to Plastic Generated ESD?

• How Can Fabs Reduce ESD Risks Associated with Plastics?

• What Role Do Ionization Systems Play in ESD Control?

• How Should Manufacturers Select ESD Safe Plastic Materials?

• Future Trends in ESD Safe Plastics for Semiconductor Manufacturing

• Conclusion

Why Are Plastic Materials Commonly Used in Fabs?

Plastic materials are widely used in fabrication facilities because they provide excellent chemical resistance, lightweight handling, durability, flexibility, and cost efficiency for manufacturing operations.

Fabrication facilities rely heavily on highly specialized materials capable of supporting complex manufacturing environments. Plastics have become essential because they offer a practical balance between performance, manufacturability, and operational efficiency. Compared with metals or glass, many plastic materials are easier to shape, transport, and integrate into automated production systems.

One of the biggest advantages of plastics is their chemical resistance. Semiconductor manufacturing involves aggressive chemicals, solvents, cleaning agents, and process gases. Many plastic materials can withstand exposure to these substances without rapid degradation, making them ideal for tubing, storage containers, chemical handling systems, and process accessories.

Another major benefit is weight reduction. Lightweight materials help improve automation efficiency and reduce mechanical stress on robotic handling systems. Wafer carriers, transport trays, and automated conveyor components frequently utilize plastics because they simplify movement within high speed production environments.

Plastic materials also support advanced manufacturing customization. They can be molded into highly specific shapes, enabling manufacturers to optimize airflow, equipment layouts, and contamination control systems. This versatility has contributed to the widespread use of plastics across nearly every area of modern fabrication facilities.

Despite these operational advantages, most conventional plastics are highly insulating materials. This insulation characteristic prevents electrical charges from dissipating naturally, making plastics one of the most significant contributors to electrostatic charge accumulation in cleanroom environments.

How Do Plastic Materials Generate Electrostatic Charges?

Plastic materials generate electrostatic charges primarily through friction, separation, airflow interaction, and material contact during manufacturing operations.

Electrostatic charge generation occurs whenever two materials come into contact and then separate. This process, known as triboelectric charging, is especially common in fabrication environments where materials move continuously through automated systems. Because plastics are typically poor electrical conductors, the generated charges remain trapped on the material surface instead of dissipating safely.

Several common fab activities contribute to plastic related charge generation:

• Wafer transport movement

• Plastic tray handling

• Conveyor belt operation

• Packaging material separation

• Airflow friction inside cleanrooms

• Protective film removal

• Automated robotic contact

Environmental conditions strongly influence charge accumulation. Low humidity environments are particularly problematic because dry air reduces natural charge dissipation. Since semiconductor fabrication facilities often maintain tightly controlled low humidity conditions, plastics can accumulate dangerously high static voltages.

The amount of generated static electricity depends on multiple variables:

Because fabrication facilities involve continuous movement and automation, controlling triboelectric charging from plastics is essential for maintaining process reliability.

What ESD Risks Do Plastics Create in Fabrication Facilities?

Plastic materials create ESD risks including device damage, process instability, contamination attraction, equipment malfunction, and production yield loss.

Electrostatic discharge events may appear insignificant to human operators, but modern semiconductor devices are extremely sensitive to even small electrical discharges. Static charges generated by plastics can reach several thousand volts, easily exceeding the tolerance levels of advanced electronic components.

One of the most severe consequences is immediate device failure. Sensitive semiconductor structures may experience dielectric breakdown, junction damage, or conductive path destruction following an ESD event. These failures can occur during wafer handling, assembly, packaging, or testing processes.

Latent defects are another major concern. In some cases, ESD exposure does not immediately destroy a component but instead weakens internal structures. These hidden defects may only become apparent after products enter customer use, creating long term reliability issues and warranty risks.

Additional ESD related risks associated with plastics include:

• Unexpected equipment shutdowns

• Sensor interference

• Particle attraction

• Reduced manufacturing yield

• Product inconsistency

• Higher inspection failure rates

• Increased operational downtime

In highly automated fabrication environments, even a small increase in ESD related failures can produce major financial consequences due to the extremely high value of semiconductor products and production equipment.

How Does Electrostatic Discharge Damage Semiconductor Devices?

Electrostatic discharge damages semiconductor devices by introducing sudden high voltage electrical energy that exceeds the tolerance of delicate internal circuits and structures.

Modern semiconductor devices contain extremely small conductive pathways and insulating layers. As feature sizes continue shrinking, device sensitivity to electrostatic discharge increases significantly. Some advanced components may be damaged by discharge events involving only a few volts.

When an electrostatic discharge occurs, electrical current rapidly flows through sensitive device structures. This sudden energy transfer generates localized heating, melting, dielectric rupture, or conductive path breakdown. Even microscopic damage can significantly affect device functionality.

Common forms of ESD induced damage include:

• Gate oxide rupture

• Metal interconnect melting

• Junction degradation

• Insulation failure

• Current leakage increase

• Timing instability

The semiconductor industry commonly categorizes ESD damage into two types:

Latent failures are particularly dangerous because affected devices may initially pass inspection tests before failing later during customer operation. This makes ESD prevention critically important throughout the entire fabrication process.

What Types of Plastic Materials Present the Highest ESD Risks?

Highly insulating plastics with low conductivity and strong triboelectric charging behavior present the highest ESD risks in fabrication facilities.

Not all plastics behave the same way in electrostatic environments. Some materials generate and retain static charges much more aggressively than others. Conventional insulating plastics are generally considered the most hazardous in ESD sensitive manufacturing areas.

Plastic materials commonly associated with higher static generation include:

• Polyethylene

• Polystyrene

• Polypropylene

• Polyvinyl chloride

• Acrylic materials

• Conventional nylon

These materials often exhibit strong charge retention because they lack conductive pathways that would allow electrical charges to dissipate naturally. In low humidity cleanrooms, charges may remain on surfaces for extended periods.

The following table compares relative ESD risk levels:

To reduce ESD hazards, many fabrication facilities now replace conventional insulating plastics with static dissipative or conductive alternatives designed specifically for electrostatic sensitive environments.

How Does Plastic Related Static Electricity Affect Cleanroom Contamination?

Plastic generated static electricity increases contamination risks by attracting airborne particles and interfering with cleanroom airflow control.

Cleanroom contamination control is one of the most important priorities in semiconductor manufacturing. Even microscopic particles can damage wafers, disrupt lithography processes, or reduce product yield. Static electricity generated by plastics significantly increases contamination risks because charged surfaces attract airborne particles like magnets.

When plastic surfaces accumulate static charges, they pull dust, fibers, and microscopic contaminants from surrounding airflow. These particles may then transfer directly onto wafers, tools, or process surfaces.

Static electricity can also disrupt carefully controlled cleanroom airflow patterns. Charged surfaces influence particle movement and may create localized contamination zones within otherwise controlled environments.

Common contamination problems associated with static charged plastics include:

• Particle accumulation on wafer carriers

• Dust attraction on process tools

• Contaminated packaging surfaces

• Increased cleaning frequency

• Reduced cleanroom efficiency

Because semiconductor fabrication requires extremely low contamination levels, reducing static generation from plastics directly contributes to higher production yield and improved process consistency.

What Industries Are Most Vulnerable to Plastic Generated ESD?

Industries involving highly sensitive electronics, precision manufacturing, and contamination controlled production environments are most vulnerable to plastic generated ESD.

Although many industries encounter static electricity challenges, certain sectors are especially vulnerable because their products contain highly delicate electronic structures or require ultra clean manufacturing conditions.

Industries with the highest ESD sensitivity include:

• Semiconductor manufacturing

• Integrated circuit assembly

• Printed circuit board production

• Medical electronics manufacturing

• Aerospace electronics

• Optical component production

• Data storage device manufacturing

These industries often operate under strict electrostatic discharge control standards because even minor ESD events can lead to expensive product failures or long term reliability concerns.

The growing use of smaller and more densely integrated electronic devices continues increasing ESD sensitivity across global manufacturing sectors. As technology advances, effective plastic related ESD control becomes increasingly important.

How Can Fabs Reduce ESD Risks Associated with Plastics?

Fabrication facilities can reduce plastic related ESD risks through material selection, grounding systems, ionization equipment, humidity control, and employee training.

Successful ESD prevention requires a comprehensive control strategy rather than relying on a single solution. Since plastics are deeply integrated into fab operations, manufacturers must combine engineering controls, environmental management, and operational procedures.

One of the most effective strategies is replacing conventional insulating plastics with ESD safe materials. Static dissipative plastics allow electrical charges to dissipate gradually without creating sudden discharge events.

Additional ESD mitigation methods include:

• Installing ionization systems

• Maintaining controlled humidity levels

• Grounding conductive surfaces

• Using ESD safe packaging

• Implementing cleanroom monitoring systems

• Regularly auditing electrostatic conditions

Employee awareness is also critical. Workers must understand how routine handling activities can generate static electricity and how proper procedures help minimize electrostatic risks.

Many fabrication facilities now implement full ESD management programs that include continuous monitoring, equipment maintenance schedules, contamination analysis, and process optimization strategies.

What Role Do Ionization Systems Play in ESD Control?

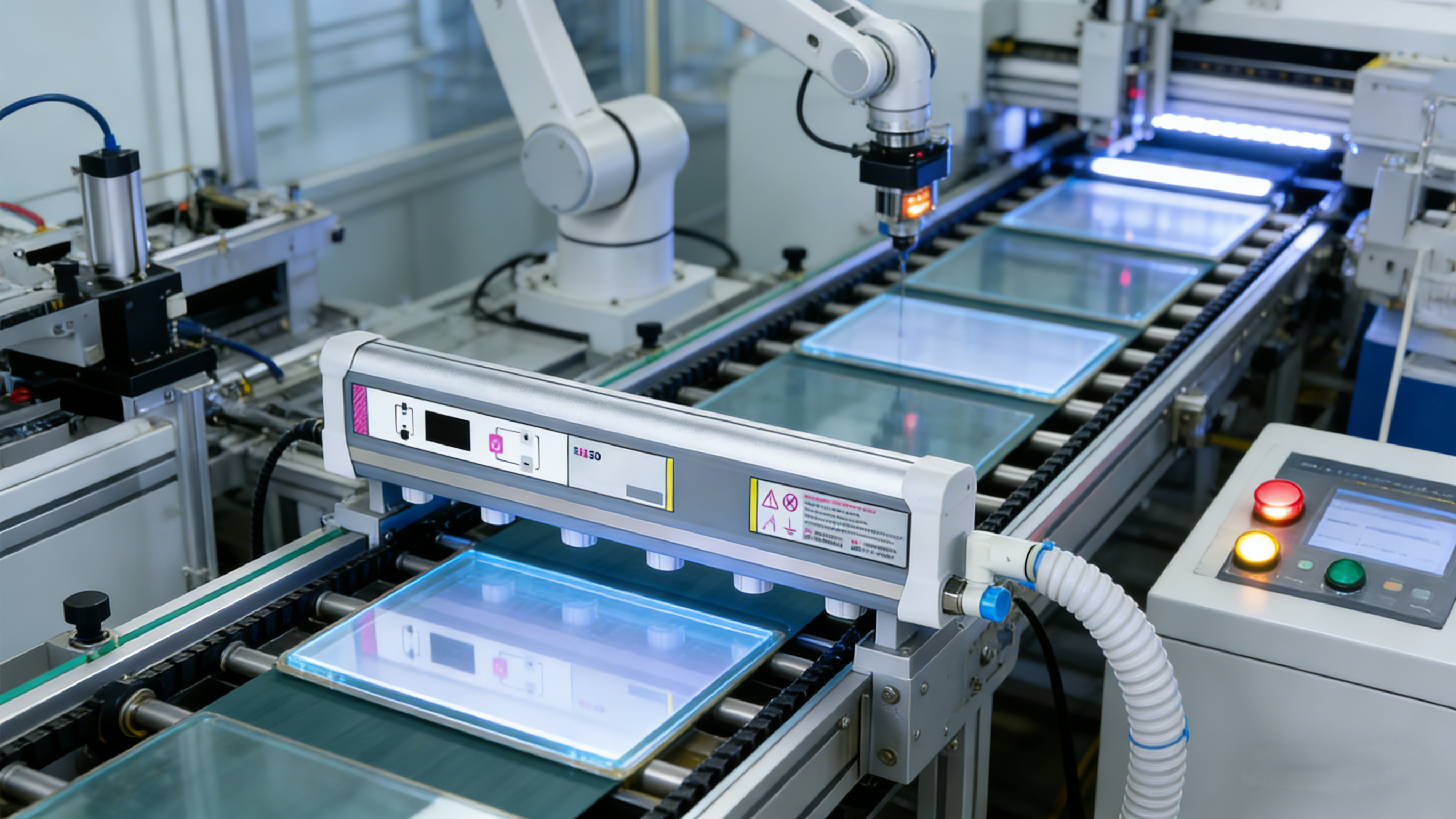

Ionization systems neutralize static charges on plastic surfaces by generating balanced positive and negative ions that safely dissipate accumulated electrostatic energy.

Since many plastic materials cannot be grounded directly due to their insulating nature, ionization systems play a crucial role in fabrication facility ESD control programs. These systems help neutralize electrostatic charges before dangerous discharge events occur.

Ionizers operate by generating streams of positive and negative ions that attach to charged surfaces. This process balances electrostatic charges and reduces surface voltage levels.

Common ionization technologies used in fabs include:

• Ion air bars

• Overhead ionizers

• Fan ionizers

• Nozzle ionizers

• Compressed gas ionization systems

Ionization systems are particularly valuable in areas involving:

• Wafer transfer operations

• Packaging stations

• Automated material handling

• Cleanroom assembly processes

• Plastic tray movement

Properly designed ionization systems significantly reduce contamination risks, improve product reliability, and enhance overall manufacturing stability.

How Should Manufacturers Select ESD Safe Plastic Materials?

Manufacturers should select ESD safe plastics based on conductivity properties, environmental compatibility, durability, contamination resistance, and process requirements.

Choosing the correct plastic materials is one of the most important decisions for reducing electrostatic risks in fabrication facilities. Material selection should consider both electrostatic performance and operational practicality.

ESD safe plastics generally fall into three categories:

Manufacturers should also evaluate:

• Chemical resistance

• Mechanical strength

• Outgassing characteristics

• Cleanroom compatibility

• Thermal stability

• Long term conductivity retention

Material testing is essential because some additives or coatings may degrade over time, reducing long term ESD protection effectiveness.

Future Trends in ESD Safe Plastics for Semiconductor Manufacturing

Future ESD safe plastics will focus on improved conductivity stability, lower contamination generation, advanced nanomaterial integration, and greater compatibility with next generation semiconductor manufacturing.

As semiconductor technology continues advancing, ESD control requirements will become increasingly demanding. Future manufacturing nodes will involve even smaller structures that are more sensitive to electrostatic damage.

Researchers are currently developing advanced plastic materials incorporating conductive nanomaterials, carbon based additives, and engineered polymer structures. These innovations aim to provide:

• More stable conductivity

• Lower particle shedding

• Improved cleanroom compatibility

• Enhanced chemical resistance

• Longer operational lifespan

Smart monitoring technologies are also becoming increasingly important. Future fabrication facilities may integrate real time electrostatic monitoring directly into material handling systems, allowing manufacturers to identify electrostatic hazards immediately.

Sustainability considerations are influencing material development as well. Manufacturers are exploring recyclable ESD safe plastics that maintain performance while reducing environmental impact.

Conclusion

Plastic materials remain essential components within modern fabrication facilities due to their flexibility, durability, chemical resistance, and operational efficiency. However, their insulating nature also makes them major contributors to electrostatic charge accumulation and ESD related manufacturing risks.

Plastic generated electrostatic discharge can damage semiconductor devices, attract contaminants, disrupt automated systems, reduce production yield, and create latent reliability defects. As semiconductor structures continue shrinking, controlling ESD risks becomes increasingly important for maintaining manufacturing stability and product quality.

Effective ESD management requires a comprehensive strategy that includes proper material selection, ionization systems, environmental controls, employee training, and continuous monitoring. Replacing conventional insulating plastics with ESD safe alternatives significantly reduces electrostatic hazards while supporting long term operational reliability.

Future advances in ESD safe plastic technologies will continue improving fabrication facility performance through enhanced conductivity stability, lower contamination generation, and smarter electrostatic management systems. Manufacturers that prioritize proactive ESD control will be better positioned to achieve higher yields, lower defect rates, and improved competitiveness in increasingly advanced semiconductor markets.
