Electrostatic discharge has become one of the most critical reliability concerns in modern semiconductor manufacturing and electronic system design. As semiconductor devices continue to shrink in size while increasing in complexity and performance, their susceptibility to electrostatic discharge damage has increased significantly. Even a small electrostatic event can permanently damage sensitive integrated circuits, reduce product reliability, or create latent defects that later cause unexpected system failures.

Semiconductor manufacturers, electronics assemblers, and reliability laboratories rely heavily on standardized ESD testing methods to evaluate device robustness and ensure long term operational stability. Industries such as automotive electronics, industrial control systems, telecommunications, aerospace, medical electronics, and consumer devices all require strict ESD qualification procedures to maintain product quality and compliance.

ESD testing methods for semiconductor devices are standardized procedures used to evaluate how semiconductor components respond to electrostatic discharge stress under simulated real world conditions, helping manufacturers improve device reliability, optimize protection designs, and reduce field failures.

As semiconductor technologies continue evolving toward smaller process nodes and higher integration densities, advanced ESD testing methodologies are becoming increasingly important. Engineers must understand various ESD models, testing standards, failure mechanisms, and protection strategies to ensure semiconductor reliability throughout manufacturing, handling, transportation, and end use operation.

This article explores the major ESD testing methods used for semiconductor devices, including Human Body Model testing, Charged Device Model testing, Machine Model testing, system level testing, testing equipment, failure analysis procedures, and future trends in ESD qualification technologies.

Table of Contents

1. Understanding Electrostatic Discharge in Semiconductor Devices

2. Importance of ESD Testing in Semiconductor Manufacturing

3. Human Body Model ESD Testing

4. Charged Device Model ESD Testing

5. Machine Model ESD Testing

6. System Level ESD Testing

7. ESD Testing Equipment and Laboratory Setup

8. Common ESD Failure Mechanisms

9. ESD Standards and Compliance Requirements

10. Data Analysis in ESD Testing

11. Best Practices for ESD Protection

12. Future Trends in ESD Testing Technologies

13. Conclusion

Understanding Electrostatic Discharge in Semiconductor Devices

Electrostatic discharge in semiconductor devices refers to the sudden transfer of electrical energy between objects with different electrical potentials, potentially damaging sensitive semiconductor structures.

Electrostatic charge accumulation occurs naturally during manufacturing, packaging, transportation, and handling processes. Friction between materials, movement of automated equipment, and contact between conductive surfaces can all generate static electricity. When the accumulated charge suddenly discharges through a semiconductor device, extremely high transient currents and voltages can damage microscopic internal structures.

Modern semiconductor devices contain ultra thin gate oxides, narrow conductive lines, and densely packed transistor architectures. These structures are highly vulnerable to electrical overstress caused by electrostatic discharge events. A discharge lasting only a few nanoseconds may generate enough thermal energy to melt interconnects, rupture oxide layers, or destroy junction regions.

Electrostatic discharge damage may appear as immediate catastrophic failure or as latent degradation. Latent damage is especially dangerous because devices may initially pass production testing but fail later during field operation. This risk makes comprehensive ESD testing essential for semiconductor reliability management.

Common Environments Where ESD Events Occur

• Semiconductor wafer fabrication facilities

• Integrated circuit assembly lines

• Automated surface mount production systems

• Electronic device repair environments

• Transportation and packaging operations

Importance of ESD Testing in Semiconductor Manufacturing

ESD testing is essential for evaluating semiconductor reliability, validating protection structures, reducing manufacturing defects, and ensuring long term product stability.

Semiconductor manufacturing involves highly controlled processes with extremely small device geometries. As transistor dimensions continue shrinking, the tolerance of semiconductor devices to electrostatic stress decreases significantly. Without proper ESD testing, manufacturers face increased risks of production failures, customer returns, warranty costs, and field reliability issues.

ESD testing helps manufacturers identify weaknesses in semiconductor designs before products enter mass production. Engineers use test results to improve protection circuitry, optimize layout structures, and enhance process reliability. Early detection of ESD vulnerabilities reduces overall manufacturing costs and improves product quality.

Reliability qualification programs often require semiconductor devices to pass standardized ESD stress levels before product release. Devices that fail qualification testing may require redesign or additional protective measures to meet reliability expectations.

Benefits of ESD Testing

Comprehensive ESD testing programs are therefore essential for modern semiconductor manufacturing operations.

Human Body Model ESD Testing

Human Body Model testing simulates electrostatic discharge events caused by human handling of semiconductor devices during manufacturing and assembly processes.

The Human Body Model is one of the oldest and most widely used ESD testing methods in the semiconductor industry. This testing model represents the electrical characteristics of a charged human body discharging into a semiconductor component.

In Human Body Model testing, a capacitor is charged to a specified voltage and then discharged through a resistor into the device under test. The resistor simulates the resistance of the human body, while the capacitor represents stored electrostatic energy.

HBM testing typically evaluates semiconductor robustness across multiple voltage levels. Devices are stressed repeatedly at increasing discharge voltages until failure occurs or the required qualification level is reached.

Typical HBM Testing Parameters

• Capacitance value of 100 pF

• Series resistance of 1500 ohms

• Voltage levels ranging from hundreds to several thousand volts

• Positive and negative polarity testing

Human Body Model Characteristics

HBM testing remains an important qualification requirement for many semiconductor products because manual handling still occurs in numerous manufacturing and service environments.

Charged Device Model ESD Testing

Charged Device Model testing evaluates semiconductor vulnerability when the device itself becomes electrically charged and rapidly discharges to ground.

Charged Device Model testing has become increasingly important in automated semiconductor manufacturing environments. Unlike Human Body Model testing, which simulates external discharge into the device, CDM testing evaluates discharge events originating from the semiconductor component itself.

During automated handling operations, semiconductor packages may accumulate static charge through contact with trays, conveyors, test sockets, or packaging materials. When the charged device touches a grounded surface, extremely fast discharge currents occur.

CDM events generate very short rise times and high peak currents, making them particularly dangerous for advanced semiconductor technologies. Small device geometries are highly sensitive to these rapid transient stresses.

Key Characteristics of CDM Testing

• Very fast discharge rise times

• High peak current generation

• Package dependent charging behavior

• Simulation of automated handling conditions

CDM testing procedures generally involve charging the semiconductor package and discharging it through a grounded conductive contact point. The resulting electrical stress helps determine device robustness under realistic manufacturing conditions.

As automated semiconductor production continues expanding, CDM testing has become one of the most critical ESD qualification methods for advanced integrated circuits.

Machine Model ESD Testing

Machine Model testing simulates electrostatic discharge events caused by manufacturing equipment and automated machinery contacting semiconductor devices.

The Machine Model was originally developed to represent discharge events from metallic manufacturing equipment. In this testing method, a charged capacitor discharges directly into the semiconductor device with minimal series resistance.

Machine Model testing produces very rapid current waveforms with high peak amplitudes. Because the discharge path contains almost no resistance, the resulting electrical stress can be extremely severe.

Although Machine Model testing has become less commonly used in some modern qualification programs, it still provides useful insights into specific equipment related discharge risks.

Machine Model Characteristics

Machine Model testing may still be useful in environments involving metallic robotic systems, automated handlers, and high speed assembly equipment where direct conductive discharge paths exist.

System Level ESD Testing

System level ESD testing evaluates how complete electronic systems respond to electrostatic discharge events during actual operational conditions.

While component level testing focuses on individual semiconductor devices, system level testing evaluates fully assembled electronic products. This testing approach is critical because board level interactions, grounding structures, shielding, and packaging can significantly influence ESD performance.

System level testing often uses ESD simulators commonly referred to as ESD guns. These devices generate controlled discharge pulses that simulate real world electrostatic events encountered by end users.

Test engineers apply electrostatic discharges to multiple system locations including connectors, buttons, housings, display surfaces, and communication interfaces. During testing, engineers monitor system functionality for temporary upset, degradation, or permanent failure.

Common System Level Test Targets

• USB interfaces

• Communication ports

• Touch screens

• Power connectors

• Control buttons

• External housings

System level testing is especially important for automotive electronics, industrial automation systems, medical devices, and consumer electronics exposed to frequent human interaction.

ESD Testing Equipment and Laboratory Setup

ESD testing equipment and laboratory environments provide controlled conditions for evaluating semiconductor robustness under standardized electrostatic stress scenarios.

Accurate ESD testing requires specialized laboratory equipment capable of generating repeatable electrostatic discharge waveforms. Proper calibration and environmental control are essential for obtaining reliable test results.

Common ESD Testing Equipment

• HBM simulators

• CDM test systems

• Waveform verification equipment

• Oscilloscopes

• Current probes

• Environmental monitoring systems

Environmental conditions significantly influence ESD behavior. Laboratories typically maintain controlled humidity and temperature levels to ensure test consistency. Low humidity environments increase electrostatic charge accumulation and may alter discharge characteristics.

Laboratory operators must also follow strict grounding procedures and use conductive workstations, ionization systems, and ESD safe packaging to prevent unintended damage during testing operations.

Essential ESD Laboratory Requirements

Common ESD Failure Mechanisms

Common ESD failure mechanisms include gate oxide rupture, metal interconnect melting, junction burnout, and latent reliability degradation.

Electrostatic discharge events generate extremely high current densities within microscopic semiconductor structures. These transient currents produce localized heating, electrical overstress, and physical damage.

One of the most common ESD failure modes is gate oxide breakdown. Thin insulating layers within transistors may rupture under excessive electric field stress, resulting in leakage current or permanent transistor failure.

Metal interconnect damage is another frequent issue. Localized heating can melt conductive traces, creating open circuits or conductive shorts between adjacent structures.

Common ESD Failure Indicators

• Increased leakage current

• Functional instability

• Threshold voltage shifts

• Localized thermal damage

• Metal extrusion

• Oxide puncture marks

Some ESD events produce latent defects that remain undetected during initial testing but later cause field reliability failures. This possibility makes thorough qualification testing essential for semiconductor products.

ESD Standards and Compliance Requirements

ESD standards define testing procedures, waveform specifications, classification levels, and qualification requirements for semiconductor devices.

Standardized testing procedures ensure consistency across semiconductor manufacturing and qualification operations. International standards organizations define specific waveform characteristics, discharge methods, and pass fail criteria for ESD testing.

Compliance with recognized standards helps manufacturers demonstrate product reliability and compatibility with customer requirements. Semiconductor suppliers often include ESD classification data within product qualification reports and technical documentation.

Major ESD Qualification Categories

• Human Body Model classifications

• Charged Device Model classifications

• System level immunity requirements

• Manufacturing process qualification standards

ESD classification levels help customers understand device robustness and handling requirements. Components with lower ESD tolerance typically require stricter manufacturing controls and handling precautions.

Compliance testing also supports reliability certification programs in industries such as automotive electronics, aerospace systems, and industrial automation.

Data Analysis in ESD Testing

Data analysis in ESD testing involves evaluating electrical behavior, identifying failure thresholds, comparing stress results, and optimizing semiconductor reliability performance.

Accurate data interpretation is essential for effective ESD qualification. Engineers analyze waveform characteristics, device degradation trends, and post stress electrical measurements to determine semiconductor robustness.

Key Parameters Evaluated During ESD Testing

• Failure voltage threshold

• Leakage current changes

• Functional performance variation

• Current waveform characteristics

• Repeatability of discharge behavior

Statistical analysis techniques help engineers identify process variation and reliability trends across large production volumes. Correlation between design structures and failure behavior also supports optimization of ESD protection circuits.

Important ESD Data Metrics

Comprehensive data analysis enables manufacturers to improve semiconductor reliability and optimize ESD protection strategies.

Best Practices for ESD Protection

Effective ESD protection requires environmental control, proper grounding, operator training, protective packaging, and robust semiconductor design techniques.

Prevention remains the most effective strategy for reducing electrostatic discharge related failures. Semiconductor facilities implement comprehensive ESD control programs to minimize static charge accumulation and discharge risks.

Proper grounding systems are essential in manufacturing and testing environments. Operators use grounded wrist straps, conductive footwear, and grounded workstations to safely dissipate static electricity.

Humidity control also plays an important role in ESD prevention. Dry environments increase static charge accumulation, while controlled humidity helps reduce electrostatic generation.

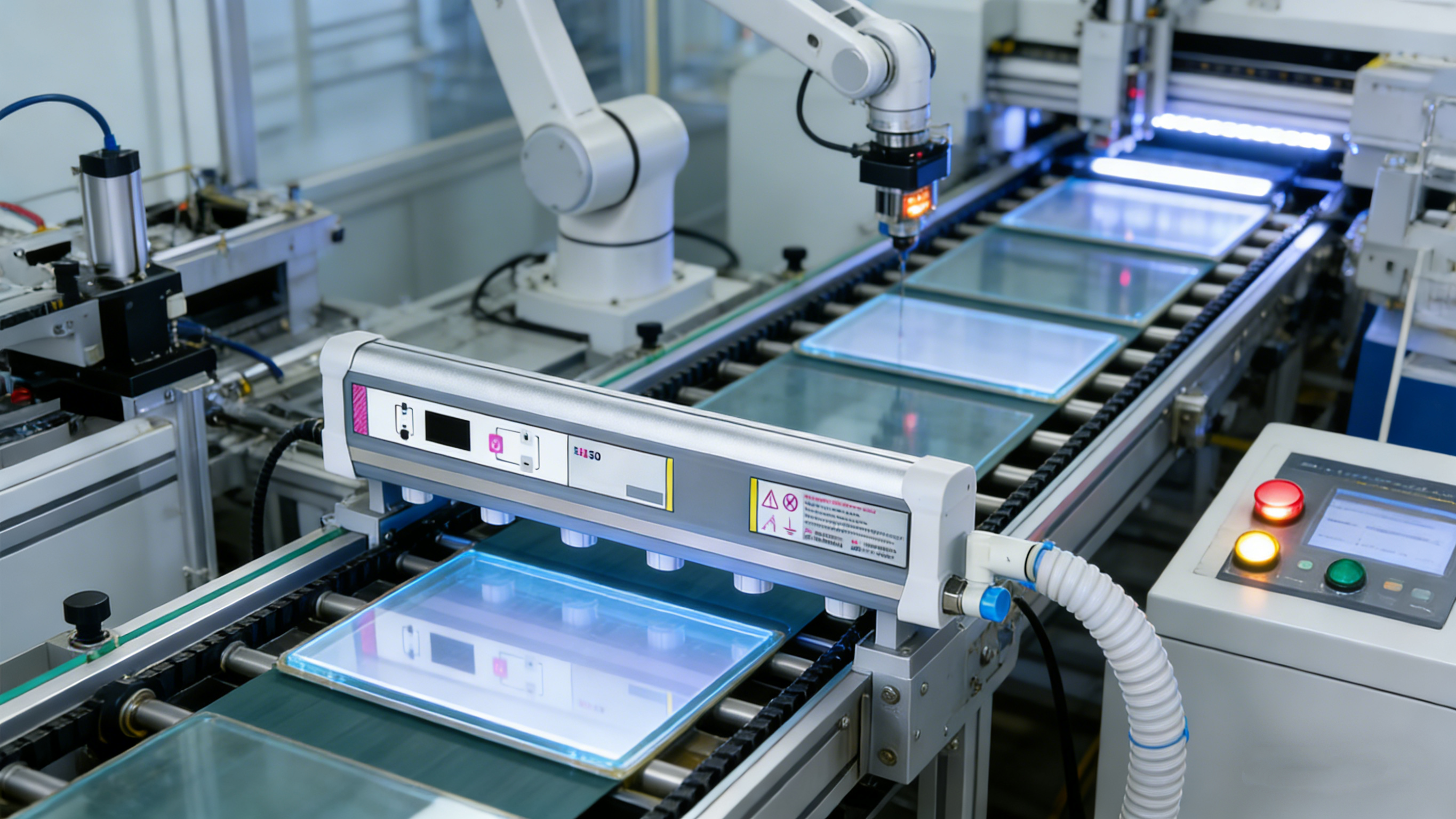

Common ESD Protection Measures

• Conductive packaging materials

• Ionization systems

• Grounded manufacturing equipment

• ESD safe workstation design

• Regular employee training

• Continuous ESD monitoring systems

Semiconductor designers additionally incorporate on chip ESD protection structures that redirect transient current away from sensitive transistor regions. These protective circuits improve device survivability during electrostatic stress events.

Future Trends in ESD Testing Technologies

Future ESD testing technologies focus on advanced automation, artificial intelligence analysis, nanoscale reliability evaluation, and enhanced system level simulation capabilities.

As semiconductor devices continue scaling toward smaller technology nodes, ESD testing methodologies must evolve to address increasingly complex reliability challenges. Advanced packaging technologies, three dimensional integration, and heterogeneous architectures introduce new forms of electrostatic sensitivity.

Artificial intelligence and machine learning technologies are beginning to improve defect recognition and failure prediction capabilities. Automated analysis platforms can evaluate large volumes of test data and identify hidden reliability trends more efficiently than traditional methods.

Advanced waveform analysis and high speed measurement technologies are also improving discharge characterization accuracy. Faster instrumentation enables more precise evaluation of transient current behavior during extremely short discharge events.

Emerging Trends in ESD Testing

• Automated failure localization systems

• AI assisted reliability prediction

• Advanced nanoscale microscopy integration

• Real time waveform analytics

• Enhanced simulation driven qualification

As electronic systems become more sophisticated, ESD testing will remain a critical component of semiconductor reliability engineering and product qualification.

Conclusion

ESD testing methods for semiconductor devices are essential for evaluating electrostatic discharge robustness, improving product reliability, validating protection designs, and reducing operational failure risks.

Modern semiconductor technologies are increasingly vulnerable to electrostatic discharge due to shrinking device geometries and higher integration densities. Comprehensive ESD testing methodologies such as Human Body Model testing, Charged Device Model testing, Machine Model testing, and system level testing provide critical insights into device reliability performance.

Accurate ESD qualification requires standardized testing procedures, advanced laboratory equipment, detailed data analysis, and strong preventive control programs. Manufacturers that invest in comprehensive ESD testing capabilities can improve production quality, reduce field failures, and strengthen long term customer confidence.

As semiconductor technologies continue advancing, ESD testing will remain an indispensable part of reliability engineering, semiconductor qualification, and electronic system protection strategies across multiple industries worldwide.
