Modern industrial and semiconductor manufacturing ecosystems rely heavily on electrostatic discharge protection to preserve the integrity of sensitive electronic components, precision devices, and high-value semiconductor products. As electronic devices shrink to micro and nano-scale architectures, traditional rigid metal shielding and pure insulating materials can no longer balance protection performance, structural flexibility, and ultra-clean production requirements. Electrostatic discharge (ESD) has become one of the most prevalent causes of latent device failure, parametric drift, and batch yield loss in advanced fabrication, packaging, and electronic assembly workflows. In this context, conductive polymers have emerged as core functional materials for modern ESD protection systems, bridging the performance gap between rigid conductive metals and high-risk insulating plastics.

Conductive polymers are composite polymer materials modified with conductive fillers or intrinsic conductive molecular structures, featuring adjustable resistivity, flexible mechanical properties, and excellent processability. Unlike single-function metal conductors or ordinary insulating plastics, these materials can achieve precise static dissipation and electrostatic shielding while adapting to complex structural design and ultra-clean industrial environments. In B2B industrial scenarios including semiconductor manufacturing, precision electronics assembly, and cleanroom operation, conductive polymers have gradually replaced traditional materials to become the mainstream solution for standardized and refined ESD protection.

Conductive polymers serve as core ESD protection materials by providing controllable static charge dissipation, uniform electrostatic field shielding, low-triboelectric friction performance, and cleanroom-compatible structural support, eliminating static accumulation and preventing destructive ESD events across precision manufacturing and component storage workflows.

Most industrial ESD failures stem from mismatched material properties rather than insufficient terminal static elimination equipment. Ordinary insulating plastics trap static charges indefinitely, while pure metal conductors cause dangerous rapid discharge and current surges. Conductive polymers fill this performance gap with precisely tuned resistivity ranges, achieving safe and gentle static management without secondary device damage. Their unique material characteristics make them irreplaceable in high-precision industrial scenarios with strict ESD control standards.

This article systematically elaborates on the working principles of conductive polymers in ESD protection, summarizes their core functional roles, analyzes performance advantages over traditional ESD materials, sorts out typical industrial application scenarios, explains key performance parameters and selection guidelines, and forecasts future development trends. It provides professional and actionable technical references for B2B material procurement engineers, manufacturing process optimization teams, and cleanroom management personnel.

Table of Contents

• Fundamental Working Principles of Conductive Polymers for ESD Protection

• Core Functional Roles of Conductive Polymers in Industrial ESD Control

• Performance Advantages of Conductive Polymers Over Traditional ESD Materials

• Typical Industrial Application Scenarios for Conductive Polymer ESD Protection

• Key Performance Parameters Governing Conductive Polymer ESD Effectiveness

• Common Application Mistakes and Optimization Solutions

• Future Evolution of Conductive Polymers for Advanced ESD Protection

Fundamental Working Principles of Conductive Polymers for ESD Protection

Conductive polymers deliver reliable ESD protection through internal conductive network formation, controllable surface charge dissipation, and electrostatic field homogenization, realizing active static suppression and passive discharge prevention simultaneously.

The core working principle of conductive polymers lies in the construction of continuous internal conductive networks. Traditional pure polymer materials are typical insulators with extremely high resistivity, which cannot conduct static charges and lead to continuous charge accumulation on material surfaces. Conductive polymers are modified by blending high-purity conductive fillers such as carbon powder, carbon nanotubes, and graphite into polymer substrates or adopting intrinsic conductive molecular structure design. Uniformly distributed conductive substances form dense and stable conductive pathways inside the material, completely changing the insulating characteristics of pure polymers. When static charges are generated on the material surface due to friction or induction, these internal networks can quickly guide charge migration and avoid local charge aggregation.

Controllable resistivity adjustment realizes safe and graded static dissipation, which is the key advantage of conductive polymers in precision ESD protection. Professional ESD-grade conductive polymers can precisely control surface resistivity within the range of 10^6 to 10^12 ohms per square. This resistivity range belongs to the static dissipative interval, which is different from high-resistivity insulators and low-resistivity metal conductors. Insulating materials cause static retention, while metal materials lead to instantaneous high-current discharge. Conductive polymers slowly and evenly release static charges within a safe time window, effectively eliminating static accumulation while avoiding current impact damage to ultra-sensitive semiconductor chips and microelectronic devices caused by sudden ESD discharge.

Electrostatic field homogenization and shielding suppress external static interference and internal charge superposition. The uniform conductive structure of conductive polymers balances the surface electrostatic potential, eliminating local high-potential static points caused by uneven charge distribution. In closed packaging and storage structures, conductive polymer materials can form equipotential shielding spaces, isolating external floating electrostatic fields and preventing external static interference from affecting internal precision components. This field homogenization effect solves the problem of persistent static field superposition in long-term component storage and high-frequency equipment operation scenarios.

Low triboelectric material characteristics reduce static generation from the source. Modified conductive polymers have optimized molecular friction performance and matched triboelectric potential with silicon-based semiconductor materials and electronic component packaging materials. During frequent contact and separation friction in handling, turnover, and operation processes, the electron transfer amount is significantly reduced, fundamentally lowering the probability of triboelectric static generation. This source suppression capability complements the charge dissipation function, forming a dual-layer ESD protection system of reducing generation and accelerating dissipation.

Core Functional Roles of Conductive Polymers in Industrial ESD Control

Conductive polymers undertake four core ESD protection functions in industrial scenarios including source static suppression, safe charge dissipation, electrostatic field shielding, and clean anti-static bearing, covering full-process static risk control.

1. Source Static Suppression and Risk Reduction

Conductive polymers effectively suppress triboelectric static generation, which is the primary source of industrial ESD risks. Most static charges in manufacturing and storage environments are generated by friction between different material interfaces. Ordinary plastic materials have large triboelectric potential differences with semiconductor wafers and chip pins, leading to severe electron migration during contact friction. Conductive polymers undergo professional triboelectric optimization, with surface potential highly matched with precision electronic devices. This material matching greatly reduces friction-induced static generation frequency and charge quantity, cutting off ESD risk sources at the initial stage. Long-term industrial verification shows that standardized application of conductive polymers can reduce on-site static generation volume by more than 70% compared with ordinary plastic materials.

2. Safe and Uniform Static Charge Dissipation

Safe charge dissipation is the most critical functional role of conductive polymers. Different from the zero-resistance rapid discharge of metal materials, conductive polymers rely on gradient resistance structures to realize slow and ordered static release. When surface static potential accumulates to a certain threshold, the internal conductive network guides charges to diffuse evenly to the ground or surrounding equipotential structures, avoiding instantaneous high-energy ESD discharge. This gentle dissipation mode completely avoids micro-circuit breakdown and gate oxide layer damage of sensitive semiconductor devices, solving the secondary damage problem existing in traditional conductive material protection schemes.

3. External Electrostatic Field Shielding

Conductive polymers form stable equipotential shielding layers to isolate external static field interference. In complex industrial environments, floating static fields generated by equipment operation, human movement, and air friction will continuously induce charges on the surface of precision components. Conductive polymer packaging and fixture structures can balance internal and external potential differences, shield irregular external static field fluctuations, and maintain stable electrostatic environment inside the protection space. This shielding function is particularly critical for long-term component storage and cross-regional transportation scenarios, effectively preventing latent ESD damage caused by long-term static field induction.

4. Ultra-Clean Anti-Static Structural Bearing

Conductive polymers achieve integrated functions of structural support and clean ESD protection. Unlike spray-type anti-static coatings that are easy to fall off and precipitate, modified conductive polymers adopt integral doping and structural forming technology, with conductive functions integrated into the material matrix. They have ultra-low particle shedding and zero chemical precipitation characteristics, fully meeting Class 10 and Class 100 cleanroom standards. While providing stable anti-static performance, they can be processed into various structural parts such as trays, fixtures, and gaskets, realizing the integration of mechanical support and ESD protection, and avoiding secondary pollution risks caused by auxiliary anti-static materials.

Performance Advantages of Conductive Polymers Over Traditional ESD Materials

Compared with traditional metal conductors, insulating plastics, and spray-coated anti-static materials, conductive polymers have comprehensive advantages in safety, cleanliness, processability, and long-term stability, making them more suitable for precision industrial ESD protection.

The following table intuitively compares the performance differences between conductive polymers and mainstream traditional ESD protection materials, highlighting their core application advantages:

Conductive polymers have unique safety advantages in precision device protection. Metal materials easily cause over-discharge and current impact when contacting micro-nano semiconductor devices, resulting in irreversible circuit damage. Insulating plastics cause continuous static accumulation and high-potential ESD breakdown. Conductive polymers with precisely calibrated resistivity can always maintain a safe charge dissipation rate, which neither causes static retention nor triggers over-discharge risks, achieving the highest safety level of ESD protection.

Cleanroom compatibility is another irreplaceable advantage of conductive polymers. Traditional spray-type anti-static materials form a surface conductive layer through post-processing spraying. The coating has poor adhesion and is easy to peel off during friction and cleaning, generating micro-particles and chemical residues that pollute wafers and chips. Conductive polymers complete conductive modification during material polymerization and molding, with conductive components evenly distributed inside the matrix. The compact and smooth surface will not produce shedding pollutants, fully adapting to ultra-clean production environments of advanced semiconductor processes.

Excellent processability and structural diversity expand ESD protection application scenarios. Metal materials have poor molding flexibility and cannot be made into complex thin-walled structures and special-shaped fixtures. Ordinary plastics lack anti-static performance. Conductive polymers retain the good processing characteristics of polymer materials, supporting injection molding, extrusion, and hot pressing molding. They can be processed into various customized ESD protection parts to meet the diversified structural and protection requirements of precision manufacturing, storage, and handling links.

Long-term performance stability reduces industrial operation costs. Many traditional anti-static materials have obvious performance attenuation problems. Spray coatings fail after friction and cleaning, and low-quality doped materials have uneven conductive performance. High-quality conductive polymers have stable molecular structures and conductive networks, with almost no performance degradation after long-term low-humidity operation, repeated cleaning, and high-frequency friction. They reduce frequent material replacement and performance maintenance costs for enterprises.

Typical Industrial Application Scenarios for Conductive Polymer ESD Protection

Conductive polymers are widely applied in semiconductor manufacturing, precision electronics assembly, cleanroom operation, and component storage and transportation, realizing full-link ESD risk coverage for precision industrial production.

Semiconductor wafer and chip handling is the core high-precision application scenario for conductive polymers. Advanced process wafers and bare chips have extremely high static sensitivity, requiring zero friction static generation and safe static dissipation in the handling process. Conductive polymer materials are made into wafer transfer trays, robotic end-effector gaskets, and process turnover fixtures. Their low triboelectric performance reduces friction static generation, and uniform conductive networks ensure real-time static dissipation on contact surfaces. The flexible material structure avoids hard contact scratch damage to wafer surfaces, achieving dual protection of ESD risk prevention and physical damage avoidance.

Cleanroom auxiliary equipment and structural parts rely heavily on conductive polymer ESD protection. Cleanroom workbench surfaces, equipment shock-absorbing gaskets, cable protective sleeves, and turnover vehicle liners are mostly made of high-performance conductive polymers. These components are in frequent contact with automation equipment and precision components, and their stable anti-static performance can eliminate floating potential of equipment surfaces and avoid static accumulation caused by mechanical vibration and friction. Meanwhile, their ultra-clean performance will not damage the cleanroom air environment, maintaining the high-purity production conditions required for semiconductor manufacturing.

Precision electronic component packaging and storage scenarios require conductive polymer shielding and dissipation functions. Conductive polymer shielding boxes, conductive foam gaskets, and anti-static storage trays provide long-term ESD protection for packaged chips, sensors, and microelectronic components. The material’s equipotential shielding function isolates external static field interference, and the slow dissipation function eliminates internal residual static charges, preventing latent device performance drift caused by long-term static accumulation. This application effectively reduces component failure rates in storage and standby links.

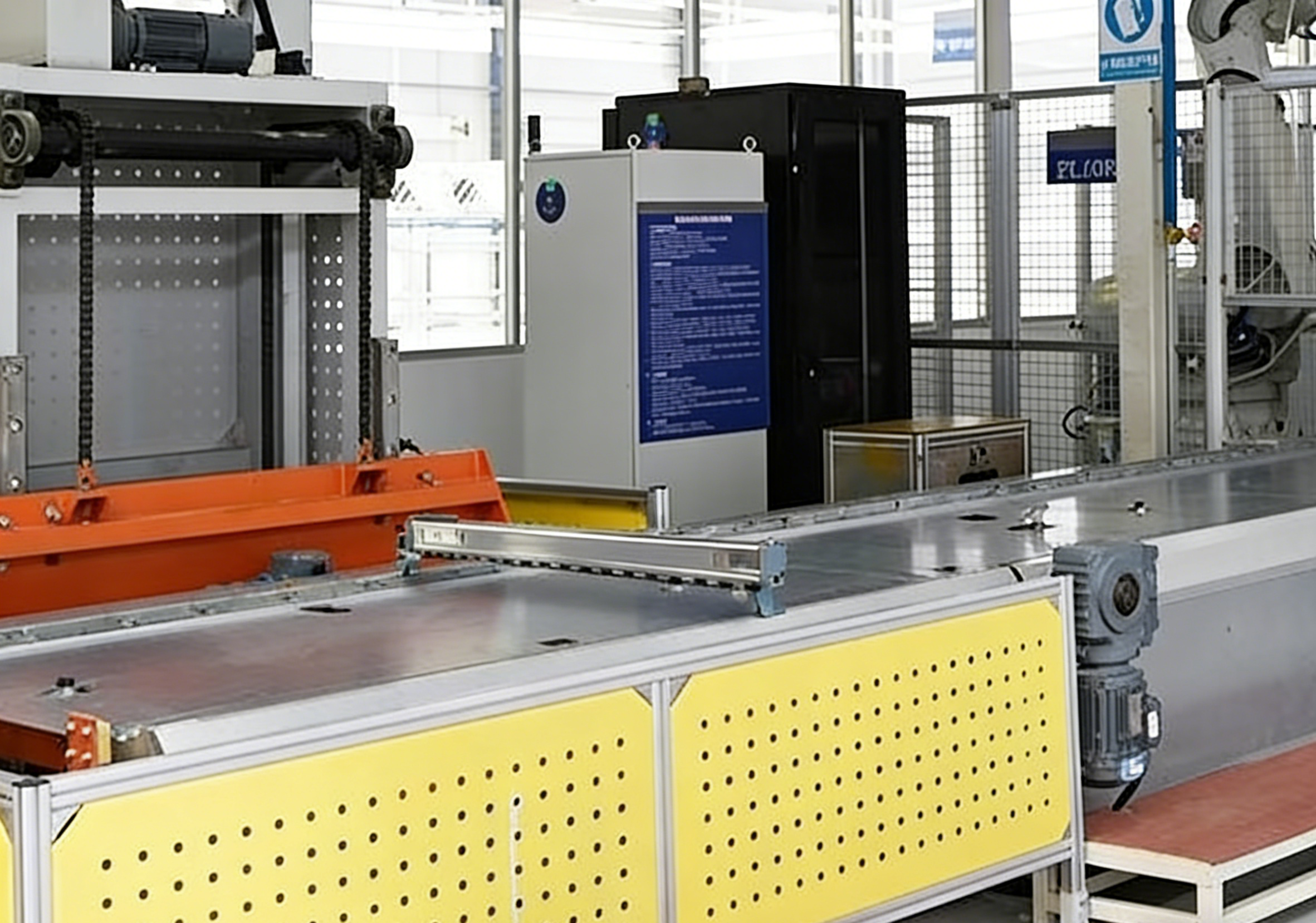

Industrial automated production line auxiliary accessories are important extension scenarios for conductive polymers. High-speed automated assembly lines generate a large amount of static charges due to continuous material friction and high-speed operation. Conductive polymer conveyor belts, positioning fixtures, and material baffle parts can continuously dissipate operating static charges, stabilize the electrostatic environment of the production line, and avoid equipment sensor signal distortion and component ESD damage caused by static interference.

Key Performance Parameters Governing Conductive Polymer ESD Effectiveness

The ESD protection effectiveness of conductive polymers is determined by core parameters including surface resistivity uniformity, triboelectric potential value, particle cleanliness, temperature and humidity stability, and mechanical wear resistance.

Surface resistivity and uniformity are the primary parameters determining ESD safety. Professional ESD-grade conductive polymers must maintain surface resistivity between 10^6 and 10^12 ohms per square. Resistivity lower than this range will cause excessive discharge speed and current impact risks, while resistivity higher than this range will lead to insufficient static dissipation capability and residual static accumulation. In addition, the resistivity difference of the same batch of materials must be controlled within a narrow range to avoid local static dead zones and high-potential points caused by uneven conductivity, ensuring overall consistent ESD protection performance.

Triboelectric potential matching degree determines the source static suppression capability. The triboelectric potential of conductive polymers used for semiconductor and precision electronic contact must be close to silicon-based materials and component packaging materials. The smaller the potential difference between contact materials, the less electron migration during friction, and the lower the static generation probability. High-quality conductive polymers undergo targeted triboelectric potential optimization to minimize static generation from the source, which is an essential parameter to distinguish high-end ESD materials from ordinary anti-static products.

Cleanliness and non-shedding performance are key indicators for cleanroom-grade applications. Conductive polymers for semiconductor scenarios must pass particle shedding testing, volatile organic compound testing, and ion precipitation testing. The material matrix structure must be compact without loose conductive fillers, ensuring no micro-particle shedding during friction, cleaning, and long-term use. Zero chemical precipitation performance avoids wafer surface contamination and circuit corrosion caused by material precipitation, meeting ultra-high-standard cleanroom production requirements.

Environmental stability ensures long-term reliable ESD performance. Conductive polymers need to maintain stable resistivity and structural performance in low-humidity cleanrooms, slightly high-temperature process environments, and frequent chemical cleaning environments. High-quality materials will not have conductive network damage and resistivity attenuation due to environmental changes, avoiding ESD protection failure caused by material aging. Mechanical wear resistance ensures that the surface structure remains smooth after long-term friction use, preventing increased static generation caused by surface roughness elevation.

Common Application Mistakes and Optimization Solutions

Common conductive polymer ESD protection mistakes include blind material selection, ignoring batch uniformity, mixing heterogeneous materials, and neglecting regular performance maintenance, which lead to incomplete static control and potential device risks.

Blind pursuit of high conductivity is the most common application error. Many procurement and engineering teams mistakenly believe that the higher the material conductivity, the better the ESD protection effect. In actual precision semiconductor scenarios, excessive conductivity will cause instantaneous high-current discharge when contacting sensitive devices, resulting in gate oxide breakdown and circuit damage. The optimization solution is to select matching resistivity grades according to device sensitivity, adopting medium and low dissipation conductive polymers for ultra-sensitive components to realize safe and gentle static release.

Ignoring batch performance uniformity leads to unstable on-site ESD effects. Some low-cost conductive polymer products have uneven internal conductive filler distribution, resulting in large resistivity differences between different batches and different positions of the same material. Local high-resistivity areas will form static accumulation dead zones, triggering occasional ESD accidents. The optimization measure is to conduct batch sampling resistivity testing before material incoming, strictly screening unqualified products, and ensuring consistent performance of all applied materials.

Mixed use of heterogeneous materials destroys triboelectric matching balance. Even if conductive polymer materials are qualified, long-term matching use with ordinary insulating plastics or high-potential heterogeneous materials will intensify interface friction static generation, offsetting the material’s anti-static advantages. The optimization strategy is to unify the material system of the same process link, realize triboelectric potential matching of all contact interfaces, and build a fully matched ESD protection environment.

Neglecting long-term performance maintenance causes late-stage protection failure. Conductive polymers will experience slight surface wear and aging after long-term high-frequency use. Although the overall conductive performance is stable, local structural changes may cause potential anomalies. The optimization solution is to establish regular material performance inspection and replacement mechanisms, regularly calibrate surface resistivity and cleanliness, and replace aging and worn parts in a timely manner to maintain long-term stable ESD protection effects.

Future Evolution of Conductive Polymers for Advanced ESD Protection

Future conductive polymer ESD protection technology will develop toward ultra-precise resistivity customization, intelligent responsive static dissipation, green low-carbon modification, and integrated multifunctional composite materials to adapt to advanced semiconductor process requirements.

Ultra-precise customized resistivity technology will realize refined ESD protection. With the continuous upgrading of semiconductor process nodes, the static tolerance range of devices becomes narrower. Future conductive polymers will support micron-level regional resistivity customization, realizing different static dissipation speeds and shielding strengths in different structural areas of the same component. This refined customization technology can fully adapt to the differentiated static protection needs of ultra-precision heterogeneous chips.

Intelligent responsive conductive polymers will achieve active static regulation. New-generation conductive polymer materials will integrate temperature and humidity sensing and electrostatic field induction functions. The material resistivity can dynamically adjust according to environmental humidity, static field strength, and operating frequency, automatically matching the optimal static dissipation state. This intelligent adaptive capability solves the problem of fixed performance of traditional materials adapting to variable industrial environments, greatly improving the robustness of ESD protection systems.

Green and low-carbon modified conductive polymers will become industry mainstream. Traditional conductive polymer modification processes have certain carbon emission and pollution problems. Future materials will adopt bio-based polymer substrates and low-pollution conductive doping technology, achieving zero volatile precipitation and low energy consumption production while maintaining high ESD performance. Green environmental protection materials will fully meet the sustainable development requirements of modern semiconductor manufacturing industry.

Multifunctional integrated composite materials will expand application boundaries. Future conductive polymers will integrate ESD protection, electromagnetic shielding, temperature resistance, and anti-corrosion functions into one, realizing integrated protection of precision devices. The multifunctional composite structure can adapt to more extreme process environments, reducing the number of auxiliary materials for industrial production and improving the overall efficiency and safety of industrial manufacturing systems.

Conclusion

Conductive polymers occupy an irreplaceable core position in modern industrial ESD protection systems, solving the performance defects of traditional insulating materials and metal conductive materials. Relying on controllable conductive network structure, safe static dissipation mechanism, low triboelectric performance, and ultra-clean structural characteristics, conductive polymers realize source static suppression, on-site charge dissipation, external field shielding, and clean structural support, forming a full-dimensional precision ESD protection system. They are widely used in semiconductor manufacturing, cleanroom operation, precision electronic assembly, and component storage and transportation scenarios, effectively reducing ESD-induced device failure and production yield loss.

With the continuous progress of advanced semiconductor processes and the continuous improvement of industrial ESD protection standards, conductive polymer materials will continue to iterate and upgrade toward precision customization, intelligent response, and multifunctional integration. Scientific selection, standardized application, and regular maintenance of conductive polymer materials will become the core foundation of high-reliability ESD management for B2B precision manufacturing enterprises, providing solid material guarantee for high-yield and high-stable operation of modern advanced manufacturing industry.
