Semiconductor packaging tape and reel systems serve as the primary standardized carrier for transporting, storing, and feeding miniature electronic components throughout post-packaging testing, warehousing, and SMT assembly processes. As a mainstream packaging solution for mass-produced semiconductor devices such as SMD chips, resistors, capacitors, and integrated circuits, tape and reel packaging ensures component alignment consistency, transportation safety, and automated production compatibility for high-volume electronic manufacturing. Modern semiconductor components feature ultra-miniaturized structures, ultra-thin gate oxide layers, and high-density circuit layouts, making them extremely sensitive to external electrostatic interference. In high-precision manufacturing scenarios including automotive electronics, industrial control, and consumer electronics, even minor electrostatic discharge events can trigger irreversible component failure and batch quality accidents.
Despite widespread industry adoption of anti-static tape and reel materials, incomplete material selection, irregular handling operations, improper storage environments, and aging packaging accessories still lead to frequent ESD hidden dangers in actual production and transportation links. Unlike sudden equipment ESD hazards, tape and reel-related ESD risks are long-term, cumulative, and covert, easily overlooked in daily quality management. These persistent static hazards have become one of the key factors restricting semiconductor product yield improvement and batch quality stability in the electronic manufacturing industry.
Semiconductor packaging tape and reel ESD risks mainly originate from triboelectric static generation during component loading, transportation, and unwinding, failure of anti-static material performance, non-compliant storage environments, and irregular manual and mechanical operations, resulting in component catastrophic damage, latent functional failure, particle contamination, and batch production quality losses.
Most manufacturing enterprises focus on the ESD protection of production equipment and cleanroom environments but lack systematic management of tape and reel packaging carriers. Many enterprises simply use conventional anti-static tape and reel products without conducting regular performance testing and lifecycle management. The static accumulation generated by long-term tape and reel winding, friction, and unwinding continues to threaten the safety of precision semiconductor components. A large number of latent defective components caused by tape and reel ESD risks flow into downstream assembly links, leading to increased after-sales failure rates and uncontrollable product quality.
To eliminate covert ESD hidden dangers in semiconductor packaging and transportation links, it is necessary to systematically analyze the generation mechanism and specific manifestations of tape and reel static risks, clarify industry standard specifications, sort out core hazard points, and formulate full-process prevention and control strategies. This article comprehensively elaborates on the causes, core hazards, compliance standards, control measures, and long-term management mechanisms of tape and reel ESD risks, providing professional and systematic guidance for semiconductor packaging and electronic manufacturing enterprises.
Fundamental Causes of ESD Generation in Tape and Reel Packaging Systems
Core Operational and Quality Hazards of Tape and Reel ESD Events
Industry Compliance Standards for Anti-Static Tape and Reel Packaging
Key ESD Control Points for Tape and Reel Material Selection and Application
Environmental and Operational ESD Management for Tape and Reel Storage and Handling
Long-Term Lifecycle ESD Management and Risk Prevention Mechanisms
ESD generation in semiconductor tape and reel packaging systems is primarily driven by triboelectric friction during component packaging and unwinding, attenuated anti-static material performance, low-humidity storage and transportation environments, and repeated mechanical stretching and winding movements.
Triboelectric charging from high-frequency friction and contact separation is the most fundamental cause of static accumulation in tape and reel systems. Semiconductor tape and reel packaging relies on carrier tapes, cover tapes, and plastic reels to fix and wrap precision components. In the automated tape mounting process, components are repeatedly embedded into carrier tape grooves, and cover tapes are hot-pressed and bonded to seal components. During this process, continuous contact and separation occur between component pins, packaging tape materials, and plastic reel surfaces. Different polymer materials and metal component structures have varying electron gain and loss capabilities, leading to electron transfer and residual static charge accumulation on the surfaces of components and packaging materials. In high-volume mass production, thousands of packaging and winding actions are completed every hour, and cumulative static charges rapidly form high-potential static fields on the tape and reel surface.
Performance attenuation and failure of anti-static packaging materials cause persistent ESD hidden dangers. Qualified semiconductor packaging tape and reel products are required to add conductive agents or static-dissipative materials to achieve static dissipation functions. However, anti-static materials have a limited service lifecycle. Long-term storage, high-temperature environments, ultraviolet radiation, and repeated mechanical stretching will lead to the aging and degradation of conductive components inside the materials. The surface resistance of aging tape and reel will gradually exceed the industry standard range, losing the static dissipation capability. Many enterprises reuse tape and reel accessories or purchase low-cost non-compliant packaging materials with unstable anti-static performance. These unqualified materials cannot release static charges in time, resulting in continuous static accumulation and frequent ESD discharge.
Uncontrolled environmental parameters amplify static risk levels in tape and reel storage and transportation links. Most semiconductor warehouses and transportation vehicles adopt closed air-conditioning environments with low humidity to prevent component moisture and oxidation. When the relative humidity is lower than 40%, the air lacks effective conductive water layers, and the natural static dissipation capacity is greatly reduced. Static charges generated by tape and reel friction cannot be released through the air, resulting in rapid charge accumulation. Industry test data verifies that the surface static voltage of tape and reel in a low-humidity environment of 30% RH is more than 5 times higher than that in a standard humidity environment of 50% RH. In addition, dry seasonal climates and long-distance sealed transportation will further aggravate static superposition on packaging materials.
Repeated mechanical movement and deformation of tape and reel induce secondary static generation. In the SMT automated feeding process, tape and reel need to complete high-speed unwinding, bending, and positioning movements. The continuous bending and stretching of carrier tapes and cover tapes cause internal molecular friction, generating additional static charges. The high-speed rotation of plastic reels and friction with equipment baffles also produce triboelectric static electricity. Different from static generated in the packaging stage, the static generated in the feeding process directly acts on components about to be mounted on the board, with a shorter discharge path and higher instantaneous discharge intensity, which is more likely to cause component damage.
Irregular manual and mechanical operations increase ESD event probability. In manual material taking, material changing, and material inspection processes, operators without complete anti-static protection will transfer human body static to tape and reel and internal components. Meanwhile, abnormal mechanical jitter, uneven tension during automated winding and unwinding, and improper equipment debugging will cause violent friction between tape materials and components, producing a large amount of instantaneous static charges. These irregular operational factors are important inducements for intermittent ESD faults that are difficult to trace in actual production.
Tape and reel ESD events cause three core types of losses: permanent catastrophic damage to semiconductor components, latent device performance degradation that is difficult to detect, and electrostatic adsorption-induced particle contamination and assembly defects, bringing batch quality risks and economic losses.
Catastrophic ESD damage leads to direct scrapping of precision semiconductor components. Modern miniature semiconductor devices such as MOS tubes, chip resistors, capacitors, and integrated circuit chips have extremely low ESD tolerance, with most small-signal devices only withstanding static voltages below 5V to 10V. When static charges accumulated on tape and reel surfaces reach the air breakdown threshold, instantaneous high-current ESD discharge will occur between the packaging material and component pins or chip surfaces. The instantaneous high temperature and current generated by the discharge will break down the internal gate oxide layer of the component, melt micro-circuits, and cause permanent short-circuit or open-circuit faults. Damaged components completely lose their functional attributes and can only be scrapped directly, bringing direct material loss to production enterprises. In batch packaging and feeding scenarios, ESD discharge often causes scattered defective components in the entire reel of materials, resulting in low yield of single-batch materials.
Latent ESD damage forms long-term undetectable quality hidden dangers. Sub-threshold static discharge that does not completely break down component structures will cause subtle internal damage to semiconductor devices, including micro-cracks in oxide layers, weakened circuit conductivity, and drifted electrical parameters. Components with latent ESD damage can pass routine factory inspections such as appearance inspection and electrical parameter testing, and smoothly complete SMT board mounting and functional testing. However, under the stress of power cycling, temperature changes, and long-term operation after terminal product assembly, latent defects will gradually amplify, leading to abnormal component operation, reduced stability, and premature failure. This type of delayed failure will cause terminal product malfunction, triggering customer returns, order compensation, and brand reputation losses, which are far more harmful than direct component scrapping.
Electrostatic attraction caused by tape and reel static accumulation induces component surface contamination and assembly defects. Charged packaging tape and reel surfaces will strongly adsorb suspended micro-dust, fiber debris, and tiny metal particles in the warehouse and production environment. These pollutants adhere tightly to component pins and chip surfaces, which cannot be removed by conventional cleaning methods. In the subsequent SMT mounting process, particle contamination will cause poor soldering, virtual soldering, and short-circuit defects of components, reducing assembly yield. In addition, adsorbed dust will affect the electrical contact performance of component pins, leading to unstable circuit conduction and hidden product quality problems.
Tape and reel ESD risks also interfere with automated production efficiency and cause unplanned losses. Static adhesion between carrier tapes and cover tapes will lead to incomplete tape unwinding and component position deviation during high-speed feeding, triggering SMT equipment feeding errors, material jams, and production line shutdowns. Frequent feeding abnormalities will reduce the operating efficiency of automated production lines and increase manual intervention and maintenance costs. At the same time, static-induced component defects require enterprises to increase sampling inspection rates and re-inspection processes, further increasing production time and labor costs.
Long-term uncontrolled tape and reel ESD risks will lead to batch quality instability and supplier audit failure. Downstream high-end manufacturing fields such as automotive electronics and industrial control have extremely strict requirements for component ESD protection records. Continuous ESD defective component outflow will cause batch product quality fluctuations, failing customer supplier qualification audits, resulting in order loss and business expansion restrictions.
The following table summarizes the specific manifestations, detection difficulty, and comprehensive impact of tape and reel ESD hazards:
ESD Hazard Type | Specific Manifestations | Detection Difficulty | Comprehensive Production Impact |
|---|---|---|---|
Catastrophic Component Damage | Component short circuit, open circuit, complete functional failure | Low (detectable in pre-production testing) | Direct material scrapping, increased production costs |
Latent Device Degradation | Electrical parameter drift, unstable operation, delayed failure | Extremely High (undetectable in routine inspection) | Terminal product failure, after-sales compensation losses |
Static Particle Contamination | Surface dust adhesion, poor soldering, virtual soldering defects | Medium (easily confused with process defects) | Reduced assembly yield, increased rework rate |
Automated Production Interference | Feeding jams, position deviation, equipment shutdown | Low (obvious operational abnormality) | Reduced production efficiency, increased labor intervention costs |
Semiconductor tape and reel ESD control must comply with JEDEC, SEMI, and ANSI/ESD industry standards, which uniformly specify material resistance indicators, static potential limits, environmental control parameters, and lifecycle management specifications for packaging carriers.
The JEDEC J-STD-033 standard is the core specification for ESD protection of semiconductor component packaging and transportation, specially formulating anti-static performance requirements for tape and reel packaging materials. The standard clearly stipulates that the surface resistance of carrier tapes, cover tapes, and plastic reels used for precision semiconductor component packaging must be stably maintained between 10^6 and 10^9 ohms. This resistance range ensures efficient and slow static dissipation, avoiding component damage caused by instantaneous rapid discharge while preventing static charge accumulation. JEDEC J-STD-033 also requires that the surface static potential of finished tape and reel packaging materials must not exceed ±10V, eliminating low-voltage static impact on ultra-sensitive micro-components.
The SEMI G1 standard supplements the material durability and environmental adaptability requirements of anti-static tape and reel. It specifies that anti-static packaging materials must maintain stable static dissipation performance within the temperature range of -20℃ to 60℃, avoiding performance failure caused by temperature changes in transportation and storage links. The standard also prohibits the use of ion-containing unstable conductive materials for semiconductor packaging tape and reel, preventing material precipitation and component contamination during long-term storage. In addition, SEMI G1 requires regular performance testing of reused tape and reel accessories, and severely restricts the repeated use of aging materials with degraded anti-static performance.
The ANSI/ESD S20.20 standard provides full-process management specifications for tape and reel storage, handling, and transportation. It mandates that the storage environment of tape and reel packaged semiconductor components must maintain a relative humidity of 40% to 60% to balance static dissipation efficiency and component moisture resistance. The standard also requires all personnel and automated equipment contacting tape and reel materials to complete anti-static grounding and protective configuration, prohibiting ungrounded equipment and unprotected personnel from contacting finished packaging materials. At the same time, it stipulates that tape and reel static performance must be tested and recorded every quarter to ensure traceability of compliance status.
Downstream industrial chain certification puts forward higher customized requirements for tape and reel ESD control. Automotive-grade semiconductor components must comply with AEC-Q series certification auxiliary specifications, requiring full-process ESD protection records of component packaging and transportation links. Any non-compliance of tape and reel materials will lead to component qualification failure. Aerospace and medical electronic component industries require the use of ultra-low static special tape and reel materials, with stricter resistance and static potential control indicators than ordinary industrial-grade products.
The following list sorts the core mandatory compliance indicators for standard semiconductor tape and reel ESD control:
Qualified surface resistance of tape and reel materials: 10^6–10^9 ohms (JEDEC J-STD-033 & SEMI G1)
Maximum allowable surface static potential: ±10V (JEDEC J-STD-033)
Standard storage and transportation humidity range: 40%–60% RH (ANSI/ESD S20.20)
Stable anti-static performance temperature range: -20℃ to 60℃ (SEMI G1)
Quarterly static performance testing and data recording of packaging materials (ANSI/ESD S20.20)
Prohibition of repeated use of aging and performance-degraded tape and reel (SEMI G1)
Effective ESD control of tape and reel packaging starts with standardized material selection and standardized application, selecting compliant static-dissipative materials, matching differentiated packaging solutions, and eliminating material-induced static risks from the source.
Select high-quality compliant anti-static tape and reel materials based on component sensitivity levels. Different semiconductor components have different ESD tolerance thresholds, and differentiated packaging materials should be matched according to component sensitivity classification. For ultra-sensitive high-precision components such as RF chips and power management chips, ultra-low static permanent anti-static tape and reel materials should be selected. These materials adopt polymer conductive integration technology, with stable resistance value and no conductive agent precipitation, and can maintain long-term anti-static performance. For ordinary industrial-grade SMD components, standard static-dissipative materials that meet JEDEC standards can be used to balance protection performance and cost. It is strictly prohibited to use ordinary insulating plastic tape and reel and low-quality temporary anti-static materials with unstable performance.
Optimize the matching performance of carrier tape and cover tape to reduce friction static generation. The friction coefficient between carrier tape and cover tape directly affects the amount of triboelectric static generation. Low-friction matching anti-static cover tapes should be selected to reduce static charge generated by hot-pressing bonding and unwinding friction. Ensure that the resistance values of carrier tape and cover tape are consistent, avoiding static charge accumulation caused by inconsistent material conductivity. At the same time, optimize the hot-pressing process parameters of cover tapes to avoid excessive pressure and temperature causing material deformation and increased friction static generation.
Standardize the use and replacement cycle of tape and reel accessories. Establish a clear service life standard for anti-static tape and reel, and formulate a regular replacement mechanism according to material aging characteristics and usage frequency. For tape and reel used in high-frequency production and long-cycle storage, conduct monthly resistance testing and appearance inspection. Timely eliminate materials with surface scratches, aging embrittlement, and resistance exceeding the standard range. Strictly control the repeated use times of recycled reel accessories, and completely replace aged reels with failed anti-static performance to avoid residual static hidden dangers.

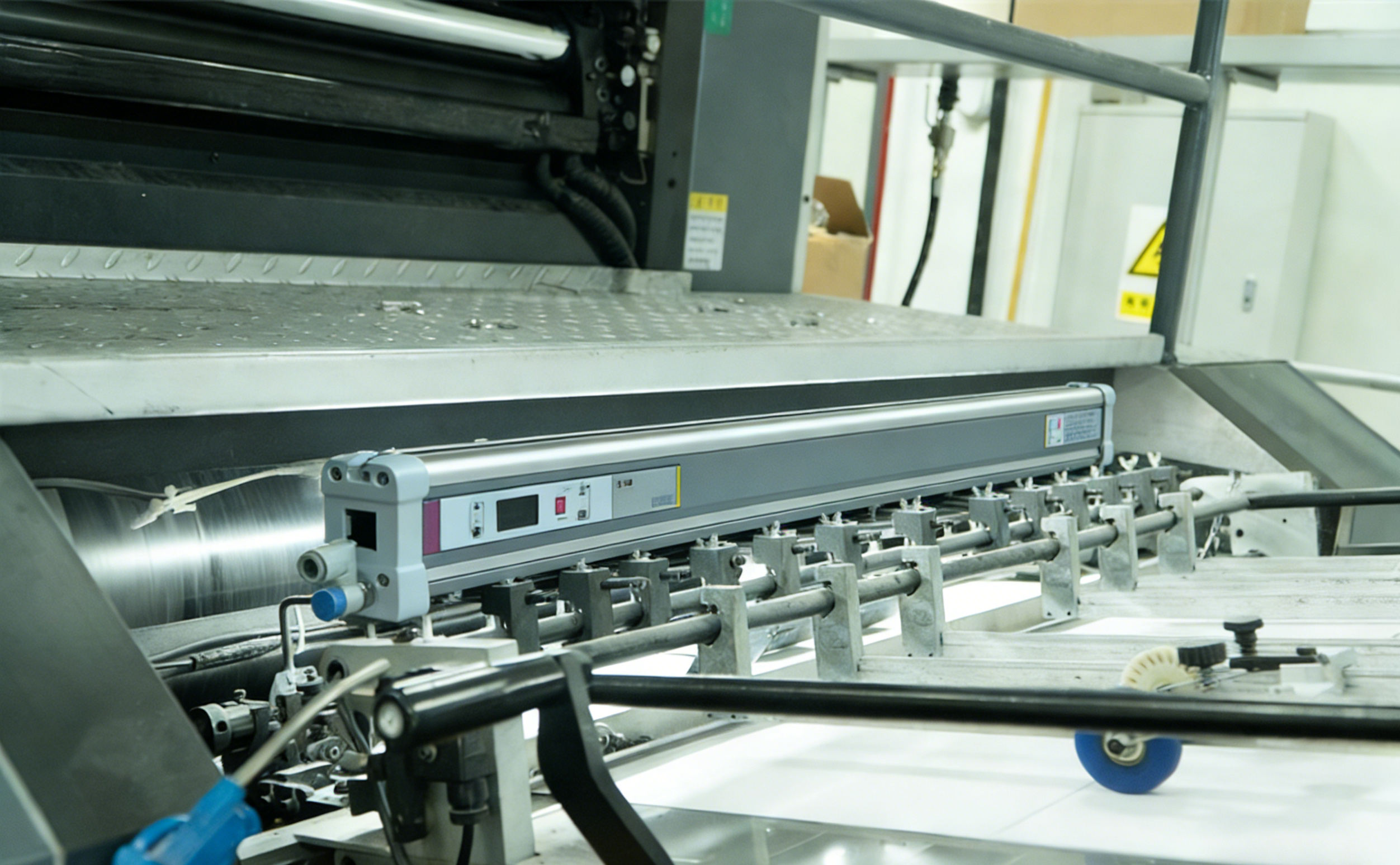

Adopt auxiliary anti-static protection measures for special packaging scenarios. For long-distance transportation and long-term storage of semiconductor components, add anti-static shielding bags outside the tape and reel package to form a double-layer static protection structure. The shielding layer can isolate external static field interference and prevent surface static accumulation of internal packaging materials. For ultra-miniature components with extremely high static sensitivity, use ion purification treatment on the tape and reel packaging surface before packaging to completely eliminate residual static charges on the material surface.
Verify material batch performance before mass application. Each batch of newly purchased tape and reel materials must undergo sampling testing of surface resistance, static potential, and aging resistance before formal use. Only batches that fully meet industry standard indicators can be put into production and packaging. Establish material batch testing files to realize traceability of packaging material quality, avoiding batch ESD risks caused by unqualified material batches.
Standardized storage environment control and standardized personnel and mechanical operation management are core auxiliary measures to suppress tape and reel static accumulation and avoid induced ESD events in the whole process.
Stabilize warehouse and transportation environmental parameters to optimize natural static dissipation conditions. Install intelligent constant temperature and humidity control systems in semiconductor component warehouses to stably maintain relative humidity between 40% and 60% throughout the year. For dry seasons and air-conditioned closed warehouses, deploy micro-humidification equipment to avoid local low-humidity static superposition. In long-distance sealed transportation vehicles, configure portable humidity adjustment equipment to ensure that the environmental humidity during transportation meets ESD control standards. Stable humidity can form a uniform conductive water layer on the surface of tape and reel materials, effectively improving natural static dissipation efficiency and inhibiting static charge accumulation.
Standardize warehouse storage and placement specifications to reduce static generation and accumulation. Tape and reel products should be placed on anti-static storage racks and anti-static ground mats, avoiding direct contact with ordinary insulating plastic trays and ground. Stacking height should be standardized to prevent excessive material extrusion and friction-induced static generation. Keep the storage area clean and tidy, reduce suspended dust in the air, and avoid electrostatic adsorption contamination of tape and reel and internal components. At the same time, isolate the tape and reel storage area from high-static equipment and materials to prevent external static field induction from increasing packaging material surface potential.
Formulate strict personnel anti-static operation specifications for material handling. All staff engaged in tape and reel material packaging, warehousing, feeding, and inspection must wear certified anti-static clothing, anti-static gloves, and anti-static wristbands. Conduct real-time static detection of personal protective equipment before operation to ensure complete static protection. Prohibit staff from wearing chemical fiber clothing and ordinary non-anti-static gloves to contact finished tape and reel packaging materials. Standardize operation actions to avoid violent pulling, friction, and bending of tape materials, reducing artificial triboelectric static generation.
Optimize automated equipment operation parameters to reduce mechanical friction static. Debug the tension, unwinding speed, and positioning accuracy of SMT feeding equipment and packaging winding equipment to avoid excessive tension causing tape material stretching and friction static generation. Regularly clean and maintain equipment feeding guide rails and transmission parts to reduce friction resistance and abnormal jitter. Ground all automated equipment in contact with tape and reel to ensure timely discharge of static charges generated by mechanical operation, eliminating equipment-induced static accumulation.
Carry out regular staff ESD training and on-site assessment. Conduct systematic training on tape and reel ESD hazard knowledge and standardized operation specifications for front-line operators and warehouse management personnel. Improve employees' awareness of static risk prevention and standardize daily operation behaviors. Establish a post assessment mechanism to ensure that all staff master anti-static operation standards, eliminating human-induced ESD hidden dangers caused by irregular operations.
Long-term stable ESD risk control for tape and reel packaging requires full lifecycle closed-loop management including daily inspection, regular performance calibration, fault traceability, and continuous process optimization to avoid repeated hidden dangers.
Establish daily ESD inspection and regular testing mechanisms for tape and reel materials. Formulate a dedicated daily inspection checklist for packaging materials, covering storage environment humidity, material appearance integrity, placement specifications, and personnel operation compliance. Arrange special personnel to conduct daily inspections and record data truthfully. Carry out quarterly professional static performance testing for inventory and in-use tape and reel, including surface resistance detection, surface static potential monitoring, and aging performance evaluation. Timely screen out unqualified materials and complete replacement and rectification to ensure that all packaging materials meet anti-static standards in the whole lifecycle.
Build ESD fault traceability and closed-loop management system. Record all component quality problems and production abnormalities caused by tape and reel static risks in detail, including fault time, material batch, storage environment, operation link, and rectification measures. Regularly sort out fault data, summarize high-risk links such as material aging, low-humidity storage, and irregular feeding, and formulate targeted optimization plans. Realize full-process traceability of ESD risks, avoid repeated occurrence of similar faults, and continuously reduce static hazard probability.
Optimize management schemes iteratively with component process upgrading. With the continuous upgrading of semiconductor component processes and the continuous improvement of static sensitivity, the ESD protection requirements of tape and reel packaging are also increasing. Regularly evaluate the applicability of existing packaging materials and management schemes, upgrade high-grade anti-static packaging materials for new ultra-sensitive components, and adjust environmental control and operation management standards adaptively. Continuously improve the refinement level of full-process ESD control to adapt to the quality requirements of advanced semiconductor product packaging and transportation.
Improve enterprise internal ESD management system and compliance documents. Sort out tape and reel material selection standards, storage management specifications, operation guidelines, and testing mechanisms, form standardized enterprise management documents, and integrate them into the daily quality management system. Take tape and reel ESD control effect as one of the important assessment indicators of production quality management, ensure the long-term effective implementation of various anti-static measures, and realize standardized and institutionalized static risk prevention and control.
Establish supplier quality management and material audit mechanism. Conduct regular qualification audits on packaging material suppliers, verify their material production processes, quality testing capabilities, and compliance certification documents. Randomly inspect the anti-static performance of purchased materials in batches to avoid unqualified materials entering the production link. Establish long-term cooperative relationships with qualified suppliers to ensure the stability and consistency of packaging material quality from the source.
Semiconductor tape and reel packaging is the most widely used carrier for component storage, transportation, and automated assembly, and its covert ESD risks run through the entire post-packaging production and supply chain links. Triboelectric static generation caused by material friction and mechanical movement, performance attenuation of anti-static materials, non-compliant storage environments, and irregular operational behaviors jointly induce various tape and reel ESD hazards. These invisible static risks not only cause direct scrapping and latent performance failure of precision semiconductor components but also induce assembly defects and production efficiency loss, bringing multi-dimensional economic losses and quality risks to manufacturing enterprises.
Effective control of tape and reel ESD risks must adhere to full-process and systematic management ideas, strictly comply with JEDEC, SEMI, and ANSI/ESD industry compliance standards. Through source control such as standardized material selection and batch performance verification, process control such as environmental parameter stabilization and operational standardization, and long-term guarantee mechanisms such as full lifecycle testing and closed-loop fault management, enterprises can completely eliminate static hidden dangers in tape and reel packaging links.
Standardized tape and reel ESD management is a low-cost and high-return quality optimization measure for semiconductor and electronic manufacturing enterprises. It can effectively reduce component defective rates and after-sales failure rates, stabilize batch product quality, reduce production and operation costs, and help enterprises meet high-end customer supplier audit and industry certification requirements. Strengthening tape and reel full-process ESD risk prevention and control is an essential foundation for modern semiconductor manufacturing enterprises to achieve stable yield improvement and sustainable quality optimization.
