EIESD Ion Air Bar: Static Electricity and Semiconductor Reliability Testing
The global semiconductor industry is advancing rapidly toward advanced nanoscale processes, high integration density, and ultra-high precision chip design to support the iterative upgrading of consumer electronics, automotive electronics, industrial control systems, and wireless communication infrastructure. Modern semiconductor devices, including microprocessors, power management chips, RF semiconductors, and sensor ICs, feature ultra-thin gate oxide layers, miniaturized channel structures, and high-density internal circuits. These structural improvements significantly enhance chip performance and integration but also make semiconductor components extremely sensitive to external static electricity interference. Static electricity, as a ubiquitous invisible electrical stress in manufacturing, packaging, transportation, and operational environments, has become one of the primary hidden dangers affecting semiconductor yield and long-term operational reliability.
Semiconductor reliability testing is a core link in the quality control system of the semiconductor industry, responsible for verifying the environmental adaptability, structural stability, and long-term service life of chips. Among all reliability testing items, static electricity testing occupies an irreplaceable core position. Unlike mechanical damage, high-temperature aging, and humidity corrosion failures, static electricity damage to semiconductors has strong concealment, randomness, and cumulative degradation characteristics. A single subtle static discharge may not cause immediate chip failure but will leave irreversible internal structural defects, triggering performance attenuation and premature failure in subsequent long-term operation.
Static electricity poses multi-level structural and parametric damage to semiconductor devices, and targeted static reliability testing is essential to screen latent defective chips, verify anti-static design rationality, and ensure the long-term stable operation of semiconductor products in complex application scenarios.
Most traditional semiconductor quality testing focuses on macroscopic electrical performance and environmental resistance, while ignoring the subtle latent damage caused by low-magnitude static electricity. With the continuous reduction of semiconductor process nodes and the continuous improvement of equipment application precision requirements, traditional testing systems can no longer meet the reliability verification needs of high-end chips. Unscreened static latent defects will lead to increased product after-sales failure rates, reduced customer trust, and huge economic losses for semiconductor design and manufacturing enterprises.
In-depth understanding of the generation mechanism of static electricity in semiconductor scenarios, the damage principle of static electricity on different types of chips, mainstream static reliability testing standards and implementation methods, and testing optimization strategies can help industry practitioners standardize testing processes, improve product reliability screening accuracy, and optimize chip anti-static design. This article comprehensively elaborates on the correlation between static electricity and semiconductor reliability, sorts out core testing systems and pain points, and provides practical optimization solutions for industrial testing and production applications.
Fundamental Mechanisms of Static Electricity Generation in Semiconductor Scenarios
Multi-Dimensional Damage Effects of Static Electricity on Semiconductor Devices
Core Static Reliability Testing Standards and Classification Models
Key Static Testing Items and Implementation Processes for Semiconductors
Common Defects and Limitations in Traditional Static Reliability Testing
Optimization Strategies for Semiconductor Static Reliability Testing Systems
Industry Trends of Static Electricity Control and Reliability Testing

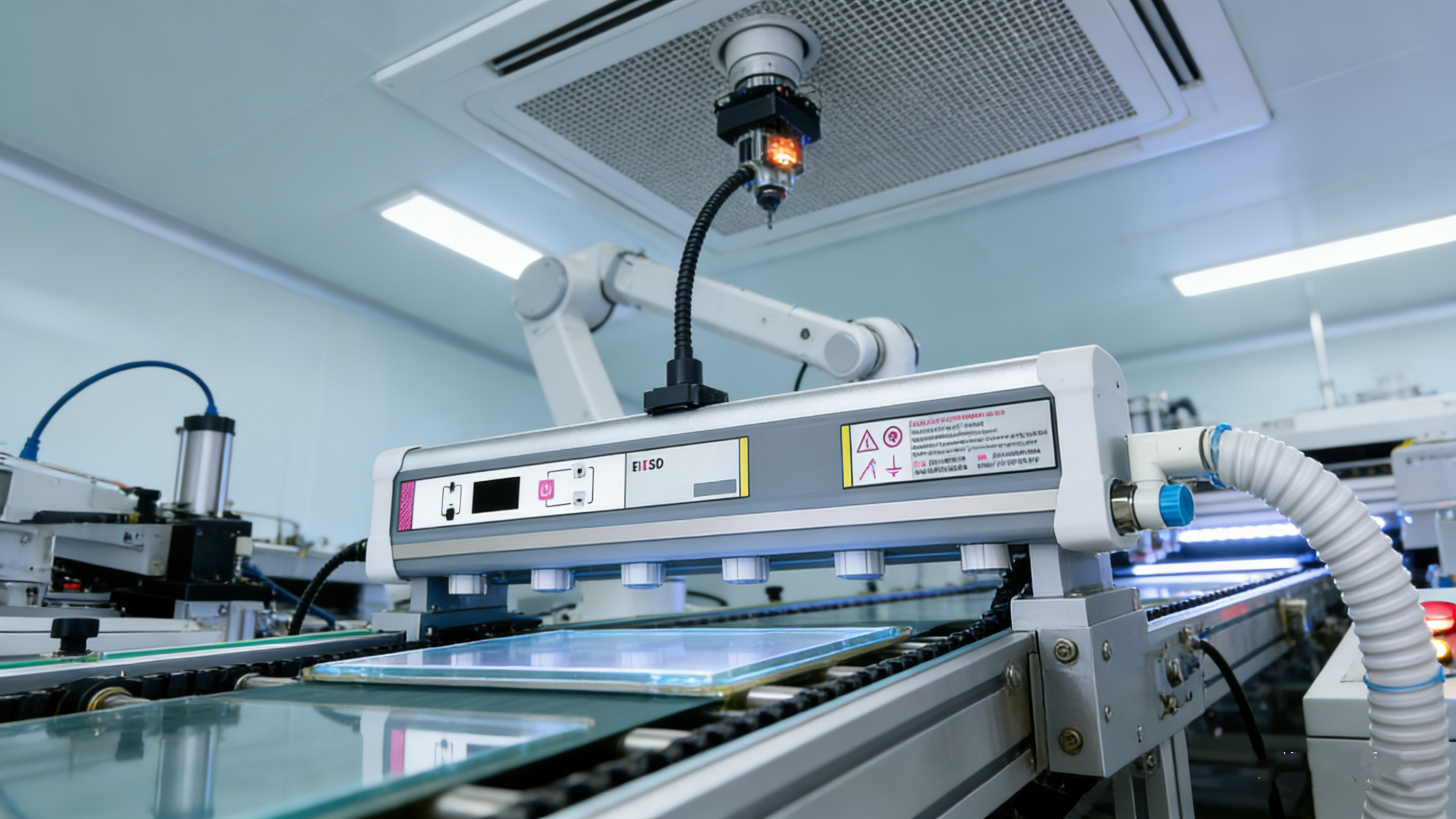

Static electricity in semiconductor production and application scenarios is mainly generated by triboelectric charging, electrostatic induction, and charge accumulation, and the ultra-precision manufacturing environment of semiconductors amplifies static charge accumulation and discharge risks significantly.
Triboelectric charging is the most common source of static electricity in semiconductor industrial scenarios. In the wafer manufacturing, chip packaging, testing, and assembly processes, a large number of different types of insulating and semiconductor materials are in frequent contact and friction. Common scenarios include friction between wafer and transfer tray, contact friction between chip pins and testing fixtures, friction between production equipment conveyor belts and electronic components, and human body contact friction with chips. Different materials have different electron affinity; when two objects contact and separate rapidly, electron transfer occurs on the contact surface, resulting in unbalanced positive and negative charge distribution on the object surface, thus forming static electricity. The dry and dust-free environment required for semiconductor production reduces air conductivity, making static charge difficult to dissipate naturally and leading to continuous charge accumulation.
Electrostatic induction is another key way of static electricity generation in semiconductor working scenarios. In industrial production workshops and electronic equipment operating environments, there are various charged bodies and alternating electromagnetic fields. When uncharged semiconductor devices and packaging materials are close to charged bodies, charge redistribution will occur on their surfaces under the action of external electric fields, forming induced static charges. Unlike triboelectric charging, electrostatic induction does not require direct contact between objects. The induced static voltage generated in this way is extremely high and often occurs in batches, easily causing large-scale static damage to wafers and chips in production lines.
Charge accumulation and slow dissipation further aggravate static electricity risks in semiconductor scenarios. Semiconductor packaging materials, testing fixtures, and equipment auxiliary parts are mostly made of high-insulation polymer materials, which have extremely high surface resistance. Static charges generated by friction and induction cannot be conducted and dissipated in time, and long-term accumulation will form static voltages of several thousand volts or even tens of thousands of volts. It is worth noting that the static electricity generation process in semiconductor scenarios is continuous and iterative. The residual static charge on the surface of devices will continuously superimpose newly generated charges, making the static voltage of local areas far exceed the withstand threshold of precision semiconductor devices.
The micro and precise characteristics of semiconductor devices determine their extreme sensitivity to low-voltage static electricity. Unlike traditional industrial electronic equipment that can withstand high static voltage impact, advanced nanoscale semiconductor devices may be damaged by static voltage as low as 100V. In actual production environments, the static voltage generated by human body movement and equipment friction can easily reach thousands of volts, which far exceeds the safe range of chip operation, laying a hidden danger for static damage and reliability degradation.
In addition, the high-density layout of semiconductor chips enhances the coupling effect of static electricity. The internal circuits of modern integrated circuits are densely arranged, with tiny spacing between components and wiring. Local static charge accumulation will form a strong micro-electric field inside the chip, causing electric field interference and local overvoltage impact on adjacent micro-components. This localized static action is difficult to eliminate through conventional static elimination measures and is one of the important causes of latent reliability defects in semiconductors.
Static electricity causes three typical damage modes to semiconductor devices: catastrophic permanent damage, latent parametric degradation damage, and long-term cumulative aging damage, covering immediate failure and delayed reliability attenuation of chips.
Catastrophic permanent damage is the most intuitive static failure mode of semiconductors, which will directly cause the chip to lose its basic working function. When high-magnitude static discharge acts on semiconductor devices, instantaneous overvoltage and overcurrent will be generated inside the chip. For MOSFET devices, excessive instantaneous electric field will directly break down the ultra-thin gate oxide layer, forming irreversible dielectric rupture and leakage channels. For bipolar transistors and power semiconductors, transient high current will cause thermal burnout of PN junctions, resulting in short circuit or open circuit failure of device junctions. Metal interconnects inside the chip will also fuse and break under the impact of static transient current, leading to complete circuit failure. Chips with such damage will be directly scrapped and can be accurately screened out through conventional electrical performance testing.
Latent parametric degradation damage is the most harmful static failure mode affecting semiconductor reliability. Most low-magnitude static discharge events will not cause macroscopic structural damage to the chip and will not affect the basic switching and conduction functions of the device. However, static electric field impact will cause micro-damage to the gate oxide layer, PN junction interface, and channel region of the semiconductor, changing the internal carrier concentration and threshold voltage parameters of the device. For precision analog chips, RF semiconductors, and sensor chips that pursue high linearity and high sensitivity, tiny parameter drifts will directly deteriorate core performance indicators such as signal accuracy, noise figure, and response sensitivity. Such defective chips can pass factory conventional testing but will have unstable performance and reduced precision in actual application, which is the main cause of product quality complaints in the terminal market.
Long-term cumulative aging damage is a hidden static reliability risk that runs through the whole life cycle of semiconductors. Semiconductor devices will continuously suffer low-intensity static interference during production, packaging, transportation, and daily operation. Each static impact will leave tiny irreversible structural defects inside the chip. With the accumulation of service time, the superposition of multiple micro-defects will accelerate the aging of chip materials and circuits, reduce the device's anti-interference ability and service life, and eventually lead to premature failure of electronic equipment. This cumulative damage has strong concealment and long latency, which is difficult to detect through short-term reliability testing.
Different types of semiconductor devices have significant differences in static damage sensitivity, as shown in the following comparison table:
Semiconductor Device Type | Main Static Damage Modes | Sensitivity Level | Typical Failure Performance |
|---|---|---|---|
Nanoscale CMOS Logic Chips | Gate oxide breakdown, leakage current increase | Extremely High | Logic error, circuit short circuit |
RF Semiconductor Devices | Parameter drift, impedance mismatch, noise rise | Extremely High | Signal attenuation, poor communication stability |
Power Semiconductor Devices | PN junction thermal damage, breakdown voltage drop | Medium | Power distortion, overheating failure |
Semiconductor Sensors | Sensitivity drift, zero point offset | High | Detection accuracy reduction, data deviation |
In actual industrial scenarios, static electricity damage often presents a mixed mode of multiple failure types. A single static discharge event may simultaneously cause micro-oxide layer damage and local parameter drift. The superposition of different damage modes greatly improves the complexity of semiconductor reliability failure and puts forward higher requirements for the comprehensiveness and accuracy of static reliability testing.
Modern semiconductor static reliability testing is based on four mainstream industry standard models including HBM, MM, CDM and FIM, which simulate static discharge risks from different sources and cover all static interference scenarios in the whole life cycle of semiconductors.
Human Body Model (HBM) is the most widely used basic static testing standard in the semiconductor industry, which simulates static discharge generated by human body contact with semiconductor devices. In daily production and operation processes, human body movement and clothing friction will accumulate a large amount of static charge. When workers contact chips and equipment, instantaneous discharge will occur, causing static impact on semiconductors. The HBM standard defines fixed resistance and capacitance parameters to simulate human body discharge characteristics, with a mainstream test voltage range of 250V to 8000V. This testing model is mainly used to verify the anti-static ability of chips in manual operation scenarios and is a mandatory testing item for commercial semiconductor product certification. HBM testing can effectively screen out chips with poor basic anti-static performance and avoid failure caused by manual contact static electricity.
Machine Model (MM) simulates static discharge generated by production equipment, testing fixtures, and automated production lines. Automated semiconductor production equipment will accumulate static charge during long-term operation and mechanical friction. When the equipment contacts chips, rapid low-resistance discharge will occur. Compared with HBM discharge, MM discharge has shorter pulse duration, faster response speed, and higher instantaneous current density, which is more likely to cause local thermal damage to semiconductor devices. The MM standard has no series resistance in the discharge loop, resulting in more severe discharge impact. It is mainly used for reliability verification of chips in automated mass production scenarios and is widely used in wafer manufacturing and packaging factory quality inspection links.
Charged Device Model (CDM) is a key testing model for miniaturized packaged semiconductors, which simulates the self-discharge phenomenon of charged semiconductor devices. In the process of chip packaging, transportation, and high-speed transmission, semiconductor devices will independently accumulate static charges. When the device contacts the grounding conductor, ultra-fast transient discharge will occur inside the chip. CDM discharge has extremely high speed and local current density, and the discharge duration is only a few nanoseconds, which is the main cause of latent micro-damage of miniaturized QFN and BGA packaged chips. This testing model focuses on verifying the anti-static ability of chips in high-speed automated transmission and packaging scenarios and is an indispensable testing item for high-precision miniaturized semiconductors.
Field-Induced Model (FIM) is a supplementary static testing standard for complex electromagnetic environment scenarios, which simulates static damage caused by external electric field induction. In industrial workshops and complex electronic systems, external strong electric fields will induce charge redistribution inside semiconductor devices, resulting in static overvoltage and discharge damage. FIM testing mainly evaluates the anti-interference ability of chips in electrostatic field environments and is widely used in automotive semiconductors, industrial control chips, and aerospace-grade semiconductor product testing.
The industry has formed clear reliability grading standards based on the above four testing models. Semiconductor products are divided into different anti-static grades according to the maximum withstand voltage of HBM, MM, and CDM tests, which guide enterprises to formulate targeted production protection and product application specifications. Different application scenarios have strict requirements on static reliability grades: automotive and industrial-grade semiconductors require higher CDM and MM resistance grades, while consumer-grade chips focus more on HBM static resistance performance.
Semiconductor static reliability testing follows a standardized full-process implementation system, including pre-test preparation, graded static discharge impact, multi-dimensional parameter detection, and post-test failure evaluation, realizing comprehensive screening of static damage and latent defects.
Complete pre-test preparation is the premise to ensure the accuracy of static reliability testing. Before the formal test, it is necessary to carry out strict environmental control, including keeping the test environment temperature stable at 23℃±5℃ and humidity at 45%±10%, to avoid environmental static interference affecting test results. Meanwhile, all test equipment, fixtures, and operating platforms need to be fully grounded and static eliminated to ensure zero residual static charge in the test system. In addition, testers need to wear professional anti-static clothing, anti-static gloves, and grounding wrist straps to eliminate human static interference. Before the test, basic electrical performance parameters of all test samples shall be tested and recorded, including threshold voltage, leakage current, gain parameters, and impedance characteristics, to provide a baseline for post-test performance comparison.
Graded static discharge impact test is the core link of static reliability verification. According to product positioning and industry standards, select matching test models and carry out graded voltage impact tests. For commercial general-purpose semiconductors, HBM graded tests from 250V to 4000V are carried out step by step; for industrial and automotive high-reliability chips, MM and CDM high-intensity impact tests are added. In the test process, discharge operations are carried out on each pin and key functional area of the chip respectively, including positive and negative bidirectional discharge, to simulate all possible static discharge directions in actual scenarios. Each test voltage level is repeated for multiple discharge tests to ensure the comprehensiveness of stress application and avoid missed detection of occasional static damage.
Multi-dimensional performance detection after discharge is the key to identifying latent static defects. After each level of static impact, the electrical performance and functional indicators of the chip need to be tested comprehensively. In addition to conventional open-circuit and short-circuit detection and DC parameter testing, high-precision high-frequency performance testing, linearity testing, and stability testing are required for precision semiconductors. By comparing the parameter changes before and after the test, subtle performance drift caused by low-magnitude static impact can be captured. For chips with parameter deviation but no complete failure, they are defined as latent defective products and eliminated in the screening link to avoid flowing into the terminal market.
Post-test failure classification and reliability evaluation realize standardized result output. According to the test results, chip failure modes are divided into catastrophic failure, parametric degradation failure, and no obvious failure. Record the failure voltage threshold, failure location, and parameter drift range of each sample, and form a static reliability test report. On this basis, evaluate the anti-static design rationality of the chip, count the product static failure rate, and provide data support for subsequent design optimization and process improvement. For products that meet the industry static reliability grading standards, issue a qualification certification report to ensure that the products meet the application requirements of corresponding scenarios.
Batch sampling testing is adopted for mass-produced semiconductors to balance testing efficiency and reliability. According to industrial quality control specifications, scientific sampling ratio and sampling scheme are formulated for batch products to carry out static reliability testing. Statistical analysis of batch test data is used to evaluate the overall static reliability level of products, predict long-term reliability risks of mass-produced products, and realize early warning and control of production quality.
Traditional semiconductor static reliability testing has prominent limitations such as single evaluation dimension, missing latent defect detection, inconsistent environmental simulation, and imperfect standard adaptation, resulting in insufficient accuracy and comprehensiveness of reliability verification.
Traditional static testing relies too much on DC parameter detection and ignores high-frequency latent damage. Most conventional static testing only detects DC electrical parameters such as leakage current and breakdown voltage before and after discharge. For high-frequency RF semiconductors, precision analog chips, and sensor devices, static damage is mostly reflected in high-frequency performance degradation and precision drift, while DC parameters have no obvious changes. The single detection dimension of traditional testing leads to a large number of latent defective chips passing the test, resulting in frequent performance stability problems in terminal application.
Static testing and actual working environment stress are decoupled, resulting in inconsistent test results and actual reliability. Traditional static reliability testing is carried out under normal temperature and static stable environment, while semiconductor devices work in complex environments such as high temperature, high humidity, and high-power load for a long time. Thermal stress and electrical stress in actual operation will amplify static latent damage and accelerate device aging failure. However, the existing testing system does not carry out composite stress testing of static electricity combined with environmental stress, resulting in the test reliability data being too ideal and unable to reflect the actual service life and stability of products.
The fixed standard model cannot adapt to the differentiated characteristics of new semiconductor materials. With the wide application of compound semiconductors such as GaN, GaAs, and SiGe in high-end electronic equipment, the static withstand characteristics and failure modes of new material devices are completely different from traditional silicon-based semiconductors. The traditional HBM, MM, and CDM testing standards formulated based on silicon-based devices cannot accurately evaluate the static reliability of compound semiconductor chips, resulting in inaccurate test results and insufficient protection for new material product quality.
Lack of quantitative evaluation system for static cumulative damage. Current static testing only evaluates the failure threshold of single static discharge, ignoring the cumulative degradation effect of multiple low-magnitude static impacts. In the whole life cycle of semiconductors, repeated minor static interference is more common than single high-intensity static discharge, and cumulative damage is the main cause of long-term product failure. The lack of targeted cumulative static testing and quantitative evaluation standards leads to inaccurate prediction of long-term reliability of products.
Manual testing operation errors affect test data accuracy. Part of the static testing process relies on manual operation, and differences in operation speed, discharge position, and test sequence will cause deviations in test results. At the same time, the static elimination effect of test equipment and environment cannot be monitored in real time, and residual static interference in the test system will also lead to misjudgment of product reliability, affecting the consistency and credibility of batch test data.
The optimized semiconductor static reliability testing system takes multi-dimensional parameter detection, composite environmental simulation, material differentiated testing, and cumulative damage evaluation as the core, realizing full-coverage and high-precision reliability verification.
Build a multi-dimensional joint detection system combining DC and high-frequency parameters. On the basis of traditional DC electrical parameter testing, add high-frequency performance detection indicators targeted at different types of semiconductors. For RF devices, test high-frequency indicators such as noise figure, insertion loss, and impedance matching before and after static discharge; for sensor chips, increase precision drift and zero-point stability testing; for analog chips, supplement linearity and distortion parameter detection. The multi-dimensional detection mode can fully capture subtle latent damage caused by static electricity, solve the problem of missing detection of traditional single-dimensional testing, and greatly improve the accuracy of reliability screening.
Adopt composite stress testing to simulate actual application scenarios. Build a composite test platform integrating static discharge, high temperature, high humidity, and dynamic load. Carry out static reliability testing under simulated actual working conditions of chips, and evaluate the coupling damage effect of static electricity and environmental stress. This testing mode can truly reflect the reliability performance of semiconductors in complex service environments, eliminate the deviation between traditional test data and actual application effects, and improve the accuracy of product life prediction and reliability evaluation.
Formulate differentiated testing schemes for new semiconductor materials. According to the static failure characteristics of silicon-based, GaN, GaAs, and SiGe semiconductor devices, optimize test parameters and evaluation standards. For brittle compound semiconductor devices with low static tolerance, appropriately reduce the test voltage gradient and increase the number of repeated tests; for high-power GaN devices with sensitive transient static response, optimize the CDM test pulse parameters to match the actual failure mode of devices. Material-adaptive differentiated testing standards can effectively solve the problem of inaccurate reliability evaluation of new material products.
Add cumulative static damage testing and quantitative evaluation mechanism. Establish a cyclic static impact test system to simulate repeated low-magnitude static interference in the whole life cycle of products. Record the parameter degradation trend of chips under multiple static impacts, formulate quantitative evaluation indicators for cumulative damage, and grade the long-term static reliability of products according to the degradation rate. This optimization strategy can effectively identify products with poor anti-static fatigue resistance and improve the long-term operational stability of batch products.
Realize full-process automation and intelligent testing control. Replace manual operation with automated static testing equipment to standardize test parameters such as discharge voltage, pulse width, and action position, eliminate test errors caused by human factors. Equip the test system with real-time static monitoring and environmental monitoring modules to realize real-time perception and automatic elimination of residual static interference in the test environment and equipment. At the same time, build test data intelligent analysis system to automatically classify failure modes, count reliability indicators, and generate standardized test reports, improving test efficiency and data consistency.
The future development of semiconductor static electricity control and reliability testing presents four major trends: ultra-precision latent defect detection, intelligent full-process monitoring, material-customized standard iteration, and whole-life cycle reliability evaluation.
With the continuous upgrading of semiconductor process technology to 3nm and 2nm advanced nodes, the internal structure of chips is more precise, and the sensitivity to static electricity is further improved. Traditional static testing can no longer meet the reliability verification needs of ultra-precision chips. The industry will focus on the research and development of ultra-high-precision static latent defect detection technology, which can capture atomic-level micro-structural changes and tiny parameter drift caused by static electricity, realizing zero missed detection of static damage defects. High-precision microscopic characterization technology will be widely used in static reliability failure analysis, providing technical support for accurate positioning of static failure causes.
Intelligent full-process static monitoring and testing will become the mainstream of industrial applications. The combination of Internet of Things sensing technology and big data analysis will realize real-time static monitoring of the whole process from wafer manufacturing, packaging and testing to terminal application. The intelligent testing system can automatically adjust test schemes according to product types and process characteristics, realize unmanned and standardized testing operations, and complete real-time analysis and early warning of test data. This intelligent mode will greatly improve the efficiency and standardization level of semiconductor static reliability testing.
Static testing standards will continue to iterate and form material-customized and scenario-customized systems. Aiming at the popularization of compound semiconductors and the differentiated reliability requirements of automotive, aerospace, and industrial control scenarios, the industry will gradually improve targeted static testing standards. Universal unified standards will be replaced by refined and differentiated grading standards, realizing one-to-one matching between testing schemes and product application scenarios, and greatly improving the pertinence and accuracy of reliability evaluation.
Static reliability evaluation will expand from single test verification to whole-life cycle management. The industry will build a full-life cycle static reliability tracking system, record static stress and performance changes of products in production, transportation, and operation stages, form product static reliability big data files, and realize dynamic prediction and maintenance early warning of product reliability. The whole-life cycle management mode can fundamentally reduce the static failure rate of semiconductor products and improve the overall reliability level of electronic systems.
For semiconductor enterprises, attaching importance to static electricity control and optimizing reliability testing systems is not only a necessary measure to improve product yield and market competitiveness but also a core foundation to adapt to the development of high-end advanced semiconductor processes. Continuous optimization of static testing technology and control strategies will help the semiconductor industry solve static reliability bottlenecks and promote the stable development of high-precision and high-reliability semiconductor product iteration.
