Plasma etching is one of the most important processes in semiconductor manufacturing, microelectronics fabrication, and advanced surface engineering. As device structures become smaller and more sensitive, manufacturers face increasing challenges related to process stability, defect control, and equipment reliability. Among these challenges, static electricity generated during plasma etching has become a critical issue because it can directly affect product yield, wafer integrity, and process consistency.
Static electricity during plasma etching is not only a theoretical concern. It can cause particle attraction, electrostatic discharge damage, dielectric breakdown, and irregular etching profiles. In highly sensitive manufacturing environments, even a small electrostatic imbalance can result in substantial production losses and reduced operational efficiency.
Static electricity during plasma etching is primarily caused by charge accumulation from ionized plasma interactions, wafer surface charging, and equipment grounding imbalances. If not properly controlled, it can damage sensitive devices, reduce etching precision, increase contamination risks, and lower manufacturing yield.
Understanding how static electricity develops during plasma etching is essential for engineers, production managers, and industrial manufacturers seeking to improve process reliability. By implementing proper electrostatic control measures, manufacturers can reduce defects, protect sensitive materials, and optimize production performance.
This article explores the causes, effects, measurement methods, prevention strategies, and industrial solutions related to static electricity during plasma etching. It also explains why electrostatic management has become increasingly important in modern high precision manufacturing environments.
Static electricity during plasma etching refers to the accumulation of electrical charges on wafers, substrates, chamber surfaces, or process equipment caused by plasma interactions and charge imbalances during the etching process.
Plasma etching uses ionized gases to remove material from a substrate surface with extremely high precision. Inside the plasma chamber, ions, electrons, radicals, and electromagnetic fields continuously interact with the wafer surface. These interactions naturally generate electrical charge differences between materials and surfaces.
When these charges cannot dissipate properly, static electricity accumulates. The problem becomes more severe in dry and high vacuum environments because air humidity, which normally helps discharge static electricity, is greatly reduced. As a result, charges remain trapped on surfaces for longer periods.
Modern semiconductor devices are highly sensitive to electrostatic discharge. Advanced integrated circuits contain extremely thin dielectric layers and nanoscale structures that can be damaged by relatively small voltage differences. During plasma etching, uncontrolled static charge can create localized electric fields strong enough to damage these structures.
Several components inside the plasma system may experience charge accumulation:
Wafer surfaces
Photoresist layers
Dielectric materials
Electrostatic chucks
Chamber walls
Robotic handling systems
Process gas delivery components
The severity of static electricity problems often depends on process complexity, wafer materials, chamber configuration, and plasma operating conditions.
Static charge during plasma etching is generated through ion bombardment, electron imbalance, surface material interactions, radio frequency excitation, and insufficient grounding within the plasma system.
Plasma consists of positively charged ions, negatively charged electrons, and neutral particles. Because electrons are much lighter than ions, they move faster and respond differently to electromagnetic fields. This mobility difference creates uneven charge distribution throughout the plasma chamber.
During etching, ions strike the wafer surface to remove material. Simultaneously, electrons accumulate or disperse unevenly across different regions of the wafer. This imbalance produces localized charging effects. Insulating materials are especially vulnerable because they cannot easily dissipate accumulated charge.
Radio frequency power supplies used in plasma generation also contribute to electrostatic charging. The alternating electromagnetic fields continuously accelerate charged particles within the chamber. Under certain operating conditions, these fields can create nonuniform plasma density and uneven charge distribution.
Several mechanisms contribute to static electricity generation during plasma etching:
Charge Generation Mechanism | Description | Potential Impact |
|---|---|---|
Ion Bombardment | Positive ions collide with wafer surfaces | Surface charging and dielectric stress |
Electron Accumulation | Fast moving electrons collect unevenly | Localized voltage buildup |
RF Field Interaction | Radio frequency excitation redistributes charge | Plasma instability |
Material Insulation | Insulating layers trap charge | Electrostatic discharge risk |
Poor Grounding | Insufficient charge dissipation | Equipment damage and process variation |
Complex wafer structures increase charging effects because different materials respond differently to plasma exposure. Conductive regions may dissipate charge efficiently, while insulating regions accumulate charge rapidly.
Static electricity during plasma etching can cause device damage, yield loss, dielectric breakdown, contamination, feature distortion, and long term reliability failures in semiconductor products.
One of the most serious consequences of static electricity is electrostatic discharge damage. When accumulated charge suddenly releases, sensitive electronic structures can experience localized overheating or dielectric rupture. This damage may not always be immediately visible but can significantly shorten device lifespan.
Gate oxide layers in advanced semiconductor devices are particularly vulnerable. Modern devices often contain oxide layers only a few nanometers thick. Even relatively low electrostatic voltages can exceed the dielectric strength of these layers and create permanent damage.
Static electricity also affects etching uniformity. Localized charging changes ion trajectories inside the plasma chamber, causing uneven material removal. This can result in:
Microloading effects
Feature profile distortion
Sidewall irregularities
Critical dimension variation
Nonuniform etch depth
Another important issue is particle contamination. Charged surfaces attract airborne particles and process residues. These contaminants may become embedded in wafer structures, causing electrical defects and reducing production yield.
The following table summarizes common problems associated with electrostatic charging during plasma etching:
Problem | Cause | Manufacturing Impact |
|---|---|---|
Electrostatic Discharge | Sudden charge release | Permanent device damage |
Dielectric Breakdown | Excessive electric field | Oxide layer failure |
Particle Attraction | Charged surfaces | Contamination defects |
Etch Nonuniformity | Localized charging | Poor dimensional control |
Yield Reduction | Cumulative electrostatic defects | Higher production costs |
As semiconductor geometries continue shrinking, the tolerance for electrostatic charging becomes increasingly limited, making effective static control essential.
Plasma process parameters such as RF power, chamber pressure, gas composition, bias voltage, and etching duration significantly influence static electricity generation and charge accumulation behavior.
RF power is one of the most influential variables. Higher RF power increases plasma density and ion energy, which enhances etching efficiency but also raises the probability of charge accumulation. Excessive ion bombardment may intensify charging damage on sensitive surfaces.
Chamber pressure also affects electrostatic behavior. Low pressure plasma environments allow charged particles to travel longer distances with fewer collisions. This can increase charge imbalance across wafer surfaces. Conversely, higher pressure conditions may improve charge neutralization but reduce etching precision.
Gas chemistry plays an equally important role. Different process gases produce different plasma characteristics. Fluorine based plasmas, chlorine plasmas, and oxygen plasmas each generate unique ionization dynamics that influence charge accumulation differently.
Important plasma parameters influencing electrostatic charging include:
RF power level
Bias voltage
Gas flow rate
Process pressure
Wafer temperature
Electrode spacing
Etching duration
Bias voltage directly impacts ion acceleration toward the wafer surface. Higher bias voltages improve anisotropic etching performance but can increase surface charging stress. Engineers must carefully balance process performance with electrostatic safety.
Temperature variations may also influence material conductivity and charge dissipation characteristics. Certain materials become more conductive at elevated temperatures, allowing partial charge relaxation during processing.
Optimizing plasma parameters requires a detailed understanding of both plasma physics and device sensitivity. Manufacturers often use advanced simulation software and real time monitoring systems to maintain stable process conditions.
Static electricity during plasma etching is monitored using electrostatic sensors, voltage probes, plasma diagnostics, wafer charging monitors, and real time process analysis systems.
Accurate measurement of electrostatic charging is essential for process optimization and defect prevention. Because plasma environments are highly dynamic, monitoring systems must provide precise and continuous measurements.
Electrostatic voltmeters are commonly used to measure surface potential on wafers and chamber components. These instruments detect voltage buildup without physically contacting the surface, minimizing interference with the process.
Wafer charging monitors are specially designed test structures integrated into process wafers. They help engineers evaluate localized charging effects across different regions of the wafer surface.
Common electrostatic monitoring technologies include:
Monitoring Method | Function | Application |
|---|---|---|
Electrostatic Voltmeter | Measures surface voltage | Wafer inspection |
Langmuir Probe | Analyzes plasma properties | Plasma diagnostics |
Charge Monitor Wafer | Detects localized charging | Process evaluation |
Current Sensor | Measures discharge current | Equipment protection |
Optical Emission Monitoring | Tracks plasma stability | Real time process control |
Advanced manufacturing facilities increasingly rely on automated monitoring systems integrated with artificial intelligence and statistical process control platforms. These systems can identify abnormal charging patterns before defects occur.
Real time monitoring allows rapid adjustment of process conditions, improving yield stability and reducing downtime associated with electrostatic failures.
Static electricity during plasma etching can be controlled through proper grounding, optimized plasma parameters, ionization systems, conductive materials, humidity management, and electrostatic discharge protection strategies.
Effective grounding is the foundation of electrostatic control. All equipment components, handling systems, and conductive structures should maintain low resistance grounding paths to safely dissipate accumulated charges.
Electrostatic chucks used in plasma etching systems require careful voltage management. Improper chuck operation can create uneven charge distribution across the wafer surface. Advanced chuck designs include controlled charge neutralization mechanisms to reduce electrostatic buildup.

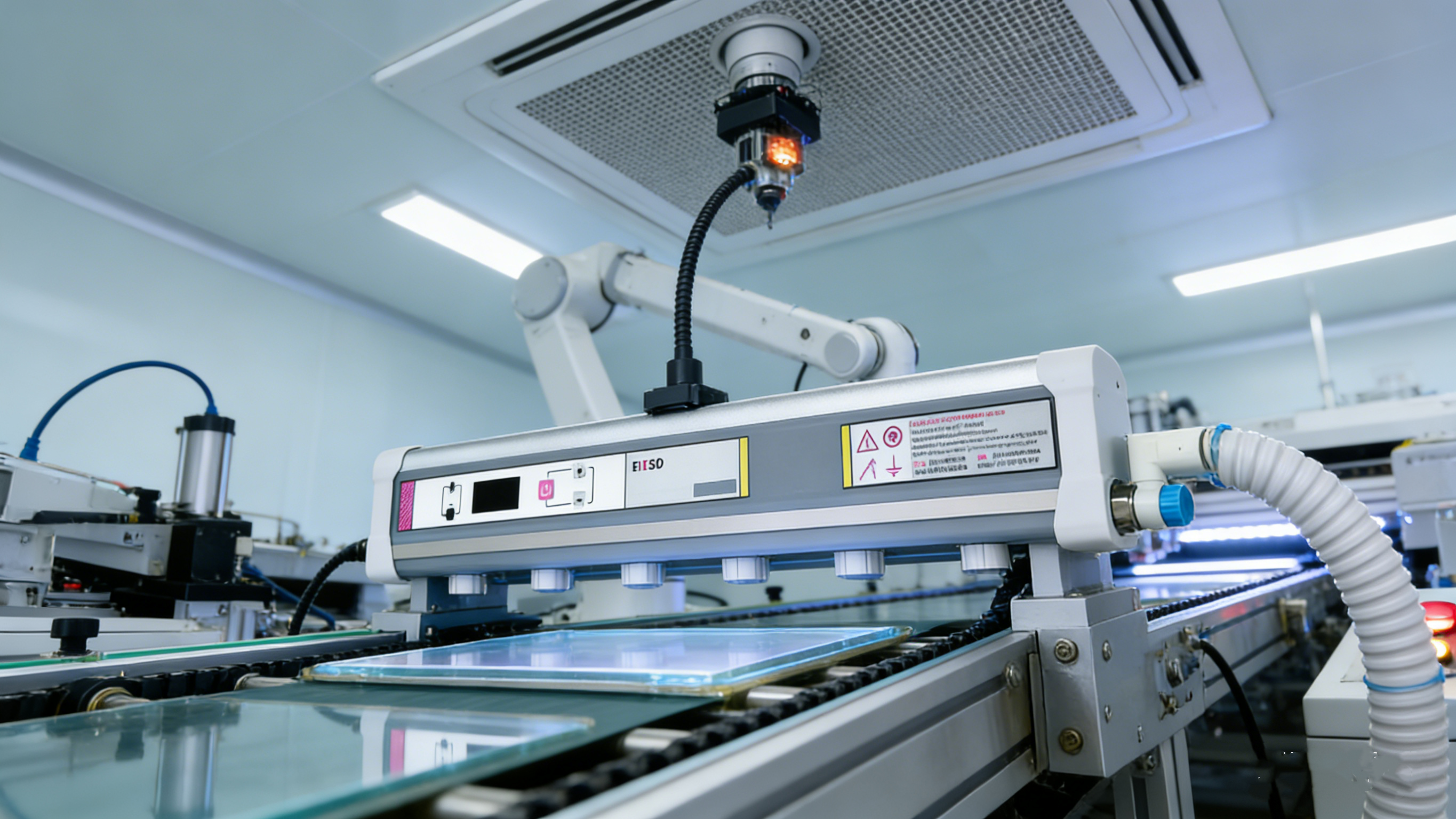

Ionizers are frequently used in wafer handling areas to neutralize static charges before and after plasma processing. These devices emit balanced positive and negative ions that recombine with charged surfaces.
Important electrostatic control measures include:
Equipment grounding optimization
RF power stabilization
Charge neutralization systems
Conductive chamber coatings
Environmental humidity control
ESD safe wafer handling procedures
Routine equipment maintenance
Process engineers often optimize gas chemistry and plasma density to minimize charging effects without sacrificing etching performance. Reducing excessive ion energy can significantly decrease electrostatic stress on sensitive device structures.
Material selection is another important consideration. Conductive or semi conductive chamber materials help dissipate accumulated charges more efficiently than insulating materials.
Employee training also plays a critical role in electrostatic control. Human handling errors can introduce additional static charge during wafer transfer and equipment maintenance operations.
Proper plasma etching equipment design reduces static electricity by improving grounding efficiency, plasma uniformity, charge dissipation, and chamber electrical stability.
Modern plasma etching systems incorporate numerous electrostatic control features directly into equipment architecture. Chamber geometry, electrode design, and material selection all influence charge distribution behavior.
Electrode symmetry is especially important because uneven electric fields can create localized plasma density variations. Uniform plasma distribution helps reduce differential charging across the wafer surface.
Shielding components are often installed to minimize electromagnetic interference and stabilize RF energy distribution. Stable RF delivery improves plasma consistency and reduces unpredictable charge accumulation.
Key equipment design features for electrostatic management include:
Design Feature | Purpose | Benefit |
|---|---|---|
Low Resistance Grounding | Charge dissipation | Reduced static buildup |
Symmetrical Electrodes | Uniform electric field | Improved plasma stability |
Conductive Coatings | Charge neutralization | Lower contamination risk |
RF Shielding | Electromagnetic control | Reduced plasma fluctuation |
Advanced ESC Systems | Wafer charge management | Enhanced process uniformity |
Vacuum system design also influences electrostatic performance. Efficient gas flow management helps maintain stable plasma conditions and consistent ion distribution throughout the chamber.
Manufacturers increasingly use simulation driven equipment development to predict electrostatic behavior before physical system construction. Computational plasma modeling allows engineers to optimize chamber performance while minimizing charging related risks.
Future plasma etching technologies will increasingly rely on intelligent process control, advanced materials, AI driven monitoring, and low damage plasma systems to reduce static electricity related defects.
As semiconductor manufacturing moves toward smaller process nodes and three dimensional device structures, electrostatic sensitivity continues increasing. Future devices will require even tighter control of plasma induced charging.
Artificial intelligence based process monitoring systems are becoming more common in advanced manufacturing facilities. These systems analyze large volumes of process data to predict abnormal charging behavior in real time.
Low temperature plasma technologies are also receiving significant attention because they reduce ion energy while maintaining effective etching performance. Lower ion energy can reduce dielectric stress and electrostatic damage.
Emerging trends in electrostatic management include:
Machine learning based plasma optimization
Real time electrostatic mapping
Advanced charge neutralization materials
Smart RF power control systems
Predictive maintenance platforms
Ultra low damage plasma processes
New chamber materials with enhanced conductivity and reduced particle generation are also under development. These materials improve charge dissipation while maintaining process cleanliness.
Future manufacturing systems will likely integrate comprehensive electrostatic management directly into automated factory control platforms, allowing faster response to charging anomalies and improved production reliability.
Static electricity during plasma etching is a major challenge in advanced semiconductor manufacturing and precision surface processing. Plasma interactions, RF energy, material properties, and equipment design all contribute to charge accumulation within the etching environment.
Uncontrolled static electricity can lead to electrostatic discharge damage, dielectric breakdown, contamination, process instability, and yield loss. As device geometries continue shrinking, effective electrostatic control becomes increasingly important for maintaining manufacturing reliability and product quality.
Through proper grounding, optimized plasma parameters, advanced monitoring systems, intelligent equipment design, and real time process control, manufacturers can significantly reduce electrostatic risks during plasma etching.
The future of plasma etching will depend heavily on improved electrostatic management technologies, AI driven diagnostics, and low damage plasma systems capable of supporting next generation semiconductor manufacturing requirements.
