EIESD: Ionizing Air Bars in Semiconductor Production

Semiconductor manufacturing is one of the most demanding industrial processes in the world. Every production stage, from wafer fabrication to chip packaging and final testing, requires an extremely clean and stable environment. Even microscopic contaminants or invisible electrostatic charges can reduce production yield, damage sensitive components, or create costly production delays. As semiconductor technology continues to advance toward smaller process nodes, electrostatic discharge (ESD) control has become more important than ever.

Static electricity naturally develops whenever materials contact and separate during manufacturing. Plastic carriers, conveyor belts, robotic handling systems, wafer transport equipment, packaging films, and operators can all generate electrostatic charges. Without effective static neutralization, these charges attract airborne particles and may discharge into sensitive electronic devices, leading to permanent damage.

Ionizing air bars are one of the most effective solutions for eliminating static electricity in semiconductor production. They continuously generate balanced positive and negative ions that neutralize electrostatic charges on insulated surfaces, helping protect sensitive semiconductor devices, improve cleanliness, increase manufacturing yield, and ensure stable production quality.

Because semiconductor fabrication facilities operate under strict cleanliness and ESD control requirements, ionizing air bars have become an essential component of modern manufacturing equipment. They provide continuous static neutralization without requiring direct contact with products, making them suitable for automated production lines and cleanroom environments.

This article explains how ionizing air bars work, why they are critical in semiconductor production, their major applications, selection considerations, maintenance practices, and the benefits they bring to advanced semiconductor manufacturing.

Table of Contents

1. Why Static Electricity Is a Serious Problem in Semiconductor Production

2. How Ionizing Air Bars Work

3. Major Applications in Semiconductor Manufacturing

4. Benefits of Using Ionizing Air Bars

5. How to Select the Right Ionizing Air Bar

6. Installation and Maintenance Best Practices

7. Future Trends of Static Control in Semiconductor Manufacturing

8. Conclusion

Why Static Electricity Is a Serious Problem in Semiconductor Production

Static electricity is a major threat because it can damage semiconductor devices, attract contamination, interrupt automated production, and reduce manufacturing yield.

Semiconductor devices become increasingly sensitive as integrated circuits shrink. Modern chips contain billions of transistors that operate at extremely low voltages. Even a relatively small electrostatic discharge may permanently damage microscopic structures without leaving visible evidence.

Electrostatic discharge can occur during wafer handling, robotic transportation, inspection, packaging, or manual operation. Since many semiconductor materials are highly insulating, static charges often remain on the surface until they suddenly discharge into nearby conductive components.

Another significant problem is particle attraction. Charged surfaces naturally attract airborne particles, fibers, and dust. In cleanrooms where particle contamination must remain extremely low, electrostatic attraction can compromise process cleanliness and create defects during lithography or wafer processing.

How Ionizing Air Bars Work

Ionizing air bars generate balanced positive and negative ions that neutralize electrostatic charges on product surfaces without physical contact.

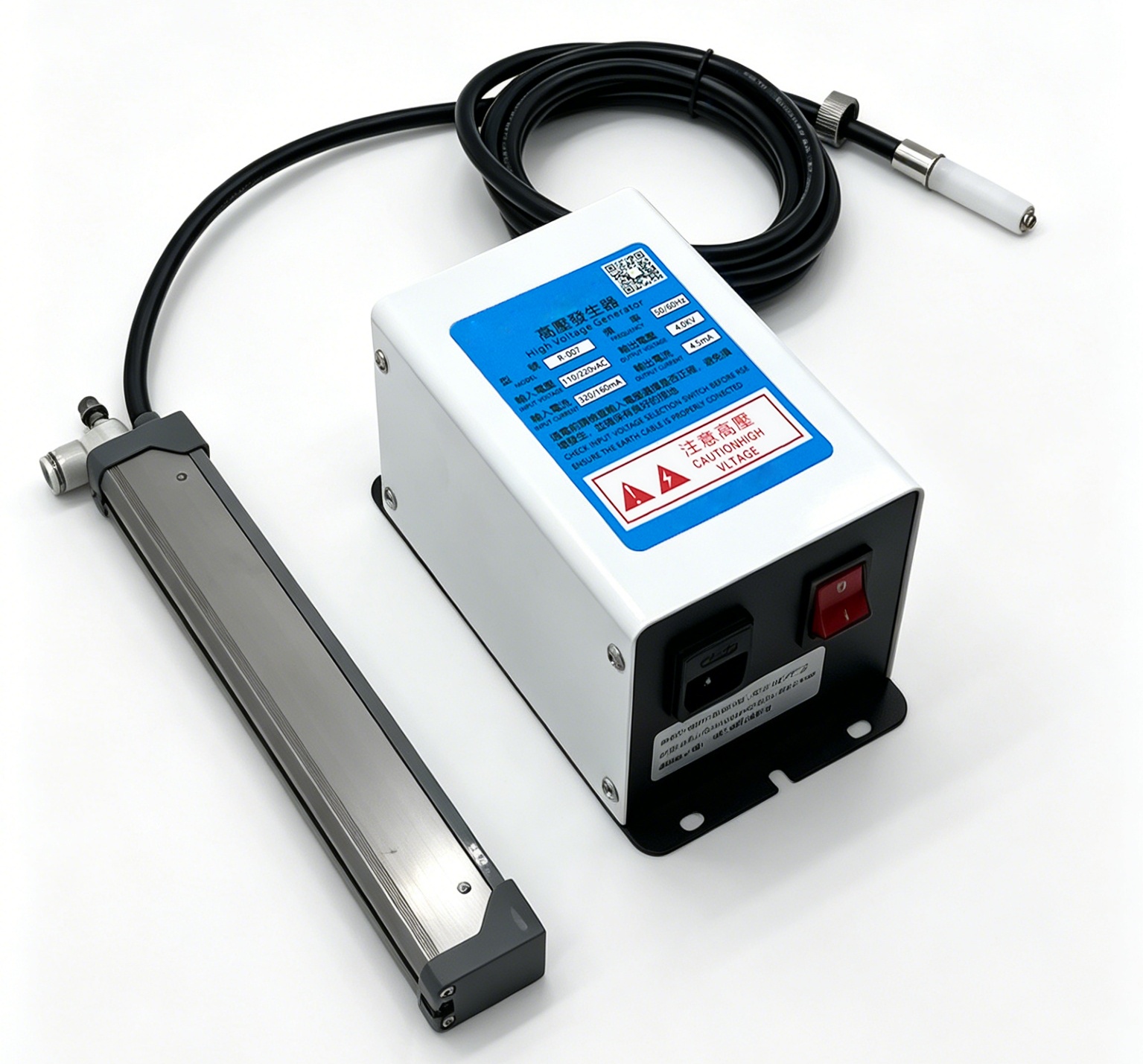

An ionizing air bar contains a high-voltage power system and multiple emitter points positioned along the length of the bar. High voltage creates corona discharge around the emitters, producing both positive and negative air ions.

These ions travel toward charged surfaces through natural airflow or externally supplied compressed air. Positive ions neutralize negatively charged objects, while negative ions neutralize positively charged objects. As the charges become balanced, static electricity disappears.

Unlike grounding, which only removes charges from conductive materials, ionization effectively neutralizes static on insulating materials commonly used throughout semiconductor production.

The neutralization process occurs continuously, allowing production equipment to operate at high speed while maintaining excellent ESD protection.

Main Working Components

• High-voltage generator

• Discharge emitter needles

• Balanced ion generation circuit

• Protective housing

• Power supply unit

Major Applications in Semiconductor Manufacturing

Ionizing air bars are widely installed throughout semiconductor production lines wherever static electricity may accumulate.

Wafer manufacturing involves hundreds of automated processes. During transportation between processing stations, wafers may accumulate electrostatic charges due to contact with carriers or handling equipment. Ionizing air bars eliminate these charges before they become hazardous.

Photolithography requires exceptionally clean wafer surfaces. Even microscopic particles attracted by static electricity can interfere with exposure accuracy and reduce production yield. Ionization helps maintain particle-free surfaces before and after exposure processes.

Chip packaging operations frequently use plastic trays, carrier tapes, reels, and protective films. These materials easily generate static charges during movement. Ionizing air bars reduce charge accumulation before packaging sensitive integrated circuits.

Testing and inspection systems also benefit from continuous static neutralization because charged devices can produce unstable electrical measurements or attract contamination during automated inspection.

Typical Semiconductor Applications

Benefits of Using Ionizing Air Bars

Ionizing air bars improve product quality, increase production yield, reduce contamination, and enhance overall manufacturing reliability.

The most significant benefit is improved protection against electrostatic discharge. Sensitive semiconductor devices remain protected throughout production without requiring direct contact or slowing manufacturing speed.

Another major advantage is contamination control. By removing static charges from surfaces, fewer airborne particles adhere to wafers and components, helping maintain strict cleanroom standards.

Stable static control also improves automation. Robots, conveyors, wafer handlers, and inspection equipment operate more consistently when electrostatic interference is minimized.

Manufacturers often experience fewer product failures, reduced scrap rates, lower maintenance costs, and greater customer confidence due to improved production consistency.

Key Advantages

1. Continuous static neutralization

2. Non-contact operation

3. Improved cleanroom performance

4. Reduced particle contamination

5. Higher manufacturing yield

6. Better equipment reliability

7. Lower maintenance costs

8. Greater process stability

How to Select the Right Ionizing Air Bar

Selecting the proper ionizing air bar depends on cleanroom requirements, production speed, installation space, ion balance, and static elimination performance.

Working distance is one of the first considerations. Production equipment varies greatly in size, requiring different ionization coverage depending on installation position and process layout.

Ion balance is another critical specification. Balanced positive and negative ion output ensures effective neutralization without introducing unwanted residual charges that could affect semiconductor devices.

Cleanroom compatibility should also be evaluated carefully. Materials should minimize particle generation while maintaining corrosion resistance and long operational life.

Manufacturers should also evaluate maintenance accessibility, power supply compatibility, ozone generation, operating temperature, and integration with automated equipment.

Installation and Maintenance Best Practices

Proper installation and regular maintenance ensure long-term ionization performance and consistent static control.

The ionizing air bar should be positioned close enough to the production area to provide effective ion coverage while avoiding interference with machinery or operators. Proper mounting angles improve ion distribution across product surfaces.

Emitter points gradually accumulate dust and airborne contaminants during operation. Periodic cleaning maintains efficient ion generation and prevents performance degradation.

Routine performance verification is equally important. Static decay testing and ion balance measurements help identify maintenance requirements before production quality is affected.

Preventive maintenance schedules significantly reduce unexpected downtime and help ensure continuous ESD protection throughout semiconductor manufacturing.

Maintenance Checklist

• Inspect emitter needles regularly

• Clean discharge points using approved methods

• Verify ion balance periodically

• Measure static decay performance

• Inspect electrical connections

• Replace worn components when necessary

Future Trends of Static Control in Semiconductor Manufacturing

Future ionizing air bars will become smarter, more energy efficient, and increasingly integrated with automated semiconductor manufacturing systems.

Industry continues moving toward fully automated smart factories where equipment continuously monitors process conditions. Future ionizing systems are expected to include intelligent sensors capable of monitoring ion output, static levels, and maintenance status in real time.

Artificial intelligence and predictive maintenance technologies may automatically identify declining ionization performance before production quality is affected. This reduces maintenance costs while improving equipment availability.

As semiconductor manufacturing advances toward even smaller technology nodes, static control requirements will become more stringent. Faster ion decay, improved ion balance, lower particle generation, and better cleanroom compatibility will remain key development priorities.

Energy efficiency will also receive greater attention. New ionizing technologies are expected to reduce power consumption while maintaining high neutralization performance, supporting sustainable semiconductor manufacturing.

Conclusion

Ionizing air bars have become an indispensable component of modern semiconductor manufacturing. Their ability to eliminate static electricity without contacting delicate electronic components makes them ideal for cleanroom environments where precision, cleanliness, and product reliability are essential.

From wafer fabrication and photolithography to packaging and final inspection, effective static neutralization protects sensitive semiconductor devices, minimizes contamination, improves automation, and increases manufacturing yield. As semiconductor technologies continue to evolve, reliable ionization systems will play an even greater role in maintaining production quality and supporting increasingly advanced manufacturing processes.

By selecting suitable ionizing air bars, implementing proper installation practices, and maintaining regular performance verification, semiconductor manufacturers can achieve stable ESD protection, higher operational efficiency, lower defect rates, and long-term manufacturing excellence.
