EIESD: Static Elimination in PCB Assembly

Printed Circuit Board (PCB) assembly is one of the most sensitive manufacturing processes in modern electronics production. As electronic components continue to shrink while becoming more powerful, electrostatic discharge (ESD) has become one of the leading causes of hidden product defects, production interruptions, and quality failures. Even a static discharge too small for humans to notice can permanently damage integrated circuits, reduce component lifespan, or create latent defects that only appear after products reach customers.

Manufacturers invest heavily in automated assembly equipment, precision placement systems, and advanced inspection technologies. However, without effective static elimination, even the most advanced production line remains vulnerable to contamination, component damage, soldering defects, and unexpected equipment failures. Therefore, implementing comprehensive static control measures has become an essential requirement for achieving high production yields and product reliability.

Static elimination in PCB assembly is achieved by combining grounding systems, ionization equipment, environmental control, ESD-safe materials, operator protection, and continuous monitoring to neutralize electrostatic charges before they damage sensitive electronic components.

Understanding how static electricity is generated, where it accumulates, and how it affects PCB assembly enables manufacturers to establish effective ESD protection programs. From SMT production lines to manual assembly stations and final testing, every production stage presents unique static challenges that require specialized solutions.

This comprehensive guide explains the causes of static electricity in PCB assembly, its effects on manufacturing quality, available static elimination technologies, implementation strategies, maintenance practices, and future industry trends.

Table of Contents

1. Why Static Electricity Is Dangerous in PCB Assembly

2. How Static Charges Are Generated During PCB Manufacturing

3. Common ESD Risks Throughout the PCB Assembly Process

4. Static Elimination Technologies Used in PCB Assembly

5. The Role of Ionizing Air Bars in PCB Production

6. Grounding Systems and ESD Protected Areas

7. Environmental Factors That Influence Static Generation

8. Best Practices for Building an Effective Static Control Program

9. Maintenance and Testing of Static Elimination Equipment

10. Benefits of Effective Static Elimination in PCB Assembly

11. Conclusion

Why Static Electricity Is Dangerous in PCB Assembly

Static electricity can instantly damage electronic components, reduce manufacturing yield, attract contaminants, and create hidden defects that significantly affect long-term product reliability.

Modern PCB assemblies contain highly integrated semiconductors, microprocessors, memory devices, sensors, and communication chips with extremely low ESD tolerance. Some components can be damaged by static voltages below 100 volts, while the average person cannot even feel electrostatic discharge below approximately 3,000 volts.

Static damage occurs in two primary forms. Catastrophic failures immediately destroy components, making defects easy to detect during testing. Latent failures are more dangerous because the product appears functional but contains weakened semiconductor junctions that eventually fail in the field.

Besides damaging electronics, electrostatic charges attract airborne dust and microscopic particles. These contaminants can interfere with solder paste printing, surface mounting accuracy, optical inspection, and conformal coating quality.

How Static Charges Are Generated During PCB Manufacturing

Static electricity is generated whenever different materials separate, slide, roll, or rub against one another during manufacturing operations.

The triboelectric effect is the primary source of electrostatic charge in PCB production. Conveyor belts, plastic trays, packaging materials, protective films, machine rollers, and synthetic clothing continuously generate static electricity through contact and separation.

Automated SMT production lines process thousands of boards every hour. As PCBs travel across conveyors and handling equipment, friction continuously builds electrical charges. Dry environmental conditions further increase charge accumulation.

Operators themselves are also potential static generators. Walking across insulated flooring, handling plastic materials, or wearing non-ESD clothing allows thousands of volts to accumulate on the human body before touching sensitive assemblies.

Major Sources of Static Electricity

• PCB conveyor systems

• Plastic carriers and trays

• Tape and reel packaging

• Vacuum pick-and-place nozzles

• Protective films

• Operator movement

• Packaging materials

• Cleaning processes

Common ESD Risks Throughout the PCB Assembly Process

Every stage of PCB assembly presents unique electrostatic risks that require targeted prevention measures.

During solder paste printing, static electricity attracts airborne particles that contaminate stencil openings. This leads to inconsistent solder deposits and increases the risk of solder bridging or insufficient solder joints.

Pick-and-place equipment may experience component sticking due to electrostatic attraction. Small passive components sometimes cling to nozzles instead of releasing onto PCB pads, reducing placement accuracy.

Reflow soldering does not eliminate static damage that occurred earlier in the production process. If components have already suffered ESD damage, thermal processing cannot repair them.

Manual inspection, functional testing, packaging, and storage also require ESD protection since products remain vulnerable until they are completely enclosed within protective packaging.

Static Elimination Technologies Used in PCB Assembly

Modern PCB assembly relies on multiple complementary static elimination technologies rather than a single solution.

The foundation of every ESD protection system begins with proper grounding. Equipment, workbenches, operators, carts, shelving, and conductive flooring should all share a common electrical ground to safely dissipate accumulated charges.

Ionization technology neutralizes static charges on insulated materials that cannot be grounded directly. Ionizers produce balanced positive and negative ions which combine with charged surfaces and restore electrical neutrality.

Additional protective technologies include conductive work surfaces, antistatic packaging materials, wrist straps, heel grounders, conductive footwear, humidity control systems, and continuous ESD monitoring equipment.

The Role of Ionizing Air Bars in PCB Production

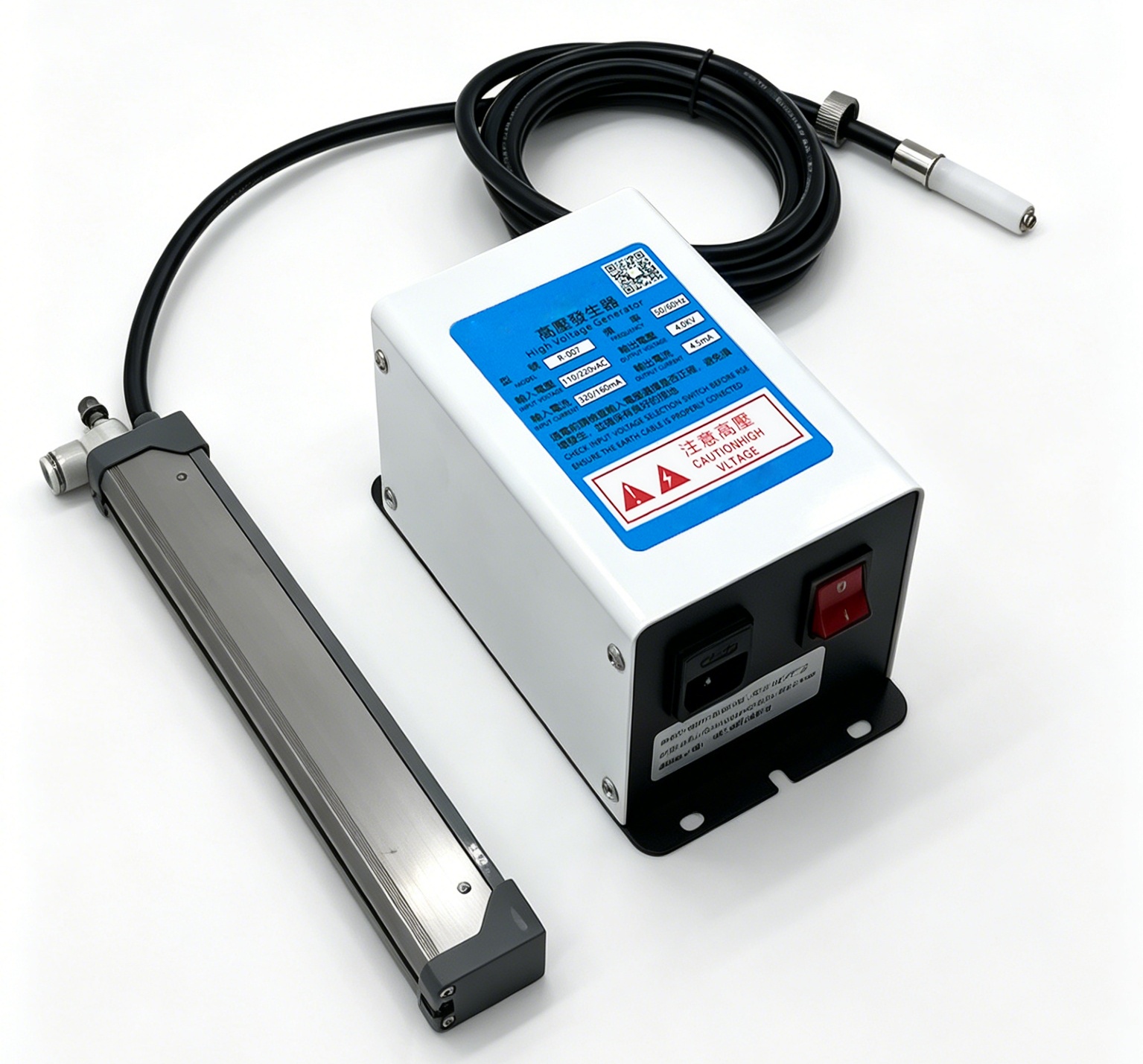

Ionizing air bars provide continuous neutralization of static charges across conveyor systems, assembly stations, inspection areas, and packaging lines.

Unlike grounding methods, ionizing air bars effectively eliminate static from non-conductive materials such as plastic trays, PCB substrates, protective films, and packaging materials. This makes them particularly valuable in electronics manufacturing.

High-speed airflow transports balanced ions toward charged surfaces where positive and negative ions neutralize electrostatic fields within seconds. Continuous ion generation maintains stable ESD protection throughout production.

Ionizing air bars are commonly installed above conveyor belts, SMT placement machines, AOI inspection systems, depaneling stations, labeling equipment, and packaging lines. Proper positioning ensures consistent ion coverage without interfering with production.

Advantages of Ionizing Air Bars

1. Fast static neutralization

2. Continuous operation

3. Suitable for automated production

4. Reduced dust attraction

5. Improved placement accuracy

6. Higher production yields

7. Minimal maintenance requirements

Grounding Systems and ESD Protected Areas

A properly designed ESD Protected Area establishes a controlled environment where electrostatic charges are safely dissipated before reaching sensitive electronics.

An effective EPA combines grounded workstations, conductive flooring, ESD chairs, grounded shelving, conductive carts, and operator grounding systems into one integrated protection network.

Workers entering the protected area should wear wrist straps, heel straps, ESD footwear, conductive garments, and appropriate gloves. Entry testing stations verify grounding effectiveness before personnel begin work.

Equipment maintenance should include routine verification of grounding resistance, electrical continuity, and compliance with internal quality standards. Continuous monitoring systems immediately detect grounding failures that could expose production to ESD risks.

Environmental Factors That Influence Static Generation

Environmental conditions strongly affect both the generation and dissipation of electrostatic charges inside PCB assembly facilities.

Low relative humidity significantly increases electrostatic charge accumulation because dry air provides poor electrical conductivity. Many electronics manufacturers maintain humidity between 40% and 60% to reduce static generation while protecting equipment.

Temperature also influences charge mobility and material conductivity. Stable environmental conditions improve both product quality and ESD performance.

Airflow patterns should be carefully designed because excessive turbulence can transport dust particles toward PCB assemblies while increasing triboelectric charging in certain materials.

Best Practices for Building an Effective Static Control Program

Successful static elimination requires an organization-wide program that integrates equipment, personnel, procedures, monitoring, and continuous improvement.

Management should establish documented ESD procedures covering material handling, workstation requirements, equipment maintenance, packaging methods, employee training, and periodic audits.

Employees require regular education regarding ESD hazards, grounding techniques, proper handling practices, and reporting procedures for damaged equipment or failed monitoring systems.

Routine inspections verify that wrist straps, ionizers, grounding cables, conductive flooring, and monitoring systems continue operating within specified performance limits. Preventive maintenance minimizes unexpected production interruptions.

Recommended Implementation Steps

1. Conduct an ESD risk assessment.

2. Create ESD protected production zones.

3. Install grounding infrastructure.

4. Add ionization where grounding is impossible.

5. Train all production personnel.

6. Implement continuous monitoring.

7. Perform scheduled audits.

8. Continuously improve based on production data.

Maintenance and Testing of Static Elimination Equipment

Regular maintenance ensures that static elimination equipment continues delivering reliable protection throughout its operational life.

Ionizing equipment should be cleaned regularly because dust accumulation on emitter points reduces ion output and increases balance deviation. Cleaning intervals depend on production environments but should always follow preventive maintenance schedules.

Grounding systems require periodic resistance measurements to verify electrical continuity. Damaged cables, loose connections, or worn conductive surfaces should be repaired immediately.

Charged plate analyzers, electrostatic field meters, resistance testers, and ion balance measurement instruments provide quantitative verification of ESD performance. Recording measurement data supports continuous process improvement and quality audits.

Benefits of Effective Static Elimination in PCB Assembly

Comprehensive static elimination improves manufacturing quality, increases production efficiency, reduces operational costs, and enhances customer satisfaction.

Lower ESD damage directly translates into higher first-pass yield and fewer expensive rework operations. Manufacturers also experience fewer warranty claims because latent component failures decrease significantly.

Cleaner production environments improve soldering quality, optical inspection accuracy, adhesive performance, and coating consistency. These quality improvements become increasingly valuable as PCB designs become denser and more complex.

Long-term investment in static control also protects manufacturing equipment, improves production stability, reduces downtime, and supports compliance with international ESD management standards. The return on investment typically includes improved product reliability, reduced scrap rates, enhanced operational efficiency, and stronger customer confidence.

Conclusion

Static electricity remains one of the most significant hidden threats in modern PCB assembly. As electronic components continue to become smaller, faster, and more sensitive, comprehensive ESD protection is no longer optional but an essential element of advanced manufacturing. Effective static elimination requires a combination of grounding systems, ionization technology, environmental management, operator training, conductive materials, and continuous monitoring.

Among available solutions, ionizing air bars play a particularly important role because they neutralize static charges on insulated materials that cannot be grounded directly. When integrated with a well-designed ESD protected area and supported by preventive maintenance and regular testing, they significantly improve production yield, reduce contamination, minimize latent failures, and enhance overall manufacturing reliability. By implementing a comprehensive static control strategy, PCB manufacturers can achieve higher product quality, lower operating costs, and greater long-term competitiveness in the global electronics industry.
