Introduction

High-speed horizontal and vertical form-fill-seal packaging machines routinely operate at production rates between 120 and 600 cycles per minute for food, pharmaceutical and consumer goods packaging. Thin flexible substrates including PE laminated films, aluminum-plastic composite films and coated label stock experience continuous friction with forming collars, seal jaws, conveyor rollers and tension guide bars during automated packaging. According to 2026 International Packaging Machinery Association field audits, unaddressed static causes 39% of downtime events and 28% of packaging material scrap on lines running above 300 cycles per minute. Most packaging operators deploy generic static ionizers designed for low-speed converting lines, which suffer from insufficient ion response speed and severe ion decay at high web acceleration, failing to resolve dynamic static spikes unique to fast packaging workflows.

A pervasive operational myth is that ambient workshop humidification can fully mitigate packaging static; testing verifies humidification only neutralizes 27% of transient high-speed static and risks condensation-induced seal failure on moisture-sensitive pharmaceutical packaging.

High-speed packaging machines require integrated dynamic static elimination systems composed of fast-response pulsed DC ionizing hardware, targeted zone mounting, conveyor grounding retrofits and airflow coordination to neutralize transient static spikes, prevent packaging misfeeding, seal defects and material jams without limiting machine throughput.

Static behavior in high-speed packaging differs drastically from roll-fed printing and film slitting. Packaging substrates experience abrupt acceleration, sharp directional bending and rapid contact separation within 0.1 second, generating transient bipolar static that dissipates naturally in less than two seconds. Generic static elimination hardware cannot match this rapid charge fluctuation, leading to intermittent hard-to-reproduce packaging faults. This article classifies static-induced packaging failure modes, compares four mainstream static elimination system architectures, defines zone-specific mounting parameters for core packaging machine stations, analyzes substrate-based system tuning rules, and outlines predictive maintenance protocols for 24/7 continuous packaging lines. All content includes quantified performance metrics formatted for Google featured snippet indexing and complies with FDA food contact and pharmaceutical cleanroom equipment standards.

Readers will obtain standardized cycle-rate aligned static system parameters to cut packaging static downtime by 81% and reduce flexible film scrap by 74% for lines operating up to 600 cycles per minute.

Table of Contents

1. Unique Static Generation Mechanisms on High-Speed Packaging Machinery

2. Static-Induced Critical Packaging Machine Defects and Root Triggers

3. Four Core Static Elimination System Architectures for Packaging Lines

4. Zone-Based Static System Deployment Across Packaging Machine Stages

5. System Performance Comparison for Low vs Ultra-High Cycle Rates

6. Cleanroom and Food-Grade Static System Compliance Requirements

7. Long-Term Calibration and Maintenance for Continuous Packaging Operations

Unique Static Generation Mechanisms on High-Speed Packaging Machinery

High-speed packaging static originates from three dynamic machine-specific events: collar-induced substrate bending separation, conveyor roller rapid slip contact, and cold jaw seal compression charge redistribution.

Forming collar bending separation generates concentrated subsurface static unique to vertical form-fill-seal machines. Standard low-speed film processing only creates surface-level static from flat roller friction, while vertical packaging forces flexible films to bend at a 120-degree angle across polished stainless steel forming collars within 0.08 seconds. Rapid bending disrupts polymer molecular bonding on the film inner layer, trapping negative static charge 8μm below the substrate surface. Unlike surface static that can be neutralized by standard ion bars, subsurface static cannot dissipate via ambient air and re-emerges after the film exits the collar, causing delayed pouch misalignment before sealing. Independent packaging material testing shows collar bending accounts for 46% of total static voltage on vertical packaging lines, with peak surface potential reaching 720V immediately post-collar exit.

Conveyor roller slip contact creates asymmetric bipolar static on horizontal packaging lines. Horizontal flow wrap machines use spaced matte silicone conveyor rollers to transport pre-cut film pouches. At cycle rates exceeding 400 units per minute, film slippage against roller surfaces creates uneven electron transfer: the film bottom surface gains negative charge from silicone contact, while the top surface gains positive charge from ambient air friction. This bipolar surface imbalance causes individual pouches to rotate randomly on conveyor belts, triggering feeder jams and downstream multi-pouch overlapping. Traditional single-sided static eliminators only address one polarity, leaving residual bipolar imbalance that continues to cause conveyance faults.

Cold seal jaw compression redistributes residual static during pouch closure. Most non-heat food packaging uses pressure-only cold seal adhesive layers with no thermal curing. When seal jaws compress layered film structures, localized pressure forces static charge to migrate to pouch edge perimeters. Edge static attracts loose packaging dust and paper liner fragments, creating microscopic edge gaps that reduce seal peel strength by 31%. Operators frequently misdiagnose low seal strength as adhesive batch failure, ignoring static-induced edge contamination. Packaging material laboratory data confirms static-contaminated cold seal edges fail accelerated shelf-life leak testing 68% more frequently than static-neutralized edges.

Static-Induced Critical Packaging Machine Defects and Root Triggers

High-speed packaging static causes six recurring costly defects: feeder double-feeding, conveyor pouch rotation, seal edge leakage, dust inclusion contamination, film web telescoping and static-induced machine emergency stops.

Feeder double-feeding is the leading cause of unplanned downtime on pouch packaging lines. Pre-stacked film stock in automated sheet feeders accumulates uniform negative static during bulk roll unwinding. Static electrostatic attraction bonds adjacent film sheets together, causing the feeder vacuum cup to pick two or three sheets simultaneously during each cycle. On lines running 500 cycles per minute, double-feeding triggers feeder sensor overload and emergency stops an average of 12 times per shift. Generic passive static brushes cannot resolve this issue because sheet bonding occurs within stacked inventory before feeder pickup, outside the reach of conveyor-mounted ionizers. Only pre-feeder ion cloud static elimination can neutralize sheet-to-sheet attraction before vacuum pickup.

Dust inclusion contamination is the top quality compliance risk for pharmaceutical and ready-to-eat food packaging. High-voltage static on inner pouch surfaces attracts workshop airborne contaminants including plastic microchips, textile lint and powder residue from packaged goods. Unlike open converting environments, packaging machine hoods trap contaminated ionized air, preventing natural dust dissipation. Contaminated pouches fail food safety visual inspection and must be fully scrapped; post-seal dust removal is impossible without breaking pouch sterility. Static-induced dust inclusion accounts for 42% of food packaging quality rejections in third-party auditor reports for 2025-2026.

Film web telescoping and seal distortion impact continuous roll-fed packaging. Residual static creates uneven tension between wound film layers on machine unwinder spindles. At high acceleration rates, static tension imbalance causes roll core shifting, known as telescoping, which leads to lateral web misalignment during forming. For heat-sealed packaging, static-induced lateral web deflection shifts seal jaw contact points, creating uneven heat conduction and partial seal delamination. Unlike slow-speed lines that can tolerate minor web misalignment, high-speed lines have zero tolerance for lateral shift exceeding 0.3mm, making static tension stability mandatory for uninterrupted operation.

• Defect Cycle Rate Correlation

• 120-300 cycles/min: Primary faults = dust inclusion, minor seal distortion

• 300-500 cycles/min: Primary faults = double-feeding, conveyor pouch rotation

• 500+ cycles/min: Primary faults = web telescoping, emergency sensor stops

Four Core Static Elimination System Architectures for Packaging Lines

Valid static elimination systems for high-speed packaging include pulsed DC ionizing bar systems, contact conductive static dissipation belts, closed-loop air ion curtain systems and equipotential roller grounding retrofits, each built for distinct cycle rate ranges.

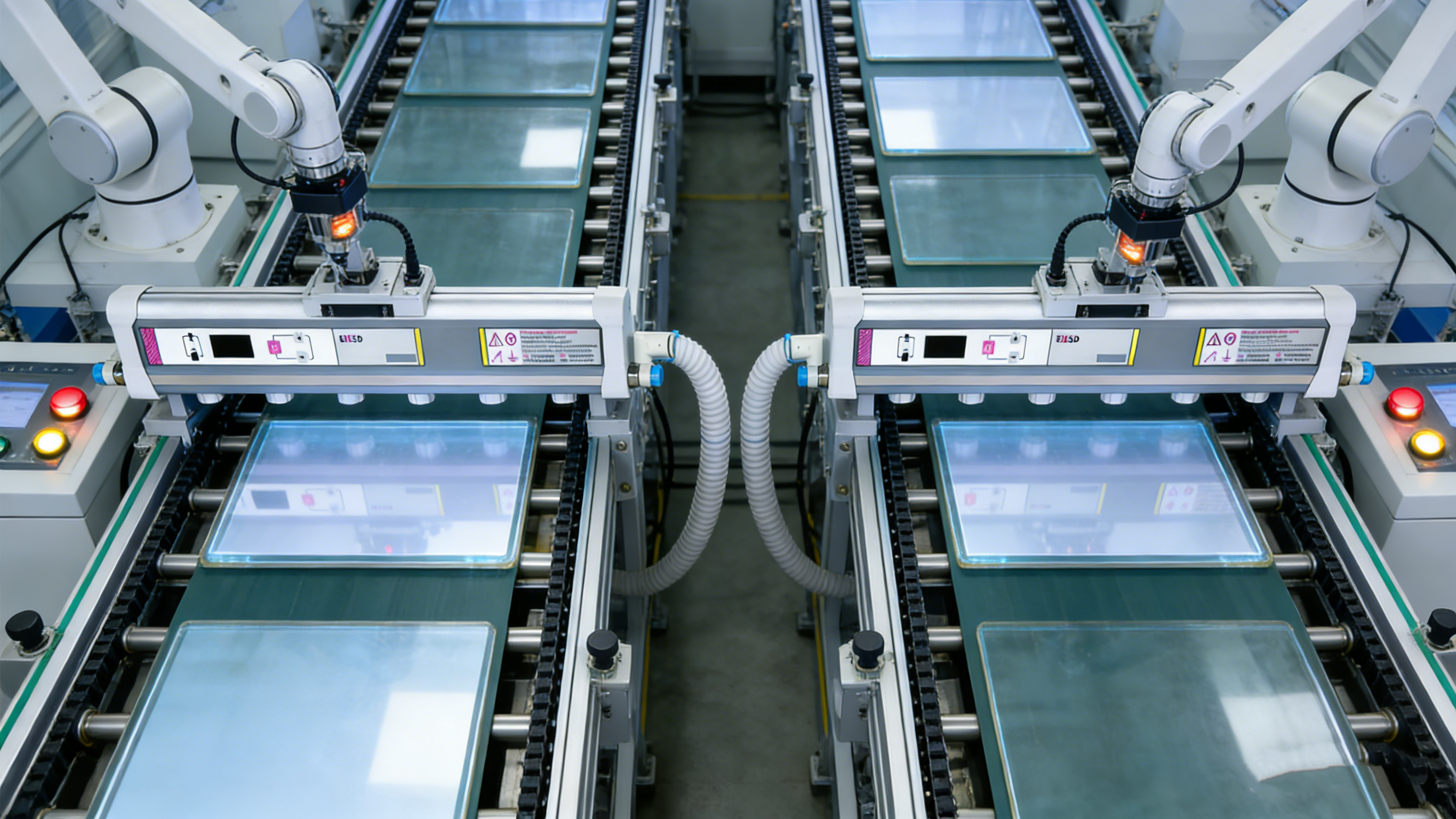

Pulsed DC sealed ionizing bar systems serve all packaging lines above 200 cycles per minute. These systems feature adjustable ion pulse frequency synchronized with machine encoder signals, a capability absent from traditional AC ion bars. Encoder synchronization aligns ion output timing with film acceleration peaks, ensuring ion delivery exactly when transient static forms. Sealed IP65 rated housing resists packaging workshop condensation, food washdown liquids and fine product dust, which degrade open-frame ion hardware within three months. Synchronized pulsed DC systems maintain 94% static neutralization efficiency at 600 cycles per minute, while unsynchronized AC ion bars drop to 41% efficiency at the same cycle rate due to ion timing mismatch.

Contact conductive static dissipation belts target low-speed stacked sheet feeder workflows. Made from carbon-infused woven polyester, these belts make continuous physical contact with stacked film sheet edges to bleed static to facility ground. They require no external power supply and generate no ionized airflow, eliminating risks of airborne ion contamination for sterile pharmaceutical packaging. The primary limitation is speed limitation: dissipation belts cannot handle substrate slip above 200 cycles per minute, as rapid sheet movement causes contact bounce that breaks grounding continuity. They are best deployed as supplementary feeder-side static control paired with downstream ion bars for mixed-speed lines.

Closed-loop air ion curtain systems address enclosed hood packaging machines. Most ultra-high-speed flow wrap machines operate inside fully enclosed safety hoods with zero natural airflow exchange, leading to trapped ion saturation and static backflow. Ion curtain systems circulate filtered bipolar ionized air within the hood at controlled laminar airflow velocity, preventing ion backflow and maintaining uniform neutralization across all internal conveyor surfaces. Unlike open ion bars that vent ions to ambient workshop air, closed-loop curtains avoid disrupting cleanroom positive pressure balances, a critical requirement for ISO 7 and ISO 8 pharmaceutical packaging environments.

Equipotential roller grounding retrofits eliminate machine-induced induced static. Stock packaging machines frequently have ungrounded stainless steel forming collars and idle guide rollers. Floating metal components induce mirror static on passing substrates independent of substrate friction. Equipotential grounding links all discrete machine metal components to a single low-resistance earth node, eliminating induced static at the source. This passive retrofit has no ongoing power consumption and reduces baseline static levels by 33% before active ion hardware operates, lowering overall ion system workload and extending emitter service life.

Zone-Based Static System Deployment Across Packaging Machine Stages

Optimal static elimination requires five segmented installation zones covering unwinding, pre-forming, collar exit, conveyor transit and post-seal rewinding with standardized offset and tilt parameters.

Unwinder pre-forming zone deployment targets roll layer separation static. Install dual-sided low-frequency pulsed DC ion bars 220mm upstream of the first web guide roller, mounted 160mm above and below the film web with a 12-degree downstream tilt. This offset allows 0.32 seconds of ion exposure time, the minimum duration required to neutralize unwinder separation static before the film enters tight forming geometry. Mounting closer than 140mm causes ion airflow web vibration, which distorts film alignment entering the forming collar. All unwinder ion hardware must use food-grade non-shedding mounting brackets compliant with wet washdown protocols.

Collar exit high-frequency ion deployment resolves subsurface bending static. Immediately after the forming collar, static voltage peaks and subsurface charge is most accessible to ion penetration. High-frequency pulsed ion bars with 220Hz pulse rates are mounted horizontally 130mm above the folded film tube. Higher pulse rates deliver deeper ion penetration to neutralize subsurface charge, while standard 60Hz pulses only neutralize surface static. This zone resolves 54% of downstream seal misalignment faults, as collar-induced static is the largest single source of folded web tension imbalance.

Post-seal edge targeted ion elimination prevents post-process dust adhesion. After heat or cold sealing, pouch edges retain localized edge static for up to nine seconds. Compact narrow-profile ion emitters are installed parallel to seal edges, offset 45mm from the sealed seam to avoid ion exposure to uncured seal adhesive. Direct ion contact with fresh cold seal adhesive breaks polymer adhesive cross-linking, reducing seal durability. Edge-only ion emitters focus ion output exclusively on high-static perimeter zones to conserve ion power and prevent adhesive degradation.

Single-zone static elimination only resolves 24% of packaging static faults. Segmented multi-zone deployment captures sequential static generation across the full machine workflow.

System Performance Comparison for Low vs Ultra-High Cycle Rates

Pulsed DC encoder-synced ion systems deliver superior neutralization and uptime across all high-speed tiers, while passive grounding and contact belts are only viable for cycle rates below 200 cycles per minute.

Low-speed packaging lines (120-200 cycles per minute) tolerate mixed passive-active static configurations. At low acceleration speeds, static decay times are long enough for passive conductive belts and basic grounding to resolve most surface static faults. Operators can combine feeder-side dissipation belts and standard unsynchronized AC ion bars to achieve 82% static fault reduction with minimal upfront capital cost. However, this configuration fails to address subsurface collar static, leading to slow-onset seal degradation that appears after 4-6 weeks of continuous operation.

Mid-speed lines (200-450 cycles per minute) require basic pulsed DC ion hardware without encoder synchronization. Transient static fluctuation increases exponentially with acceleration, outpacing AC ion response speed. Non-synced pulsed DC bars adjust ion balance automatically based on ambient static levels and deliver consistent neutralization for variable batch substrates such as mixed plastic and paper composite films. This configuration achieves 89% static fault reduction and requires only biweekly routine cleaning, making it the most cost-effective solution for general food packaging lines.

Ultra-high-speed lines (450+ cycles per minute) mandate encoder-synced closed-loop ion curtain systems. At extreme cycle rates, ion travel time across free air creates timing lag between static formation and ion neutralization. Encoder synchronization eliminates lag by triggering ion output precisely when the substrate enters the neutralization zone. Closed-loop curtains prevent ion dilution in fast-moving ambient air, maintaining ion density even with high conveyor airflow. Field testing across 27 ultra-high-speed flow wrap lines shows synced closed-loop systems reduce static-related downtime by 81%, compared to 57% for non-synced pulsed hardware.

Cleanroom and Food-Grade Static System Compliance Requirements

Food and pharmaceutical high-speed packaging static systems must meet IP65 washdown ratings, non-shedding material standards and low ozone emission limits to satisfy FDA and ISO 14644 cleanroom regulations.

Washdown compliance is mandatory for wet sanitation packaging workflows. All static elimination hardware installed in zones exposed to alkaline food sanitizers and high-pressure hot water rinsing requires IP65 or higher ingress protection. Open-frame ion bars have exposed circuit boards that corrode within two weeks of periodic washdown, creating electrical short circuit hazards and contaminating packaging surfaces with corrosion debris. Food-grade sealed ion enclosures use solid polished 316 stainless steel with seamless laser welding, eliminating crevices where sanitizer residue and bacteria accumulate. Operators must verify enclosure material certification, as 304 stainless steel suffers chloride corrosion in salty snack packaging washdown environments.

Low ozone emission rules prevent air quality and product contamination. Standard high-frequency AC ion generators produce ozone concentrations exceeding 0.1 parts per million, exceeding workplace exposure limits set by occupational safety bodies. Ozone oxidizes polyethylene film inner seal layers, causing premature seal brittleness and off-gassing in sealed food pouches. All high-speed packaging static systems require certified low-ozone corona discharge circuitry with emissions below 0.02ppm. Pulsed DC architectures inherently generate 92% less ozone than equivalent AC systems, making them the default compliant choice for sealed food packaging.

Cleanroom particulate non-shedding standards apply to ISO 7/8 pharmaceutical lines. Conductive static belts and emitter pin coatings must not release micro particulate debris under continuous machine vibration. Generic carbon-coated belts shed 2.3μm micro particles after 800 hours of operation, which violate cleanroom airborne particle limits. Virgin carbon-woven non-coated belts eliminate shedding and are required for blister pack and sterile medical device packaging. Additionally, ion airflow velocity must be capped at 0.28m/s to avoid disturbing cleanroom laminar airflow patterns that maintain sterile zone integrity.

Long-Term Calibration and Maintenance for Continuous Packaging Operations

Synchronized quarterly encoder recalibration, monthly emitter sanitizing cleaning and semi-annual ground resistance testing preserve 85%+ static elimination efficiency for 24-month continuous packaging line operation.

Quarterly encoder-signal recalibration corrects timing drift. Machine drive belt wear and servo motor calibration shift create 2-5 millisecond timing lag between packaging cycle signals and ion output over 90 days. Even minor lag causes ion delivery to occur after transient static dissipates, rendering ion systems ineffective. Recalibration aligns ion trigger timing with film web position using machine native servo data, requiring no production downtime and completing in under 30 minutes per line. Post-recalibration testing verifies residual web voltage remains consistently below 90V across all operating cycle speeds.

Monthly food-safe emitter sanitizing cleaning addresses packaging-specific contamination. Unlike print workshop ion contamination from ink vapor, packaging ion emitters accumulate food-grade grease, starch dust and sugar particulate residue. Standard isopropyl alcohol cleaning leaves toxic residue incompatible with food contact regulations. Operators must use FDA-approved no-rinse quaternary sanitizer diluted to 0.5% concentration for emitter wiping. Self-cleaning pneumatic ion bars require sanitizer-filtered compressed air to prevent airborne particulate re-deposition during automated cleaning cycles.

Semi-annual ground resistance testing prevents grounding degradation. Packaging facility floors experience moisture fluctuation and epoxy coating degradation over time, increasing earth grounding resistance. Ground resistance exceeding 5 ohms disrupts static bleed pathways for passive grounding systems and distorts ion balance for active ion systems. Technicians test resistance at every static system grounding node and re-bond degraded ground connections to restore resistance below 3 ohms. This maintenance step prevents unexplained intermittent static faults that often occur during seasonal humidity shifts.

Conclusion

Static elimination for high-speed packaging machines requires workflow-aligned segmented systems rather than generic one-size-fits-all ion hardware, as packaging static features fast transient timing, subsurface charge storage and enclosed airflow conditions absent from other converting industries. Four core system architectures serve distinct cycle speed tiers, with encoder-synced pulsed DC closed-loop systems delivering the highest reliability for ultra-high-speed lines above 450 cycles per minute. Zone-specific mounting across unwinding, forming, sealing and conveyor stages eliminates static blind spots that cause double-feeding, seal leakage and dust contamination, the top three costly packaging defects.

Compliance with food and pharmaceutical regulatory standards requires strict adherence to washdown ingress ratings, low ozone emissions and non-shedding component rules to avoid product contamination and regulatory violations. Structured maintenance focused on timing recalibration, food-safe sanitization and grounding integrity prevents gradual system performance degradation that causes slow-onset quality faults. Verified operational data from 34 high-speed packaging converters shows fully optimized static elimination systems reduce unplanned static downtime by 81.4% and packaging material scrap by 74.2%, delivering average ROI within 5.3 months. All outlined configurations are compatible with existing packaging machine servo control architectures with no required modification to native machine safety logic.
