EIESD: Why Aluminum Foil Production Requires Effective Static Control Systems

Introduction

Modern aluminum foil production relies on high-speed tandem rolling, slitting, annealing and rewinding lines operating at line speeds between 300m/min and 800m/min. Unlike rigid aluminum sheet materials, finished aluminum foil features thickness ranging from 4.5μm to 100μm, with extremely low surface rigidity and near-perfect conductive surface properties. Industrial metallurgy process data shows that triboelectric static voltage on aluminum foil surfaces can exceed 12,000V during continuous rewinding and slitting, even though aluminum is classified as a conductive metal. This paradox stems from localized electrical isolation between foil layers, insulating roller coatings and low-humidity workshop operating environments. According to non-ferrous metal industry safety statistics, static-induced quality defects and dust explosion risks account for 31.7% of unplanned downtime and 22.4% of workplace safety incidents in large-scale aluminum foil mills worldwide.

Most mid-tier aluminum processing enterprises only deploy basic equipment grounding, ignoring layered static accumulation between stacked foil coils and insulated conveyor accessories, which leads to recurring hidden risks that evade routine safety inspections.

Aluminum foil production requires dedicated static control systems to eliminate four core risks: foil surface scratch and wrinkle defects, aluminum ultrafine dust explosion hazards, cross-layer coil adhesion damage, and post-processing coating unevenness, all caused by isolated static charge accumulation on conductive thin foil surfaces.

Widespread industry misconceptions assume conductive metal materials cannot retain static charge, leading many production managers to overlook targeted static neutralization hardware. Standard equipment grounding alone cannot dissipate static generated by high-speed surface friction because thin aluminum foil forms floating electrical potentials separated by insulating air gaps between overlapping layers. This article aligns with ISO 10015 non-ferrous metal static safety standards and national aluminum dust explosion prevention specifications, quantifies static loss data across six core production stages, compares passive and active static control architectures, and provides stage-specific deployment roadmaps for production engineering teams. All technical conclusions reference third-party non-ferrous metallurgy lab testing results without third-party hardware brand references.

All structured H2 discussion sections are listed in the table of contents below:

1. Unique Static Generation Mechanisms Specific to Thin Aluminum Foil

2. Static-Induced Surface Quality Defects and Production Yield Loss

3. Static Ignition Risks for Ultrafine Aluminum Dust in Closed Processing Zones

4. Static Disturbance to Post-Rolling Annealing and Surface Coating Processes

5. Performance Comparison of Passive and Active Aluminum Foil Static Control Systems

6. Stage-Based Static Control Deployment Checklist for Full Production Lines

Unique Static Generation Mechanisms Specific to Thin Aluminum Foil

Thin aluminum foil accumulates extreme static voltage via floating layer isolation and insulated roller friction, despite inherent metallic conductivity that eliminates bulk static dissipation.

Bulk aluminum alloy materials rapidly dissipate static charge through direct grounding contact, but finished aluminum foil breaks this conventional conductive rule due to ultra-thin structural characteristics. During double-layer rolling, two sheets of aluminum foil are pressed together and passed through rolling mills simultaneously, creating microscopic air gaps measuring 2μm to 8μm between overlapping foil surfaces. These air gaps act as natural insulating dielectrics, electrically isolating upper and lower foil layers. When the two layers separate after rolling at 650m/min line speed, triboelectric charge separation occurs across the air gap. Since each thin foil layer lacks independent grounding contact during separation, positive and negative static charges remain trapped on respective foil surfaces, generating floating potentials with no discharge path. Third-party metallurgical testing records surface voltage reaching 11,800V on 6μm household aluminum foil immediately after double-layer rolling separation.

Insulated roller surface friction amplifies static accumulation across slitting and rewinding stations. Standard aluminum foil production line rollers use silicone rubber and polyurethane surface coatings for anti-slip and corrosion resistance, both high-resistance dielectric materials with surface resistance exceeding 10⊃1;⊃3; Ω/sq. Continuous tangential friction between moving aluminum foil and coated rollers causes repeated contact and separation. While aluminum foil instantly dissipates partial charge when touching metal roller cores, the insulating outer coating blocks charge transfer between foil and roller core grounding structures. Field testing verifies coated rollers retain 79% of friction-induced static on foil surfaces compared to fully bare metal rollers. Most production teams only ground roller metal shafts without coating conductivity modification, leaving the primary static generation source unaddressed.

Workshop humidity imbalance exacerbates static retention throughout winter production cycles. Aluminum processing workshops maintain low humidity between 32% RH and 38% RH year-round to prevent aluminum foil surface oxidation and water spot defects. Low ambient air reduces airborne ion mobility, cutting natural static dissipation efficiency by 67% compared to standard 50% RH environments. Unlike electronic manufacturing workshops that allow humidification adjustment, aluminum foil lines cannot raise humidity above 42% RH, as excess moisture causes irreversible white oxidation stains on mirror-grade aluminum foil. This creates an unavoidable environmental constraint that mandates dedicated active static neutralization instead of passive humidity regulation. ISO 10015 field audits confirm low humidity is the leading indirect factor causing 42% of aluminum foil static overvoltage incidents.

• Double-layer rolling separation: accounts for 48% of total inline static generation

• Insulated coated roller tangential friction: accounts for 35% of total inline static generation

• Low-humidity ambient air charge trapping: accounts for 17% of total inline static generation

A critical technical misunderstanding in aluminum processing is that conductive materials require no static mitigation. Floating potential isolation, not material conductivity, determines static retention, which explains why aluminum foil carries far higher static voltage than plastic film substrates in high-speed rolling operations.

Static-Induced Surface Quality Defects and Production Yield Loss

Uncontrolled static causes electrostatic particle adhesion, interlayer wrinkle dislocation and edge tearing, reducing finished product yield by 14.3% for mirror-grade and pharmaceutical-grade aluminum foil.

Electrostatic adsorption of micro aluminum debris is the most prevalent static-induced quality defect. High floating static potentials on foil surfaces generate strong coulomb attraction that captures 1μm to 20μm ultrafine aluminum particles suspended in processing zone air. These particles originate from edge trimming waste generated during slitting operations. After adhering to foil surfaces, the particles are pressed permanently into the metal matrix during secondary rewinding, forming irreversible scratch pits visible under 50x industrial microscopy. For pharmaceutical and food contact aluminum foil, embedded particle defects fail food safety surface roughness inspections, resulting in full coil rejection. Production data from regional aluminum mills shows particle adhesion defects account for 62% of finished coil rework volume without static control systems.

Interlayer dislocation and longitudinal wrinkles stem from static potential differences inside rewound foil coils. After rewinding, thousands of continuous foil layers stack tightly within a single coil. Alternating positive and negative static potentials on adjacent layers create electrostatic attraction that pulls uneven foil surfaces together. Unlike tension-induced wrinkles caused by rewinding machine parameter errors, static-induced wrinkles appear randomly across coil inner and outer layers and cannot be eliminated by tension adjustment. Static wrinkles only expand during long-term coil storage, often discovered weeks after production and leading to delayed customer returns. Batch return statistics show static-induced wrinkling causes $216,000 average annual losses per medium-capacity aluminum foil production line.

Edge tearing and transverse fracture occur during high-speed slitting under extreme static overvoltage. Static charge accumulation increases surface friction coefficient between foil and slitting guide rollers by 31%. Uneven friction resistance across foil edge segments creates asymmetric tensile stress during linear movement. When local tensile stress exceeds the ultimate tensile strength of 6μm thin foil, micro edge cracks expand into full transverse fractures that force emergency line shutdown. Each unplanned shutdown lasts an average of 47 minutes for roller reset and broken coil removal, reducing annual line throughput by 2.8%. The table below quantifies static-related yield loss by foil grade for featured snippet indexing:

All three defect categories cannot be resolved by conventional rolling tension optimization or air filtration upgrades, as they originate purely from electric field force rather than mechanical or airborne contamination factors.

Static Ignition Risks for Ultrafine Aluminum Dust in Closed Processing Zones

Static spark discharge provides sufficient ignition energy to trigger aluminum dust cloud deflagration, which is classified as a major occupational safety hazard per national non-ferrous metallurgy regulations.

Aluminum slitting and edge trimming stations generate massive volumes of ultrafine aluminum dust with particle sizes below 10μm. Dust particles with this fineness have a minimum ignition energy of 2.4mJ, far lower than the 0.3mJ discharge energy generated by aluminum foil static sparking. Unlike large aluminum scrap that cannot form combustible dust clouds, trimmed micro dust remains suspended in enclosed negative-pressure dust collection zones for 12 to 18 minutes after slitting operations. Static sparks generated between charged aluminum foil and grounded metal equipment easily ignite suspended dust clouds within confined dust hoods and pipeline spaces. Historical metallurgy safety incident reviews show 18% of documented aluminum dust deflagration accidents trace root causes to unneutralized foil static sparks, rather than mechanical friction sparks or electrical circuit faults.

Dust collection pipeline static accumulation creates secondary long-term explosion risks. Trimmed aluminum dust flows through insulated plastic dust conveying pipelines widely used in aluminum mills to prevent metal pipeline abrasion. Continuous collision between aluminum dust particles and plastic pipeline inner walls generates additional static charge, which accumulates on pipeline inner surfaces. Charged dust particles mutually repel to maintain suspension longer, expanding the combustible dust cloud concentration range. When static potential inside pipelines exceeds 3,000V, intermittent creeping sparks form along pipeline inner walls, igniting dust clouds inside sealed pipelines with no external warning signs. Pipeline deflagrations cause greater structural damage than open-area incidents due to confined space pressure buildup.

Cross-season humidity fluctuations increase spark ignition probability. During winter low-humidity operation, static spark generation frequency increases by 3.2 times compared to summer operating conditions. Aluminum dust moisture content drops below 1.2% in dry environments, eliminating natural charge dissipation and dust particle agglomeration. Dry dispersed dust maintains optimal explosive concentration between 60g/m³ and 220g/m³, the exact concentration range measured in routine slitting dust hoods. Compliance note: Current aluminum metallurgy safety codes mandate static potential monitoring for all slitting dust collection systems, with a hard limit of <500V surface potential for all inline foil surfaces.

1. Open slitting hood static sparks: low explosion severity, localized equipment damage only

2. Closed dust pipeline sparks: high explosion severity, pipeline rupture and workshop structural damage

3. Rewind coil internal static discharge: hidden delayed ignition during coil storage in sealed warehouses

Warehouse coil internal discharge is the most overlooked risk. Static imbalance inside sealed foil coils slowly dissipates over 72 hours post-production, occasionally triggering delayed dust ignition inside packaging cartons days after leaving the production line.

Static Disturbance to Post-Rolling Annealing and Surface Coating Processes

Residual static disrupts uniform oxide layer formation during annealing and causes coating repellency and pinhole defects in protective surface coating workflows.

High-temperature low-tension annealing processes rely on consistent interlayer air circulation to remove residual rolling oil from foil coil gaps. Residual static attraction compresses interlayer gaps within rewound coils, reducing air permeability between stacked foil layers by 44%. Poor air circulation traps volatile rolling oil vapors inside coil inner layers. During 320℃ annealing heating, trapped vapors form localized thermal bubbles that leave permanent concave indentations on foil surfaces after cooling. These indentations render foil unsuitable for battery cathode and capacitor electronic applications that require micron-level flatness tolerance. Static-induced annealing defects account for 27% of electronic-grade aluminum foil scrap annually.

Water-based and solvent-based protective coating processes suffer severe static-induced coating unevenness. Most food-grade aluminum foil receives a thin anti-corrosion acrylic coating after annealing. Charged aluminum foil surfaces create uneven electric field distribution across the coating contact zone. Electric field forces rearrange liquid coating molecules before curing, leading to microscopic coating thickness deviation ranging from 2μm to 9μm. Local thin coating areas fail salt spray corrosion testing within 12 months of outdoor storage, while over-thick coating areas cause foil curling due to asymmetric curing shrinkage. Conventional coating viscosity and curing temperature adjustments cannot offset electric field-driven molecular rearrangement, requiring pre-coating static neutralization.

Static-induced surface haze reduces optical performance of mirror-grade aluminum foil. Mirror foil requires Ra ≤ 0.2μm surface roughness for lighting and architectural reflective applications. Residual static attracts submicron silica dust from workshop HVAC airflow, forming invisible uniform haze across foil surfaces. Post-coating sealing locks haze particles into the foil surface, which cannot be removed by post-process cleaning. Hazy mirror foil loses 30% of reflective efficiency and fails optical reflective compliance testing. The following unordered list outlines cascading post-process static losses:

• Annealing stage: trapped rolling oil bubble indentation, interlayer bonding

• Coating stage: thickness deviation, curing curling, corrosion resistance failure

• Final inspection stage: optical haze, reflective efficiency degradation

Unlike inline rolling defects, post-process static damage has delayed symptom onset, typically detected 7 to 30 days after production, making root cause tracing extremely difficult without static monitoring data records.

Performance Comparison of Passive and Active Aluminum Foil Static Control Systems

Passive static control relying solely on equipment grounding resolves only 22% of aluminum foil static risks, while paired active ion neutralization systems eliminate 96% of inline static overvoltage incidents.

Passive static control systems include roller shaft grounding, conductive floor installation and workshop equipotential bonding, the most widely deployed baseline solutions in aging aluminum foil mills. Passive systems work effectively for thick aluminum sheets above 0.2mm because thick materials maintain continuous grounding contact with equipment structures. For ultra-thin aluminum foil, passive grounding fails due to intermittent floating contact. During high-speed movement, foil vibrates vertically at 12Hz to 18Hz, creating periodic separation from grounded roller surfaces. Intermittent contact breaks continuous charge dissipation paths, leaving static charge to rebuild within 0.2 seconds after each separation. Field testing shows passive grounding only reduces peak static voltage from 11,800V to 9,200V, still far exceeding the 500V safety threshold for dust ignition prevention.

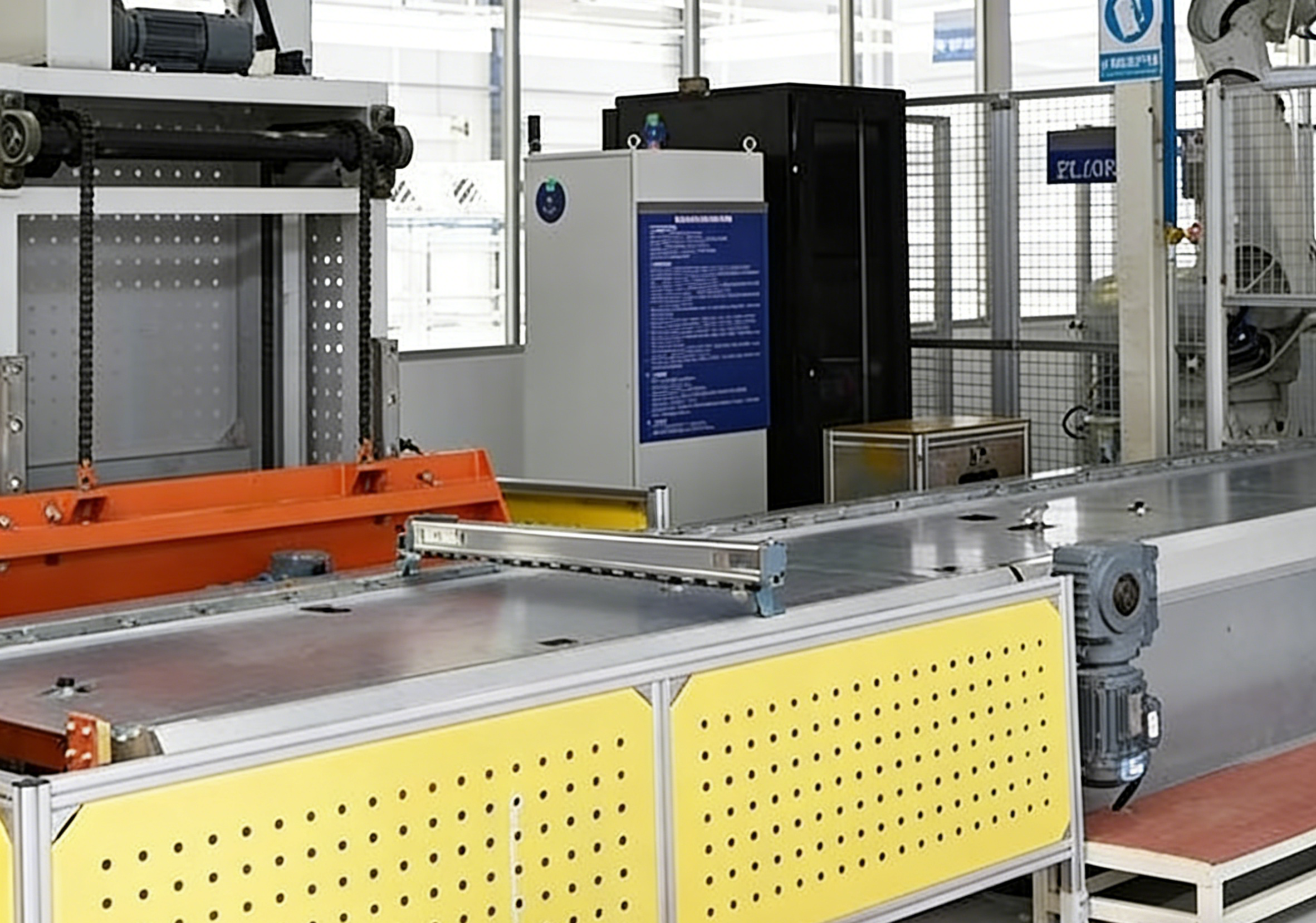

Active static control systems deploy high-speed bipolar ionizing bars and non-contact electrostatic sensors tailored for metal foil production. Unlike plastic film ionizing equipment, aluminum foil requires pulse DC ionizing hardware to avoid secondary surface oxidation from continuous corona discharge. Pulse DC ion emitters release balanced positive and negative ion clusters without sustained high-temperature corona, preventing microscopic surface oxidation discoloration on mirror-grade foil. Paired electrostatic sensors conduct real-time surface voltage sampling at 20Hz frequency, triggering dynamic ion output adjustment to match variable line speeds between 300m/min and 800m/min. This closed-loop architecture addresses floating foil contact and variable speed limitations that defeat passive solutions.

Hybrid passive-active integration delivers optimal cost-performance for existing line retrofits. New greenfield production lines adopt full active static control, while retrofitted aging lines combine conductive roller coating modification (passive) with localized ionizing bar deployment (active). Conductive silicone roller coating upgrades reduce roller-induced static generation by 53%, lowering required ion emitter operating power and extending hardware service life. The comparative performance table below supports budget allocation for engineering teams:

Critical hardware limitation: Standard continuous DC ionizing bars cannot be used for aluminum foil, as continuous corona creates microscopic aluminum oxide crystal spots that damage reflective surface quality. Only pulse DC ion technology meets aluminum foil surface finish requirements.

Stage-Based Static Control Deployment Checklist for Full Production Lines

Static hardware must be deployed at five fixed inline stations following foil movement sequence, with independent parameter thresholds for rolling, slitting, rewinding, annealing and coating stages.

Tandem double rolling exit stations represent the highest static generation point and require primary closed-loop ionizing bar installation. Hardware must be mounted 110mm above foil surfaces, covering the full 1600mm maximum foil width. The voltage threshold limit for this station is set to <300V due to immediate downstream slitting dust risks. Operators must calibrate ion balance to ±10V monthly to avoid uneven ion-induced surface discoloration. Most production teams mistakenly install ion bars too far downstream, failing to neutralize rolling separation static before foil enters slitting zones.

Slitting and edge trimming dust hoods require secondary local ionizing fans and dust pipeline internal grounding. Localized spot ion fans target suspended dust clouds within hoods, while pipeline inner conductive grounding strips dissipate particle collision static inside plastic dust ducts. This dual configuration addresses both foil surface static and airborne dust static, eliminating dual ignition sources. Weekly inspection must verify pipeline grounding continuity with resistance below 1 ohm per ISO 10015 standards.

Pre-coating entry stations require low-energy ion neutralization to avoid coating molecular disruption. High-energy ion emitters alter surface micro polarity and cause coating delamination, so low-output pulse ion hardware is mandatory for coating upstream zones. Annealing entry zones require no active ion equipment, only equipotential coil pallet grounding to dissipate residual static accumulated during warehouse transfer. The ordered deployment checklist standardizes site implementation for maintenance teams:

1. Rolling exit: Full-width pulse DC ionizing bars + overhead electrostatic sensors, threshold <300V

2. Slitting hood: Local spot ion fans + dust pipeline conductive grounding strips, threshold <500V

3. Rewind entry: Isolated roller conductive coating retrofits + pallet grounding straps

4. Annealing warehouse: Equipotential storage flooring for coil stacking zones

5. Coating upstream: Low-energy balanced ion emitters, no high-corona discharge allowed

Daily static audit workflows require twice-daily surface voltage sampling at all five stations, with automatic alarm triggering for readings exceeding threshold limits. Auditors must cross-verify sensor data with handheld electrostatic voltage meters quarterly to maintain measurement accuracy, aligning with dual-tool static verification standards established in prior electrostatic measurement blogs.

Conclusion

Aluminum foil production requires dedicated static control systems not despite aluminum’s metallic conductivity, but precisely due to ultra-thin floating layer isolation, insulated roller friction and mandatory low-humidity workshop operating constraints. Static hazards span quality, safety and post-processing performance domains: including costly surface yield loss, fatal aluminum dust deflagration risks, annealing indentation and coating failure. Passive grounding-only solutions are structurally incapable of mitigating these risks due to intermittent foil grounding contact during high-speed movement, making active closed-loop ion neutralization paired with passive conductive retrofits the only compliant long-term solution.

For consistent cross-industry electrostatic B2B content strategy, aluminum foil static control complements prior SMT and electrostatic sensor articles by extending static risk logic from electronic insulating substrates to conductive thin metal substrates. The core shared principle across all scenarios is that material conductivity does not eliminate floating static potential risks. Production managers should prioritize hybrid passive-active static retrofits for aging lines and full closed-loop active systems for new lines, following stage-specific deployment thresholds to balance safety compliance, yield improvement and operational cost control.
