In optical manufacturing, surface cleanliness and electrostatic control are critical factors that directly influence coating quality, optical performance, and product yield. Optical lenses—used in applications ranging from consumer electronics to precision scientific instruments—require ultra-clean surfaces prior to coating processes such as vacuum deposition, sputtering, or chemical vapor deposition.
Electrostatic charges accumulated on lens surfaces can attract airborne particles, leading to coating defects, reduced transmission efficiency, and compromised product reliability. Ionizing air bars (ion bars) are widely used to neutralize static charges before coating, ensuring optimal surface conditions.
This article provides a comprehensive analysis of electrostatic challenges in optical lens coating processes and explores the application, optimization, and benefits of ionizing air bars in pre-coating treatments.
Optical lenses are fundamental components in modern technology, including:
Cameras and smartphones
Medical imaging systems
Laser optics
Aerospace and defense equipment
The performance of these lenses depends heavily on the quality of surface coatings, which may include:
Anti-reflective (AR) coatings
Protective coatings
Reflective coatings
Functional thin films
Before coating, lenses must undergo rigorous cleaning and electrostatic control. Even microscopic contamination can result in:
Coating defects
Reduced optical clarity
Increased rejection rates
Electrostatic charges are a primary contributor to contamination. Ionizing air bars provide an effective solution by neutralizing these charges and preventing particle attraction.
Static charges are generated during:
Lens handling and transport
Cleaning processes
Drying operations
Interaction with plastic trays and carriers
Airflow in cleanroom environments
Optical lenses are often made from:
Glass
Polycarbonate
Acrylic
Specialty optical polymers
These materials can easily accumulate static, especially insulating polymers.
Optical coating typically occurs in cleanrooms:
Low humidity increases static buildup
Controlled airflow can distribute charged particles
Electrostatic charges can lead to:
Charged surfaces attract dust and contaminants, causing:
Pinholes
Surface defects
Coating irregularities
Static can affect:
Coating uniformity
Adhesion strength
Defects result in:
Reduced transmission
Increased scattering
Lower optical precision

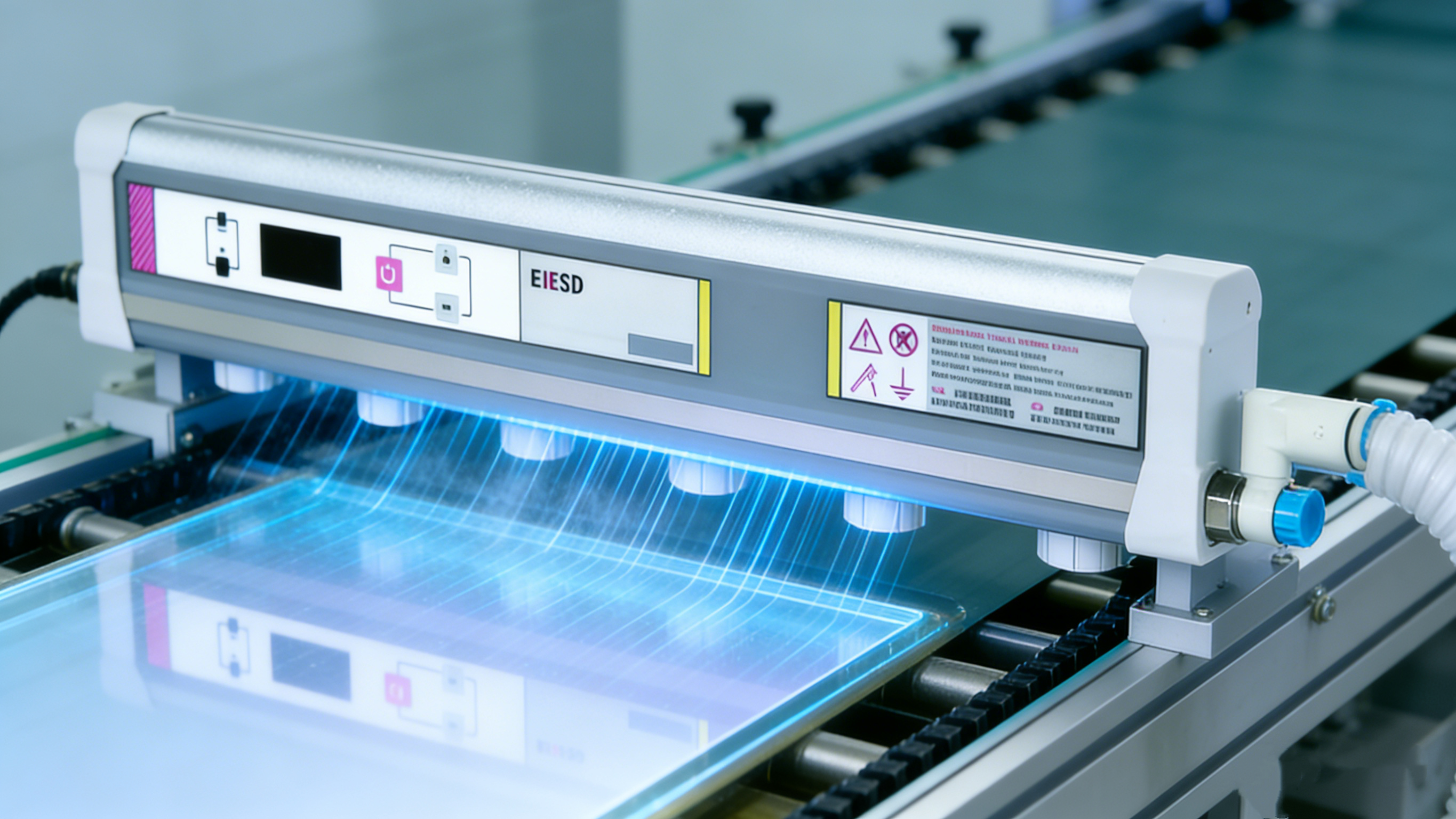

Ionizing air bars generate ions through high-voltage corona discharge:
Positive ions
Negative ions
These ions neutralize electrostatic charges on lens surfaces.
Balanced ion output ensures:
Effective neutralization
No residual charge
Target: ±10 V or better.
Compressed air improves:
Ion reach
Neutralization speed
Directional control
AC ion bars
DC ion bars
Pulsed DC ion bars
Each type offers different performance characteristics.
After cleaning:
Residual static remains
Ion bars neutralize charges before drying
Drying increases static due to:
Airflow
Evaporation
Ion bars prevent charge accumulation.
During transfer to coating chamber:
Static can reaccumulate
Ion bars ensure neutralization
Ion bars installed at chamber entry:
Provide final neutralization
Ensure optimal surface condition
Key placement points:
After cleaning
Before drying
At coating chamber entrance
Typical working distance:
100–300 mm
Ensure:
Full surface coverage
No dead zones
Critical factors:
Laminar airflow
Controlled pressure
Minimal turbulence
Ion bars can be integrated with:
Conveyor systems
Robotic handling
Automated cleaning lines
Measures neutralization speed:
Target: <1–2 seconds
Indicates ion balance:
Ideal: near 0 V
Higher density improves efficiency.
Consistent performance is essential.
Low humidity increases static:
Ion bars compensate effectively
Ion bars must:
Emit minimal particles
Use clean materials
Affects ion mobility.
Regular cleaning ensures:
Stable ion output
Maintains ion balance accuracy.
Advanced systems provide:
Real-time feedback
Alarm functions
Fewer defects
Better uniformity
Higher transmission
Reduced scattering
Lower rejection rates
Cleaner surfaces
Solution:
Optimize airflow
Reduce distance
Solution:
Coordinate with cleanroom airflow
Solution:
Use durable emitters
Implement maintenance schedules
IoT connectivity
Remote monitoring
Adaptive control
Predictive maintenance
Integration into small systems
In a high-precision coating facility:
Static levels exceeded 1000 V
Ion bars reduced levels to below 20 V
Defect rate decreased by 25%
Yield significantly improved
Smart manufacturing
Connected systems
Energy-efficient designs
Improved emitter durability
Electrostatic control is essential for ensuring high-quality optical lens coatings. Ionizing air bars provide an effective solution for neutralizing static charges before coating processes, significantly reducing contamination and improving product performance.
By optimizing system design, placement, and operation, manufacturers can achieve higher yields, better optical performance, and more reliable production processes.
As optical technologies continue to advance, the importance of precise electrostatic control will only increase, making ionizing air bars a critical component of modern optical manufacturing.
