Views: 0 Author: Site Editor Publish Time: 2026-05-16 Origin: Site
Static electricity is a common issue in industrial workshops, especially in industries such as electronics, printing, packaging, plastics, textiles, and precision manufacturing. Excessive static charge can attract dust, damage sensitive components, reduce production quality, and even create safety risks in environments with flammable materials. To solve these problems, many factories install ion air bars to neutralize static electricity efficiently.
However, simply purchasing an ion air bar is not enough. Correct installation distance and height play a critical role in ensuring stable performance and long-term efficiency. Improper positioning may lead to weak ionization effects, incomplete static elimination, or unnecessary energy consumption. Understanding the standard installation requirements can help workshops achieve better productivity and safer operations.
The standard installation distance of a workshop ion air bar is generally between 100 mm and 300 mm from the target surface, while the installation height depends on the production line structure and object size. Proper positioning ensures effective static elimination, uniform ion distribution, and stable operational performance.
Different industries and workshop layouts require different installation strategies. Factors such as conveyor speed, product material, humidity, airflow, and environmental cleanliness all influence the optimal installation height and distance. Therefore, workshop managers and engineers must understand the technical principles behind ion air bar placement.
This article explains the standard installation distance and height of workshop ion air bars in detail, including installation methods, influencing factors, common mistakes, maintenance recommendations, and application scenarios. By understanding these principles, manufacturers can maximize static control efficiency while improving overall production quality.
What Is A Workshop Ion Air Bar
Why Installation Distance And Height Matter
Standard Installation Distance For Ion Air Bars
Standard Installation Height In Different Workshops
Factors Affecting Ion Air Bar Installation
Common Installation Methods For Ion Air Bars
Typical Industrial Applications Of Ion Air Bars
Common Installation Mistakes And Solutions
Maintenance Tips After Installation
How To Improve Static Elimination Efficiency
Conclusion
A workshop ion air bar is a static elimination device that releases positive and negative ions to neutralize static electricity on material surfaces during industrial production.
Ion air bars are widely used in automated production lines where static electricity can affect product quality or operational safety. These devices use high-voltage ionization technology to generate balanced ions, which are carried by airflow toward the charged object surface. Once the ions contact the static charge, the electricity is neutralized rapidly.
Compared with traditional anti-static methods, ion air bars offer several advantages. They provide continuous static elimination, support high-speed production lines, and can work effectively on complex material surfaces. This makes them suitable for industries requiring stable electrostatic control.
Most workshop ion air bars are made from durable industrial materials such as aluminum alloy or stainless steel. The internal structure typically includes ion emitters, high-voltage modules, and airflow channels. Depending on the application, the air bar may operate with compressed air assistance or rely on natural airflow.
The effectiveness of an ion air bar depends heavily on installation conditions. Even high-performance equipment may fail to deliver optimal results if the installation distance or height is incorrect. Therefore, understanding proper positioning standards is essential for workshop efficiency.
The installation distance and height directly affect ion coverage, static neutralization speed, airflow distribution, and production efficiency.
The ionization process requires ions to travel from the emitter to the charged object surface. If the ion air bar is installed too far away, ions may disperse before reaching the target. This reduces neutralization efficiency and increases static retention time.
On the other hand, placing the ion air bar too close to the product surface can create uneven ion distribution. Excessive proximity may also interfere with moving products or damage sensitive materials due to concentrated airflow pressure.
Installation height is equally important because different production systems operate at different elevations. Conveyor belts, robotic arms, printing rollers, and packaging machines all require customized positioning. The height must ensure complete ion coverage without obstructing workflow.
Proper installation also improves workplace safety and equipment durability. Correct positioning reduces contamination buildup, prevents accidental collisions, and ensures stable airflow circulation within the workshop environment.
Correct installation positioning can significantly improve static elimination performance while reducing maintenance frequency and energy consumption.
The standard installation distance for most workshop ion air bars ranges from 100 mm to 300 mm from the target object surface.
The exact distance depends on the product material, static intensity, environmental humidity, and production speed. In most industrial applications, maintaining a moderate distance allows ions to spread evenly across the target area while maintaining sufficient neutralization strength.
The following table summarizes common installation distance recommendations:
Application Industry | Recommended Distance | Purpose |
|---|---|---|
Electronics Manufacturing | 100 mm to 150 mm | Precision static elimination |
Plastic Processing | 150 mm to 250 mm | Dust reduction and neutralization |
Printing Industry | 120 mm to 200 mm | Ink stability and paper control |
Packaging Production | 200 mm to 300 mm | Wide-area ion coverage |
Textile Industry | 150 mm to 250 mm | Fiber static reduction |
For high-speed production lines, shorter installation distances are usually preferred because ions need to neutralize static charges quickly before products move away from the treatment area. In slower production environments, slightly larger distances may still provide stable results.
Environmental conditions also influence the effective distance. High humidity environments naturally reduce static buildup, while dry environments require stronger ionization and closer installation spacing.
Workshop engineers often conduct on-site testing before finalizing the installation distance. Static field meters are commonly used to measure residual static charge levels and optimize ion air bar positioning.
The standard installation height depends on production line design, object dimensions, airflow direction, and operator safety requirements.
In conveyor-based systems, ion air bars are usually installed directly above or beside the moving products. The height is selected to ensure complete ion coverage while maintaining sufficient clearance for product movement.
Different industries may require different installation heights. For example, electronics workshops often install ion air bars lower to achieve precision neutralization, while packaging factories may position them higher for broader airflow coverage.
The following examples illustrate common installation heights:
Electronics assembly lines: 100 mm to 200 mm above products

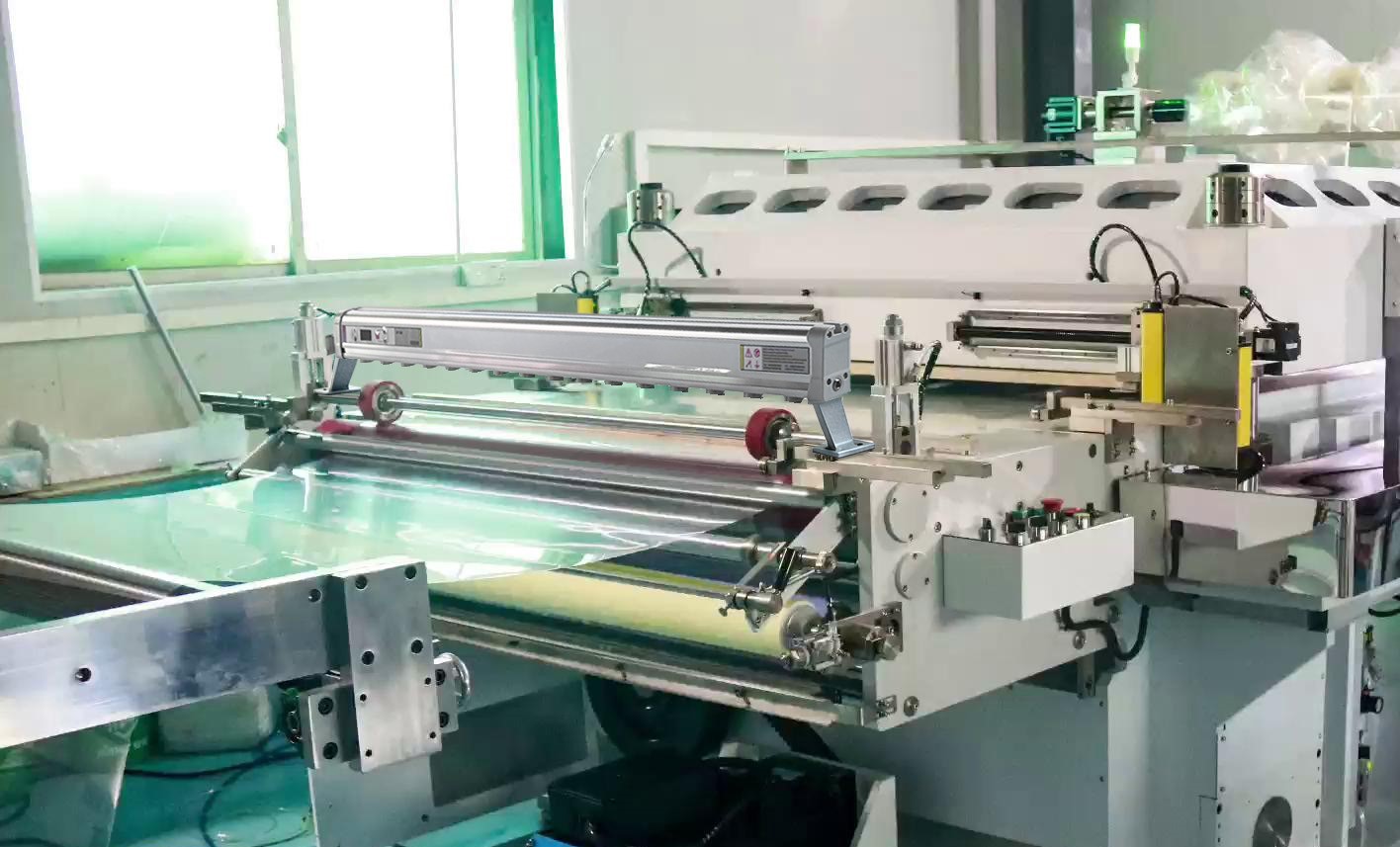

Plastic film production: 200 mm to 400 mm from roller surfaces
Printing equipment: 150 mm to 300 mm above paper paths
Textile processing lines: 250 mm to 500 mm from fabric surfaces
Packaging systems: 300 mm to 600 mm above conveyor belts
Airflow direction must also be considered when determining installation height. If external ventilation systems create strong air turbulence, the ion air bar should be positioned carefully to avoid ion dispersion.
In automated workshops, engineers may integrate adjustable mounting brackets to fine-tune installation height during production optimization. This allows flexible adaptation to different product sizes and process changes.
Several environmental and operational factors influence the optimal installation distance and height of ion air bars.
One of the most important factors is material type. Plastic materials tend to accumulate strong static charges and may require closer ion air bar positioning. Metal surfaces, however, discharge static more easily and may require less aggressive ionization.
Production speed also affects installation requirements. Faster production lines reduce ion exposure time, which means the ion air bar must be installed closer to the target surface for faster neutralization.
Environmental humidity significantly impacts static generation. Dry environments increase electrostatic buildup, especially during winter seasons or in air-conditioned workshops. In such conditions, installation distances may need adjustment to maintain effective ion coverage.
Other important factors include:
Workshop airflow conditions
Target object dimensions
Dust concentration levels
Operating temperature
Equipment vibration levels
Production line layout
Compressed air pressure stability
Another critical consideration is maintenance accessibility. Ion air bars should be installed at heights that allow easy cleaning and inspection. Poor accessibility can increase maintenance costs and reduce operational efficiency.
Ion air bars can be installed using top mounting, side mounting, angled positioning, or integrated machine mounting methods.
Top mounting is the most common installation method. In this configuration, the ion air bar is positioned directly above the production line. This allows ions to distribute evenly across the product surface while minimizing equipment interference.
Side mounting is often used when vertical space is limited. The air bar is installed beside the conveyor or processing equipment, directing ions horizontally toward the target surface.
Angled mounting provides better ion coverage in complex production environments. By adjusting the angle, engineers can improve airflow direction and increase ion concentration in critical areas.
Integrated machine mounting is common in automated manufacturing systems. The ion air bar becomes part of the equipment structure itself, improving stability and reducing installation complexity.
The following table compares installation methods:
Installation Method | Main Advantage | Typical Application |
|---|---|---|
Top Mounting | Uniform ion coverage | Conveyor systems |
Side Mounting | Space saving | Compact machines |
Angled Mounting | Improved airflow control | Complex production lines |
Integrated Mounting | High stability | Automated systems |
Ion air bars are widely used in industries that require electrostatic control, contamination reduction, and product quality protection.
In electronics manufacturing, static electricity can damage sensitive components such as integrated circuits and semiconductor devices. Ion air bars help neutralize static charges before assembly and packaging operations.
The printing industry also relies heavily on ion air bars. Static buildup on paper surfaces can cause ink instability, paper sticking, and printing defects. Properly installed ion air bars improve print quality and reduce material waste.
Plastic processing plants use ion air bars to minimize dust attraction on plastic films and molded products. Static control is especially important for transparent packaging materials where dust visibility affects product appearance.
Textile factories use ion air bars to reduce fiber attraction and improve material handling during weaving, cutting, and packaging operations. This helps improve product consistency and operator comfort.
Additional applications include:
Food packaging production
Medical equipment manufacturing
Automotive component assembly
Precision optical processing
Battery manufacturing lines
Label printing systems
Incorrect positioning, unstable airflow, poor grounding, and inadequate maintenance are the most common ion air bar installation mistakes.
One frequent mistake is placing the ion air bar too far from the target surface. This weakens ion concentration and reduces static elimination performance. Adjusting the installation distance closer to the recommended range usually solves this issue.
Another common problem is improper grounding. Ion air bars require stable grounding systems to ensure safe and balanced ion generation. Poor grounding can lead to unstable operation and reduced effectiveness.
Some workshops also ignore airflow interference. Strong ventilation systems may disperse ions before they reach the target surface. In these situations, engineers may need to reposition the ion air bar or adjust airflow direction.
The following table summarizes common problems and solutions:
Problem | Cause | Solution |
|---|---|---|
Weak static elimination | Excessive installation distance | Reduce distance |
Uneven ion coverage | Incorrect angle positioning | Adjust installation angle |
Frequent contamination | Poor maintenance | Regular cleaning |
Operational instability | Improper grounding | Improve grounding system |
Ion dispersion | Strong external airflow | Optimize ventilation direction |
Regular cleaning, inspection, calibration, and airflow monitoring are essential for maintaining ion air bar performance.
Over time, dust and contaminants accumulate on ion emitter points. This buildup reduces ion generation efficiency and may create unstable discharge performance. Regular cleaning helps maintain consistent ion output.
Maintenance schedules depend on workshop cleanliness and operating frequency. In dusty industrial environments, weekly cleaning may be necessary. Cleaner production facilities may only require monthly maintenance.
Operators should inspect mounting brackets and electrical connections regularly. Loose connections can affect ion balance and create operational safety risks.
Recommended maintenance procedures include:
Cleaning emitter needles with approved tools
Inspecting grounding systems
Checking airflow consistency
Testing ion balance performance
Verifying installation stability
Monitoring static elimination efficiency
Preventive maintenance not only improves performance but also extends equipment lifespan and reduces unexpected production downtime.
Optimizing installation distance, controlling humidity, improving airflow management, and performing regular maintenance can significantly improve static elimination efficiency.
One effective strategy is combining ion air bars with environmental humidity control. Moderate humidity levels reduce static generation naturally and improve ion neutralization efficiency.
Airflow optimization is another important factor. Controlled airflow ensures ions reach the target surface effectively without excessive dispersion. Some workshops install airflow shields to stabilize ion delivery.
Using multiple ion air bars in large production lines can also improve overall static control. Strategic positioning creates overlapping ion coverage zones, ensuring consistent neutralization across the entire production area.
Workshop managers should also conduct regular static testing using professional measurement equipment. Data-driven adjustments help optimize installation parameters and maintain stable long-term performance.
Employee training is equally important. Operators who understand proper ion air bar usage and maintenance procedures can identify issues early and reduce operational errors.
Workshop ion air bars play a vital role in industrial static control, product protection, and manufacturing efficiency. However, achieving optimal performance depends heavily on proper installation distance and height. In most applications, the recommended installation distance ranges from 100 mm to 300 mm, while installation height varies according to production line structure and operational requirements.
Factors such as material type, production speed, environmental humidity, airflow conditions, and workshop layout all influence the ideal installation configuration. Correct positioning ensures uniform ion distribution, stable static elimination, and improved production quality.
By understanding standard installation principles, avoiding common mistakes, and implementing regular maintenance procedures, manufacturers can maximize the effectiveness of ion air bar systems while improving operational safety and reducing production defects.
