High voltage ion air bars are widely used in industrial environments where static electricity control is critical for production quality, operational safety, and equipment protection. Industries such as electronics manufacturing, printing, packaging, plastics, textiles, medical devices, and semiconductor processing rely heavily on ionization technology to eliminate electrostatic charges generated during production processes. As industrial automation continues to advance, the demand for efficient and stable static elimination equipment has increased significantly.
The operating performance of a high voltage ion air bar directly depends on its circuit design, voltage stability, ion balance, airflow efficiency, and technical parameters. Understanding the circuit principle and key specifications helps engineers, procurement managers, and technical operators select the appropriate equipment for different industrial applications.
A high voltage ion air bar works by generating positive and negative ions through a high voltage circuit and emitter needles, then using airflow to neutralize static electricity on material surfaces quickly and efficiently.
In modern industrial production, electrostatic discharge can cause dust attraction, product defects, material adhesion, inaccurate printing, electronic component damage, and even fire hazards. High voltage ion air bars provide a reliable solution by continuously neutralizing electrostatic charges during manufacturing operations. Their effectiveness depends not only on mechanical construction but also on the precision of the internal high voltage generation circuit and operational parameters.
This article provides a comprehensive analysis of the circuit principle, working mechanism, technical parameters, performance indicators, installation considerations, and industrial applications of high voltage ion air bars. It also explains how to evaluate product specifications for different industrial environments and improve static control efficiency.
What Is A High Voltage Ion Air Bar
Working Principle Of High Voltage Ion Air Bar
Circuit Structure And Core Components
Technical Parameters And Their Meanings
Voltage Generation And Ionization Process
Importance Of Ion Balance And Stability
Airflow System And Static Elimination Efficiency
Safety Protection Mechanisms In High Voltage Circuits
Industrial Applications Of High Voltage Ion Air Bars
How To Choose The Right High Voltage Ion Air Bar
Maintenance And Troubleshooting Methods
Future Development Trends In Ion Air Bar Technology
A high voltage ion air bar is an industrial static elimination device that uses high voltage ionization and compressed airflow to neutralize electrostatic charges on material surfaces.
During industrial manufacturing processes, friction, separation, rolling, conveying, coating, and cutting operations generate static electricity. When static charges accumulate on surfaces, they can attract dust, damage sensitive electronic components, and interfere with product quality. The ion air bar is specifically designed to eliminate these electrostatic charges efficiently.
The device typically consists of a high voltage power supply, emitter needles, insulated housing, airflow channel, grounding system, and control circuitry. The high voltage power supply converts low voltage input into several thousand volts required for ion generation. The emitter needles create corona discharge, producing positive and negative ions that neutralize static charges.

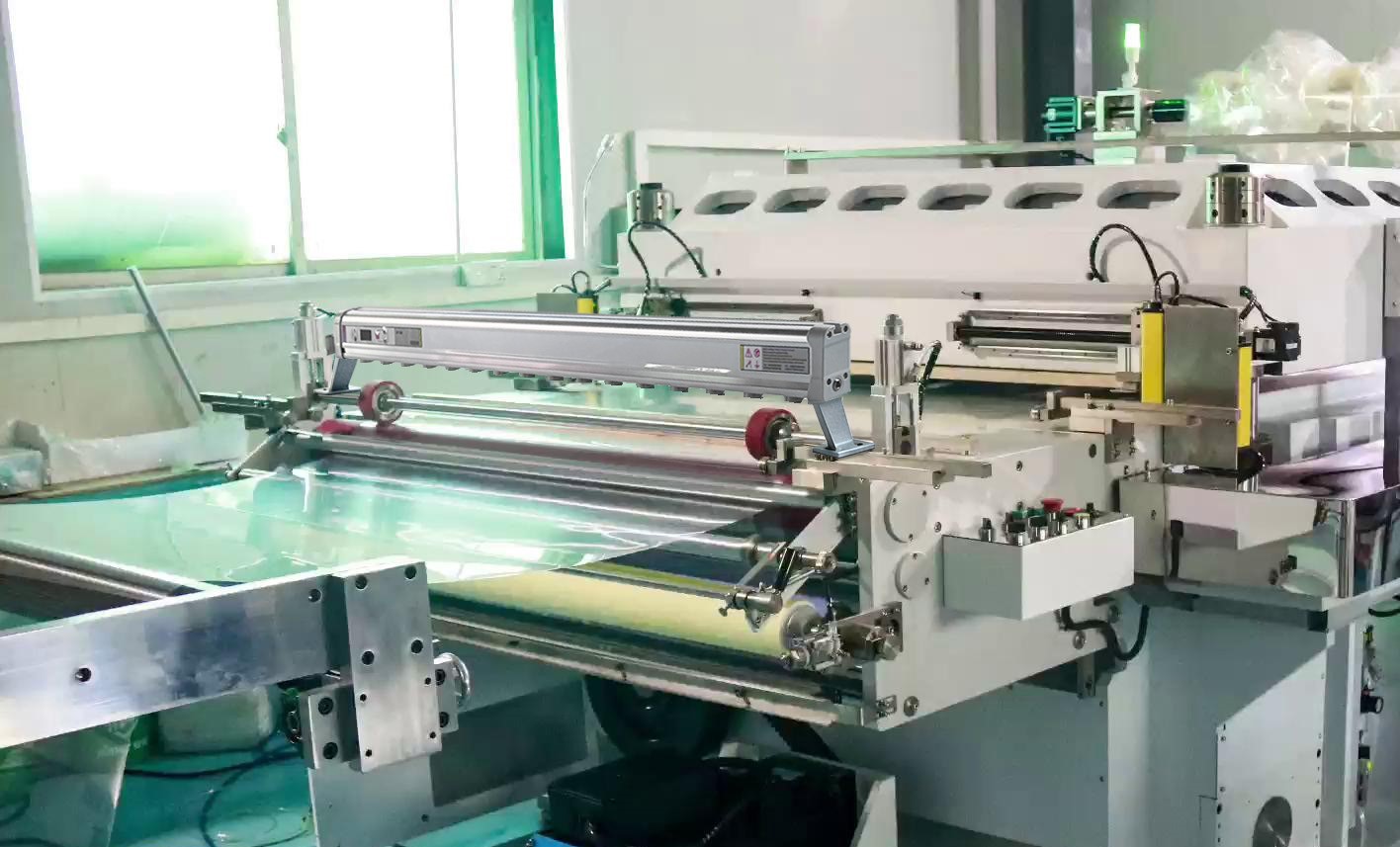

Ion air bars are commonly installed above conveyor lines, printing systems, film production equipment, packaging machinery, and electronic assembly lines. Compared with traditional static eliminators, high voltage ion air bars provide faster neutralization speed, longer operating distance, and more uniform ion distribution.
Common features of industrial ion air bars include:
Feature | Description |
|---|---|
High Voltage Output | Typically 3kV to 10kV |
Ion Generation | Positive and negative ions |
Airflow Assistance | Compressed air improves ion transport |
Static Neutralization | Rapid charge elimination |
Industrial Compatibility | Suitable for automated production lines |
The working principle of a high voltage ion air bar is based on corona discharge generated by high voltage electricity, which creates ions that neutralize static charges on object surfaces.
The ionization process begins when the high voltage power supply generates several thousand volts and applies it to the emitter needles. The strong electric field around the needle tips ionizes surrounding air molecules, producing both positive and negative ions.
When charged objects pass through the ionized airflow area, the ions are attracted to the opposite electrostatic charges on the object surface. Positive ions neutralize negative static charges, while negative ions neutralize positive static charges. This process rapidly reduces surface voltage and prevents electrostatic accumulation.
Compressed air plays an important role in the system. Without airflow, ions would remain concentrated near the emitter needles. The airflow transports ions toward the target surface, increasing neutralization speed and extending the operating range of the device.
The complete working process can be summarized as follows:
Input power enters the high voltage circuit
Transformer increases voltage to high levels
High voltage reaches emitter needles
Corona discharge ionizes surrounding air
Compressed airflow carries ions forward
Positive and negative ions neutralize static electricity
Surface voltage returns to a balanced state
The efficiency of this process depends heavily on voltage stability, ion balance, airflow pressure, emitter needle condition, and grounding quality.
The circuit structure of a high voltage ion air bar mainly includes a power conversion circuit, high voltage transformer, rectification module, control circuit, and ion emitter system.
The internal circuit design determines the reliability and static elimination performance of the equipment. Modern ion air bars use compact high frequency circuits to improve efficiency and reduce power consumption.
The input power circuit converts industrial AC power into stable low voltage DC power for internal operation. Voltage filtering components reduce electrical noise and improve output stability.
The oscillation circuit generates high frequency signals that drive switching transistors or MOSFET components. These signals are used to operate the high voltage transformer efficiently.
Advantages of high frequency switching technology include:
Reduced transformer size
Higher energy efficiency
Lower heat generation
Improved voltage stability
Better operational reliability
The transformer increases low voltage input to several kilovolts. Depending on system design, output voltage may range from 3kV to over 10kV. Stable transformer performance is essential for consistent ion generation.
Some systems use voltage multiplier circuits to further increase output voltage. Rectifiers convert alternating high voltage into the required polarity configuration for ionization.
The emitter needles are the most important ionization components. These needles are usually made from tungsten or stainless steel due to their excellent conductivity and corrosion resistance.
The sharp needle tips create intense electric fields necessary for corona discharge. Proper needle spacing ensures balanced ion distribution.
The technical parameters of a high voltage ion air bar determine its ionization efficiency, operational stability, safety performance, and industrial suitability.
Understanding technical specifications is essential when selecting equipment for industrial applications. Different production environments require different ionization capacities and airflow configurations.
Parameter | Typical Range | Function |
|---|---|---|
Operating Voltage | 3kV to 10kV | Controls ion generation intensity |
Input Power | 20W to 100W | Determines energy consumption |
Ion Balance | ±30V to ±50V | Indicates neutralization accuracy |
Air Pressure | 0.2MPa to 0.7MPa | Controls airflow delivery |
Static Decay Time | Less than 2 seconds | Measures neutralization speed |
Operating Distance | 100mm to 1000mm | Effective working range |
One of the most important parameters is ion balance. Poor ion balance can leave residual charges on surfaces, reducing product quality. High precision industrial systems require very stable ion balance values.
Static decay time is another critical indicator. Faster decay times improve production efficiency and reduce the risk of electrostatic contamination.
Environmental compatibility is also important. Some ion air bars are designed for cleanroom environments, while others are optimized for harsh industrial conditions involving dust, moisture, or chemical exposure.
The voltage generation process converts standard electrical power into high voltage energy capable of producing corona discharge and ionized airflow.
The ionization process starts with a switching power supply that produces high frequency electrical signals. These signals drive the transformer core, allowing efficient voltage amplification.
When voltage reaches the emitter needles, the electric field intensity around the needle tips becomes extremely high. Air molecules near the needle tips lose or gain electrons, forming positive and negative ions.
The ionization process involves several stages:
Electrical field formation
Air molecule excitation
Electron separation
Positive and negative ion generation
Ion transportation through airflow
Charge neutralization on target surfaces
Stable voltage output is essential for maintaining consistent ion production. Voltage fluctuations can reduce static elimination efficiency and affect production quality.
Modern systems often include feedback control circuits that automatically regulate voltage output according to environmental conditions and operational requirements.
Ion balance refers to the equilibrium between positive and negative ions generated by the ion air bar, which directly affects static neutralization accuracy.
If the ion output becomes unbalanced, surfaces may retain residual static charges after treatment. This issue is particularly critical in semiconductor manufacturing, precision electronics assembly, and optical film production.
Several factors affect ion balance stability:
Emitter needle contamination
Voltage instability
Grounding quality
Humidity variations
Airflow inconsistency
Circuit aging
High quality ion air bars use automatic balancing circuits to continuously monitor and adjust ion output. These systems improve operational consistency and reduce maintenance requirements.
In advanced industrial applications, ion balance values are closely monitored using electrostatic field meters. Stable ion balance improves production yield and minimizes electrostatic defects.
Accurate ion balance is essential for industries requiring high precision static control and contamination prevention.
The airflow system transports generated ions toward charged surfaces and significantly improves the efficiency and operating distance of static elimination.
Compressed air is commonly used in industrial ion air bars to increase ion delivery speed. Without airflow assistance, ions would disperse slowly and provide limited coverage.
The airflow system typically includes air channels, pressure regulators, nozzles, and filtration components. Proper airflow design ensures uniform ion distribution across wide surfaces.
Factors affecting airflow performance include:
Factor | Impact |
|---|---|
Air Pressure | Determines ion transport speed |
Nozzle Design | Affects airflow uniformity |
Air Cleanliness | Prevents contamination |
Distance To Target | Influences neutralization efficiency |
Humidity | Changes ion mobility |
In high speed production lines, optimized airflow systems ensure continuous static elimination even when materials move rapidly through processing equipment.
Some advanced systems integrate adjustable airflow control, allowing operators to customize ion delivery according to specific manufacturing conditions.
Safety protection mechanisms prevent electrical hazards, equipment damage, and operational failures in high voltage ion air bar systems.
Because ion air bars operate at several thousand volts, safety protection is extremely important. Industrial designs include multiple protective measures to ensure reliable long term operation.
Common safety protection mechanisms include:
Overvoltage protection
Short circuit protection
Overcurrent protection
Ground fault monitoring
Arc suppression circuits
Insulation shielding
Grounding systems are particularly critical. Poor grounding may reduce ionization efficiency and create electrical safety risks. Industrial installations should always follow proper grounding standards.
Many modern systems also include alarm indicators and automatic shutdown functions. These features help operators quickly identify faults and prevent equipment damage.
High quality insulation materials are used to separate high voltage components from external metal structures, reducing the risk of electrical leakage.
High voltage ion air bars are widely used in industries requiring efficient static elimination and contamination control.
Static electricity affects many industrial processes by attracting dust, causing material adhesion, and damaging electronic components. Ion air bars provide an effective solution across multiple sectors.
Electrostatic discharge can damage sensitive electronic components. Ion air bars protect circuit boards, semiconductor devices, and precision electronic assemblies.
Static charges can cause paper misalignment, ink transfer problems, and dust contamination. Ion air bars improve print quality and production stability.
Plastic films generate strong static charges during rolling and cutting operations. Ionization systems prevent film adhesion and contamination.
Static elimination improves labeling accuracy, packaging consistency, and material handling performance.
Ion air bars reduce static buildup on synthetic fibers, improving production efficiency and operator safety.
Industry | Main Benefit |
|---|---|
Electronics | ESD protection |
Printing | Dust reduction |
Plastics | Material separation |
Packaging | Improved handling |
Textiles | Reduced static adhesion |
Selecting the correct high voltage ion air bar requires evaluating voltage requirements, airflow capacity, installation environment, and static elimination performance.
Different industrial applications require different technical specifications. A device suitable for electronics manufacturing may not perform effectively in heavy industrial environments.
Important selection factors include:
Static charge intensity
Target material type
Production line speed
Installation distance
Environmental conditions
Required ion balance accuracy
Air supply availability
For cleanroom applications, low particle generation and stable ion balance are essential. For packaging or plastic processing industries, stronger airflow and wider coverage may be more important.
Maintenance accessibility should also be considered. Easy cleaning and emitter needle replacement reduce operational downtime.
Buyers should compare technical specifications carefully rather than focusing only on initial equipment cost. Long term reliability and performance stability provide greater industrial value.
Regular maintenance ensures stable ionization performance, longer equipment lifespan, and reliable static elimination efficiency.
Over time, emitter needles accumulate dust and contamination, reducing ion generation efficiency. Regular cleaning is necessary to maintain proper performance.
Common maintenance procedures include:
Cleaning emitter needles
Checking grounding connections
Inspecting airflow channels
Monitoring voltage stability
Replacing damaged components
Testing ion balance values
Common operational problems include unstable ion output, reduced neutralization speed, electrical noise, and insufficient airflow. These issues are often caused by contamination, improper grounding, aging circuits, or damaged emitters.
Preventive maintenance significantly reduces unexpected production downtime and improves operational consistency.
Industrial facilities often establish scheduled maintenance programs to ensure continuous static control performance in critical production environments.
Future ion air bar technology is developing toward intelligent control, higher efficiency, lower energy consumption, and improved environmental adaptability.
Modern industrial automation requires more precise static control systems. Intelligent ion air bars now integrate sensors, digital monitoring systems, and automatic adjustment functions.
Emerging technological trends include:
Real time ion balance monitoring
Automatic voltage adjustment
Remote diagnostic systems
Energy efficient power circuits
Compact high frequency designs
Smart industrial integration
Advanced materials are also improving durability and corrosion resistance. Tungsten alloy emitters and high performance insulation materials increase operational lifespan.
As semiconductor manufacturing and precision electronics industries continue to grow, demand for highly stable ionization systems will increase further. Future equipment will likely provide faster response times, more accurate ion balance control, and lower maintenance requirements.
Environmental considerations are also influencing product development. Energy efficient circuits and optimized airflow systems help reduce operational costs and improve sustainability.
High voltage ion air bars play a critical role in industrial static electricity control by generating balanced ions through high voltage corona discharge technology. Their performance depends on multiple factors, including circuit design, voltage stability, ion balance, airflow efficiency, and safety protection mechanisms.
Understanding the circuit principle and technical parameters helps manufacturers, engineers, and industrial buyers select suitable equipment for different applications. From electronics manufacturing to printing, plastics, textiles, and packaging industries, ion air bars improve product quality, operational safety, and production efficiency.
With continuous advancements in intelligent control systems, high frequency power circuits, and precision ionization technology, future high voltage ion air bars will deliver even greater performance, reliability, and energy efficiency for modern industrial environments.
