In the high-precision world of display manufacturing—from LCD and OLED panels to cutting-edge flexible screens—even the smallest disruptions can lead to costly defects, reduced yield, and compromised product reliability. Among the most persistent yet invisible threats in this industry is electrostatic discharge (ESD) and static electricity buildup, which can damage delicate components, attract contaminants, and ruin high-value displays at every production stage. Enter ion fans: the unsung heroes of static control, designed to neutralize harmful static charges, eliminate dust adhesion, and maintain a pristine manufacturing environment. As a foundational ESD protection device, ion fans have become indispensable in modern display production lines, safeguarding everything from glass substrates and thin films to finished panels. This article explores the core functions, key applications, benefits, and best practices of ion fans in display manufacturing, highlighting why they are a non-negotiable investment for display producers worldwide.
Display manufacturing is a highly sensitive process involving ultra-thin glass substrates (0.3–0.7 mm), delicate thin-film transistors (TFTs), organic light-emitting diodes (OLEDs), color filters, polarizers, and precision assembly components. All these materials—especially plastics, films, and glass—are prone to static electricity generation through friction, peeling, rolling, or contact with machinery during production. Unlike other manufacturing industries, display production occurs in cleanroom environments (ISO 5–7 standards), where even microscopic dust particles (1–10 μm) can cause permanent defects like pixel dead spots, color unevenness, or screen scratches. Static electricity exacerbates this problem dramatically:
ESD Damage to Delicate Components: Static charges can build up to 5,000–10,000 volts on unprotected display components, far exceeding the damage threshold of TFT circuits, OLED pixels, and driver ICs. A single ESD event can punch tiny holes in thin films, burn out transistors, or cause latent defects that lead to premature screen failure after customer use.
Dust and Contaminant Adhesion: Statically charged surfaces act like magnets, attracting airborne dust, lint, and micro-particles in cleanrooms. These contaminants stick tightly to glass substrates, color filters, or polarizers, causing visible defects during coating, lamination, or testing—leading to product rejection and yield loss.
Process Disruptions and Alignment Errors: Static buildup causes films or substrates to stick together, misalign during lamination/assembly, or move erratically on production lines. For high-precision processes like photolithography, etching, or FOG (Flexible on Glass) bonding, even minor misalignment can ruin entire panels.
Reduced Product Reliability: Static-induced defects often go undetected during quality control, resulting in field failures (e.g., flickering screens, sudden blackouts) and increased customer returns—harming brand reputation and profitability.
Without effective static control, display manufacturers can face 30–50% higher defect rates in critical processes, translating to millions in annual losses. This is where ion fans emerge as the primary solution to mitigate these risks.

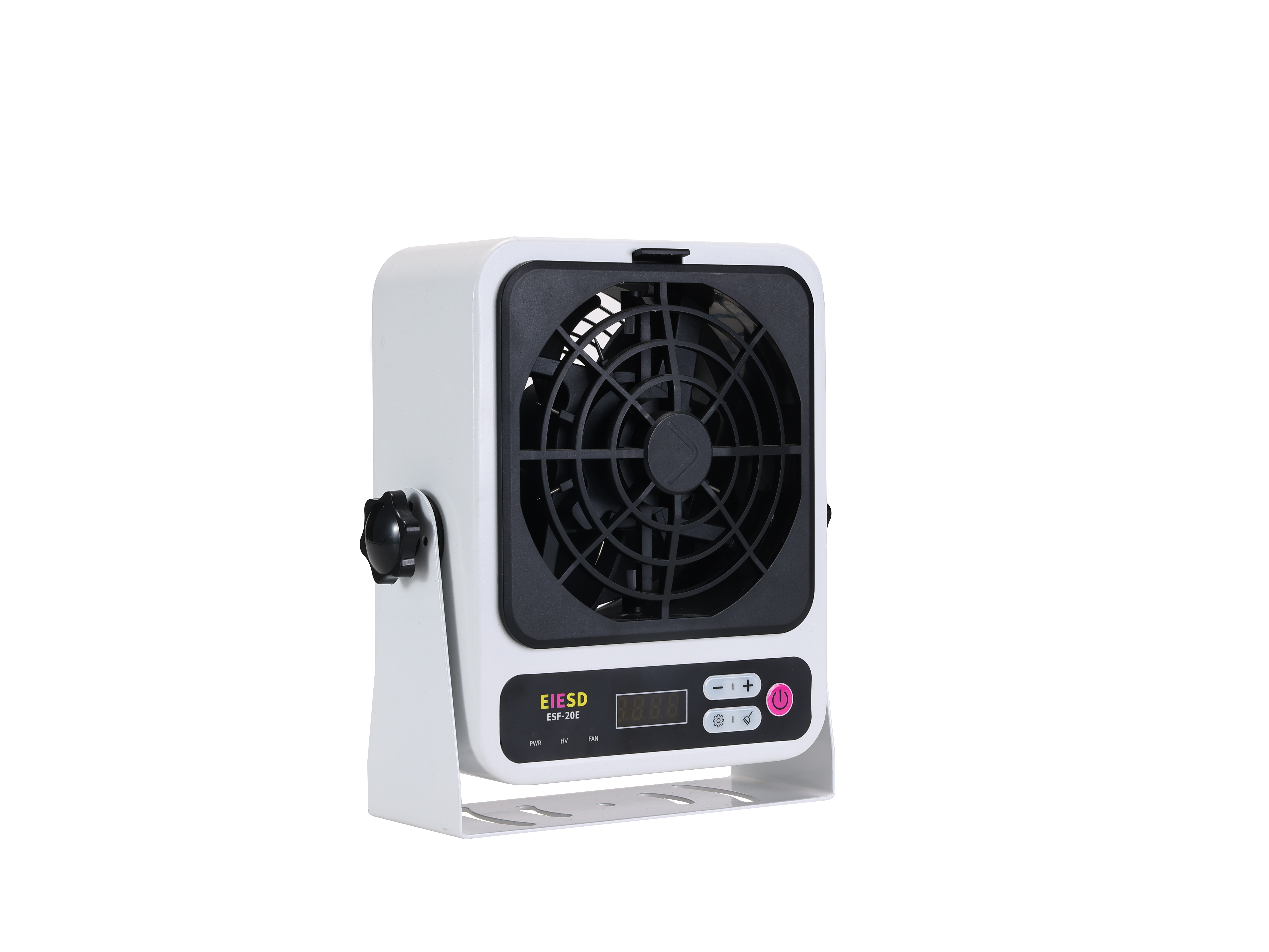

Ion fans (also called ionizing air blowers) are specialized ESD protection devices designed to generate and deliver balanced positive and negative ions to neutralize static charges on surfaces and in the air. Their working principle is simple yet highly effective, involving three core components: a high-voltage power supply, corona discharge electrodes, and a blower system. Here’s a step-by-step breakdown:
Ion Generation: The high-voltage power supply delivers low-current, high-voltage electricity to metal discharge needles (electrodes). This creates a strong electric field at the needle tips, which ionizes surrounding air molecules into a mixture of positive ions (e.g., H₃O⁺) and negative ions (e.g., O₂⁻).
Ion Delivery: The built-in blower pushes the ion-rich airflow uniformly toward the target area (e.g., a display substrate or assembly station).
Charge Neutralization: When the ionized air contacts a statically charged surface:
Positively charged surfaces attract negative ions from the airflow.
Negatively charged surfaces attract positive ions from the airflow.
Rapid Static Elimination: The opposite charges cancel each other out, neutralizing the static charge on the surface. This process typically takes 1–3 seconds, reducing surface voltage to a safe range (±5V to ±50V, well below component damage thresholds).
Advanced ion fans feature precision ion balance control (±5V to ±10V) to avoid over-ionization, adjustable airflow speed, and real-time monitoring for performance stability. Unlike passive ESD solutions (e.g., anti-static mats or grounding straps), ion fans actively neutralize static charges on both surfaces and in the surrounding air, making them ideal for large or hard-to-reach areas in display production.
Display manufacturing involves 10+ critical stages from raw material processing to final assembly and testing. Ion fans are deployed at every high-risk static generation point, with tailored solutions (desktop, overhead, hanging, or conveyor-mounted ion fans) for different processes. Below are their most vital applications:
Glass substrates (TFT array, color filter, and cover glass) are the foundation of all displays. During cutting, grinding, or ultrasonic cleaning, friction between glass and machinery generates significant static charges. These charges attract dust during cleaning or cause substrates to stick together during transportation. Overhead ion fans (mounted above conveyor lines) deliver broad-coverage ionized air to neutralize static on glass surfaces, preventing dust adhesion and substrate misalignment.
Thin film processes—including TFT layer deposition, OLED organic material coating, and polarizer film lamination—are ultra-sensitive to static and dust. Even a single dust particle can create a pinhole in thin films, causing pixel defects. Desktop or nozzle-type ion fans are installed directly above coating stations to neutralize static on films before deposition, ensuring uniform coating quality and zero dust contamination. For large-scale roll-to-roll film production, side-mounted ion fans eliminate static during film unwinding/rewinding, preventing wrinkling or static-induced film breakage.
Photolithography (pattern transfer using photomasks) and etching (circuit formation) are the most precise steps in display manufacturing, requiring zero static interference. Static charges on photomasks or wafers can distort light patterns during exposure, leading to circuit pattern errors. High-frequency ion fans (with ±10V ion balance) are used in photolithography cleanrooms to maintain a static-free environment, ensuring pattern accuracy and yield.
Lamination processes—such as bonding flexible circuits (FOG) to glass, attaching optical clear adhesive (OCA) films, or assembling LCD/OLED panels—are prone to static buildup from peeling and pressing. Static charges cause films to misalign, bubble, or stick prematurely. Hanging ion fans (mounted above lamination machines) blow ionized air vertically onto the bonding area, neutralizing static and ensuring bubble-free, precise lamination. This is critical for flexible OLED displays, where even minor bonding defects ruin panel flexibility and performance.
LCD displays rely on backlight modules (BLU) consisting of light guides, diffuser films, and LED strips. During BLU assembly, static from film stacking and LED installation can damage LED chips or attract dust to light guides, causing bright/dark spots on the screen. Conveyor-integrated ion fans are installed along BLU assembly lines to neutralize static on components before assembly, ensuring uniform backlight performance.
Before shipping, displays undergo rigorous testing (pixel, color, and touch testing) and packaging. Static charges on finished panels can cause test errors (e.g., false touch signals) or attract dust during packaging. Desktop ion fans at testing stations neutralize static on panels, ensuring accurate test results. For packaging, ion fans eliminate static on anti-static bags or foam, preventing panels from recharging during shipping.
The widespread adoption of ion fans in display production stems from their multifaceted benefits that directly address the industry’s biggest pain points—low yield, high defect rates, and unreliable products. Below are their most impactful advantages:
By eliminating static-induced dust adhesion and ESD damage, ion fans cut defect rates by 30–50% in critical processes like coating, lamination, and photolithography. For large display manufacturers producing 100,000+ panels monthly, this translates to 5,000–10,000 fewer rejected panels—saving millions in material and labor costs.
Ion fans ensure uniform static neutralization across all production stages, eliminating variability caused by static charges. This results in displays with consistent color accuracy, zero pixel defects, and reliable touch performance—critical for meeting strict quality standards of premium brands (e.g., smartphones, TVs, and automotive displays).
Display components like TFT substrates, OLED panels, and driver ICs are extremely expensive, with some high-end panels costing hundreds of dollars each. Ion fans prevent irreversible ESD damage to these components, avoiding costly replacements and reducing scrap rates. Additionally, by extending the lifespan of production machinery (static can damage sensitive equipment electronics), ion fans lower maintenance costs.
Static-induced issues like film sticking, substrate misalignment, or test errors cause frequent production line stoppages. Ion fans eliminate these disruptions, ensuring smooth, continuous production. With faster static neutralization (1–3 seconds) and low maintenance requirements, ion fans maximize uptime and throughput.
Display manufacturing cleanrooms must adhere to ISO 5–7 cleanliness standards and industry ESD regulations (e.g., ANSI/ESD S20.20). Ion fans are certified to meet these standards, providing a reliable static control solution for cleanrooms. Unlike compressed air cleaning (which can introduce oil mist or contaminants), ion fans deliver oil-free, dry ionized air—preserving cleanroom integrity.
Static electricity buildup in production areas can cause sparks that ignite flammable materials (e.g., OCA adhesives) in display manufacturing. Ion fans eliminate this fire risk, enhancing workplace safety. Additionally, advanced ion fans produce negative oxygen ions (1,000–5,000 ions/cm³) that purify air by reducing suspended particles and volatile organic compounds (VOCs)—creating a healthier work environment for operators.
To maximize the effectiveness of ion fans, display manufacturers must follow industry best practices for selection, installation, and maintenance:
Choose the Right Ion Fan Type: Select ion fans based on process requirements:
Desktop ion fans: For small workstations (e.g., FOG inspection, small panel assembly).
Overhead/hanging ion fans: For large conveyor lines or cleanroom-wide static control.
High-frequency ion fans: For ultra-precise processes (e.g., photolithography, OLED coating).
Optimize Installation Layout:
Position ion fans 30–60 cm above the target surface for optimal ion coverage.
Ensure airflow direction aligns with cleanroom FFU (Fan Filter Unit) airflow to avoid turbulence.
Install ion fans at all static generation points (e.g., film unwinding, lamination, cleaning stations).
Regular Calibration and Maintenance:
Calibrate ion fans monthly using an ion balance tester to ensure voltage remains within ±5V to ±10V.
Clean discharge needles and filters weekly to remove dust buildup, which reduces ion generation efficiency.
Replace worn discharge needles (every 6–12 months) to maintain consistent performance.
Integrate with ESD Monitoring Systems: Use smart ion fans with real-time monitoring and remote alert capabilities (e.g., RS485 communication) to track performance and detect faults early.
Combine with Comprehensive ESD Protection: Ion fans work best as part of a holistic ESD program, including anti-static flooring, grounding straps, anti-static clothing for operators, and proper equipment grounding.
In the ultra-competitive display manufacturing industry, where precision, quality, and yield are everything, ion fans are no longer optional—they are a fundamental requirement for success. By neutralizing static electricity, eliminating dust adhesion, and protecting delicate components, ion fans address the root causes of defects and yield loss, enabling manufacturers to produce high-quality, reliable displays while reducing costs and improving efficiency.
As display technology continues to evolve—with thinner, lighter, and more flexible panels becoming mainstream—the demand for advanced static control solutions like ion fans will only grow. For display manufacturers looking to stay ahead of the competition, investing in high-quality ion fans and implementing best practices for their use is not just a smart move—it’s essential for long-term growth and profitability.
Whether you’re producing LCD, OLED, or flexible displays, integrating ion fans into your production line is the key to unlocking consistent quality, maximum yield, and uncompromised product reliability in every panel you make.
