The Functions and Applications of Ionizing Air Bars
In the modern industrial landscape, static electricity has long been an invisible threat that undermines product quality, disrupts production efficiency, and even poses safety risks to operators and equipment. From electronics manufacturing to printing, textiles, and plastics processing, static charges can cause a range of issues—from dust attraction and product jamming to costly component damage and electrostatic discharge (ESD) hazards. To address these challenges, ionizing air bars have emerged as a critical static control solution, offering reliable, efficient, and versatile static neutralization across diverse industrial environments. This article explores the core functions, working principles, key features, industry applications, and practical benefits of ionizing air bars, providing a comprehensive overview for businesses seeking to optimize their production processes and mitigate static-related risks.
At its essence, an ionizing air bar is a specialized static elimination device designed to neutralize static electricity on the surfaces of objects and in the surrounding air. Unlike traditional static control methods—such as grounded brushes, which require direct contact with the target surface—ionizing air bars operate without physical contact, making them ideal for delicate materials and high-speed production lines. The primary function of an ionizing air bar is to generate and deliver a balanced stream of positive and negative ions, which neutralize the static charges on targeted surfaces by canceling out excess positive or negative electrons.
Static electricity forms when two materials come into contact and separate, causing an imbalance in electron distribution. For example, in plastic processing, the friction between plastic films and machine rollers generates static charges; in printing, the movement of paper through rollers can accumulate static, leading to paper jams or ink misalignment. Ionizing air bars address this by emitting ions that are attracted to the charged surface: positive ions neutralize negative static charges, while negative ions neutralize positive charges. This process restores the surface to an electrically neutral state, eliminating the adverse effects of static electricity.
Beyond basic static neutralization, ionizing air bars offer additional functional benefits, including dust and contaminant removal, process stabilization, and operator safety enhancement. These extended functions make them indispensable in industries where precision, product quality, and workplace safety are paramount.
The operation of an ionizing air bar is rooted in the principle of corona discharge, a process that ionizes air molecules to produce positive and negative ions. Here’s a detailed breakdown of the working mechanism:
1. High-Voltage Generation: Ionizing air bars are equipped with an internal high-voltage power supply (either built-in or external) that converts standard electrical input (110V/220V AC) into high-voltage DC or pulsed AC power—typically ranging from ±5kV to 12kV, depending on the model. This high voltage is delivered to a series of emitter points (also known as discharge needles) along the length of the bar.
2. Corona Discharge and Ion Formation: When the high voltage reaches the emitter points (usually made of durable materials like tungsten, titanium, or stainless steel), the electric field around the needle tips becomes strong enough to break down air molecules (a process called ionization). This ionization splits air molecules (primarily oxygen and nitrogen) into positive ions (O₂⁺, N₂⁺) and negative ions (O₂⁻, N₂⁻), creating a cloud of balanced ions around the emitter points.
3. Ion Delivery: The generated ions are then delivered to the charged surface. This delivery can occur in two ways: natural ion migration (for close-range applications) or via compressed air (for longer distances or larger surfaces). Compressed air-powered ionizing air bars use a stream of compressed air (typically at 0.1–0.6 MPa) to propel ions across greater distances, ensuring effective neutralization even in large or hard-to-reach areas.
4. Charge Neutralization: When the ion stream reaches the charged surface, the excess electrons on a negatively charged surface attract positive ions, while the deficit of electrons on a positively charged surface attracts negative ions. This exchange of ions cancels out the static charge, bringing the surface to an electrically neutral state (ion balance ≤ ±30V for most industrial models, with high-precision models achieving ±20V or better).
5. Real-Time Monitoring and Adjustment: Advanced ionizing air bars feature built-in sensors and feedback systems that monitor ion balance and static decay time. If the ion balance drifts or the static decay time increases (indicating reduced performance), the device automatically adjusts the high-voltage output to maintain optimal neutralization efficiency. Some models also include high-voltage fault alarms (red light indicators) to alert operators to malfunctions, ensuring consistent performance.
Ionizing air bars are designed to meet the diverse needs of industrial applications, with a range of features that enhance their functionality, reliability, and ease of use. Below are the most notable features and their associated benefits:
One of the most critical performance metrics of an ionizing air bar is its static decay time—the time required to neutralize a static charge from a specified voltage (e.g., 5kV) to near zero. High-performance models achieve decay times of ≤2 seconds at a distance of 300mm, with some advanced models reaching 0.1–0.3 seconds for close-range applications. This rapid neutralization is essential for high-speed production lines (e.g., printing, packaging, and textile manufacturing), where static charges can form quickly and disrupt the process if not addressed immediately.
Ion balance refers to the ratio of positive to negative ions emitted by the device. A balanced ion output (50:50 ratio) ensures that static charges are neutralized evenly, preventing over-ionization (which can create new static charges) and ensuring compatibility with a wide range of materials. Most ionizing air bars offer adjustable ion balance, allowing operators to fine-tune the device for specific materials (e.g., delicate electronics, thin plastic films, or textiles) and environmental conditions.
Safety is a top priority in industrial environments, and modern ionizing air bars are engineered with shockless technology. Even when energized, the low-current discharge from the emitter points prevents hazardous electric shocks to operators, even if they come into accidental contact with the device. This feature is particularly important in industries where operators work closely with static control equipment, such as electronics assembly and packaging.
Ionizing air bars are built to withstand harsh industrial environments, with rugged housings made of anodized aluminum, flame-retardant PVC, or stainless steel. The emitter points are constructed from durable materials (e.g., stainless steel, tungsten) that resist wear and corrosion, ensuring long service life. Additionally, most models require minimal maintenance—typically only periodic cleaning of the emitter points to remove dust and debris that can reduce ionization efficiency.
Ionizing air bars are available in a range of lengths (from 335mm to 3000mm or more, with custom lengths available) and can be mounted horizontally or vertically, making them suitable for diverse installation scenarios. Many models come with adjustable mounting brackets or flanges, allowing easy integration into existing machine frames. Some also offer adjustable discharge frequency (0.1–105Hz) and output voltage, enabling customization for specific application needs.
Ionizing air bars are designed to operate in a wide range of environmental conditions, with working temperatures ranging from 0°C to 50°C and relative humidity below 70%. This versatility ensures reliable performance in industries such as plastics (where temperatures can be high) and food packaging (where humidity control is critical). Additionally, some models are certified to international standards (e.g., CE, IEC 61340-5-1) for electromagnetic compatibility and safety, ensuring compliance with global industrial regulations.
The versatility and effectiveness of ionizing air bars make them suitable for a wide range of industries, where static control is essential for product quality and production efficiency. Below are the most common applications:
In electronics manufacturing, static electricity poses a significant risk to sensitive components such as circuit boards, microchips, and semiconductors. Even a small electrostatic discharge can damage these components, leading to product failure and costly rework. Ionizing air bars are used in cleanrooms, assembly stations, and conveyor lines to neutralize static charges on components, prevent dust attraction (which can cause short circuits), and protect operators from ESD hazards. They are particularly useful in SMT (Surface Mount Technology) processes, where delicate components are handled at high speeds.
Static electricity is a common problem in printing (offset, flexographic, screen printing) and packaging operations. It can cause paper jams, ink smudging, misalignment of labels, and adhesion of plastic films to rollers. Ionizing air bars are mounted along printing presses, labelers, and packaging machines to neutralize static on paper, film, and packaging materials. This ensures smooth material feeding, consistent print quality, and reduced waste. For example, in bag-making and form-fill-seal processes, ionizing air bars prevent plastic films from sticking together, improving production speed and product quality.
Plastics and rubber materials are prone to static buildup due to friction during extrusion, molding, cutting, and packaging. Static charges can cause plastic parts to stick to molds, rollers, or each other, leading to production delays and defective products. Ionizing air bars are used in plastic extrusion lines, injection molding machines, and slitting machines to neutralize static on plastic films, sheets, and parts. They also help remove dust and debris from plastic surfaces, ensuring a clean finish for products such as plastic bottles, packaging films, and automotive components.
In textile manufacturing, static electricity can cause fibers to cling together, leading to tangles, yarn breaks, and uneven fabric quality. Ionizing air bars are installed in spinning, weaving, and finishing machines to neutralize static on fibers, yarns, and fabrics. This improves fiber handling, reduces yarn breaks, and ensures consistent fabric texture. They are also used in garment manufacturing to prevent static cling between fabrics and sewing machines, improving production efficiency.

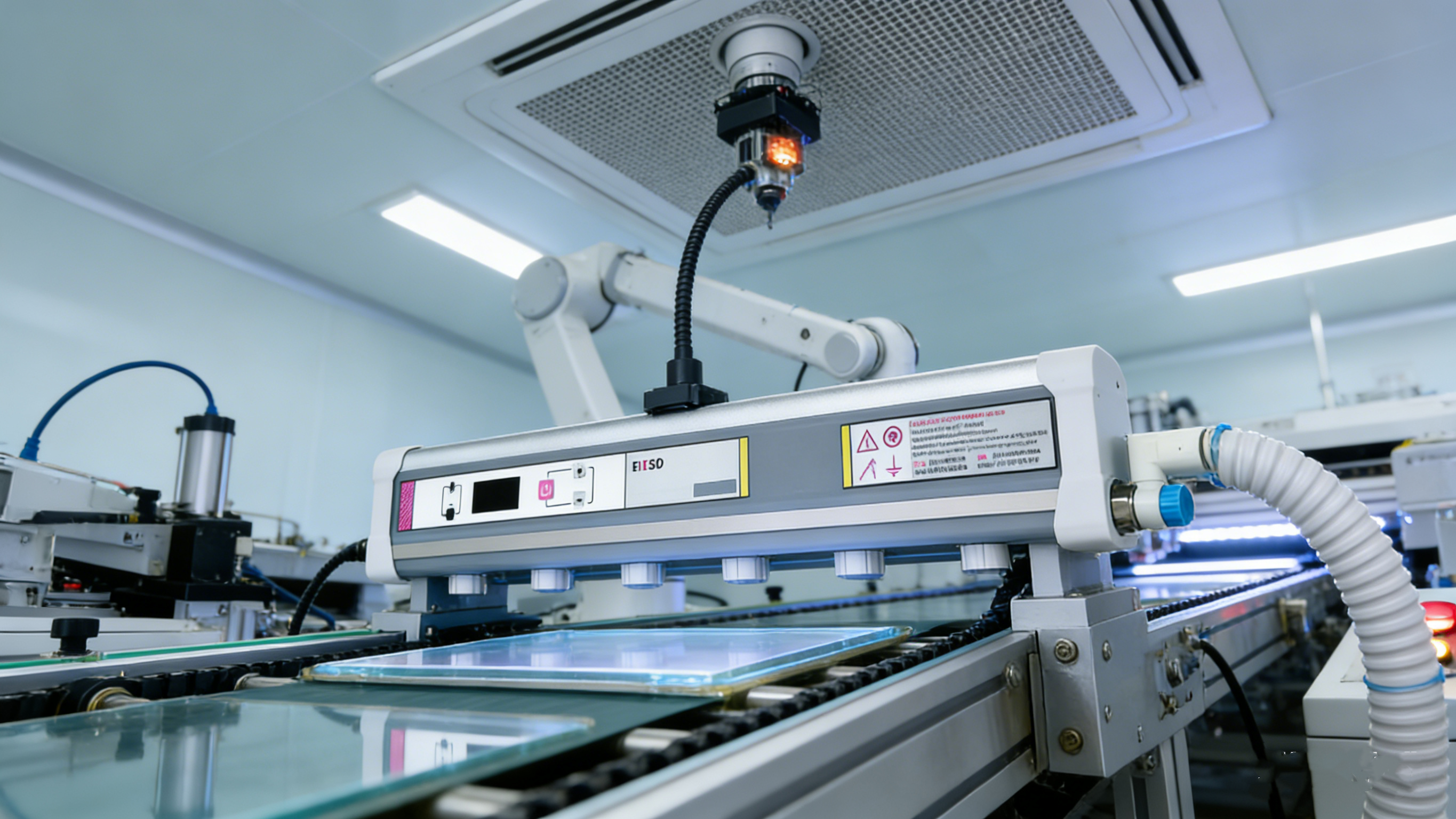

Optoelectronic components (e.g., LEDs, LCD panels, optical lenses) are extremely sensitive to static electricity and dust. Ionizing air bars are used in cleanrooms and assembly stations to neutralize static charges on these components, prevent dust attraction, and ensure precise assembly. Their aerodynamic design ensures that ionization occurs without disturbing laminar airflow, making them ideal for ultra-clean environments.
In food and pharmaceutical packaging, static electricity can attract dust, debris, and contaminants to packaging materials, compromising product safety and hygiene. Ionizing air bars are used to neutralize static on packaging films, bottles, and containers, ensuring a clean surface for packaging. They are also used in food processing lines to prevent static-related issues such as product sticking to conveyors or packaging machines.
When selecting an ionizing air bar, it’s important to consider the specific requirements of your application to ensure optimal performance. Key factors to consider include:
• Working Distance: Determine the distance between the ionizing air bar and the target surface. Models with natural ion migration are suitable for close-range applications (up to 100mm), while compressed air-powered models can cover distances up to 1000mm or more.
• Static Decay Time: For high-speed production lines, choose a model with fast decay time (≤2 seconds) to ensure rapid neutralization.
• Ion Balance: Select a model with adjustable ion balance for compatibility with diverse materials.
• Length and Installation: Choose a bar length that matches the width of your production line or target surface. Ensure the model offers flexible mounting options for easy integration.
• Environmental Conditions: Consider the temperature and humidity of your workspace to select a model that can operate reliably in those conditions.
• Safety and Certification: Look for models with shockless design and international certifications (CE, IEC) to ensure compliance with safety standards.
Ionizing air bars are essential static control devices that play a critical role in modern industrial production. By neutralizing static electricity, they eliminate a range of issues—from dust attraction and product jamming to component damage and operator safety hazards—while improving production efficiency and product quality. Their versatile design, fast static decay time, precise ion balance control, and durability make them suitable for diverse industries, including electronics, printing, plastics, textiles, and food packaging.
As industrial processes become more automated and precise, the demand for reliable static control solutions continues to grow. Ionizing air bars offer a cost-effective, low-maintenance, and safe way to mitigate static-related risks, ensuring that businesses can optimize their production processes, reduce waste, and deliver high-quality products. Whether you’re operating a high-speed printing press, an electronics assembly line, or a plastic extrusion plant, an ionizing air bar is a valuable investment that can enhance productivity, protect equipment and operators, and maintain a competitive edge in the global market.
By understanding the core functions, working principles, and applications of ionizing air bars, businesses can make informed decisions when selecting and implementing static control solutions, ensuring long-term success and operational excellence.
