Cleanroom Requirements in Optical Lens Manufacturing

The production of high-precision optical lenses demands an exceptionally clean and controlled environment. Even the smallest airborne particle—smaller than what the human eye can detect—can cause surface defects, coating irregularities, optical distortion, or permanent contamination. To guarantee high performance and long-term stability of optical components, strict cleanroom standards and dust-control measures are essential throughout the entire manufacturing process.

1. Importance of Dust Control in Optical Manufacturing

Optical lenses require flawless surface accuracy and transparency. Dust, fibers, skin flakes, and chemical residues can lead to:

Scratches or pits during polishing

Bubbles or spots in coating layers

Light scattering and decreased transmittance

Defects visible in imaging or illumination systems

Yield loss, rework, and increased failure rates

Because optical surfaces are extremely sensitive, dust control is a critical part of quality assurance.

2. Cleanroom Classification Requirements

Different production stages require different cleanroom classes. Typical standards include:

ISO Class 5–6 (Class 100–1000)

Used for ultra-precision steps such as coating, cleaning, and final assembly of high-performance lenses.

ISO Class 7–8 (Class 10,000–100,000)

Suitable for lens grinding, polishing, inspection, and packaging areas.

Cleanrooms must maintain strict limits on particulate concentration, airflow velocity, pressure differentials, and temperature/humidity levels.

3. Environmental Controls

3.1 Air Filtration and Circulation

HEPA or ULPA filters remove particles down to 0.1 µm.

Laminar flow hoods provide a uniform, particle-free air stream over critical work areas.

Positive pressure prevents unfiltered air from entering clean zones.

3.2 Temperature and Humidity

Temperature: typically 22°C ± 1°C

Humidity: 40%–60% RH to reduce static buildup and particle adhesion.

Proper environmental stability helps maintain both material integrity and precision alignment.

3.3 Anti-Static Measures

Static charges can attract dust. To prevent this:

Anti-static flooring and workbenches

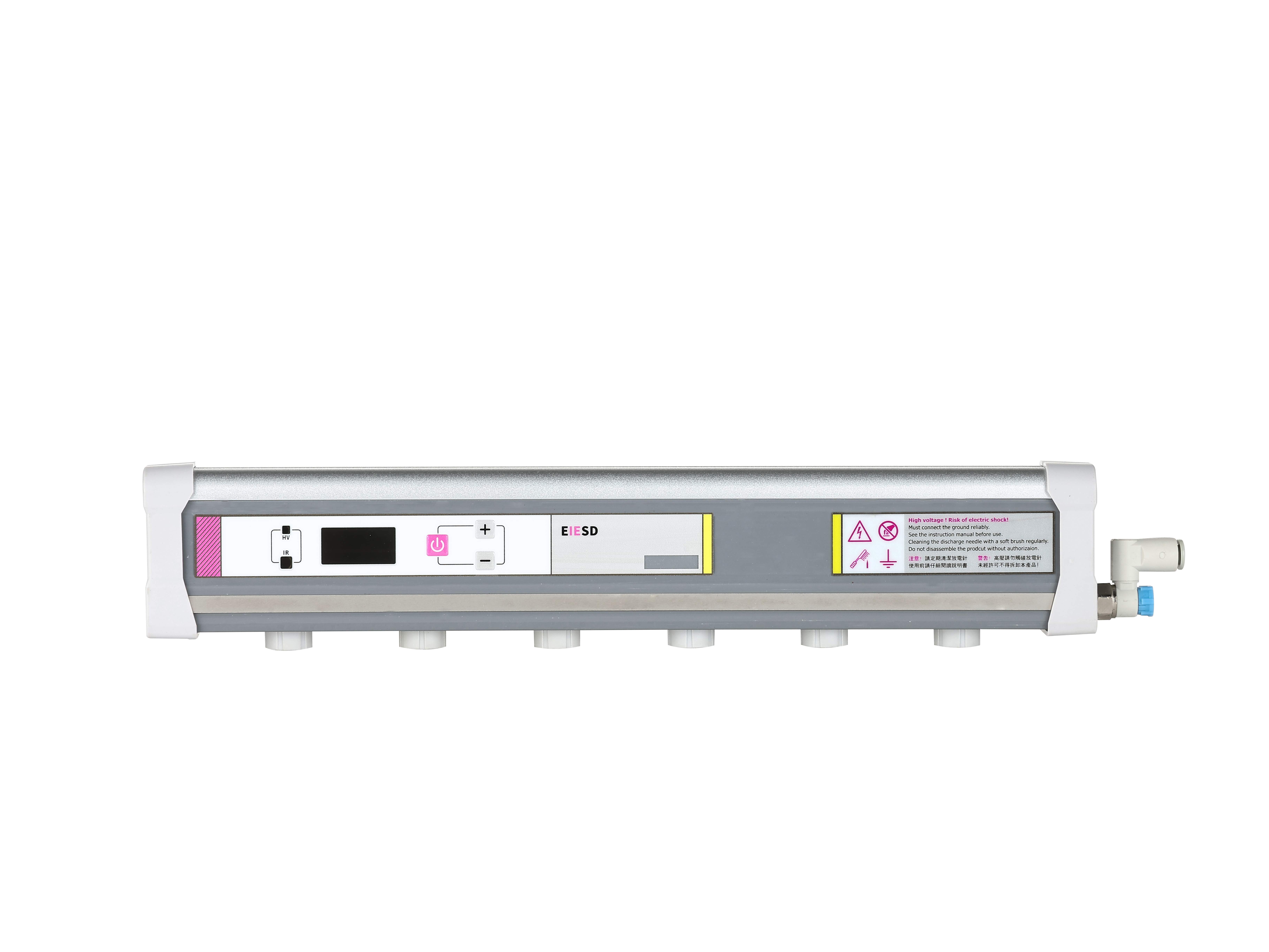

Ionizers in workstations

Anti-static gloves, garments, and tool surfaces

These measures help reduce airborne particle attraction to the lens surface.

4. Personnel Requirements

Human operators are the largest source of contamination. Therefore:

4.1 Cleanroom Garments

Personnel must wear:

Dust-free coveralls

Hoods, masks, and goggles

Anti-static gloves

Shoe covers or ESD footwear

Clothing must be made from low-lint, anti-static materials.

4.2 Entry Procedures

Air showers to remove loose particles

Multiple-door buffer zones

Strict gowning protocols

Regular training on cleanroom discipline

Behavior rules—such as minimal movement, no touching of face or hair, and slow arm motions—further reduce particle generation.

5. Process and Equipment Cleanliness

5.1 Cleaning of Materials and Tools

Ultrasonic cleaning for lens blanks

Pure water (DI water) and filtered solvents

Particle-free wipes and non-linting materials

Regular equipment cleaning schedules

5.2 Production Equipment

Machines and tools must be:

Constructed with low particle-emitting materials

Equipped with localized exhaust systems where needed

Routinely inspected and serviced to prevent contamination buildup

6. Lens Coating and Assembly Cleanliness

This is the most particle-sensitive phase.

6.1 Coating Chambers

Ultra-clean vacuum environment

Pre-bake and plasma cleaning to remove micro-contaminants

Continuous monitoring of pressure and particle counts

6.2 Final Assembly

Performed in ISO Class 5–6 clean areas

Lenses handled with vacuum tweezers or soft anti-static tools

Strict avoidance of fingerprints, microdust, or moisture

6.3 Inspection and Packaging

Inspection areas must match the cleanliness level of assembly

Packaging materials must be anti-static, low-outgassing, and dust-free

Sealed packaging prevents contamination during storage or shipping

7. Monitoring, Auditing, and Continuous Improvement

Effective cleanroom management requires:

Periodic particle counts and airflow tests

Regular inspection of filters and HVAC systems

Cleanroom garment inspections

Process audits for operator compliance

Trend analysis on contamination-related defects

Continuous improvement reduces variation and maintains high optical quality.

8. The Value of a Dust-Free Optical Manufacturing Environment

Strict dust control ensures:

High surface accuracy and optical clarity

Stable performance in cameras, sensors, and precision instruments

Lower defects and higher production yields

Stronger product reliability and customer satisfaction

For optical lens manufacturers, maintaining a dust-free environment is not just a requirement—it is a core competitive advantage.
