ESD Protection in Semiconductor Assembly and Test Facilities

Electrostatic discharge (ESD) is one of the most critical reliability threats in semiconductor assembly and test environments. As device geometries continue to shrink and integration levels increase, even extremely small electrostatic potentials—sometimes less than 100 volts—can cause irreversible damage to sensitive components. Effective ESD protection within the packaging and testing facility is therefore essential to ensure product yield, long-term device reliability, and compliance with international standards.

1. Understanding ESD Risks in Packaging and Testing

Semiconductor assembly and test operations involve extensive handling, movement, and processing of bare dies, wire bonds, lead frames, substrates, and packaged devices—all of which can accumulate or release static charges.

Primary ESD Risks Include:

Die damage: Thin gate oxides are vulnerable to breakdown from tiny ESD events.

Wire bond weakening: High-voltage discharges may melt or fracture aluminum or gold wires.

Latch-up in ICs: ESD-induced current can trigger parasitic structures in CMOS devices.

Latent defects: Devices may appear normal after testing but fail prematurely in the field.

Yield loss: Even one uncontrolled ESD event can damage hundreds of chips in automated handling equipment.

ESD control must therefore be integrated into every step—from wafer probing to packaging, final electrical test, and shipment.

2. Key Sources of Static Charge in Assembly/Test Areas

Static generation is common in semiconductor facilities due to:

Friction and separation of materials, e.g., tapes, trays, molding compounds, and plastic packaging.

Automated equipment, such as handlers, pick-and-place heads, conveyors, and test sockets.

Human operators, who are major sources of charge through clothing, shoes, or movement.

Environmental factors, including low humidity and air flows from cleanroom ventilation.

Understanding these mechanisms is essential for targeted controls.

3. ESD Control Strategies in the Packaging and Test Process

A comprehensive ESD protection program consists of multiple layers designed to eliminate or neutralize charge before it reaches sensitive devices.

3.1 Grounding and Bonding Systems

Ensuring all conductive and dissipative materials are properly grounded is the foundation of ESD control.

ESD-safe flooring with grounding grids

Wrist straps and heel straps for operators

Grounding of workbenches, equipment frames, trays, racks, and carts

Regular inspection of grounding resistance

Automated handlers and testers must maintain consistent electrical bonding to safely dissipate accumulated charge.

3.2 EPA (Electrostatic Protected Area) Design

The assembly/test floor should be structured as a well-defined EPA:

Clear zoning: All ESD-sensitive devices (ESDS) must stay inside controlled areas.

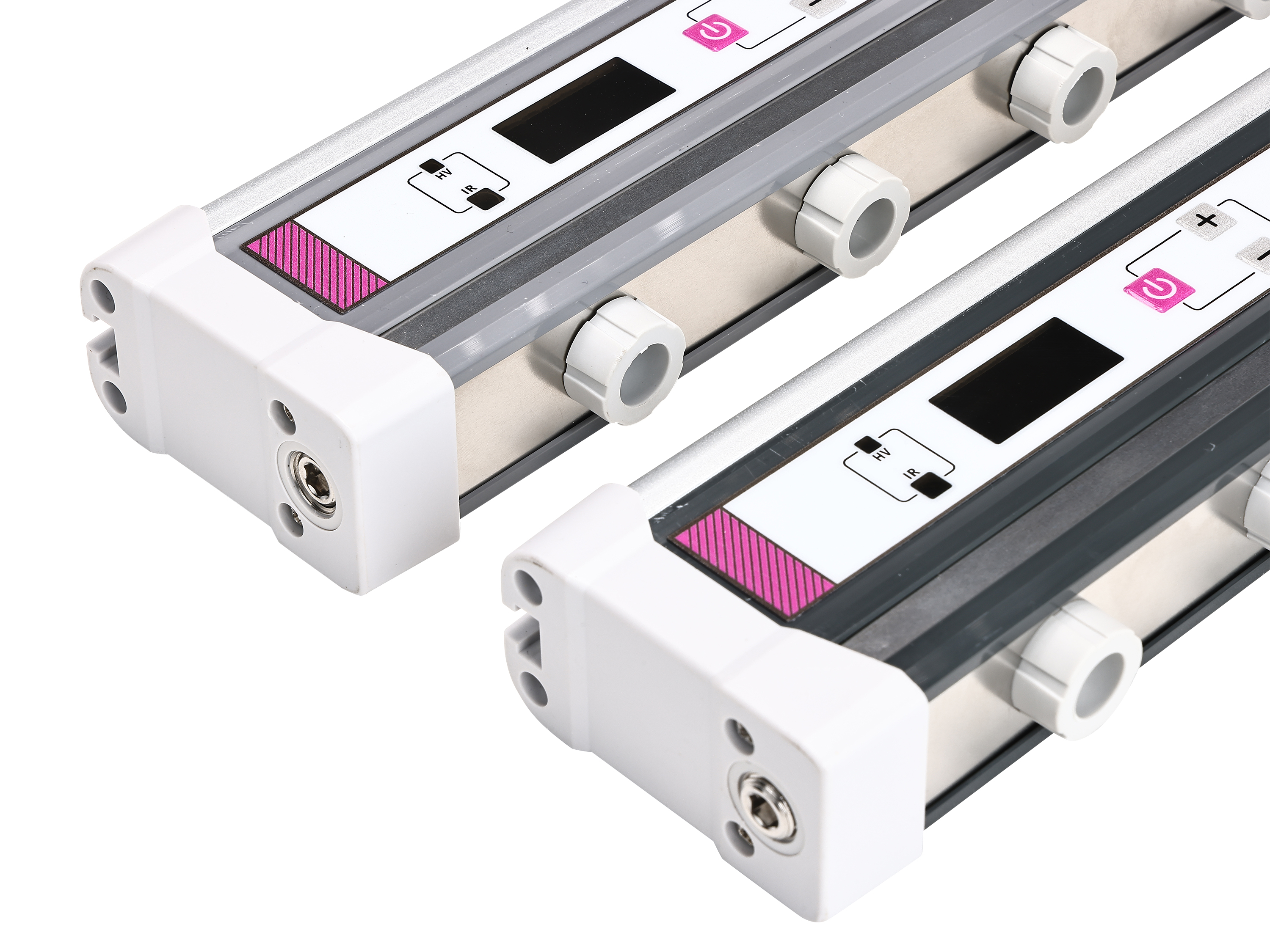

Ionization systems: Overhead or localized ionizers neutralize charge on non-conductive materials.

Conductive furniture and tools: Work surfaces, tweezers, and containers should be antistatic.

ESD warning signs to indicate restricted areas.

3.3 Control of Materials and Handling Equipment

Materials selection is crucial because many components and tools used in packaging/testing are inherently insulating.

Antistatic trays, wafer carriers, and device tubes

Low-charging conveyor belts and robotic grippers

ESD-safe molding compounds and encapsulation materials

Static-dissipative packaging materials for internal transport

Equipment should integrate:

Charge monitors

Ground verification systems

Static sensors on critical points of handlers and test contactors

3.4 Operator Controls and Training

Since human operators are major sources of charge, proper behavior is essential.

Mandatory ESD garments (smocks, conductive shoes)

Verification systems for wrist and heel straps at entry

Training on safe handling, EPA discipline, and incident reporting

Regular refreshers ensure long-term program effectiveness.

3.5 Environmental Control

Maintaining proper environmental conditions helps prevent static buildup.

Humidity control (typically 40–60% RH)

Proper cleanroom airflow design to avoid high-velocity charge generation

Temperature stability to minimize material interactions

3.6 Testing and Monitoring the ESD Control Program

Continuous monitoring ensures ESD systems operate effectively:

Periodic audits using ANSI/ESD S20.20 or IEC 61340 standards

Static field measurements around equipment

Resistance tests for flooring, benches, and tools

Real-time monitoring of ionizer balance and performance

Device-level ESD stress testing during new product introduction

4. ESD Control Throughout Key Packaging/Test Processes

4.1 Die Attach & Wire Bonding

Ground bonding tools

Use of ionizers near bond heads

Controlled discharge paths for die carriers

4.2 Encapsulation / Molding

Control of static charges on molding compounds

Grounding of molds, transfer pots, and runners

4.3 Sawing, Trimming & Forming

Dissipative tape and film materials

Ionized airflow at cutting points

4.4 Final Test & Inspection

Static control on test handlers, contactors, and load boards

Ionization inside pick-and-place mechanisms

Conductive sockets with proper grounding

4.5 Packing and Shipping

Use of antistatic bags, boxes, and ESD labels

Final device verification before sealing

5. Conclusion

ESD protection in semiconductor assembly and test facilities is not a single component but a complete ecosystem of grounding, environmental control, materials engineering, equipment design, and operator discipline. A robust ESD control program reduces device failure rates, enhances yield, and ensures long-term reliability of semiconductor products.

With device sensitivities decreasing each year, proactive and continuous improvement of ESD protection systems is essential for maintaining global manufacturing competitiveness.
