Electrostatic Hazards in Photovoltaic (PV) Cell Manufacturing

Electrostatic Hazards in Photovoltaic (PV) Cell Manufacturing

In the manufacturing of high-efficiency photovoltaic (PV) cells, electrostatic discharge (ESD) presents a silent yet significant threat. As PV technologies continue to evolve toward thinner wafers, finer metallization patterns, and increasingly complex semiconductor structures, the sensitivity to static electricity has risen sharply. Uncontrolled ESD can damage cells at any stage of production, leading to yield loss, micro-cracks, performance degradation, or long-term reliability failures in the field.

1. Why Static Electricity Is Dangerous in PV Cell Manufacturing

PV cell manufacturing involves a series of high-precision semiconductor and surface-processing steps, such as texturing, diffusion, passivation, PERC/TOPCon tunnel oxide formation, and fine-line metallization. These processes produce extremely delicate wafers only 150–180 µm thick.

Electrostatic discharge can cause:

1.1 Direct Electrical Damage

Localized melting or burning on wafer surfaces

Breakdown of passivation layers or tunnel oxide

Destruction of ultra-thin dielectric structures

Degradation of surface recombination characteristics

1.2 Mechanical Damage

Even small electrostatic forces can attract wafers to surfaces or cause sudden releases, leading to:

Micro-cracks in thin silicon wafers

Edge chipping from unintended contact

Increased breakage during downstream handling

1.3 Contamination and Particle Attraction

Electrostatic charges attract dust and airborne particles, resulting in:

Defects during coating and metallization

Non-uniform passivation or ARC layers

Increased cell-to-cell performance variation

1.4 Latent Defects

Some cells may pass electrical tests but fail prematurely in module assembly or field operation due to ESD-induced micro damage.

2. Where Static Hazards Occur in the PV Cell Production Line

Static risk exists throughout the entire manufacturing process:

2.1 Wafer Handling and Sorting

Automation arms picking up wafers

Transfer between cassettes and carriers

High friction between wafers or trays

2.2 Cleaning, Texturing, and Wet Processes

Drying steps generate frictional charge

Handling equipment may accumulate static

2.3 Diffusion, PECVD, ALD, and Oxide Formation

Wafers exiting high-temperature steps experience charge imbalance

Dielectric layers are extremely ESD-sensitive

2.4 Screen Printing or Laser Metallization

Fine-line metallization is vulnerable to localized ESD burns

ESD can reduce contact uniformity and increase series resistance

2.5 Inspection and Sorting

Electrostatic attraction can pull particles onto the wafer

Classification equipment often has high-speed motion that builds charge

Across the line, static is continuously generated from surfaces, friction, movement, and environmental conditions.

3. Consequences for Yield and Performance

Uncontrolled static electricity leads to:

Higher wafer breakage rate

Increased micro-crack formation

Reduced cell efficiency due to increased recombination

More coating defects and uniformity issues

Early failures during module lamination or field operation

Decreased overall factory yield and throughput

Static-related defects often appear random and hard to trace, making prevention essential.

4. Key Protection Measures Against Static Electricity

To protect PV cells from ESD hazards, manufacturers adopt a comprehensive control strategy including:

4.1 Environmental Controls

Maintain humidity levels of 40%–60% RH to reduce charge buildup

Use anti-static flooring and grounded equipment

Ensure stable airflows and minimal turbulence

4.2 Equipment and Process Grounding

All tools, conveyors, robotic arms, and metal frames must be properly grounded

Regular checks for grounding continuity

Use conductive or dissipative materials for wafer carriers and trays

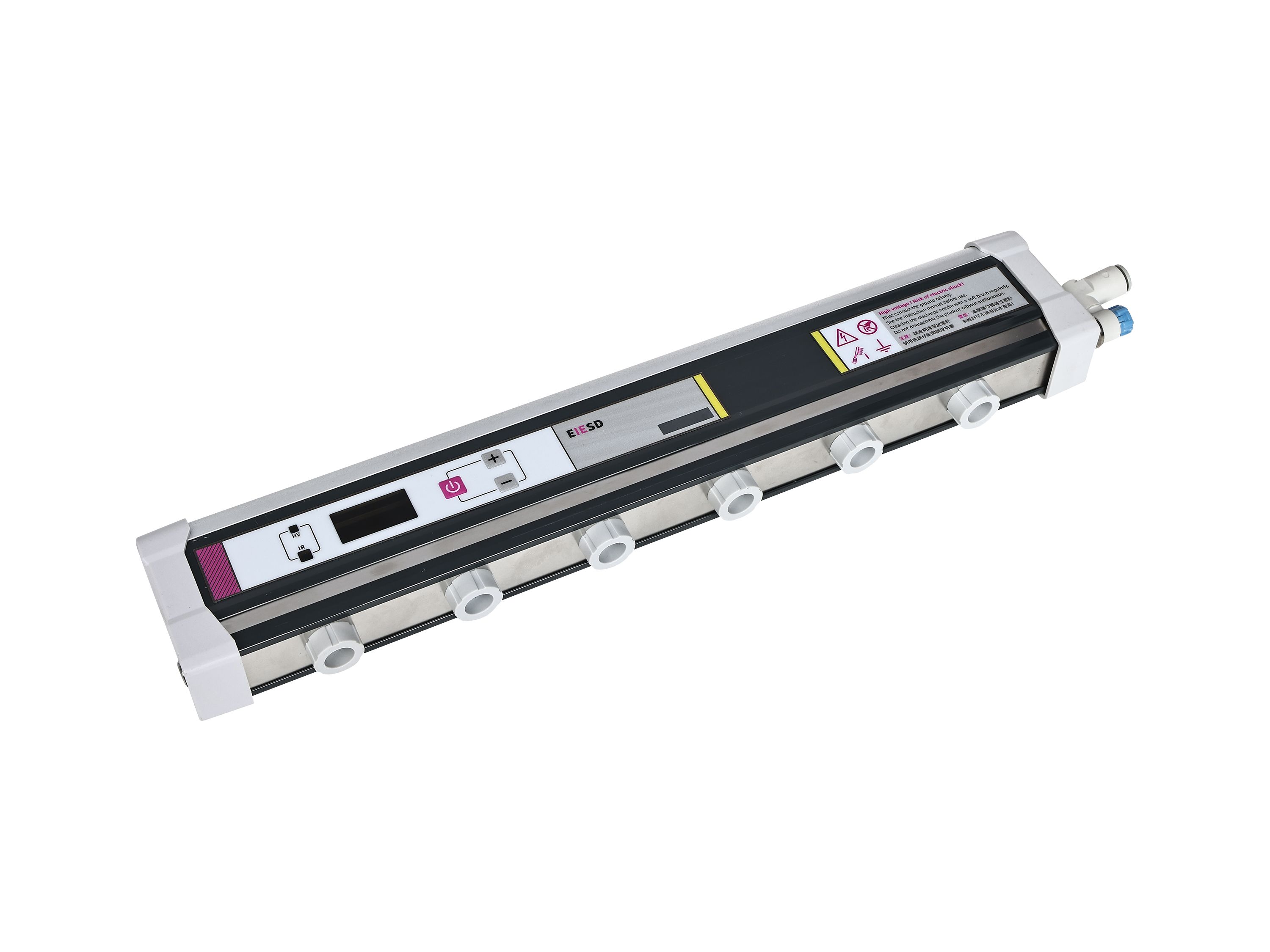

4.3 Ionization Systems

Necessary in areas with unavoidable insulators:

Wafer unloading and loading positions

High-speed transfer zones

Printing and inspection stations

Ionizers neutralize charge and significantly reduce particle attraction.

4.4 Operator and Handling Precautions

ESD-safe gloves and garments

Wrist straps in manual handling zones

Minimized wafer contact and friction during transfers

4.5 Packaging and Storage

Anti-static cassettes or containers

Proper labeling of ESD-sensitive materials

Control of storage humidity and airflow

5. Monitoring and Continuous Improvement

Effective static management requires ongoing evaluation:

Routine checks of grounding systems

Regular ionizer performance tests

Real-time monitoring of humidity and air cleanliness

Tracking static-related breakage or efficiency loss

Operator training and compliance audits

Continuous optimization helps maintain high yield while reducing unexpected failures.

6. Conclusion

Electrostatic hazards pose a serious challenge in PV cell manufacturing. As cells become thinner, more advanced, and more sensitive, ESD control is no longer optional—it is essential. Through disciplined engineering controls, rigorous environmental management, and consistent operator awareness, manufacturers can prevent static-induced defects, protect wafer integrity, and ensure the stable production of high-efficiency solar cells.

Well-managed ESD control is not just a risk-reduction strategy—it is a key contributor to higher yield, better module performance, and competitive strength in the solar industry.
