Hazards And Solutions of Damaged High-Voltage Cables in Ionizing Equipment

Hazards and Solutions of Damaged High-Voltage Cables in Ionizing Equipment

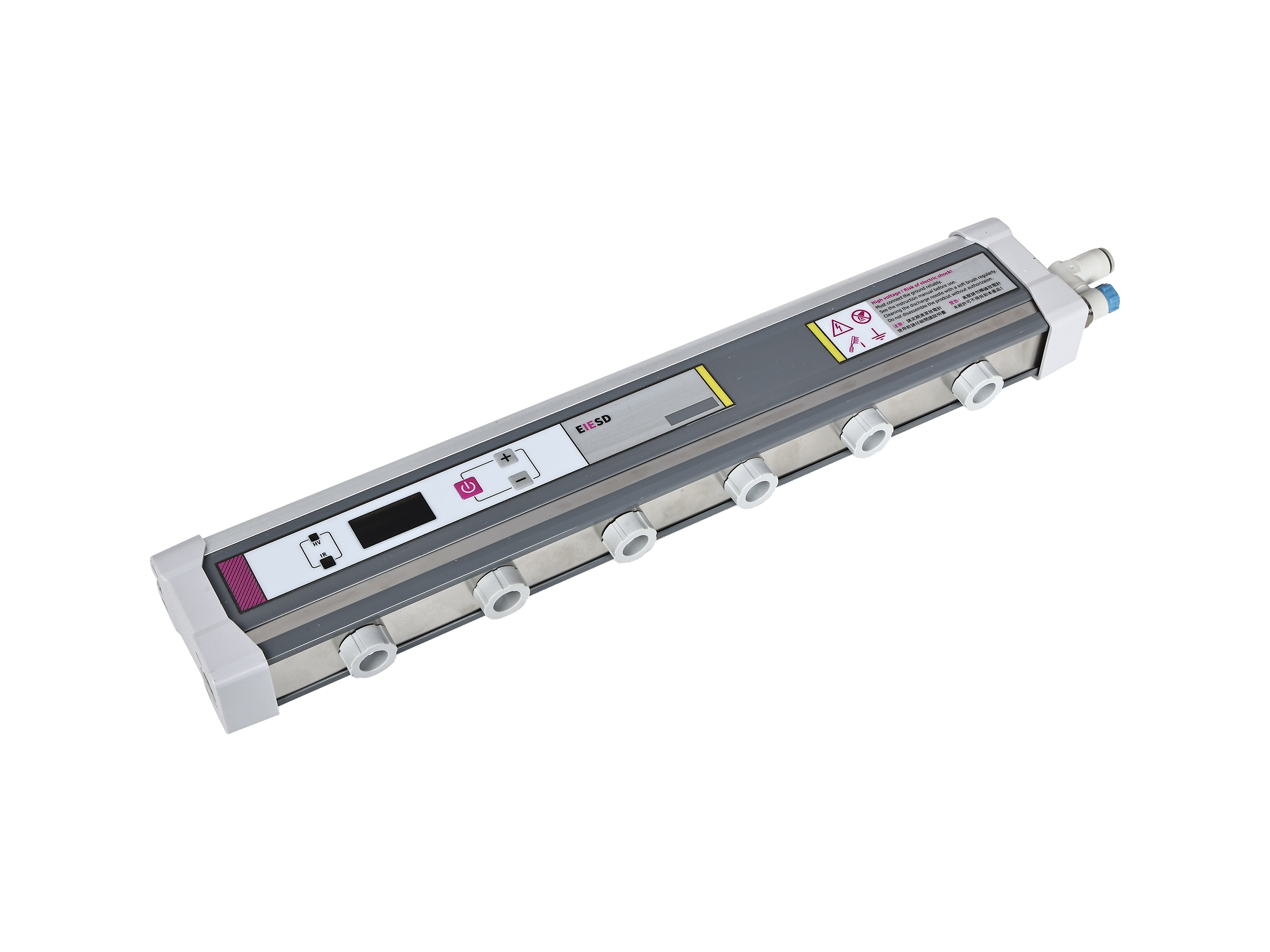

High-voltage (HV) cables are critical components of ionizing bars and other static elimination devices. They carry the high voltage necessary for generating ions. Damage to these cables poses significant safety risks and can impair device performance. Understanding the hazards and knowing the proper solutions is essential for safe operation and maintenance.

1. Hazards of Damaged High-Voltage Cables

1.1 Electric Shock Risk

HV cables carry thousands of volts.

A damaged insulation exposes conductors, which can cause serious or fatal electric shocks if touched.

1.2 Short Circuits and Arcing

Exposed or cracked insulation may allow short circuits between the cable and the equipment chassis or surrounding metal.

This can produce sparks, arcing, or fire hazards.

1.3 Reduced Ion Output

HV leakage reduces the voltage reaching the ion needles.

Results in lower ion output, slower static decay, and poor static neutralization.

1.4 Equipment Damage

Arcing or shorting can damage:

High-voltage power supply

Internal circuits

Ion needles

Repair costs increase and downtime occurs.

1.5 Environmental Hazards

Sparks from damaged HV cables can ignite:

Flammable dust

Solvent vapors

Paper, plastic, or textile fibers in industrial environments

2. Common Causes of HV Cable Damage

Mechanical Stress

Crushing, pinching, or stepping on cables

Pulling or bending beyond the minimum bend radius

Aging

Insulation becomes brittle over time

Cracks develop under long-term operation

Chemical Exposure

Oils, solvents, acids, or cleaning agents degrade insulation

Improper Installation

Sharp bends or contact with sharp edges

Close proximity to hot surfaces or moving machinery

Rodents or Pests

Chewing on exposed cables

3. Inspection Methods

Visual Inspection

Look for cracks, cuts, discoloration, or burn marks

Inspect connectors for corrosion

Physical Check

Gently flex the cable to detect brittleness

Check for loose connections

Electrical Test

Use insulation resistance testers (megger) for high-voltage cables

Check voltage drop and leakage current

4. Solutions for Damaged HV Cables

4.1 Immediate Actions

Power off the ionizer and disconnect all power supplies

Do not operate the equipment with damaged HV cables

4.2 Cable Replacement

Replace the HV cable with a manufacturer-approved cable

Ensure the replacement cable has:

Correct voltage rating

Proper insulation type

Correct length and connector type

4.3 Proper Installation

Avoid sharp bends and mechanical stress

Secure the cable with clamps or ties (non-metallic if possible)

Maintain recommended distance from metal objects and heat sources

4.4 Protective Measures

Use insulating sleeves or conduit in areas prone to damage

Install strain reliefs at connectors

Consider secondary shielding in harsh environments

4.5 Routine Maintenance

Regularly inspect HV cables as part of preventive maintenance

Clean without using harsh solvents on insulation

Replace aging cables proactively, not just after failure

5. Safety Precautions During Replacement

Always disconnect power and bleed residual charge

Wear insulating gloves and PPE

Avoid contact with grounded surfaces

Use manufacturer-approved tools

Verify correct cable routing and secure mounting before powering on

6. Summary

Damaged high-voltage cables pose serious safety and operational risks, including:

Electric shock

Arcing and fire

Reduced ion output

Equipment damage

Preventive measures include regular inspection, careful installation, protective sleeves, and timely replacement with approved components. Following proper replacement procedures ensures safe operation and reliable static elimination.
