Ionizing Bar Layout Design in Cleanroom Environments

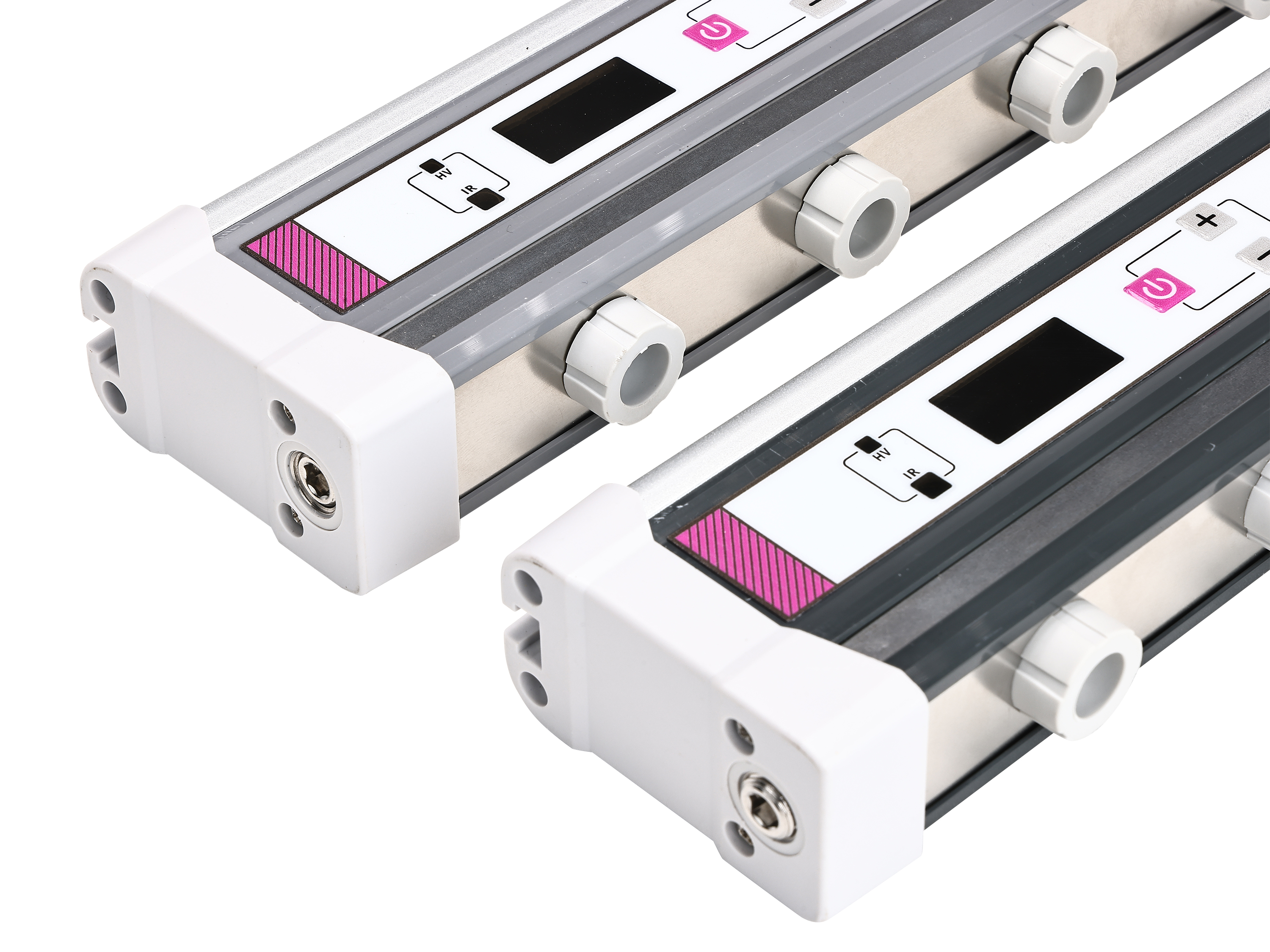

Electrostatic control is a critical requirement in modern cleanrooms, especially in industries such as semiconductor packaging, optics manufacturing, display panel production, and precision assembly. Among all ESD control devices, ionizing bars play a central role in neutralizing surface charges while maintaining cleanroom airflow integrity. Effective layout design ensures fast static charge dissipation, stable ion balance, and minimal disturbance to clean airflow.

Below is a comprehensive overview of ionizing bar layout principles, design considerations, and best practices for cleanroom environments.

1. Purpose of Ionizing Bar Deployment

Ionizing bars are installed to:

Neutralize positive and negative charges on components, tools, and surfaces

Prevent particle attraction caused by static forces

Reduce electrostatic-induced damage or latent defects

Maintain cleanliness levels required for sensitive optical or electronic processes

Support consistent product quality and yield in critical environments

A well-planned layout maximizes ionization efficiency while avoiding turbulence or re-entrainment of particles.

2. Key Design Considerations

Before positioning ionizing bars, several cleanroom variables must be evaluated:

• Airflow Direction

Vertical or horizontal laminar flow determines the ideal placement and orientation of the ionizer.

• Work Area Geometry

Size of the workstation, distance to the product, and operator movements influence the bar’s location and height.

• Sensitivity of the Product

Precision optics, semiconductor dies, and coated surfaces require faster decay times and tighter ion balance control.

• Equipment and Material Interactions

Conveyors, robotic handlers, trays, and insulating materials can contribute to charge buildup and require focused coverage.

• Maintenance Accessibility

Bars must be positioned for easy cleaning, calibration, and replacement without disrupting production.

3. General Layout Principles

3.1 Optimal Distance

Typical installation height: 200–400 mm above the work surface

Closer distances provide faster charge dissipation but must not obstruct workflow

Wider areas may require multiple bars spaced 300–600 mm apart

3.2 Alignment With Laminar Flow

Ionizing bars should be aligned parallel to the cleanroom airflow

Avoid direct blockage of HEPA filter outlets

Prevent counter-flow, which may generate turbulence or particle recirculation

3.3 Coverage and Uniformity

Ensure ion distribution covers the full work envelope

Avoid “dead zones” behind equipment or at corners

For large surfaces, use multiple bars or a multi-row grid layout

3.4 Low Offset Voltage

Maintain ion balance typically within ±10–30 V

Use bars with self-balancing features or monitoring indicators in sensitive applications

4. Layout Examples for Specific Applications

4.1 Precision Optical Assembly

One long ionizing bar positioned directly above the inspection or assembly table

Height: 250–300 mm

Orientation: parallel to the laminar downflow

Target decay time: 1–2 seconds (1000 V → 100 V)

4.2 Semiconductor Packaging & Test

Two bars on opposite sides of a conveyor or handler to create symmetrical coverage

Spacing between bars: 400–800 mm

Additional spot ionizers at loading/unloading points

Low-noise, low-ozone models preferred

4.3 Large-Panel or Glass Substrate Production

Multiple parallel bars arranged in a matrix above the panel path

Row spacing: 300–600 mm

Optional ionizing air knives for high-speed transport or large surface charging

4.4 Enclosed Mini-Environments or Hoods

Bars installed inside the upper section of the enclosure

Aligned with internal airflow to avoid localized turbulence

Ventilation must ensure proper dilution of any trace ozone

5. Installation Best Practices

Use adjustable mounting brackets for precise height and angle alignment

Ensure proper grounding and cable routing to avoid interference

Add tags for calibration and maintenance records

Perform validation tests after installation, including:

Ion balance measurement

Decay time verification

Airflow compatibility test

Ozone and noise level checks

6. Maintenance and Performance Monitoring

Consistent performance requires scheduled upkeep:

Weekly: visual inspection, cleaning of emitter points

Monthly: verify ion balance and decay time

Bi-annual: full calibration according to manufacturer guidelines

Continuous: optional real-time monitoring in critical production lines

Maintaining a stable ionization system prevents electrostatic buildup and ensures long-term product quality.

Conclusion

A carefully designed ionizing bar layout is essential for maintaining both cleanliness and electrostatic safety in modern cleanrooms. By optimizing position, spacing, airflow alignment, and maintenance routines, manufacturers can significantly reduce ESD-related defects and improve yield. Whether for semiconductor, optical, medical, or display industries, professional ionizer layout design is a key element of high-performance cleanroom management.
