Maintenance Cycle and Precautions for High-Voltage Power Supplies

Maintenance Cycle and Precautions for High-Voltage Power Supplies

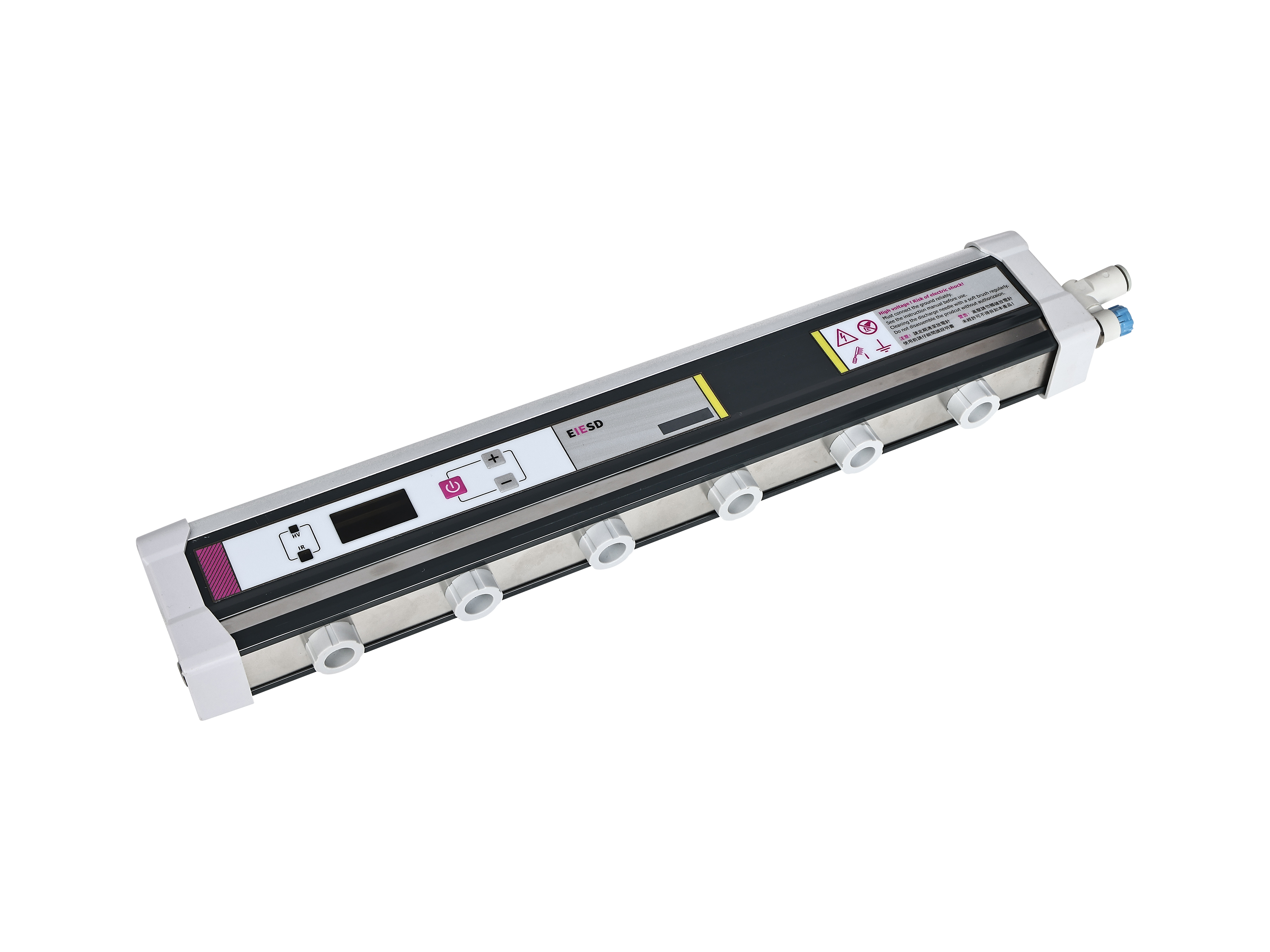

High-voltage (HV) power supplies are critical components in ionizing bars and static elimination equipment. Proper maintenance ensures stable ion output, safe operation, and longer service life. Neglecting HV power supply care can lead to arcing, equipment damage, or safety hazards.

1. Recommended Maintenance Cycle

Component Maintenance Frequency Tasks

Visual inspection Monthly Check for dust, corrosion, loose connections, and cable integrity

Cleaning Every 3–6 months Remove dust from fans, vents, and internal components (if user-serviceable)

Electrical check Every 6–12 months Measure output voltage, current, and insulation resistance

Needle replacement / ion output check Every 6–12 months Check ion balance and static decay to ensure HV supply is functioning properly

Full servicing by manufacturer/technician Every 1–3 years Internal inspection, capacitor check, transformer test, fan replacement if needed

Note: Maintenance frequency may vary depending on operating environment, hours of use, and load conditions.

2. Key Maintenance Tasks

2.1 Visual Inspection

Look for loose connectors, damaged cables, or burn marks.

Inspect HV connectors, insulation, and housing.

Check for dust accumulation around vents or cooling fans.

2.2 Cleaning

Use dry compressed air to remove dust from external vents.

Avoid spraying liquids directly into the HV module.

Wipe surfaces with lint-free cloth if necessary.

2.3 Electrical Checks

Verify input and output voltage with a multimeter or HV meter (per manufacturer guidelines).

Test insulation resistance to ensure no leakage occurs.

Monitor ion output using a charge plate or field meter.

2.4 Cooling System Maintenance

Ensure fans are functional and vents are unobstructed.

Replace worn or noisy fans to prevent overheating.

2.5 Functional Testing

Power on the ionizer and confirm steady ion output.

Check for arcing, crackling, or abnormal noise.

Verify that LED indicators are normal (steady green or as specified).

3. Precautions During Maintenance

Always power off and disconnect the unit before any inspection or cleaning.

Bleed residual high voltage; wait at least 30–60 seconds for capacitors to discharge.

Do not touch exposed HV terminals with bare hands.

Avoid using water or solvents that could penetrate insulation.

Use insulated tools and gloves when handling HV components.

Follow the manufacturer’s service manual for internal component maintenance.

Keep a log of maintenance activities including cleaning, inspection, and voltage measurements.

4. Environmental Considerations

Keep HV power supplies in a dry, dust-free environment.

Avoid exposure to high humidity, corrosive gases, or extreme temperatures.

Maintain proper ventilation to prevent overheating.

Ensure no conductive dust or metal debris can enter the unit.

5. Signs That HV Power Supply Needs Immediate Attention

Flashing LED indicators or fault alarms

Unstable ion output or slow static decay

Frequent sparking or crackling sounds

Unusual odors (burnt smell) or smoke

Excessive heating of the HV module

If any of these occur, power down immediately and inspect or replace the HV unit.

6. Summary

Proper maintenance of high-voltage power supplies includes:

Regular visual inspection (monthly)

Cleaning and dust removal (every 3–6 months)

Electrical and ion output testing (every 6–12 months)

Cooling system checks

Full service by technicians or manufacturer (every 1–3 years)

Precautions: always power off, discharge residual voltage, avoid liquids, use insulated tools, and maintain a proper environment. Following these guidelines ensures safe, reliable operation and extends the lifespan of the HV power supply.
