Performance of Ionizing Bars in Powder Coating Lines

Performance of Ionizing Bars in Powder Coating Lines

In modern powder coating operations, electrostatic charges are both essential for coating adherence and a potential source of process issues. While electrostatic spraying relies on charging the powder, unwanted residual or stray static on substrates, fixtures, or surrounding surfaces can lead to defects, uneven coating, or material waste. Ionizing bars are widely used in powder coating lines to control unintended static charges, improve powder distribution, and enhance overall coating quality.

1. The Challenge: Uncontrolled Static in Powder Coating

Powder coating lines face several electrostatic challenges:

Substrate Charging: Conductive or insulating substrates can accumulate localized charges from friction, handling, or pre-treatment processes.

Fixture & Conveyor Charging: Moving conveyors, hooks, or racks can attract charged powder or generate uneven electric fields.

Particle Clumping: Static on powder particles or surfaces causes clumping, uneven deposition, or overspray.

Surface Defects: Charged spots lead to uneven coating thickness, streaks, or poor adhesion.

Even in lines designed for electrostatic powder spraying, uncontrolled charge areas compromise coating uniformity and increase rework or scrap.

2. How Ionizing Bars Improve Powder Coating Performance

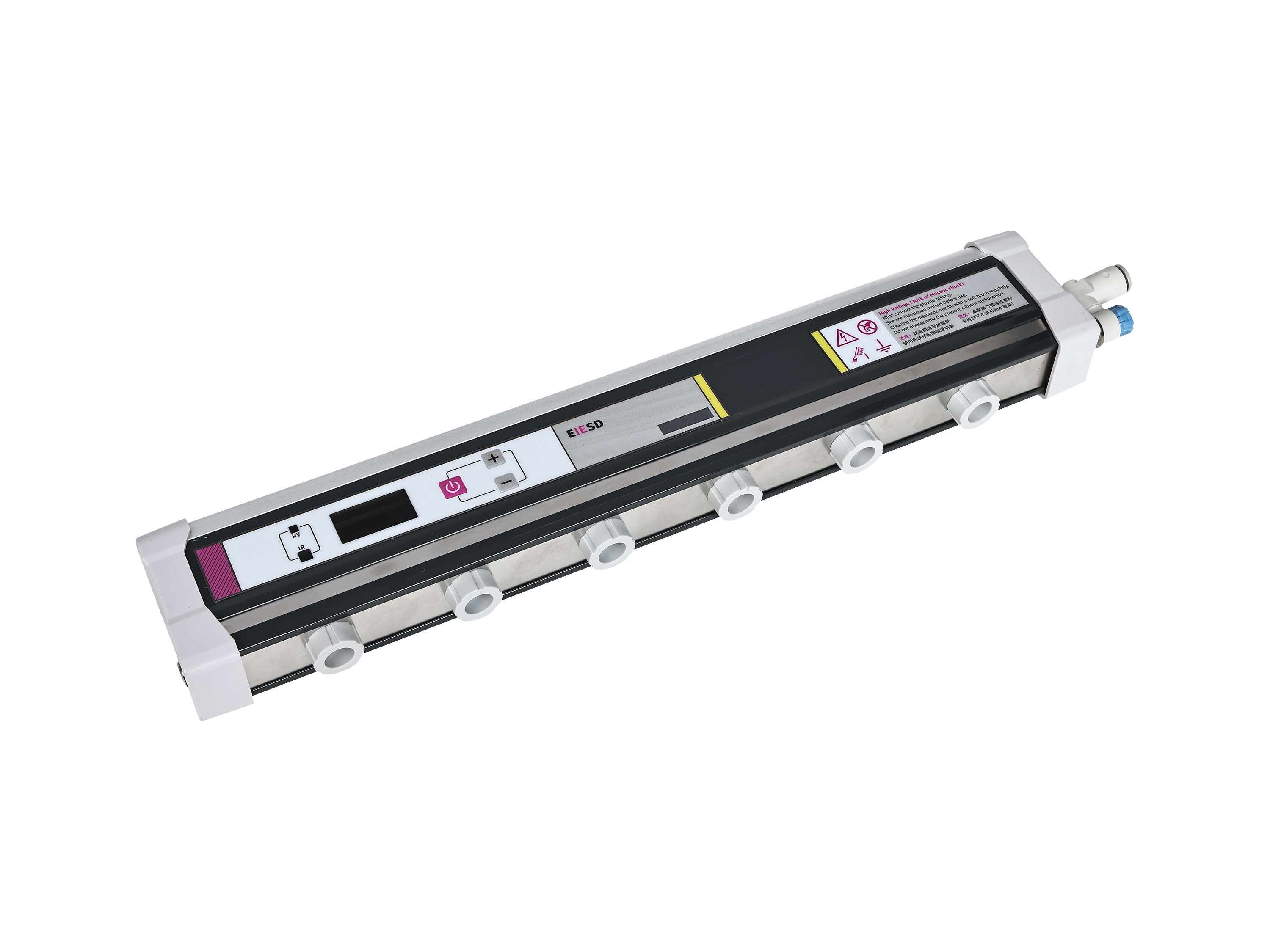

Ionizing bars neutralize unwanted surface charges by emitting balanced positive and negative ions. Their key performance effects include:

2.1 Uniform Charge Neutralization

Eliminates high-voltage spots on substrates and fixtures.

Reduces attraction between powder and unintended areas.

Prevents powder clinging to conveyor hooks or fixtures.

2.2 Enhanced Powder Distribution

Neutralized surfaces allow uniform electrostatic powder deposition.

Minimizes streaks, pinholes, and uneven thickness.

Supports high-quality coatings on complex geometries.

2.3 Reduced Material Waste

Prevents powder accumulation on unintended surfaces.

Less overspray and reduced cleanup requirements.

Enhances cost-efficiency by optimizing powder usage.

2.4 Support for High-Speed Lines

Continuous neutralization ensures stable performance even at high conveyor speeds.

Improves consistency across multiple substrate sizes and types.

3. Layout and Installation in Powder Coating Lines

Effective performance depends on strategic placement:

Above Substrate Path: Ionizing bars are typically installed 200–400 mm above moving substrates or fixtures.

Along Conveyor or Rack Travel: Multiple bars may be placed sequentially for long lines to maintain consistent neutralization.

Parallel to Airflow: Align with booth ventilation or powder airflow to avoid turbulence or ion loss.

Edge and Corner Coverage: Critical for avoiding charge accumulation in corners or recesses of complex parts.

Optional ionizing blowers can supplement bars for large, irregularly shaped surfaces or to reach areas difficult to cover with fixed bars.

4. Performance Metrics

Key performance indicators for ionizing bars in powder coating include:

Metric Typical Target

Decay Time (1000V → 100V) ≤ 2–3 seconds for conductive substrates; ≤ 5 seconds for insulators

Ion Balance / Offset Voltage ±10–30V

Coverage Width Dependent on bar length; multiple bars recommended for wide substrates

Operational Stability Continuous neutralization during full line speed (e.g., 1–3 m/s)

These metrics ensure consistent powder deposition and defect reduction across production runs.

5. Case Examples

5.1 Automotive Powder Coating

Problem: Overspray and powder adhesion on fixtures causing uneven coating.

Solution: Two ionizing bars installed above conveyor hooks, neutralizing static on the parts and racks.

Result: 30% reduction in overspray, improved coating uniformity, and less powder waste.

5.2 Electronics Enclosure Coating

Problem: Thin sheet-metal panels exhibited streaks due to uneven charge.

Solution: Ionizing bars positioned before and after preheating stage.

Result: Even powder coverage, elimination of streaks, and reduced rework rate.

5.3 Industrial Equipment Frames

Problem: Large irregular frames attracted powder clumps in corners.

Solution: Combination of bars and portable ionizing blowers for targeted neutralization.

Result: Smooth coating on all surfaces, reduced defects, and higher throughput.

6. Maintenance and Monitoring

Daily: Visual inspection of emitter pins and cleaning if powder deposits accumulate.

Weekly: Measure ion balance and decay time at critical points.

Quarterly: Calibration and grounding checks.

Continuous: Optional online monitoring of static levels in high-precision or high-speed lines.

Proper maintenance ensures long-term reliability and optimal coating performance.

7. Conclusion

Ionizing bars are a vital component in powder coating lines, providing:

Rapid neutralization of unwanted charges

Consistent, uniform powder deposition

Reduced overspray and material waste

Support for high-speed, complex, and sensitive substrate coating

By integrating ionizing bars into powder coating processes, manufacturers can significantly improve product quality, reduce defects, and enhance line efficiency.
