Role of Ionizing Bars in Preventing Product Sticking in Automated Packaging Lines

Role of Ionizing Bars in Preventing Product Sticking in Automated Packaging Lines

Electrostatic charges are one of the most common causes of product sticking, misfeeds, and production interruptions in modern automated packaging lines. Materials such as plastic films, coated paper, laminates, shrink wraps, and pouches are especially prone to electrostatic accumulation due to friction with rollers, conveyors, and feeding guides. If not controlled, this can lead to adhesion between products, product-to-equipment clinging, and even damage during handling.

Ionizing bars provide a robust solution by neutralizing static charges in real time, ensuring smooth handling, high-quality packaging, and improved operational efficiency.

1. Understanding Static-Induced Sticking in Packaging

Static accumulation occurs during:

Conveyor transport: Friction between sheets, pouches, or films generates charges.

Feeding and stacking: Closely stacked or rolled products cling together.

Coating or laminating processes: Surface charges attract particles and nearby layers.

Roller and guide contact: Charged products adhere to equipment, causing jams or misalignment.

Typical consequences include:

Misfeeds and machine stoppages

Increased scrap or product damage

Reduced line speed and production yield

Inconsistent stacking and improper sealing

2. How Ionizing Bars Prevent Sticking

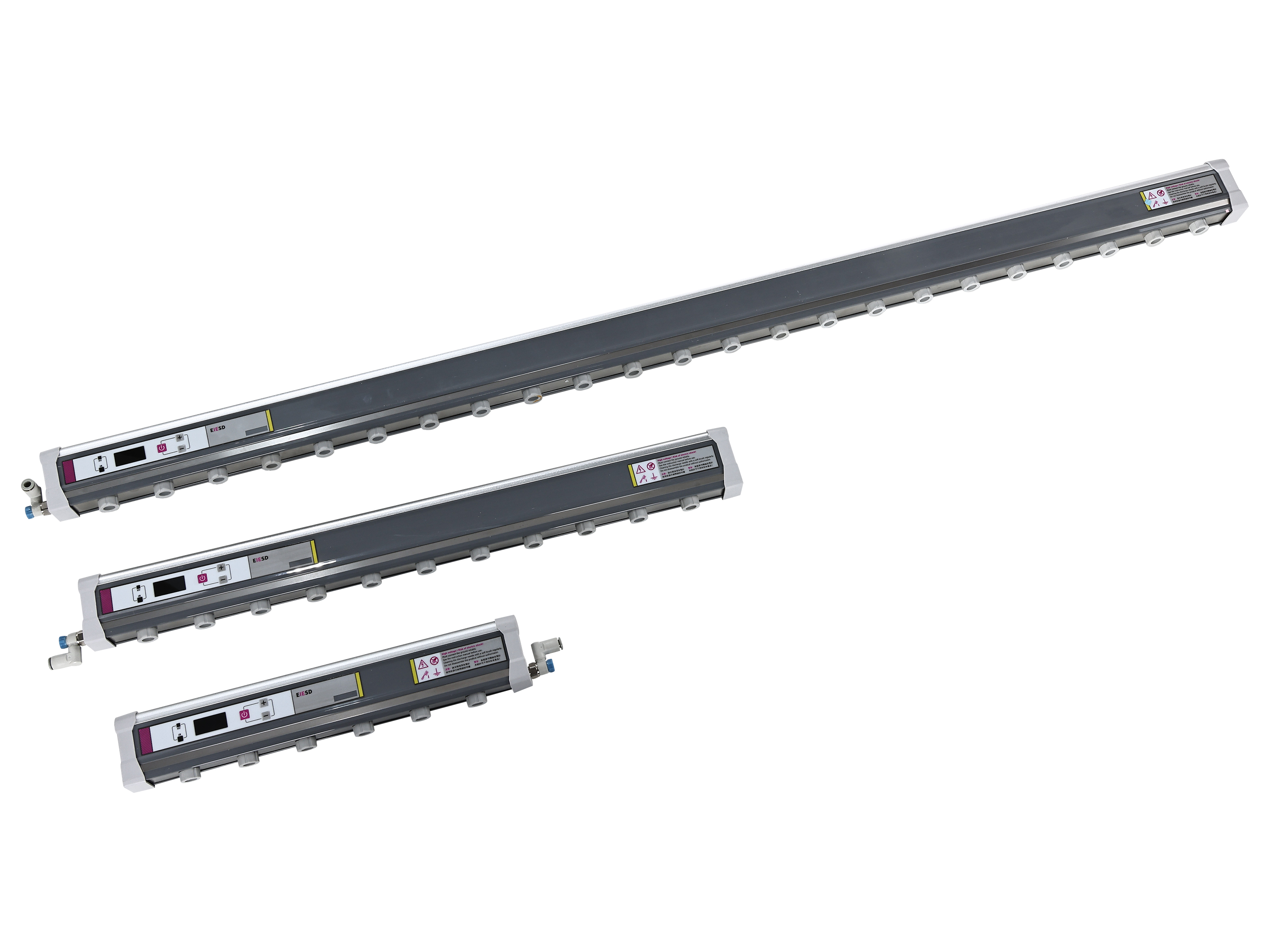

Ionizing bars generate balanced positive and negative ions that neutralize electrostatic charges on both the product and surrounding equipment. The key mechanisms include:

Surface Charge Neutralization

Ions are directed onto the charged substrate.

High-voltage surfaces quickly decay to near-zero potential.

Reduction of Product-to-Product Adhesion

Electrically neutral sheets or films repel less.

Separation between items becomes consistent, avoiding clinging.

Reduction of Product-to-Equipment Attraction

Charged items no longer cling to rollers, guides, or feeders.

Smooth, uninterrupted movement through the line is ensured.

Support for High-Speed Automation

By eliminating static, products maintain predictable movement, enabling robotic pick-and-place or sealing systems to operate accurately.

3. Layout Design for Optimal Performance

The effectiveness of ionizing bars depends on careful placement relative to the process:

Above conveyors or feeders: Typical mounting height 150–400 mm depending on material width and thickness.

Parallel to product flow: Ensures uniform ion coverage along the entire surface.

Edge coverage: For sheets or films, extend ionization slightly beyond edges to prevent clinging at borders.

Multiple bars: For wide products, multiple bars spaced 300–600 mm apart create uniform neutralization.

Integration with blowers: For large or irregular products, ionizing blowers complement bars, extending ion coverage and improving static decay in hard-to-reach areas.

4. Application Scenarios

4.1 Flexible Pouch Packaging

Problem: Pouches sticking together in feeding hoppers.

Solution: 600 mm ionizing bar installed above the feeder.

Result: Over 50% reduction in sticking, smoother high-speed feeding.

4.2 Label Sheet Stacking

Problem: Coated sheets adhere during stacking.

Solution: Ionizing bars above stacking conveyors with balanced ion output.

Result: Consistent sheet separation, reduced jams, improved productivity.

4.3 Shrink Wrap Film Handling

Problem: Plastic films cling to each other during transport and cutting.

Solution: Combination of ionizing bars and blowers along conveyor sections.

Result: Smooth, uninterrupted film transport, reduced scrap, and fewer manual interventions.

5. Benefits of Ionizing Bars in Automated Packaging

Benefit Description

Smooth Material Flow Prevents sticking between products and reduces conveyor jams.

Higher Productivity Enables faster line speeds with fewer interruptions.

Reduced Scrap & Waste Minimizes damage to delicate films, coated sheets, or pouches.

Consistent Product Quality Stable spacing and alignment improve downstream operations.

Integration with Clean Environments Low particle emission makes bars compatible with cleanrooms or sensitive packaging.

6. Verification and Monitoring

To ensure effective static control:

Decay Time Measurement: Confirm static decay on materials is within required seconds (e.g., 1000V → 100V ≤ 2–5 s).

Ion Balance Testing: Ensure offset voltage remains within ±10–30V for sensitive substrates.

Regular Visual Checks: Inspect for dust accumulation on emitter points.

Integration with Production Monitoring: Track misfeed rates and correlate with ionizer performance.

7. Maintenance Best Practices

Daily / Shift Checks: Visual inspection of emitter points, cleaning with lint-free wipes.

Weekly: Measure ion output and decay performance.

Quarterly: Full calibration, grounding verification, and replacement of worn components.

Continuous: Use online static monitors for critical high-speed lines.

8. Conclusion

In automated packaging environments, ionizing bars are essential for preventing product sticking. By neutralizing surface charges, they:

Ensure smooth material handling

Reduce scrap, misfeeds, and downtime

Enable higher-speed and more precise automation

Maintain consistent product quality, especially for sensitive films, coated sheets, and pouches

Combined with proper layout, monitoring, and maintenance, ionizing bars significantly enhance both operational efficiency and product quality in automated packaging lines.
