Safe Procedure for Replacing Ionizing Needles

Safe Procedure for Replacing Ionizing Needles

Replacing ionizing needles is a routine maintenance task necessary to maintain optimal ion output and ensure stable static elimination performance. Because ionizers operate with high voltage and sometimes compressed air, proper safety procedures must be followed to prevent electric shock, equipment damage, or accidental discharge.

This article provides a detailed step-by-step guide for safely replacing ionizing needles.

1. Preparation Before Replacement

1.1 Power Off the Ionizer

Turn off the ionizer’s power switch.

Disconnect the power supply or unplug the power cable.

If the ionizer uses a high-voltage power unit, shut down and isolate the HV source.

Never replace the needle while the device is powered on.

1.2 Disconnect the Air Supply (If Applicable)

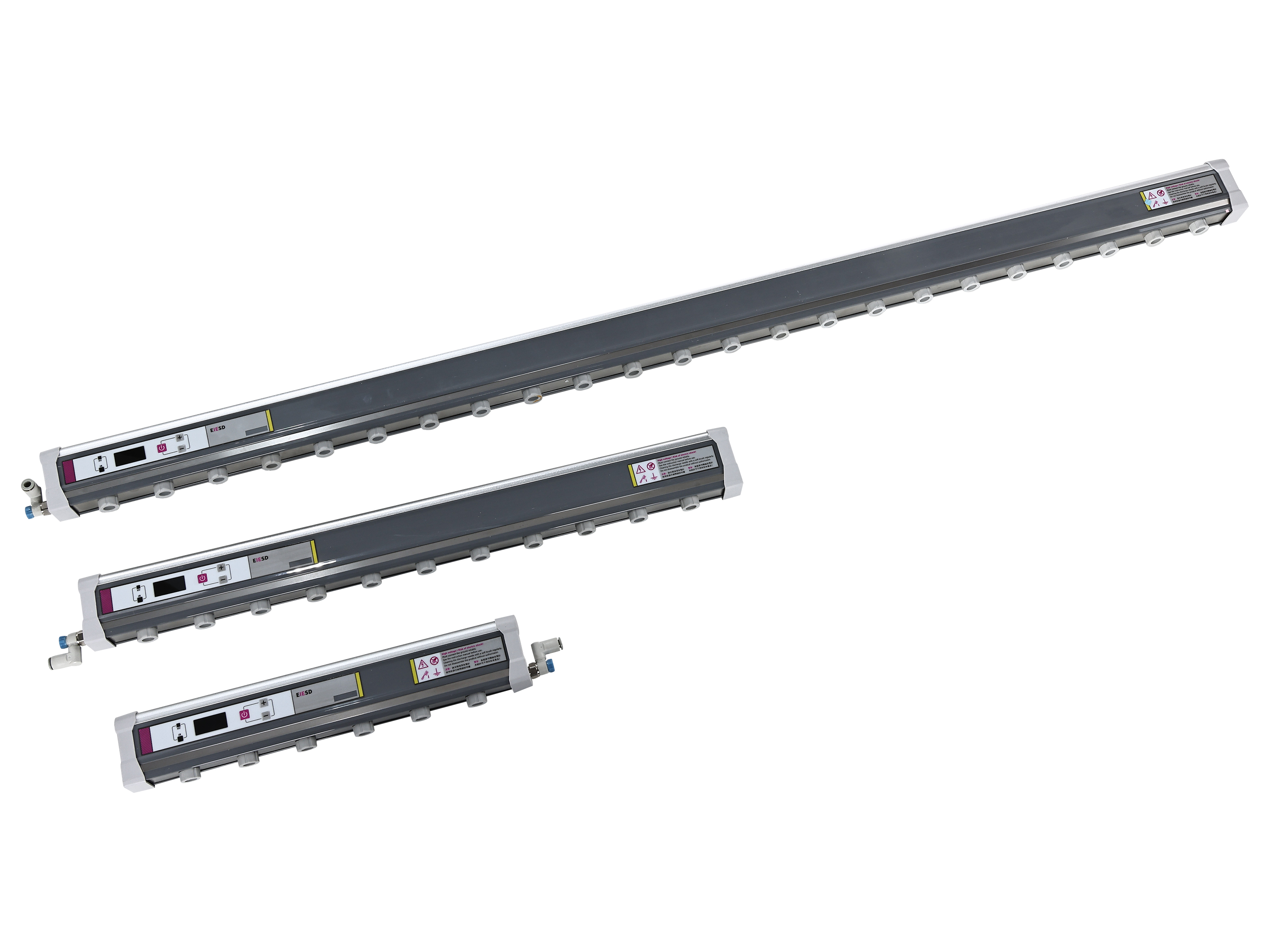

For air-assisted ion bars or guns:

Turn off the compressed air source.

Release any residual pressure in the air line.

1.3 Wait for Discharge

Most ionizers retain residual charge for a few seconds.

Wait 30–60 seconds to ensure full discharge.

2. Safety Equipment and Tools

Prepare the proper tools:

Insulated or non-conductive gloves

Anti-static wrist strap (optional but recommended)

Small torque screwdriver or needle removal tool

Clean lint-free swabs

IPA (isopropyl alcohol) for light cleaning before installation

Avoid using metal tools that may scratch insulators or damage the needle base.

3. Removal of the Old Ion Needle

3.1 Access the Needle Area

Remove protective covers, caps, or housing.

Do not touch internal circuits unnecessarily.

3.2 Loosen the Needle Carefully

Depending on the design:

Unscrew the needle counterclockwise, or

Pull it gently if it is a plug-in type.

Avoid applying excessive force—this may damage the holder or ceramic insulator.

3.3 Inspect the Old Needle

Check for:

corrosion

blunt or deformed tip

burned marks

heavy contamination

This helps confirm that wear was the cause of poor performance.

4. Cleaning Before Installing the New Needle

Before installing the new needle:

4.1 Clean the Needle Base and Holder

Use IPA with a lint-free swab.

Remove dust, carbon residue, and moisture.

Be careful not to leave fibers inside the holder.

4.2 Ensure the Area Is Completely Dry

Moisture can cause:

arcing

HV leakage

reduced lifespan of the new needle

5. Installing the New Ion Needle

5.1 Hold the Needle by the Base

Never pinch the tip—it can deform easily.

5.2 Insert and Tighten Carefully

Insert needle straight into the holder.

For screw-type needles, tighten gently until snug.

Do not over-tighten—it may crack the insulator.

5.3 Check Alignment

Ensure the needle tip is:

centered

not bent

not touching any metal parts

Misalignment can reduce ion output or cause arcing.

6. Reassembly and Final Checks

6.1 Install Protective Covers

Make sure all housing components and covers are secured.

6.2 Reconnect Power and Air Supply

Turn on compressed air (if applicable).

Restore electrical power to the ionizer.

6.3 Perform a Functional Test

Check:

airflow (for air-assisted types)

ion output

absence of abnormal noise or arcing

ion balance (if measuring equipment is available)

6.4 Record Maintenance Data

Recommended to record:

date of needle replacement

type/model of needle

operator name

performance measurement (if performed)

This helps track needle lifespan and future maintenance cycles.

7. Safety Warnings

Never touch the needle tip while power is on.

Do not use water or strong solvents during replacement.

Avoid metal tools near the discharge point.

Replace all needles at once for multi-needle ion bars (to keep output balanced).

Follow manufacturer-specific torque recommendations if provided.

Conclusion

Safe replacement of ionizing needles requires proper shutdown, controlled handling, correct installation, and functional testing. Following these steps ensures:

stable ionization performance

reduced risk of arcing

extended equipment lifespan

improved workplace safety
