Static Control Using Ionizing Bars in Spray Coating Lines

Static Control Using Ionizing Bars in Spray Coating Lines

In spray coating operations, static electricity is a common issue that affects coating quality, safety, and productivity. Charged surfaces attract dust, overspray, and particles, causing defects such as uneven coatings, pinholes, and fisheyes. In addition, static charges can create a fire or explosion hazard when flammable coatings are used. Ionizing bars (ion bars) are widely employed to neutralize static charges and improve spray coating performance.

1. How Static Affects Spray Coating

Charge Accumulation

Workpieces, conveyor systems, and coating equipment accumulate static during handling or movement.

Non-conductive surfaces such as plastic, wood, or powder-coated metals hold charges for long periods.

Coating Defects

Static-charged surfaces attract overspray particles, creating uneven coverage.

Dust or airborne particles adhere to charged areas, leading to surface imperfections.

Safety Risks

In powder coating or solvent-based spray lines, static can generate sparks, posing fire or explosion hazards.

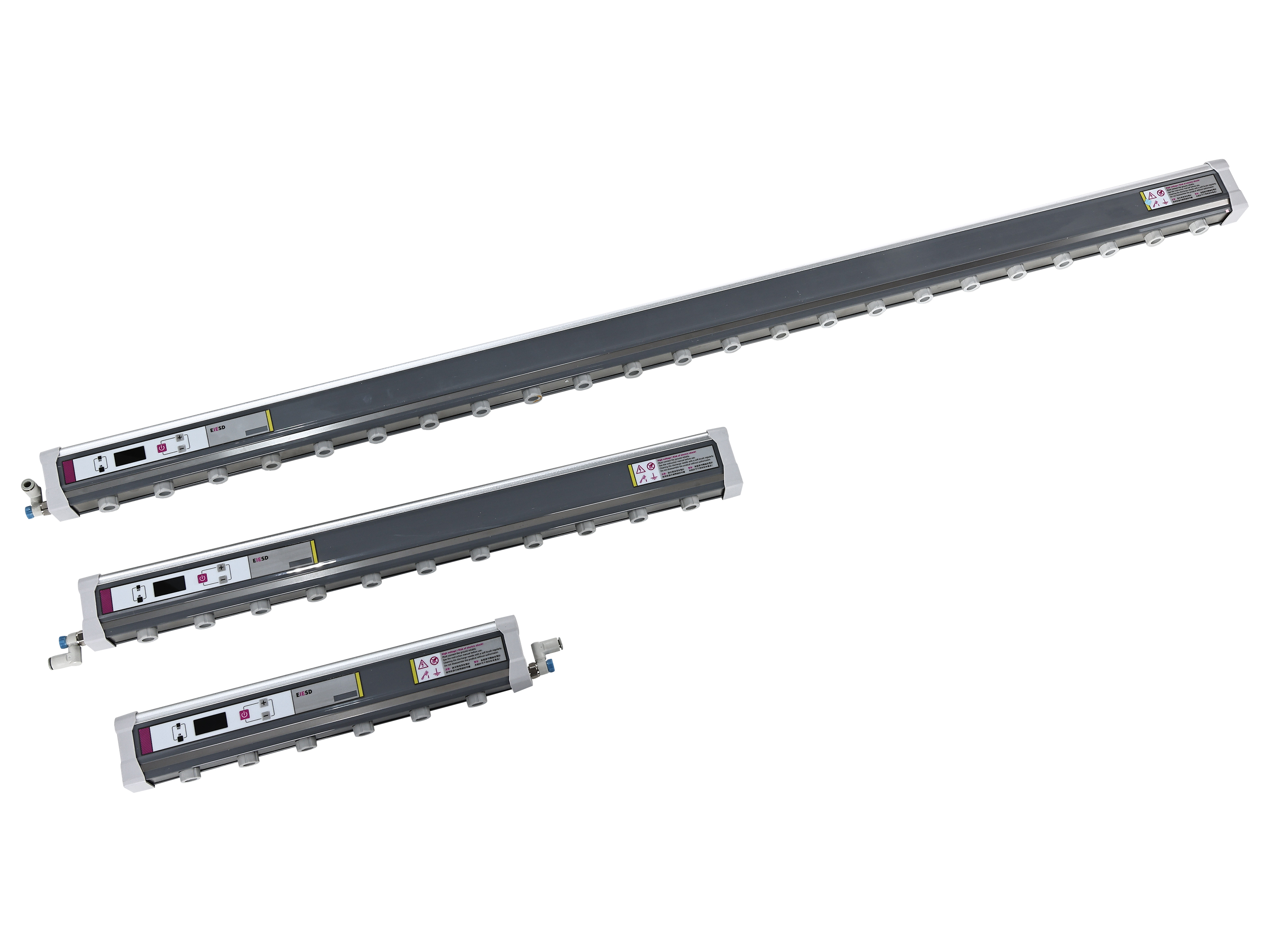

2. Role of Ionizing Bars

Ionizing bars control static by neutralizing surface charges:

Ion Generation

Ion bars generate positive and negative ions that neutralize charged surfaces.

Uniform Coverage

Properly positioned bars ensure consistent ion distribution along the coating line.

Dust and Particle Control

Neutralized surfaces attract fewer airborne particles, improving coating quality.

Enhanced Safety

By removing static, ion bars reduce spark generation and associated fire/explosion risks.

3. Applications in Spray Coating Lines

3.1 Powder Coating Lines

Ion bars are installed before the powder spray booth and near conveyors.

Neutralize static on substrates to ensure even powder deposition and prevent particle clumping.

3.2 Liquid Spray Painting

Charged substrates attract dust or mist, causing defects in paint layers.

Ion bars reduce static buildup on non-conductive or semi-conductive materials.

3.3 Automated Conveyor Systems

Workpieces moving along conveyors accumulate static from rollers and friction points.

Ion bars positioned along the conveyor neutralize charges before coating.

3.4 Robotic Spray Systems

Ion bars mounted near robotic spray arms or fixtures help maintain consistent surface charge neutrality, improving coating uniformity.

4. Benefits of Ion Bars in Spray Coating Lines

Improved Coating Quality

Neutralized surfaces prevent overspray attraction and defects.

Reduced Rework and Scrap

Fewer surface imperfections lead to lower scrap rates and less manual touch-up.

Enhanced Safety

Static removal reduces the risk of sparks and explosions in powder and solvent-based coatings.

Higher Production Efficiency

Fewer stoppages due to dust or static-related defects improve throughput.

Cleaner Work Environment

Reduced dust and overspray adhesion on equipment and surroundings.

5. Best Practices for Effective Use

Placement: Install ion bars close to the target surface (typically 100–300 mm) for effective neutralization.

Air-Assisted Bars: Use air-assisted ion bars for large or irregularly shaped workpieces.

Regular Cleaning: Maintain needle cleanliness and airflow to ensure consistent ion output.

Environmental Control: Maintain proper humidity (40–60%) and ventilation to reduce static buildup.

Performance Verification: Measure static decay time or use a field meter to ensure the ion bars are effective.

Safety Precautions: Power off before maintenance, wear PPE, and avoid direct contact with high-voltage needles.

6. Conclusion

Ionizing bars play a critical role in spray coating operations by:

Neutralizing static charges on substrates and equipment

Reducing coating defects and dust adhesion

Enhancing safety by minimizing spark hazards

Improving production efficiency and product quality

Proper installation, routine maintenance, and performance verification of ion bars are essential for consistent static control and high-quality spray coating results.
