Static Control in Pharmaceutical Packaging Production Lines

Static Control in Pharmaceutical Packaging Production Lines

Static electricity is a significant challenge in pharmaceutical packaging production. Non-conductive materials such as blister packs, foil, plastic bottles, and sachets can accumulate static charges during handling, conveying, and filling processes. Uncontrolled static can cause production defects, contamination, and product safety issues. Effective static management—including the use of ionizing bars—is critical to ensure product quality, regulatory compliance, and operational efficiency.

1. Static Challenges in Pharmaceutical Packaging

Material Handling

Plastic films, foil, and blister sheets generate static when rolled, unrolled, or transported.

Charged surfaces may cling together, causing misfeeds, jams, or inaccurate dosing.

Filling and Sealing

Static-charged packaging may repel powders or liquids, leading to inaccurate filling.

Charged blister cavities may attract dust, fibers, or particles, compromising product cleanliness.

Labeling and Collation

Static charges can cause labels to stick incorrectly or sheets to adhere, affecting downstream packaging quality.

Environmental Factors

Low humidity (common in cleanrooms) increases static accumulation.

Airborne particles adhere to charged surfaces, raising contamination risk.

2. Tools for Static Control

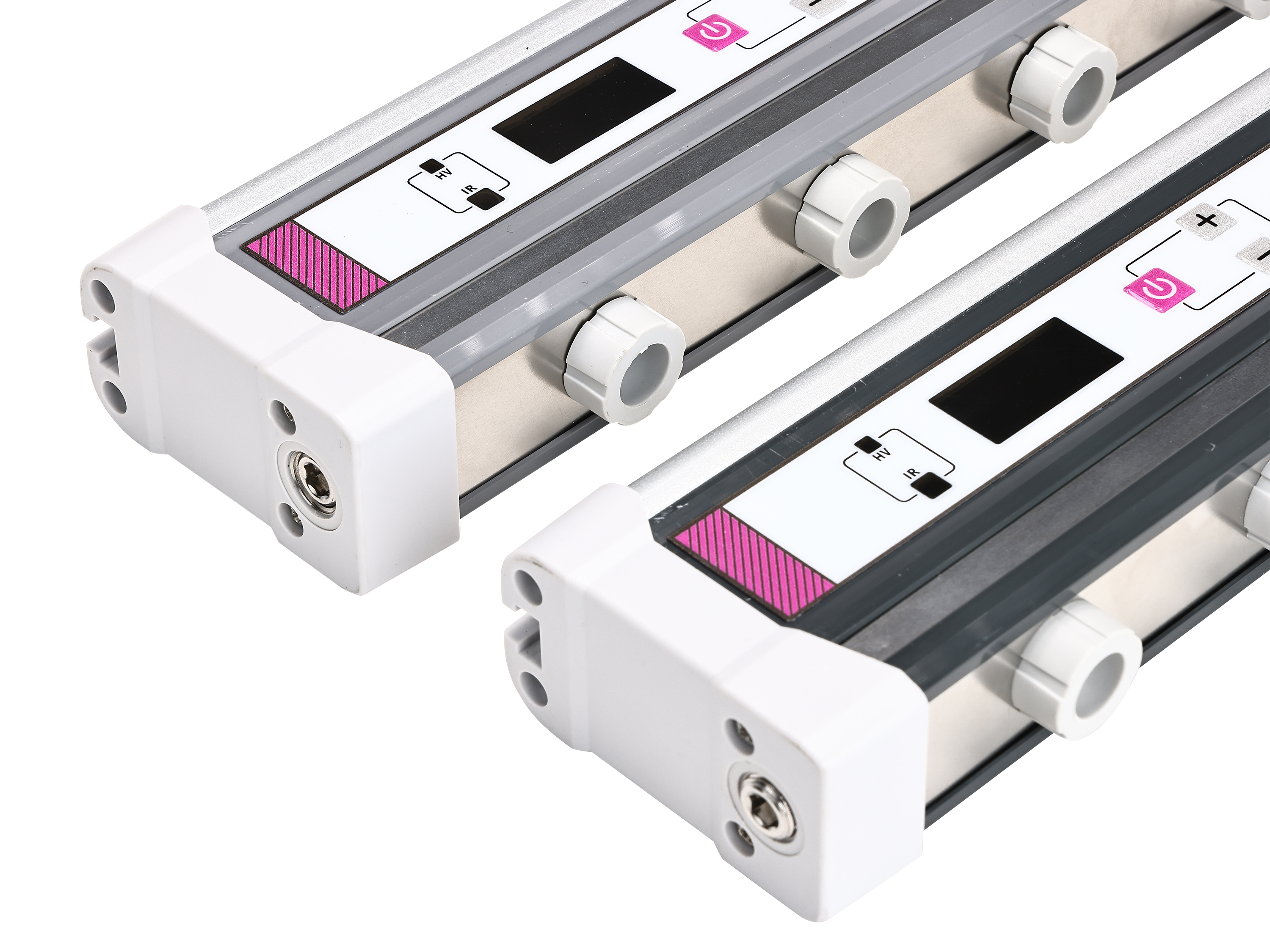

2.1 Ionizing Bars (Ion Bars)

Produce positive and negative ions that neutralize static charges on packaging materials.

Can be installed above conveyors, filling lines, or labeling stations.

Air-assisted ion bars ensure complete coverage for large or irregular surfaces.

2.2 Grounding and Conductive Surfaces

Conductive rollers, guides, and workstations help discharge static from materials.

Grounding operators and equipment reduces charge buildup.

2.3 Environmental Control

Maintain humidity levels around 40–60% to reduce static generation.

HEPA filtration prevents dust accumulation on charged surfaces.

3. Applications of Ion Bars in Pharmaceutical Lines

3.1 Blister Packaging

Ion bars neutralize static on blister sheets during unwinding, filling, and sealing.

Prevents sheet sticking, misalignment, and powder attraction.

3.2 Bottle Filling and Capping

Neutralizes static on plastic bottles and caps to ensure smooth filling and proper capping.

3.3 Sachet and Pouch Packaging

Prevents adhesion between pouches and reduces dust or particle attraction.

3.4 Labeling and Cartoning

Neutralizes static on labels and cartons to prevent misfeeds and sticking.

4. Benefits of Static Control in Pharmaceutical Packaging

Improved Production Reliability

Reduced jams, misfeeds, and downtime.

Enhanced Product Quality

Clean, uncontaminated packaging ensures regulatory compliance and patient safety.

Higher Yield

Less material waste due to defects or misfeeds.

Safety Compliance

Minimizes static sparks in environments handling powders or solvents, reducing fire/explosion risks.

Process Efficiency

Smooth material flow improves throughput and reduces manual intervention.

5. Best Practices for Static Management

Ion Bar Placement: Install above conveyors, filling stations, and labeling points.

Air-Assisted Ion Bars: Use for large or irregularly shaped packaging materials.

Regular Cleaning and Maintenance: Keep needles and nozzles clean to maintain consistent ion output.

Humidity Control: Maintain relative humidity at 40–60%.

Performance Verification: Use static meters or charge plate monitors to verify decay times and ion balance.

Grounding: Ensure all conductive equipment, fixtures, and operators are properly grounded.

Operator Training: Train staff on static awareness and handling procedures.

6. Conclusion

Effective static control in pharmaceutical packaging lines is essential to:

Prevent packaging adhesion and misfeeds

Reduce contamination from dust and particles

Ensure accurate filling and labeling

Improve production efficiency and yield

Maintain safety and regulatory compliance

Ionizing bars, combined with grounding, humidity control, and environmental management, form the core of a comprehensive static control strategy in pharmaceutical manufacturing.
