Multi-electrode discharge design has become an increasingly important approach in modern electrostatic control, plasma generation, and ionization-based industrial systems. Compared with traditional single-electrode or bipolar configurations, multi-electrode architectures offer enhanced spatial uniformity, higher ion density, improved scalability, and greater flexibility in system integration. These advantages make multi-electrode discharge designs particularly attractive for applications such as industrial ion wind bars, ionizing blowers, plasma surface treatment, air ionization, and advanced electrostatic neutralization systems.
At the same time, multi-electrode discharge introduces a new set of engineering challenges. Complex electric field interactions, increased sensitivity to manufacturing tolerances, higher demands on power electronics and control strategies, and long-term stability concerns must all be carefully managed to realize the theoretical benefits in practical products.
This article provides a comprehensive, engineering-oriented analysis of the advantages and challenges of multi-electrode discharge design. Rather than focusing solely on theoretical plasma physics, the discussion emphasizes industrial relevance, design trade-offs, and real-world implementation considerations. The objective is to support equipment manufacturers, system designers, and advanced users in making informed decisions when adopting multi-electrode discharge architectures.
Electrical discharge systems form the core of many industrial technologies, including electrostatic elimination, ozone generation, air purification, plasma-assisted manufacturing, and surface modification. Historically, many of these systems relied on relatively simple electrode arrangements, such as single-point corona emitters or basic bipolar configurations.
As performance requirements have increased—demanding higher throughput, better uniformity, lower noise, and improved stability—limitations of simple electrode designs have become increasingly apparent. Non-uniform electric fields, localized over-discharge, and limited scalability constrain both performance and reliability.
Multi-electrode discharge design has emerged as a response to these challenges. By distributing discharge activity across multiple electrodes, designers aim to control electric field distribution more precisely and tailor discharge behavior to application-specific requirements.
Multi-electrode discharge design refers to systems in which three or more electrodes actively participate in generating and sustaining an electrical discharge. These electrodes may operate at the same potential, different fixed potentials, or dynamically controlled waveforms.
Common configurations include:
Linear arrays of emitter pins
Interleaved positive and negative electrodes
Multi-phase electrode systems
Segmented electrodes with independent control
The defining characteristic is that discharge behavior results from the collective interaction of multiple electrodes rather than a single dominant emitter.
In single-electrode corona systems, the electric field is highly localized, leading to strong ion generation near the emitter but rapid spatial decay. Dual-electrode systems improve balance but still suffer from field concentration and limited control over discharge distribution.
Multi-electrode designs extend control over a larger spatial domain, enabling more uniform discharge and improved scalability. However, this comes at the cost of increased system complexity.
One of the most significant advantages of multi-electrode discharge is improved spatial uniformity of ion generation or plasma density. By distributing electrodes across a target area, local electric field peaks are reduced, and discharge activity is spread more evenly.
This uniformity is critical in applications such as large-area electrostatic neutralization, web handling, and flat panel manufacturing, where localized over- or under-treatment can lead to defects.
Multi-electrode configurations can achieve higher total ion output without increasing the stress on individual electrodes. Each electrode operates at a lower local field intensity while contributing to the overall ion population.
This approach reduces the likelihood of micro-arcing and localized degradation, enhancing both performance and longevity.
Scaling a single-electrode system typically involves increasing voltage or current, both of which introduce stability and safety challenges. In contrast, multi-electrode systems scale more naturally by adding electrodes or extending electrode arrays.
This modular scalability is particularly advantageous for industrial systems requiring customizable lengths or coverage areas.
In multi-electrode systems, failure or degradation of a single electrode does not necessarily lead to complete system failure. Remaining electrodes can continue to operate, often with only a gradual reduction in performance.
This inherent redundancy improves reliability in continuous-operation industrial environments.
Advanced multi-electrode designs allow selective activation, phase shifting, or amplitude modulation of individual electrodes. This enables dynamic control of discharge characteristics, such as directional ion flow, localized intensity adjustment, or adaptive response to environmental changes.
Such flexibility is difficult or impossible to achieve with simpler electrode arrangements.
In multi-electrode systems, electric fields from individual electrodes overlap and interact. While this can be beneficial for uniformity, it also introduces complexity. Field superposition can lead to unexpected local maxima or minima, especially near electrode edges or discontinuities.
Accurate modeling and simulation are therefore essential during the design phase.
As ion density increases, space-charge effects become more pronounced. Accumulated charges can locally screen electric fields, altering discharge behavior in ways that are strongly dependent on electrode arrangement and operating conditions.
Managing space-charge interactions is a central challenge in high-density multi-electrode discharge systems.
Supplying stable and balanced voltage to multiple electrodes is significantly more challenging than powering a single emitter. Variations in load, electrode condition, or environmental factors can cause uneven voltage distribution, leading to non-uniform discharge.
Designers must consider whether to use a common supply, segmented supplies, or hybrid architectures.
In systems employing AC or pulsed waveforms, synchronization between electrodes becomes critical. Phase mismatch can either enhance or suppress discharge in unintended regions, affecting efficiency and stability.
Implementing precise phase control increases system cost and design complexity.
Multi-electrode systems are inherently sensitive to geometric tolerances. Small variations in electrode spacing, tip radius, or alignment can result in significant differences in local electric field strength.
Achieving consistent performance across units therefore requires tight manufacturing control and robust quality assurance processes.
As the number of electrodes increases, assembly time and maintenance effort also rise. Cleaning, replacement, and inspection procedures must be designed to remain practical at scale.
Multi-electrode discharge systems can exhibit increased acoustic noise and electromagnetic interference due to the interaction of multiple discharge sites. These effects are highly dependent on electrode configuration and operating parameters.
Mitigation strategies often involve trade-offs between noise reduction, discharge intensity, and control complexity.
Electrode aging, contamination, and material degradation can lead to gradual performance drift in multi-electrode systems. Because electrodes interact, degradation in one area can influence discharge behavior elsewhere.
Designs that incorporate monitoring and adaptive control are better suited to maintaining long-term stability.

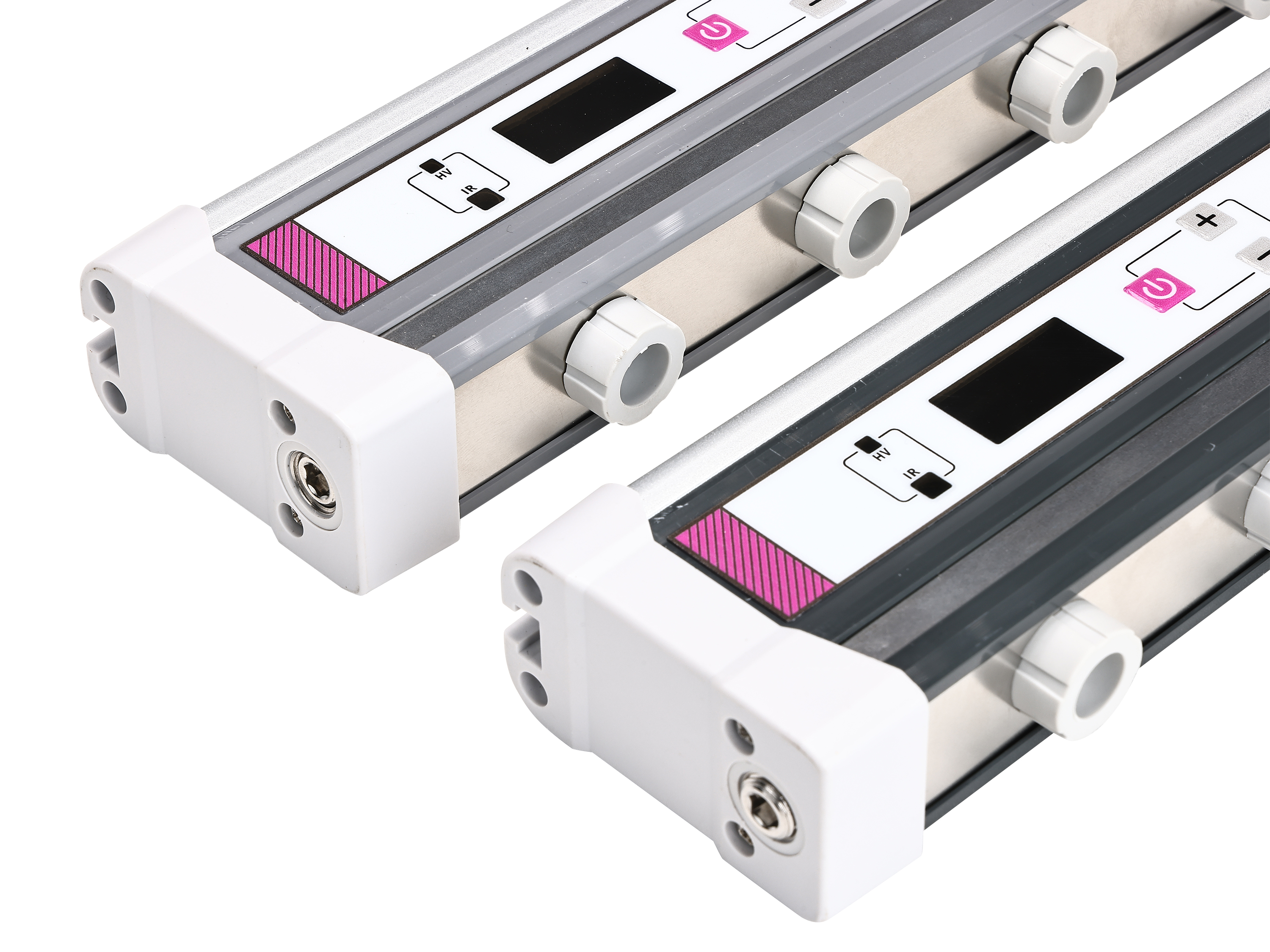

In ion wind bars and ionizing blowers, multi-electrode designs improve coverage and balance but require careful management of noise and power distribution.
Uniform plasma density is a primary driver for adopting multi-electrode architectures. Here, precise control outweighs added complexity.
Successful multi-electrode discharge design requires balancing competing objectives: performance, stability, cost, manufacturability, and reliability. Optimization is inherently application-specific and benefits from iterative prototyping and testing.
Evaluating multi-electrode discharge systems requires spatially resolved measurements of electric field, ion density, and discharge stability. Traditional single-point measurements are often insufficient.
Increased electrode count can complicate safety certification and regulatory compliance. Designers must address insulation, leakage current, and fault conditions comprehensively.
Advances in power electronics, sensing, and control are enabling increasingly sophisticated multi-electrode systems. Trends include intelligent electrode arrays, closed-loop control, and integration with digital manufacturing systems.
Multi-electrode discharge design offers compelling advantages in uniformity, scalability, and control flexibility. At the same time, it introduces challenges related to complexity, sensitivity, and long-term stability. Understanding and managing these trade-offs is key to successful implementation.
Multi-electrode discharge design represents a powerful approach for meeting the growing demands of modern industrial ionization and plasma-based systems. When thoughtfully engineered, it enables performance levels unattainable with simpler architectures. However, achieving these benefits requires careful attention to electric field interactions, power distribution, manufacturing precision, and system-level integration.
For designers and manufacturers, the path to successful multi-electrode systems lies not in maximizing electrode count, but in achieving a balanced, application-driven design that aligns theoretical advantages with practical constraints.
In industrial practice, designers are often faced with a fundamental choice: increase system performance by scaling voltage and current on a small number of electrodes, or distribute the discharge across multiple electrodes operating at lower individual stress levels. This decision has significant implications for performance, reliability, and long-term cost.
High-voltage single-electrode scaling can achieve high instantaneous ion output or plasma density, but it concentrates electric field stress, thermal load, and material degradation at a few critical points. This often leads to accelerated electrode wear, increased risk of arcing, higher acoustic noise, and stricter insulation requirements.
By contrast, multi-electrode discharge design distributes these stresses spatially. Although the total system complexity increases, each electrode operates in a more benign regime. From an engineering perspective, this distribution of stress is one of the most compelling arguments for multi-electrode architectures in continuous-duty industrial systems.
However, the benefits are only realized when voltage sharing and discharge balance are properly managed. Poorly designed multi-electrode systems can suffer from uneven loading, where a subset of electrodes dominates discharge activity, effectively negating the intended advantages.
Multi-electrode discharge systems exhibit failure modes that differ from those of simpler configurations. Understanding these modes is critical for both design robustness and effective maintenance.
Common failure mechanisms include:
Progressive degradation of individual electrodes leading to localized over-discharge
Insulation aging between closely spaced electrodes
Connector or wiring failures in segmented power delivery architectures
Control drift resulting in phase or amplitude imbalance
Diagnosing such failures is inherently more complex because system-level performance degradation may be subtle and spatially non-uniform. A gradual increase in noise, imbalance, or localized heating may be the only early indicators.
Designs that incorporate diagnostic access points, modular electrode sections, or built-in monitoring capabilities significantly reduce downtime and maintenance cost.
The increasing availability of low-cost sensors and embedded processing has a profound impact on the feasibility of advanced multi-electrode discharge systems. Temperature sensors, current monitors, and even optical emission sensors can be integrated to provide real-time feedback on discharge behavior.
Closed-loop control strategies enable adaptive adjustment of electrode drive parameters to compensate for aging, contamination, or environmental variation. While this adds design complexity, it transforms multi-electrode discharge from a static system into a responsive and self-stabilizing platform.
From a strategic perspective, such integration aligns multi-electrode discharge design with broader Industry 4.0 and smart manufacturing initiatives.
A common concern regarding multi-electrode discharge design is increased cost. Additional electrodes, more complex power supplies, and tighter manufacturing tolerances all contribute to higher upfront expenses.
However, a lifecycle cost perspective often reveals a different picture. Improved uniformity, reduced electrode wear, lower failure rates, and increased operational flexibility can offset initial investment through reduced maintenance, longer service intervals, and improved process yield.
For high-value manufacturing environments, these indirect benefits frequently outweigh the incremental hardware cost.
Multi-electrode discharge design represents a mature and powerful approach for addressing the limitations of traditional discharge architectures. Its advantages in uniformity, scalability, and controllability are well established, but they are inseparable from challenges related to complexity, sensitivity, and system integration.
The key to successful implementation lies in disciplined engineering: accurate field modeling, robust power distribution, realistic tolerance management, and thoughtful consideration of failure modes and diagnostics. When these elements are addressed holistically, multi-electrode discharge systems can deliver performance and reliability that justify their added complexity.
As industrial demands continue to evolve toward larger areas, higher stability, and smarter systems, multi-electrode discharge design is likely to play an increasingly central role across electrostatic control and plasma-based technologies.
