Application & Installation Tips Of Ion Air Bar For Packaging Printing

Application & Installation Tips Of Ion Air Bar For Packaging Printing

The packaging printing industry relies heavily on precision, efficiency, and consistent product quality to meet market demands and regulatory standards. From flexible packaging and labels to corrugated boxes and folding cartons, every step of the printing process—from substrate handling and ink application to cutting and finishing—can be disrupted by static electricity. Static buildup on printing materials, equipment rollers, and even finished products leads to a range of costly issues, including material jamming, ink smudging, dust attraction, and poor adhesion of inks or coatings. As packaging printing operations become more automated and production speeds increase, the need for effective static control solutions has never been more critical. Ion air bars have emerged as the most reliable and versatile static elimination tool for this industry, addressing these challenges while supporting seamless, high-volume production.

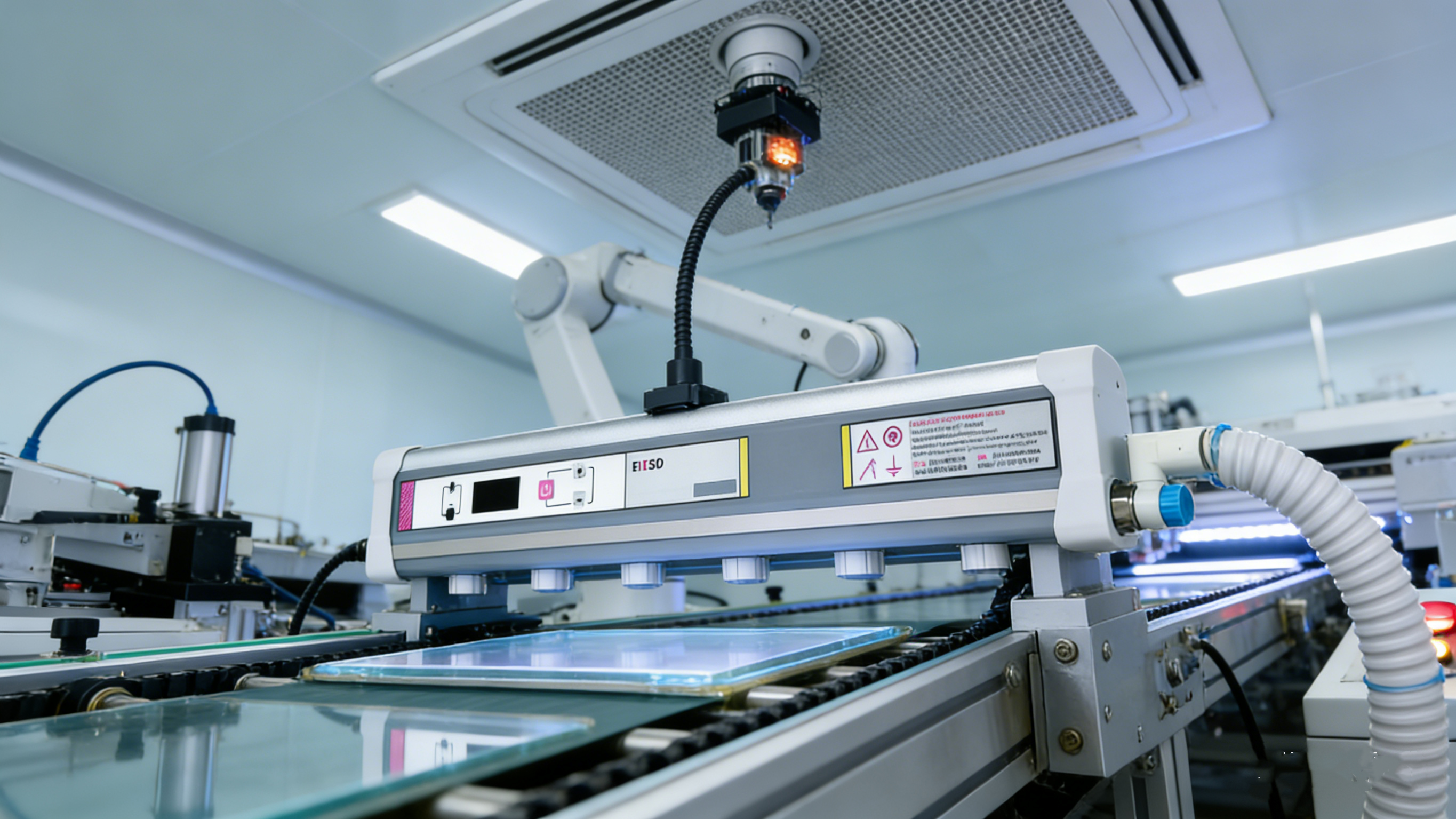

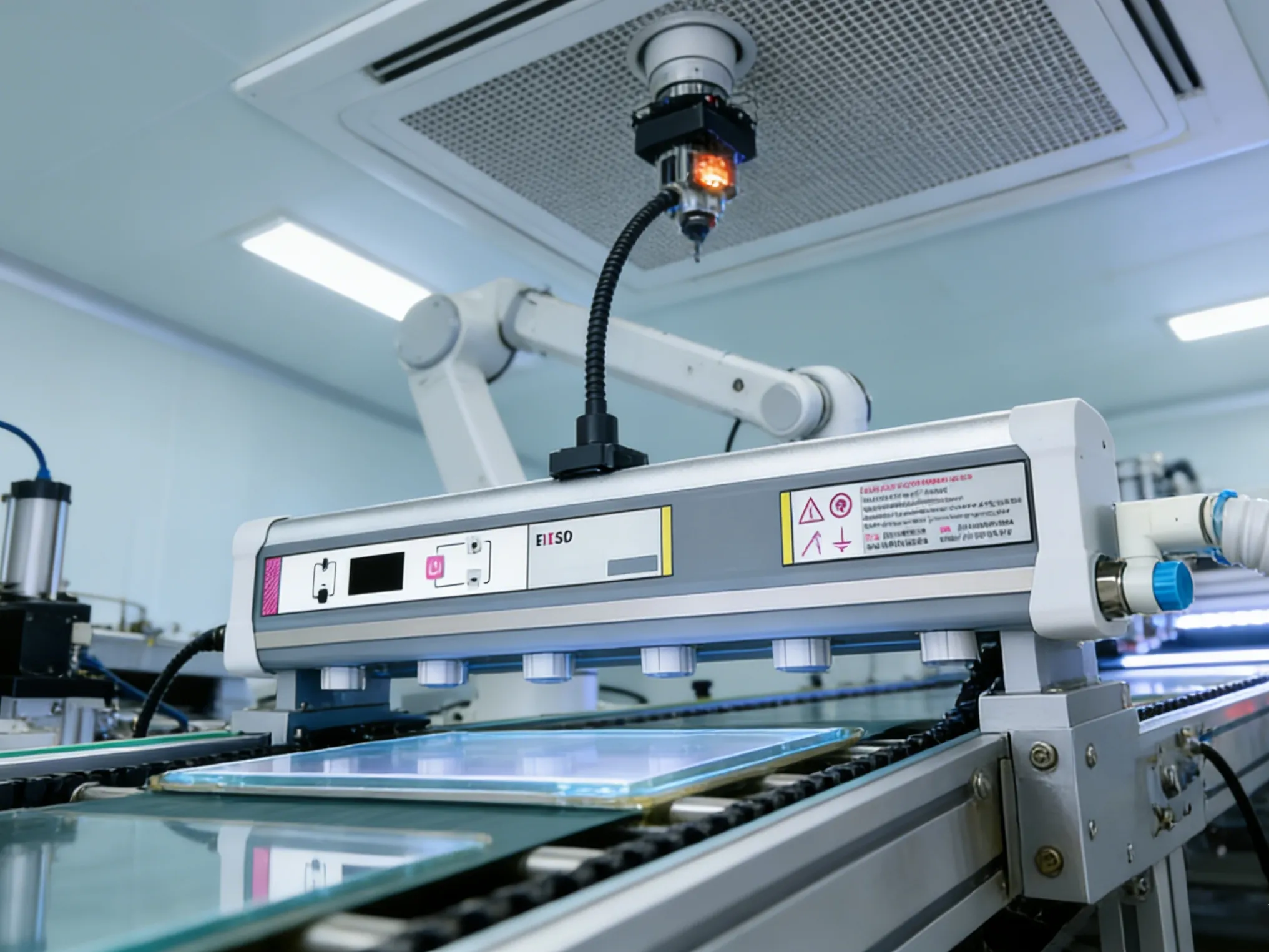

Ion air bars are fixed, industrial-grade static elimination devices that generate and emit balanced positive and negative ions to neutralize static charges on packaging printing materials (such as plastic films, paper, and foil) and equipment surfaces. For packaging printing applications, they are installed along production lines to provide continuous, hands-free static neutralization, preventing material jams, improving ink adhesion, reducing dust contamination, and ensuring consistent print quality. Proper application and installation are key to maximizing their effectiveness, and following industry-specific tips can help packaging printing businesses optimize performance, reduce downtime, and lower long-term costs.

This article is designed to provide packaging printing professionals with comprehensive guidance on the application and installation of ion air bars. We will explore the specific roles of ion air bars in different packaging printing processes, identify the key factors to consider when applying them to various substrates and equipment, and detail step-by-step installation tips to ensure optimal performance. Additionally, we will address common application mistakes, maintenance best practices, and troubleshooting techniques to help you get the most out of your ion air bar investment. Whether you operate a flexographic, gravure, offset, or digital packaging printing facility, the insights shared here will help you integrate ion air bars effectively into your operations.

Table of Contents

• Key Applications of Ion Air Bars in Packaging Printing

• Factors to Consider When Applying Ion Air Bars in Packaging Printing

• Step-by-Step Installation Guide for Ion Air Bars in Packaging Printing

• Common Installation Mistakes to Avoid in Packaging Printing

• Maintenance Tips to Extend Ion Air Bar Lifespan in Packaging Printing

• Troubleshooting Common Ion Air Bar Issues in Packaging Printing

Key Applications of Ion Air Bars in Packaging Printing

Ion air bars are used across multiple stages of the packaging printing process, including substrate unwinding, printing, coating, laminating, cutting, and finishing, to neutralize static charges on various substrates (paper, plastic film, foil, etc.) and equipment, preventing static-related defects and downtime.

In packaging printing, static electricity is generated by the friction, separation, and induction of materials during production. For example, when plastic film is unwound from a roll, the friction between the film layers creates static charges; when paper is fed through printing rollers, the contact between the paper and rollers generates static. These charges attract dust and debris from the environment, cause materials to stick to rollers or each other, and disrupt ink transfer, leading to defects such as smudged prints, uneven ink coverage, and misaligned cuts. Ion air bars address these issues by emitting a steady stream of positive and negative ions that neutralize the static charges, ensuring smooth material handling and consistent print quality.

One of the most critical applications of ion air bars in packaging printing is substrate unwinding and feeding. During the unwinding process, flexible substrates like BOPP, PET, LDPE, and PVC films often develop strong static charges, causing the film to cling to itself, the unwinding roll, or the feeding rollers. This can lead to jams, tears, and uneven feeding, which slow down production and waste material. Ion air bars installed near the unwinding station neutralize the static on the film surface, allowing it to unwind smoothly and feed evenly into the printing press. This is particularly important for high-speed printing lines, where even minor jams can result in significant downtime and material loss.

Ion air bars are also essential during the printing process itself, regardless of the printing technology used (flexography, gravure, offset, or digital). In flexographic printing, static charges on the substrate can cause ink to repel or spread unevenly, resulting in blurry prints or inconsistent color density. In gravure printing, static can cause the substrate to stick to the printing cylinder, leading to ink smudging and cylinder damage. By installing ion air bars near the printing station, businesses can neutralize static on the substrate before it reaches the printing rollers, ensuring optimal ink adhesion and transfer. This not only improves print quality but also reduces the need for rework and material waste.

Another key application is in coating and laminating processes, which are common in packaging printing to enhance the durability, appearance, or functionality of the final product. Static charges on the substrate or the coating/laminating material can cause uneven coating application, air bubbles, and poor adhesion between layers. Ion air bars installed before and after the coating/laminating station neutralize static, ensuring that the substrate and coating material bond properly and that the coating is applied evenly. This is especially important for food and beverage packaging, where proper coating and laminating are critical for product safety and shelf life.

Cutting and finishing processes also benefit from ion air bars. After printing, packaging materials are often cut into specific shapes or sizes, folded, or assembled. Static charges on the cut pieces can cause them to stick together, making it difficult to separate and package them efficiently. Ion air bars installed near the cutting station neutralize static on the cut materials, allowing them to be handled and packaged smoothly. Additionally, static can attract dust and debris to the finished products, compromising their appearance and quality. Ion air bars help keep the finished packaging clean by preventing static-induced dust attraction.

To further illustrate the versatility of ion air bars in packaging printing, the table below outlines common packaging printing processes, static-related issues, and how ion air bars address them:

Factors to Consider When Applying Ion Air Bars in Packaging Printing

When applying ion air bars in packaging printing, key factors to consider include the type of substrate, printing speed, static load, environmental conditions, and compatibility with existing equipment, as these factors directly impact the effectiveness of static neutralization and overall production efficiency.

The type of substrate being printed is one of the most important factors, as different substrates have different static-generating properties and require different ion air bar configurations. Packaging printing substrates can be divided into two main categories: conductive and insulating materials. Conductive materials, such as metal foils and some coated papers, do not accumulate static as easily as insulating materials, but they can still develop static charges during handling. Insulating materials, including plastic films (BOPP, PET, PVC), non-conductive papers, and cardboard, are highly prone to static buildup due to their low conductivity. For insulating substrates, ion air bars with higher ion output and wider coverage are required to effectively neutralize static charges. Additionally, some substrates, such as food-grade packaging materials, require ion air bars that are food-safe and do not emit particles or contaminants, ensuring compliance with industry regulations.

Printing speed is another critical factor, as faster production lines require ion air bars that can neutralize static quickly and continuously. Packaging printing lines often operate at speeds ranging from 100 to 500 meters per minute, and the ion air bar must be able to keep up with the moving substrate. Ion air bars with faster neutralization times (typically 1 second or less) are ideal for high-speed lines, as they ensure that static charges are neutralized before the substrate moves past the ion air bar. Forced air ion air bars are particularly effective for high-speed applications, as they use compressed air to deliver ions over longer distances and at a faster rate, ensuring that even fast-moving substrates are fully neutralized.

Static load, which refers to the amount of static charge that accumulates on the substrate or equipment, is also an important consideration. Static load is influenced by the substrate material, the production process (friction, separation, induction), and environmental conditions. Applications with high static loads, such as plastic film unwinding or high-speed printing, require ion air bars with higher ion output and adjustable voltage settings. Some ion air bars allow users to adjust the voltage to increase ion output for high static load applications, ensuring effective neutralization. It is important to assess the static load of your specific application to select an ion air bar with sufficient ion output.

Environmental conditions in the packaging printing facility, such as temperature, humidity, and dust levels, also impact the application of ion air bars. Humidity is particularly important, as lower humidity (below 40%) increases static buildup, requiring more powerful ion air bars or additional static control measures. Higher humidity (above 60%) reduces static buildup but can cause issues with ink drying and substrate handling. Ion air bars must be designed to withstand the facility’s temperature range, which typically ranges from 10°C to 40°C in most packaging printing facilities. Dust and debris in the environment can accumulate on the ion air bar’s emitters, reducing ion output and effectiveness. For dusty environments, ion air bars with protected emitters or self-cleaning features are recommended to prevent dust buildup.

Compatibility with existing equipment is another key factor to consider. Ion air bars must be installed in a way that does not interfere with the printing press, unwinding machines, cutting equipment, or other production line components. The length of the ion air bar should match the width of the substrate or equipment to ensure complete coverage. For example, a conveyor belt or printing press with a 1-meter width requires an ion air bar of at least 1 meter in length to cover the entire width of the substrate. Additionally, ion air bars must be compatible with the facility’s power supply and, for forced air models, the compressed air system. It is important to check the power requirements (typically 110V/60Hz or 220V/50Hz) and compressed air specifications (air pressure, flow rate) of the ion air bar to ensure compatibility with existing systems.

Finally, compliance with industry standards and regulations is a critical factor, especially for packaging printing businesses that serve industries such as food and beverage, pharmaceutical, or medical devices. Ion air bars used in these applications must meet specific standards for safety, hygiene, and performance. For example, ion air bars used in food packaging printing must be food-safe, with no risk of contamination from the device itself. They must also meet ISO cleanroom standards if used in cleanroom environments, which are common in pharmaceutical packaging printing. It is important to verify that the ion air bar meets the relevant industry standards before application.

Step-by-Step Installation Guide for Ion Air Bars in Packaging Printing

Installing ion air bars in packaging printing facilities involves a systematic process, including pre-installation preparation, mounting the ion air bar, connecting power and compressed air (for forced air models), grounding, and testing, to ensure optimal static neutralization and compatibility with production lines.

Pre-installation preparation is the first step and involves assessing the installation location, gathering the necessary tools and materials, and ensuring compliance with safety standards. Start by identifying the optimal installation location for the ion air bar, which should be as close to the static-generating source as possible (e.g., near the unwinding roll, printing station, or cutting equipment) to maximize effectiveness. The location should also allow for easy access for maintenance and ensure that the ion air bar is aligned with the substrate or equipment surface. Next, gather the required tools and materials, including mounting brackets, bolts, screws, a high-voltage power supply, grounding wire, and (for forced air models) compressed air hoses and filters. It is also important to ensure that all personnel involved in the installation are trained on safety procedures, including proper grounding and handling of high-voltage equipment.

The second step is mounting the ion air bar. The mounting method depends on the type of equipment and the installation location. Most ion air bars come with mounting brackets or slots that allow for adjustable positioning. For unwinding stations, the ion air bar should be mounted above or beside the unwinding roll, aligned parallel to the roll and positioned 2-5 cm away from the substrate surface (for short-range models) or up to 50 cm away (for forced air models). For printing stations, the ion air bar should be mounted before the printing rollers, ensuring that the substrate passes through the ion stream before reaching the rollers. For cutting and finishing stations, the ion air bar should be mounted near the cutting blade or conveyor belt, aligned to cover the entire width of the substrate. Use the provided mounting hardware to secure the ion air bar in place, ensuring that it is stable and does not vibrate during operation, as vibration can affect ion delivery and static neutralization.

The third step is connecting the ion air bar to the power supply and, for forced air models, the compressed air system. For the power supply, connect the high-voltage cable from the ion air bar to the power supply’s high-voltage output jack, ensuring that the connection is secure (typically by turning the connector clockwise until it is tight). The power supply should then be plugged into a grounded electrical outlet that matches the power requirements of the ion air bar (110V/60Hz or 220V/50Hz). For forced air ion air bars, connect the compressed air hose to the air inlet on the ion air bar, ensuring that the connection is leak-proof. Install a compressed air filter to remove moisture, oil, and dust from the air, as contaminants can damage the ion air bar’s emitters and reduce ion effectiveness. Adjust the airflow rate to the manufacturer’s recommended range (typically 5-7 kg/cm²) to ensure optimal ion delivery.

Proper grounding is the fourth step and is critical for the safety and effectiveness of the ion air bar. The ion air bar, power supply, and the target equipment (printing press, unwinding roll, conveyor belt) must all be properly grounded to dissipate excess charges and prevent electric shocks. Connect the grounding wire from the ion air bar to the power supply’s grounding terminal, and then connect the power supply’s grounding wire to the facility’s earth ground. Use a grounding tester to verify that the grounding is sufficient (ideally, the ground resistance should be less than 1 ohm). Additionally, ensure that the substrate is grounded where possible, as this helps to dissipate neutralized charges and prevent recharging.

The final step is testing the ion air bar to ensure that it is operating effectively. Turn on the power supply and, for forced air models, the compressed air system. Use a static field meter to measure the static charge on the substrate before and after it passes through the ion air bar. The static charge should be reduced to near zero volts (within ±100V) after passing through the ion air bar. Check the ion balance using an ion balance meter, which should be within ±100V to ensure that equal amounts of positive and negative ions are being generated. Additionally, observe the production line to ensure that there are no static-related issues, such as material jams or ink smudging. Make any necessary adjustments to the ion air bar’s position, voltage, or airflow rate to optimize performance.

To summarize the installation process, the table below outlines the key steps, required tools, and important considerations:

Common Installation Mistakes to Avoid in Packaging Printing

Common installation mistakes in packaging printing include incorrect mounting distance, poor grounding, incompatible power or compressed air settings, improper alignment, and neglecting pre-installation assessment, all of which can reduce ion air bar effectiveness and lead to static-related production issues.

One of the most common mistakes is incorrect mounting distance between the ion air bar and the substrate or equipment. Ion air bars have a specific effective range, and mounting them too far away or too close can significantly reduce their effectiveness. For short-range ion air bars (without forced air), the optimal mounting distance is 2-5 cm from the target surface. Mounting them farther than 5 cm will result in insufficient ion delivery, leaving static charges unneutralized. Mounting them closer than 2 cm can cause the substrate to come into contact with the ion air bar, leading to damage to the substrate or the ion air bar’s emitters. For forced air ion air bars, the optimal distance is 10-50 cm, depending on the airflow rate and ion output. It is critical to measure the distance between the mounting location and the target surface before installation and adjust the ion air bar’s position accordingly.

Poor grounding is another major mistake that can compromise the safety and effectiveness of the ion air bar. Without proper grounding, the ion air bar may not generate ions effectively, and excess charges may not dissipate, leading to recharging of the substrate. Additionally, poor grounding increases the risk of electric shock to operators and damage to equipment. Common grounding mistakes include using a weak earth ground, loose grounding connections, or failing to ground all components (ion air bar, power supply, equipment). To avoid this, use a dedicated earth ground for the ion air bar system, ensure that all grounding connections are secure, and test the ground resistance regularly to verify that it is within the recommended range (less than 1 ohm).

Incompatible power or compressed air settings can also reduce ion air bar performance. Using a power supply with the wrong voltage output (e.g., 110V instead of 220V) can damage the ion air bar or reduce ion output. For forced air models, using compressed air with insufficient pressure or flow rate can limit the effective range of the ion air bar, while contaminated compressed air (with moisture, oil, or dust) can damage the emitters and reduce ion effectiveness. Before installation, verify that the power supply matches the ion air bar’s voltage requirements and that the compressed air system meets the manufacturer’s specifications for pressure and flow rate. Install a high-quality air filter to remove contaminants from the compressed air.

Improper alignment of the ion air bar is another common mistake. The ion air bar must be aligned parallel to the substrate or equipment surface to ensure even ion delivery across the entire width of the target. If the ion air bar is misaligned, some areas of the substrate may not receive sufficient ions, leading to “hot spots” where static charges remain unneutralized. This can result in uneven print quality, material jams, or dust attraction in those areas. To avoid misalignment, use a measuring tape to ensure that the ion air bar is parallel to the substrate or equipment, and adjust the mounting brackets as needed. For conveyor belts or moving substrates, ensure that the ion air bar is aligned to cover the entire width of the belt or substrate.

Neglecting pre-installation assessment is another mistake that can lead to ineffective ion air bar application. Failing to assess the static load, substrate type, or environmental conditions before installation can result in selecting the wrong ion air bar or installing it in the wrong location. For example, using a short-range ion air bar for a high-speed production line with a large static load will not provide sufficient static neutralization. Similarly, installing an ion air bar in a dusty environment without protected emitters will lead to dust buildup and reduced performance. To avoid this, conduct a thorough pre-installation assessment to determine the static load, substrate type, environmental conditions, and optimal installation location.

Finally, failing to test the ion air bar after installation is a common mistake that can lead to ongoing production issues. Even if the installation appears correct, it is important to test the ion air bar’s performance using a static field meter and ion balance meter to ensure that it is neutralizing static effectively. Failing to test can result in static-related defects that go unnoticed until they cause significant downtime or material waste. After installation, run the production line for a short period and monitor for static-related issues, making any necessary adjustments to the ion air bar’s position, voltage, or airflow rate.

Maintenance Tips to Extend Ion Air Bar Lifespan in Packaging Printing

Proper maintenance of ion air bars in packaging printing facilities is essential to extend their lifespan, ensure consistent performance, and reduce long-term costs, and it includes regular cleaning, power supply maintenance, grounding checks, airflow system maintenance (for forced air models), and performance testing.

Regular cleaning of the ion air bar’s emitters is one of the most important maintenance tasks. In packaging printing facilities, dust, ink particles, and substrate debris can accumulate on the emitter tips, reducing ionization efficiency and static neutralization performance. Emitters should be cleaned at least once a month, or more frequently in dusty environments or high-volume production lines. To clean the emitters, turn off the power supply and disconnect the ion air bar from the power source to avoid electric shock. Use a soft brush or a cotton swab dipped in isopropyl alcohol to gently wipe the emitter tips, removing any buildup. Avoid using sharp tools, as this can damage the emitters. After cleaning, allow the emitters to dry completely before reconnecting the power.

Maintaining the high-voltage power supply is another critical maintenance task. The power supply should be inspected regularly for signs of damage, such as cracks, loose connections, or abnormal noise. The high-voltage cable connecting the power supply to the ion air bar should be checked for wear or damage, as a damaged cable can reduce power delivery and increase the risk of electric shock. It is also important to ensure that the power supply is operating at the correct voltage (as specified by the manufacturer) to ensure optimal ion output. If the power supply has adjustable voltage settings, verify that the settings are appropriate for the application’s static load. Additionally, the power supply should be kept clean and free of dust, as dust buildup can cause overheating and reduce performance. The power supply should be stored in a dry, cool area away from direct sunlight and moisture.

Regular grounding checks are essential to ensure the safety and effectiveness of the ion air bar. The grounding wire should be checked monthly to ensure that it is securely connected to the earth ground and that there are no breaks or loose connections. Use a grounding tester to verify that the ground resistance is within the recommended range (less than 1 ohm). If the grounding is insufficient, static neutralization performance will be reduced, and there is an increased risk of electric shock. Additionally, ensure that the facility’s earth ground is in good condition, as a poor earth ground can affect the performance of the ion air bar. If any issues are found with the grounding system, address them immediately to avoid safety hazards and performance issues.

For forced air ion air bars, maintaining the airflow system is critical for effective ion delivery. The compressed air filter should be checked and replaced every 3-6 months, depending on usage, to ensure that the air is clean and free of moisture, oil, and dust. Contaminated compressed air can damage the emitters, block air channels, and reduce ion effectiveness. The air inlet and outlets of the ion air bar should also be cleaned regularly to remove any dust or debris that may block airflow. Additionally, the airflow rate should be checked periodically using a flow meter to ensure it is within the manufacturer’s recommended range. Adjust the airflow as needed to optimize ion delivery and static neutralization.

Conducting regular performance tests is another important maintenance task. Performance tests should be conducted monthly to ensure that the ion air bar is operating effectively. Use a static field meter to measure the static charge on the substrate before and after it passes through the ion air bar, ensuring that the charge is reduced to near zero volts. Use an ion balance meter to check the ion balance, which should be within ±100V. If the ion balance is outside the recommended range or the static neutralization time is too long, the ion air bar may need to be cleaned, the voltage adjusted, or the emitters replaced. Additionally, observe the production line for any static-related issues, such as material jams or ink smudging, and address them promptly.

Other maintenance tips include storing the ion air bar in a clean, dry environment when not in use, avoiding exposure to extreme temperatures or chemicals, and following the manufacturer’s recommended maintenance schedule. It is also important to train operators on proper maintenance procedures to ensure that tasks are performed correctly and safely. Regular maintenance not only extends the lifespan of the ion air bar (typically 5-10 years with proper care) but also ensures consistent performance, reducing the need for costly replacements and minimizing production downtime.

Troubleshooting Common Ion Air Bar Issues in Packaging Printing

Common ion air bar issues in packaging printing include insufficient static neutralization, uneven ion distribution, emitter damage, power supply failure, and airflow problems (for forced air models), and these can be resolved through systematic troubleshooting, including cleaning, adjustments, and component replacement.

Insufficient static neutralization is one of the most common issues, and it is typically caused by incorrect mounting distance, poor grounding, dirty emitters, or insufficient ion output. If the ion air bar is not neutralizing static effectively, start by checking the mounting distance. If the ion air bar is too far from the substrate, move it closer (within the effective range). If it is too close, move it farther away to avoid contact. Next, check the grounding system using a grounding tester to ensure that it is sufficient. If the grounding is poor, tighten the grounding connections or improve the earth ground. Clean the emitters to remove any dust or debris buildup, as this can reduce ion output. If the issue persists, adjust the voltage settings on the power supply to increase ion output, or check if the ion air bar is undersized for the application (e.g., too short for the substrate width).

Uneven ion distribution, which causes static “hot spots” on the substrate, is another common issue. This is typically caused by misalignment of the ion air bar, damaged emitters, or uneven airflow (for forced air models). To resolve this, check the alignment of the ion air bar and adjust it to ensure it is parallel to the substrate. Inspect the emitters for damage (e.g., bent or dull tips) and replace any damaged emitters. For forced air models, check the airflow system to ensure that air is being delivered evenly across the length of the ion air bar. Clean the air outlets and check the compressed air filter to ensure that airflow is not restricted. If the airflow is uneven, adjust the air pressure or replace the air distribution components.

Emitter damage is another issue that can reduce ion air bar performance. Emitters can become damaged due to contact with the substrate, use of sharp tools during cleaning, or exposure to contaminants. Damaged emitters (bent, dull, or broken) will not generate ions effectively, leading to insufficient static neutralization. To resolve this, inspect the emitters regularly and replace any damaged ones. When cleaning the emitters, use only soft brushes or cotton swabs to avoid damage. Additionally, ensure that the ion air bar is mounted at the correct distance to avoid contact with the substrate.

Power supply failure is a less common but serious issue that can cause the ion air bar to stop working entirely. Signs of power supply failure include no ion emission, abnormal noise from the power supply, or a burning smell. To troubleshoot, check the power cord and electrical outlet to ensure that power is being supplied to the power supply. If the power supply is receiving power but not working, check for loose connections between the power supply and the ion air bar. If the connections are secure, the power supply may be faulty and need to be replaced. It is important to use a power supply that is compatible with the ion air bar’s voltage requirements to avoid damage.

For forced air ion air bars, airflow problems are a common issue that can reduce ion delivery. Airflow problems include insufficient air pressure, restricted airflow, or contaminated compressed air. To resolve insufficient air pressure, check the compressed air system and adjust the pressure to the manufacturer’s recommended range. For restricted airflow, clean the air inlet and outlets of the ion air bar and replace the compressed air filter. Contaminated compressed air can damage the emitters and reduce ion effectiveness, so ensure that the air filter is replaced regularly and that the compressed air is free of moisture, oil, and dust. If the airflow problem persists, check the compressed air hose for leaks and repair or replace it as needed.

The table below summarizes common ion air bar issues, their causes, and solutions to help packaging printing professionals troubleshoot effectively:

Conclusion

Ion air bars are indispensable tools for the packaging printing industry, providing effective static control that ensures consistent product quality, reduces downtime, and lowers production costs. Their ability to neutralize static charges across a wide range of substrates and production processes—from unwinding and printing to coating and finishing—makes them a versatile solution for packaging printing businesses of all sizes. By understanding the key applications of ion air bars in packaging printing, considering critical factors during application, following proper installation procedures, avoiding common mistakes, and implementing regular maintenance, packaging printing professionals can maximize the effectiveness and lifespan of their ion air bars.

The success of ion air bar integration in packaging printing depends on a systematic approach, from pre-installation assessment to ongoing maintenance and troubleshooting. By addressing static-related issues proactively with ion air bars, packaging printing businesses can improve print quality, reduce material waste, and enhance production efficiency, ultimately gaining a competitive edge in the market. As the packaging printing industry continues to evolve with faster production speeds and more complex substrates, the role of ion air bars in static control will only become more critical, making it essential for businesses to invest in proper application and installation practices.
