Ion Air Bar For Electronic Production Line Static Removal Solution
The electronic production industry is evolving at an unprecedented pace, with components becoming increasingly miniaturized and sensitive. From microchips and circuit boards to semiconductors and sensors, modern electronic products rely on precision manufacturing processes to ensure functionality and reliability. However, one invisible threat consistently undermines production efficiency, product quality, and workplace safety: static electricity. Static buildup in electronic production lines can cause irreversible damage to sensitive components, attract dust and contaminants, lead to equipment jams, and even pose fire risks in certain environments. As electronic manufacturers strive to improve yield rates and reduce operational costs, finding an effective static removal solution has become a critical priority. Among the various static control technologies available, ion air bars have emerged as the most reliable and versatile choice for electronic production lines, offering continuous, wide-area static neutralization tailored to the industry’s unique needs.

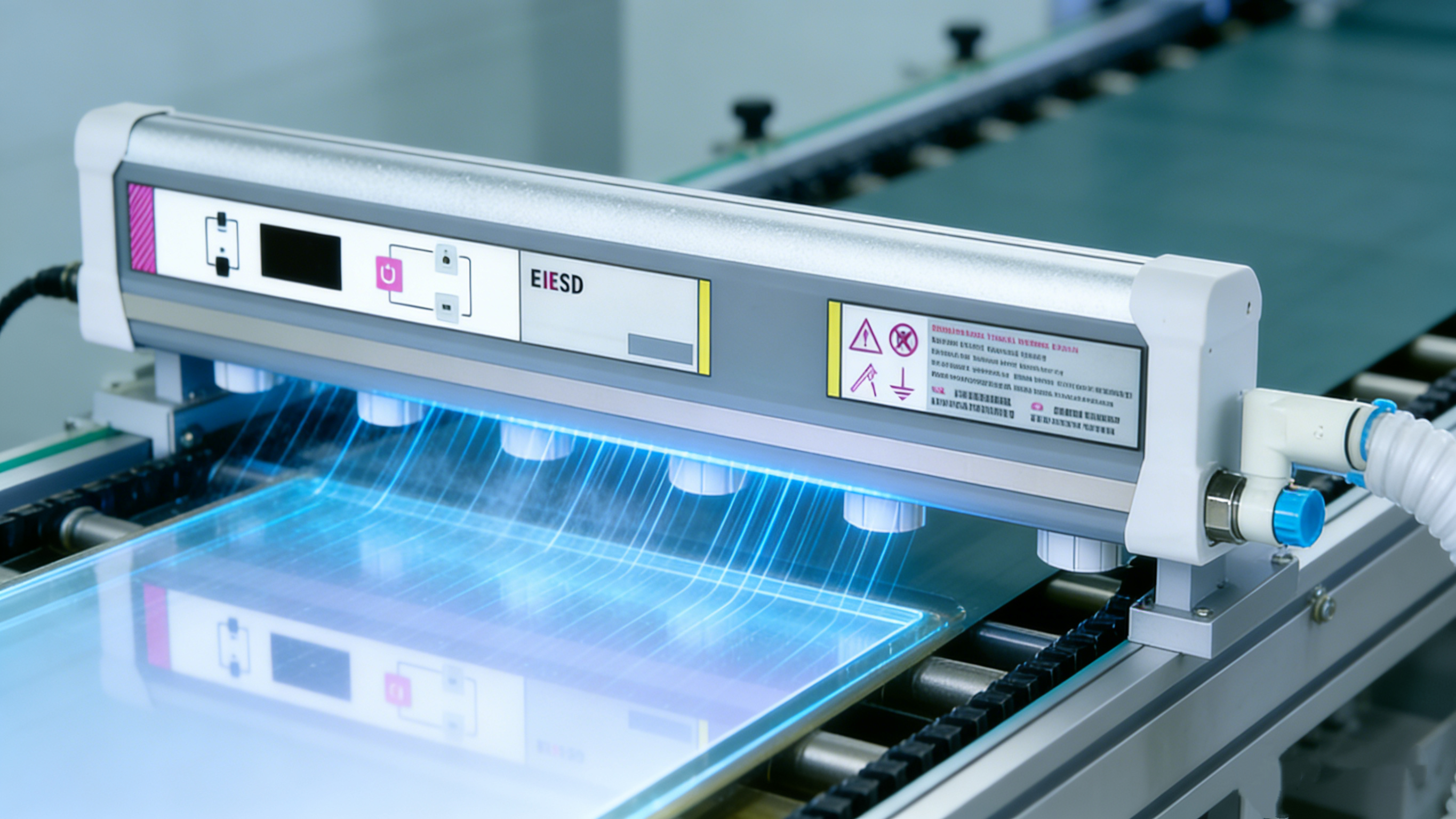

An ion air bar is a fixed, industrial-grade static elimination device designed to generate and emit balanced positive and negative ions, which neutralize static charges on the surface of electronic components, production equipment, and conveyor belts. For electronic production lines, it provides a non-contact, continuous static removal solution that integrates seamlessly with automated processes, protects sensitive components from electrostatic discharge damage, and ensures consistent production quality. When properly selected and installed, ion air bars can eliminate static charges in 1 second or less, cover wide production areas, and operate safely in cleanroom environments commonly used in electronic manufacturing.
This article will delve into the critical role of ion air bars in electronic production line static removal, exploring why static electricity is a major concern for electronic manufacturers, how ion air bars work to neutralize static, the key benefits they offer for electronic production, and how to select, install, and maintain them for optimal performance. We will also compare ion air bars with other static removal technologies, address common challenges in static control for electronic production lines, and provide practical insights to help manufacturers implement effective static removal solutions. Whether you operate a small electronic assembly line or a large-scale semiconductor manufacturing facility, this guide will equip you with the knowledge needed to leverage ion air bars to mitigate static risks and optimize production outcomes.
Table of Contents
Why Static Electricity Is a Critical Threat to Electronic Production Lines
How Ion Air Bars Work for Static Removal in Electronic Production Lines
Key Benefits of Ion Air Bars for Electronic Production Lines
How to Select the Right Ion Air Bar for Your Electronic Production Line
Proper Installation and Maintenance of Ion Air Bars in Electronic Production
Ion Air Bar vs. Other Static Removal Technologies for Electronic Production
Common Challenges and Solutions for Ion Air Bar Static Removal in Electronic Lines
Conclusion: Maximizing Electronic Production Efficiency with Ion Air Bar Static Removal
Static electricity is a critical threat to electronic production lines because it causes irreversible damage to sensitive electronic components, reduces product yield, attracts contaminants, disrupts automated processes, and poses safety risks. Even low levels of static discharge (as low as 50 volts) can damage microchips, semiconductors, and other sensitive parts, leading to costly defects and reduced product reliability.
To understand the severity of static electricity in electronic production, it is first important to recognize how static buildup occurs in these environments. Electronic production lines involve numerous processes that generate static, including the handling of insulating materials (such as plastic packaging, circuit board substrates, and synthetic fabrics), friction between components and conveyor belts, induction from nearby electrical equipment, and separation of materials (such as peeling protective films from circuit boards). In addition, the low humidity conditions common in cleanrooms—where many electronic components are manufactured—exacerbate static buildup, as dry air cannot dissipate charges effectively. For example,穿着 nylon clothing or plastic-soled shoes while walking on cleanroom floors can generate 7KV to 8KV of static electricity, while glass fiber crystal carriers sliding across polypropylene tables can produce up to 10KV of static charge.
The most devastating impact of static electricity in electronic production is electrostatic discharge (ESD) damage to sensitive components. Electronic components such as MOSFETs, microcontrollers, and semiconductors have extremely thin insulating layers that can be easily击穿 by even small static discharges. A static discharge of just 20 volts can cause permanent damage to some microchips, either rendering them completely non-functional (hard failure) or reducing their performance and lifespan (soft failure). These failures often go undetected during production, leading to defective products reaching customers, increased warranty claims, and damage to a manufacturer’s reputation. According to industry data, static-related defects account for 15% to 30% of all electronic component failures, resulting in billions of dollars in losses annually. A report from a leading research institute revealed that the global electronic industry loses over 100 billion dollars each year due to ESD damage.
Beyond component damage, static electricity also causes other operational challenges in electronic production lines. Static charges attract dust, lint, and other contaminants to the surface of components and circuit boards, which can cause short circuits, reduce connectivity, and compromise product performance. In cleanroom environments, where even tiny particles can ruin sensitive components, static-induced dust attraction is a major concern. For example, dust particles larger than 100 microns can easily short out aluminum wires on circuit boards, which are often just 100 microns wide. This issue is particularly prevalent in processes such as corrosion cleaning, lithography, welding, and packaging, where even small contaminants can lead to product报废.
Static electricity also disrupts automated production processes. Charged components can stick to conveyor belts, robotic arms, or other equipment, leading to jams, slowdowns, and increased downtime. For example, static-charged circuit boards may cling to conveyor belts, causing misalignment during assembly or packaging. This not only reduces production efficiency but also increases the risk of component damage due to manual intervention. Additionally, static discharge can interfere with the operation of electronic equipment used in production, such as sensors and control systems, leading to misreads, malfunctions, and production errors. Static discharge also generates electromagnetic noise that can disrupt the performance of sensitive electronic equipment, causing misoperations and data errors in production control systems.
Finally, static electricity poses safety risks in electronic production lines, particularly in areas where flammable materials (such as cleaning solvents or packaging materials) are used. Static discharges can ignite these materials, leading to fires or explosions. Even in non-flammable environments, static shocks can harm operators, leading to discomfort or distraction, which can increase the risk of accidents. For example, operators working with charged components may experience static shocks, which can cause them to drop or mishandle sensitive parts, leading to additional damage.
Ion air bars work for static removal in electronic production lines by generating balanced positive and negative ions through corona discharge, then delivering these ions to charged components and surfaces via airflow (either compressed air or natural convection), where the ions neutralize static charges by combining with opposite charges on the target surface.
The core working principle of an ion air bar involves three key stages: ionization, ion delivery, and charge neutralization—each tailored to the unique requirements of electronic production lines. Unlike other static removal technologies that require direct contact or chemical treatments, ion air bars operate non-contact, making them ideal for sensitive electronic components that cannot be touched or contaminated. This non-contact operation is critical in electronic production, as direct contact with sensitive components can cause physical damage or introduce contaminants.
The first stage, ionization, is initiated by a high-voltage power supply connected to the ion air bar. The power supply converts standard industrial electricity (110V or 220V) into a high-voltage current (typically 5KV to 7KV), which is delivered to the bar’s emitters. These emitters are small, sharp metal pins (usually made of tungsten or stainless steel) evenly spaced along the length of the bar—typically 10mm apart to ensure uniform ion distribution. When the high-voltage current reaches the emitters, it creates a strong electric field around their tips, which ionizes the surrounding air molecules (oxygen and nitrogen) through a process called corona discharge. This ionization process splits air molecules into positive ions (by removing electrons) and negative ions (by adding electrons), creating a balanced stream of both charge types. The ionization process is carefully controlled to ensure that the number of positive and negative ions is equal, preventing the buildup of additional static charges on components.
The second stage, ion delivery, involves transporting these ions from the emitters to the charged electronic components and surfaces. Ion air bars use two primary methods for ion delivery: forced air and natural convection. For electronic production lines, forced air ion air bars are the most common choice, as they can deliver ions over longer distances (up to 50cm or more) and ensure uniform coverage across wide conveyor belts or large production areas. Forced air ion air bars connect to a compressed air system, which blows the ions toward the target surface. The compressed air is filtered to remove moisture, oil, and dust—contaminants that could damage sensitive electronic components or reduce ion effectiveness. Natural convection ion air bars, which rely on ambient air movement to carry ions, are used in smaller workstations or areas where compressed air is not available, such as manual assembly stations for small components.
The final stage, charge neutralization, occurs when the ions reach the surface of the charged electronic components or equipment. Every component in an electronic production line can accumulate static charge through processes like friction, induction, or separation. If a component has a positive static charge, it will attract the negative ions from the ion air bar; conversely, if it has a negative static charge, it will attract the positive ions. The combination of opposite charges neutralizes the static on the component’s surface, bringing its charge to near zero volts. This neutralization process happens quickly—typically within 1 second for most electronic production applications—and is continuous as long as the ion air bar is in operation, ensuring that static does not reaccumulate on components as they move through the production line. For example, a circuit board with a static charge of 5000V can be neutralized to near zero volts in less than 1 second when an ion air bar is properly positioned.
For electronic production lines, the effectiveness of ion air bars is enhanced by their ability to provide uniform ion distribution. The even spacing of emitters along the bar ensures that ions are delivered consistently across the entire width of a conveyor belt or production surface, eliminating “hot spots” where static may remain unneutralized. This is critical for electronic components, which often have small, precise features that are highly susceptible to static damage. Additionally, ion air bars can be adjusted to control ion output, allowing manufacturers to tailor the static removal solution to the specific static load of their production processes—from low-static assembly tasks to high-static processes like plastic film unwinding or component packaging.
Another key aspect of ion air bar operation in electronic production lines is proper grounding. Both the ion air bar itself and the target components/equipment must be properly grounded to dissipate the neutralized charges. Without proper grounding, the neutralized charges may not escape, leading to recharging of the components. Most ion air bars include a grounding wire that connects to the facility’s earth ground, ensuring that excess charges are safely dissipated. Some models also feature a grounding indicator light to alert operators if the grounding is insufficient, helping to maintain optimal performance and safety.
The key benefits of ion air bars for electronic production lines include non-contact static neutralization that protects sensitive components, continuous and consistent operation ideal for automated processes, wide coverage to handle large production areas, compatibility with cleanroom environments, low maintenance requirements, and improved production efficiency and yield rates.
The most critical benefit of ion air bars for electronic production lines is their non-contact operation, which protects sensitive electronic components from damage. Unlike static dissipative mats or conductive tools, which require direct contact with components, ion air bars neutralize static from a distance, eliminating the risk of physical damage or contamination. This is essential for delicate components such as microchips, semiconductors, and circuit boards, which can be easily scratched or damaged by contact. Additionally, non-contact operation means that ion air bars can be used on moving components, such as those on conveyor belts, without interfering with the production process. This is particularly important in automated electronic production lines, where components move continuously through various stages of assembly and packaging.
Continuous and consistent static neutralization is another major benefit of ion air bars, making them ideal for automated electronic production lines. Unlike handheld static eliminators, which require manual operation and are impractical for large-scale production, ion air bars operate 24/7 once installed, ensuring that static charges are neutralized as soon as they accumulate. This continuous operation prevents static buildup from causing component damage, equipment jams, or contamination, leading to smoother production processes and reduced downtime. For example, in a semiconductor manufacturing line, where components move rapidly through multiple stages, ion air bars installed along the conveyor belt ensure that static is neutralized at every step, preventing ESD damage and ensuring consistent product quality.
Wide coverage is another key advantage of ion air bars for electronic production lines. Electronic production lines often feature wide conveyor belts, large workstations, or multiple production stations that require static control. Ion air bars are available in various lengths (from 30cm to several meters) and can cover a wide range of distances (from 2cm to 50cm or more for forced air models), making them suitable for large-scale production areas. For example, a conveyor belt that is 1.5 meters wide can be fully covered by a 1.5-meter ion air bar, ensuring that every component on the belt receives uniform static neutralization. Multiple ion air bars can also be installed side by side to cover even larger areas, such as entire production floors or cleanrooms. This wide coverage eliminates the need for multiple static control devices, reducing installation costs and simplifying maintenance.
Compatibility with cleanroom environments is essential for electronic production lines, as many sensitive components are manufactured in cleanrooms to prevent contamination. Ion air bars designed for cleanroom use are made of materials that do not emit particles, have smooth, easy-to-clean surfaces, and are designed to prevent dust buildup. They meet ISO cleanroom standards (such as ISO 7 or ISO 8) and do not introduce contaminants into the environment, making them safe for use in semiconductor, microchip, and other high-precision electronic manufacturing. Some ion air bars even have a cleanroom classification of Class 10, making them suitable for the most demanding cleanroom environments. Additionally, ion air bars do not produce harmful chemicals or radiation, ensuring that they do not contaminate components or the production environment.
Low maintenance requirements make ion air bars a cost-effective static removal solution for electronic production lines. Unlike chemical anti-static agents, which require frequent reapplication, or static dissipative materials, which need to be replaced regularly, ion air bars require only periodic maintenance to ensure optimal performance. The primary maintenance tasks include cleaning the emitters (to remove dust buildup) and checking the high-voltage power supply and grounding system. Emitters can be cleaned with a soft brush or cotton swab dipped in isopropyl alcohol, a simple task that can be completed in minutes. For forced air models, the compressed air filter may need to be replaced every 3-6 months, depending on usage. Overall, the maintenance costs associated with ion air bars are minimal, making them a cost-effective choice for long-term use. With proper maintenance, ion air bars can last 5-10 years, providing consistent static control and reducing the need for costly replacements.
Finally, ion air bars improve production efficiency and yield rates by reducing static-related defects and downtime. By neutralizing static charges, ion air bars prevent ESD damage to components, reduce contamination from dust and lint, and eliminate equipment jams caused by static. This leads to fewer defective products, higher yield rates, and reduced rework and scrap costs. For example, a manufacturer using ion air bars on their circuit board assembly line may see a 20% to 30% reduction in static-related defects, leading to significant cost savings and improved customer satisfaction. Additionally, reduced downtime from equipment jams and maintenance means that production lines can operate at full capacity, increasing overall productivity. A case study of a semiconductor manufacturer found that implementing ion air bars led to a 15% increase in production efficiency and a 25% reduction in ESD-related defects.
To select the right ion air bar for your electronic production line, you need to consider factors such as coverage area, operating distance, static load, cleanroom compatibility, power and airflow requirements, mounting options, and compliance with industry standards, ensuring the device effectively neutralizes static while integrating seamlessly with your production processes.
The first step in selecting an ion air bar is to assess your production line’s coverage area. The length of the ion air bar must match the width of your target surface, such as a conveyor belt or workstation, to ensure complete static neutralization. For example, a conveyor belt that is 1 meter wide will require an ion air bar of at least 1 meter in length. If your production line has irregular or larger coverage areas, multiple ion air bars can be installed side by side to provide full coverage. It is important to avoid undersized bars, as this will leave “hot spots” where static is not neutralized, leading to component damage or contamination. To determine the required length, measure the width of your conveyor belt, workstation, or production area, and select an ion air bar that matches or slightly exceeds this width. For example, a 1.2-meter wide conveyor belt would benefit from a 1.2-meter or 1.5-meter ion air bar to ensure full coverage.
Next, consider the operating distance between the ion air bar and the target components. Ion air bars have a specific effective range, and the distance must be within this range to ensure effective static neutralization. Short-range ion air bars (without forced air) typically have an effective range of 2-5cm, making them suitable for applications where the bar can be mounted close to the target, such as near a mold or small workstation for component assembly. Forced air ion air bars have a longer effective range (up to 50cm or more), making them suitable for applications where the target is farther away, such as above a wide conveyor belt or large production surface. In electronic production lines, the operating distance is often determined by the height of the conveyor belt or the layout of the production equipment. Measure the distance between the mounting location and the target components to select a bar with the appropriate range. For example, if the ion air bar will be mounted 30cm above a conveyor belt, a forced air model with an effective range of 20-50cm is ideal.
The static load of your production process is another critical factor. Static load refers to the amount of static charge that accumulates on components or surfaces, which depends on the materials being processed (e.g., plastic vs. metal), the production processes (e.g., friction, induction, separation), and environmental conditions (e.g., humidity). Electronic production lines with high static loads—such as those involving plastic packaging, film unwinding, or component handling—require ion air bars with higher ion output and faster neutralization times. Some ion air bars have adjustable voltage settings, allowing you to increase ion output for high static load applications. To assess your static load, use a static field meter to measure the static charge on components at various stages of production. Components with static charges above 1000V indicate a high static load, requiring a more powerful ion air bar. For example, plastic film unwinding processes can generate static charges of up to 10KV, requiring an ion air bar with high ion output and fast neutralization times.
Cleanroom compatibility is essential if your electronic production line operates in a cleanroom environment. Ion air bars used in cleanrooms must meet ISO cleanroom standards, with no risk of particle emission. Look for ion air bars made of non-particulating materials (such as aluminum or stainless steel) with smooth, easy-to-clean surfaces. Additionally, ensure that the ion air bar does not produce ozone, which can be harmful to components and operators. Some ion air bars feature a low-ozone design, making them suitable for cleanroom use. Check the manufacturer’s specifications to confirm that the ion air bar is certified for your cleanroom class (e.g., ISO 7, ISO 8). For example, a semiconductor manufacturing cleanroom (ISO 7) requires an ion air bar that meets ISO 7 standards and does not emit particles or ozone.
Power and airflow requirements are also important considerations. Ion air bars require a high-voltage power supply, and the voltage output (typically 5KV to 7KV) must be compatible with your production line’s static load. Some power supplies are adjustable, allowing you to fine-tune the ion output. For forced air ion air bars, the required airflow rate (measured in Lpm) must be compatible with your facility’s compressed air system. Ensure that the compressed air is clean and dry (free of moisture and oil), as contaminants can damage the emitters and reduce ion effectiveness. If compressed air is not available, consider a natural convection ion air bar, which does not require compressed air. Additionally, check the power consumption of the ion air bar to ensure it is compatible with your facility’s electrical system. For example, a forced air ion air bar may require a 220V power supply and a compressed air flow rate of 5-7 Kg.
Mounting options are another key factor, as the ion air bar must be mounted in a location that provides optimal ion delivery to the target components. Common mounting options include brackets, bolts, and slots, which allow for adjustable positioning. The mounting location should be such that the ion air bar is aligned with the target surface, and there are no obstacles blocking the ion flow. For example, ion air bars mounted above a conveyor belt should be positioned to direct ions evenly across the entire width of the belt. Some ion air bars have adjustable angles, allowing you to optimize the direction of ion delivery for maximum effectiveness. Additionally, consider the space available in your production line—some ion air bars are compact and designed for tight spaces, while others are larger and suitable for open areas. For example, a compact ion air bar may be ideal for a small component assembly workstation, while a longer, more robust model is better for a wide conveyor belt.
Finally, ensure that the ion air bar complies with relevant industry standards for electronic production. This includes standards for ESD control (such as ANSI/ESD S20.20) and safety standards (such as IEC 61010). Compliance with these standards ensures that the ion air bar is safe to use and effective for static control in electronic production. Additionally, check for certifications such as CE or UL, which indicate that the device meets international safety standards. For example, an ion air bar with ANSI/ESD S20.20 certification is suitable for use in electronic production lines that require strict ESD control.
Proper installation and maintenance of ion air bars in electronic production lines are essential to ensure optimal static neutralization performance, protect sensitive components, extend the device’s lifespan, and minimize downtime. Installation involves correct positioning, grounding, and connection to power and airflow systems, while maintenance includes regular cleaning, power supply checks, and performance testing.
When installing ion air bars in electronic production lines, the first step is to select the optimal mounting location. The ion air bar should be positioned to ensure that ions are delivered evenly to all target components, with no obstacles blocking the ion flow. For conveyor belts, mount the ion air bar above the belt, aligned parallel to the direction of movement, at a distance within the bar’s effective range. The height should be adjusted based on the bar’s effective range—for example, a forced air ion air bar with an effective range of 20-50cm should be mounted 20-30cm above the belt to ensure optimal ion delivery. For workstations, mount the ion air bar above or beside the workstation, directed toward the area where components are handled. Ensure that the ion air bar is not mounted too close to components, as this may cause physical damage or uneven ion distribution. Additionally, avoid mounting the ion air bar near electrical equipment or other sources of interference, which can affect ion output.
Proper grounding is critical for the safety and effectiveness of the ion air bar. The bar body, power supply, and target components/equipment must all be properly grounded to dissipate excess charges and prevent electric shocks. Connect the ion air bar’s grounding wire to the facility’s earth ground, ensuring that the connection is secure and free of corrosion. Use a grounding tester to verify that the grounding is sufficient—ideally, the ground resistance should be less than 1 ohm. For electronic production lines, it is also important to ensure that all production equipment (such as conveyor belts, robotic arms, and workstations) is grounded, as this helps to dissipate neutralized charges and prevent recharging of components. Some ion air bars include a grounding indicator light, which alerts operators if the grounding is insufficient. If the indicator light is on, check the grounding wire for loose connections or damage and repair as needed.
After positioning and grounding the ion air bar, connect it to the high-voltage power supply and (for forced air models) the compressed air system. For the power supply, ensure that the voltage matches the ion air bar’s specifications (typically 5KV to 7KV) and that the connection is secure. Use the provided high-voltage cable, and avoid extending the cable or using unapproved cables, as this can reduce power delivery and increase the risk of electric shock. For forced air models, connect the ion air bar to the compressed air system using a clean, dry air line. Install a filter to remove moisture, oil, and dust from the compressed air, as contaminants can damage the emitters and reduce ion effectiveness. Adjust the airflow rate to the manufacturer’s recommended range (typically 5-7 Kg for ion air bars) to ensure optimal ion delivery. Test the ion air bar to ensure that it is generating ions and delivering them evenly to the target components. Use a static field meter to measure the static charge on components before and after the ion air bar, verifying that the charge is neutralized to near zero volts.
Regular maintenance is essential to keep ion air bars operating effectively. The most important maintenance task is cleaning the emitters, as dust, dirt, and other contaminants can accumulate on the emitter tips, reducing ionization efficiency. Emitters should be cleaned at least once a month (or more frequently in dusty environments) using a soft brush or a cotton swab dipped in isopropyl alcohol. Before cleaning, turn off the power supply and disconnect the ion air bar from the power source to avoid electric shock. Gently brush or wipe the emitter tips to remove any buildup—avoid using sharp tools, as this can damage the emitters. After cleaning, allow the emitters to dry completely before reconnecting the power. Some ion air bars feature a self-cleaning design, which reduces the frequency of manual cleaning, but regular checks are still recommended.
Checking and maintaining the high-voltage power supply is another critical maintenance task. Inspect the power supply regularly for signs of damage, such as cracks, loose connections, or abnormal noise. Check the high-voltage cable for wear or damage, and replace it if necessary. Ensure that the power supply is operating at the correct voltage, and adjust the settings if needed to match the static load of your production process. Keep the power supply clean and free of dust, as dust buildup can cause overheating. Additionally, check the power supply’s cooling system (if applicable) to ensure it is working properly, as overheating can reduce performance and shorten the lifespan of the device.
For forced air ion air bars, maintain the airflow system by checking and replacing the compressed air filter regularly (typically every 3-6 months, depending on usage). A clogged filter can reduce airflow and ion delivery, leading to ineffective static neutralization. Clean the air inlet and outlets of the ion air bar to remove any dust or debris that may block airflow. Check the airflow rate periodically using a flow meter, and adjust it to the manufacturer’s recommended range if necessary. Additionally, ensure that the compressed air system is free of moisture and oil, as these contaminants can damage the emitters and reduce ion effectiveness.
Conduct regular performance tests to ensure that the ion air bar is operating effectively. Use an ion balance meter to check the ratio of positive to negative ions—ideally, the ion balance should be within ±100V to ensure balanced neutralization. Use a static field meter to measure the static neutralization time, which should be 1 second or less for most electronic production applications. If the ion balance is outside the recommended range or the neutralization time is too long, clean the emitters, adjust the voltage, or check the grounding. Additionally, inspect the ion air bar for any signs of damage, such as bent emitters or cracked housing, and repair or replace the device if necessary. Keep a maintenance log to record cleaning dates, filter replacements, and performance test results, which can help identify potential issues before they affect production.
Compared to other static removal technologies (such as ion blowers, anti-static mats, chemical anti-static agents, and static dissipative materials), ion air bars offer superior versatility, coverage, and effectiveness for electronic production lines, particularly for automated processes, wide areas, and sensitive components.
To better understand the differences between ion air bars and other static removal technologies, we have compiled a detailed comparison table, highlighting their key characteristics, advantages, and suitability for electronic production lines:
Static Removal Technology | Core Functionality | Coverage Area | Effectiveness for Electronic Production | Advantages | Disadvantages | Suitability for Electronic Production |
Ion Air Bar | Generates balanced positive/negative ions via corona discharge; delivers ions via forced air or natural convection to neutralize static | Wide (up to several meters in length; up to 50cm in range) | High (neutralizes static in 1 second or less; non-contact; protects sensitive components) | Continuous operation; wide coverage; compatible with automation and cleanrooms; no residue; low maintenance | Requires power supply; forced air models need compressed air; periodic emitter cleaning | Highly suitable (ideal for automated lines, wide areas, sensitive components, cleanrooms) |
Ion Blower | Generates ions and blows them via a built-in fan; similar to ion air bars but with a fan instead of compressed air | Medium (focused on small to medium areas; coverage up to 1 meter) | High (fast neutralization; adjustable fan speed) | No compressed air required; portable options available; adjustable airflow | Limited coverage; not ideal for wide conveyor belts; fan may generate dust in cleanrooms | Suitable for small workstations or manual assembly areas (not ideal for large-scale automated lines) |
Anti-Static Mats | Dissipates static from operators or small objects via grounding; made of static dissipative materials | Small (limited to the area of the mat) | Medium (requires direct contact; slow to dissipate static; not effective for moving components) | Low cost; easy to install; no power required; suitable for operator grounding | Limited coverage; requires direct contact; cannot neutralize static on moving components or large areas | Suitable as a supplementary tool (for operator grounding) but not as a primary static removal solution |
Chemical Anti-Static Agents | Applied to surfaces to increase conductivity and reduce static buildup | Variable (depends on application method) | Low (temporary effect; leaves residue; can contaminate sensitive components) | Low cost; easy to apply; suitable for non-sensitive materials | Leaves residue; contaminates sensitive components; temporary effect; requires frequent reapplication | Not suitable (residue and contamination risk for sensitive electronic components) |
Static Dissipative Materials | Materials with controlled conductivity that dissipate static charges to ground | Variable (depends on the size of the material) | Medium (slow to dissipate static; requires direct contact; only effective for materials made with the dissipative material) | Long-lasting; no maintenance; integrated into products or equipment | High cost; limited to specific applications; cannot neutralize static on non-dissipative components | Suitable for supplementary use (e.g., component packaging) but not as a primary solution for production lines |
One of the key advantages of ion air bars over other technologies is their ability to provide non-contact, continuous static neutralization for large, automated electronic production lines. Ion blowers, while effective for small workstations, lack the coverage needed for wide conveyor belts or large production areas. For example, a 1-meter ion blower can only cover a small workstation, while a 2-meter ion air bar can cover a wide conveyor belt, ensuring that all components receive uniform static neutralization. Additionally, ion blowers may generate dust in cleanrooms, making them unsuitable for high-precision electronic manufacturing.
Anti-static mats are a low-cost option but are limited to small areas and require direct contact, making them ineffective for moving components on conveyor belts. In electronic production lines, where components move continuously through various stages, anti-static mats cannot provide the continuous, wide-area static control needed to protect sensitive components. They are best used as a supplementary tool for operator grounding, rather than as a primary static removal solution. For example, an operator working at a manual assembly station may use an anti-static mat to ground themselves, but the mat cannot neutralize static on components moving through the station.
Chemical anti-static agents are not suitable for electronic production lines, as they leave residue on components, which can cause contamination, short circuits, or reduced performance. Sensitive electronic components such as microchips and semiconductors cannot tolerate any residue, making chemical agents a risky choice. Additionally, chemical agents have a temporary effect, requiring frequent reapplication, which increases operational costs and downtime. For example, applying a chemical anti-static agent to circuit boards may leave a residue that interferes with soldering or component connectivity.
Static dissipative materials, such as conductive packaging or work surfaces, are useful for supplementary static control but are limited in their effectiveness. They can only dissipate static charges on components that come into direct contact with them, and they cannot neutralize static on moving components or large areas. Additionally, static dissipative materials are expensive, making them impractical for large-scale production lines. For example, conductive packaging can protect components during shipping but cannot neutralize static during production.
In summary, ion air bars are the most suitable static removal solution for electronic production lines, offering a balance of coverage, effectiveness, and compatibility with the industry’s unique requirements. They provide non-contact, continuous static neutralization for wide areas, protect sensitive components from damage and contamination, integrate seamlessly with automated processes, and are compatible with cleanroom environments. While other technologies have their place in supplementary static control, ion air bars are the best choice for primary static removal in electronic production.
Common challenges when using ion air bars for static removal in electronic production lines include uneven ion distribution, insufficient static neutralization, contamination of emitters, compatibility issues with cleanrooms, and power supply problems. These challenges can be addressed with proper installation, maintenance, and configuration adjustments.
One of the most common challenges is uneven ion distribution, which leads to “hot spots” where static is not neutralized, resulting in component damage or contamination. This issue typically occurs when the ion air bar is not properly positioned, the emitters are dirty, or the airflow (for forced air models) is uneven. To solve this, ensure that the ion air bar is mounted parallel to the target surface (such as a conveyor belt) and aligned to cover the entire width of the area. Clean the emitters regularly to remove dust buildup, which can block ion emission. For forced air models, check the airflow rate and adjust it to ensure uniform ion delivery. Additionally, use an ion balance meter to measure ion distribution across the target area, and reposition the ion air bar if necessary. For example, if a conveyor belt has a “hot spot” in the middle, adjust the ion air bar’s angle or add a second ion air bar to cover the area.
Insufficient static neutralization is another common challenge, often caused by incorrect operating distance, low ion output, or high static load. If the ion air bar is mounted too far from the target components, ions may not reach the surface, resulting in incomplete neutralization. To solve this, adjust the mounting distance to within the ion air bar’s effective range—typically 2-50cm, depending on the model. If the static load is higher than expected (e.g., due to low humidity or high-friction processes), increase the ion output by adjusting the voltage setting on the power supply. For example, in a dry environment (humidity below 30%), increasing the voltage from 5KV to 7KV can improve ion output and neutralization effectiveness. Additionally, use a static field meter to measure the static charge on components and adjust the ion air bar’s settings accordingly.
Contamination of emitters is a frequent issue in electronic production lines, particularly in cleanrooms where dust and lint are present. Dust buildup on emitters reduces ionization efficiency, leading to slower static neutralization and uneven ion distribution. To address this, establish a regular cleaning schedule for the emitters—at least once a month, or more frequently in dusty environments. Use a soft brush or cotton swab dipped in isopropyl alcohol to gently clean the emitter tips, and avoid using sharp tools that can damage the emitters. Some ion air bars feature a self-cleaning design, which uses a rotating brush to clean the emitters automatically, reducing the need for manual cleaning. Additionally, ensure that the compressed air (for forced air models) is clean and dry, as moisture and oil can also contaminate the emitters. Install a high-quality filter in the compressed air line to remove contaminants before they reach the ion air bar.
Compatibility issues with cleanrooms are another challenge, as ion air bars may emit particles or ozone, which can contaminate sensitive components. To solve this, select ion air bars specifically designed for cleanroom use, made of non-particulating materials (such as aluminum or stainless steel) with smooth, easy-to-clean surfaces. Ensure that the ion air bar has a low-ozone design, as ozone can damage components and harm operators. Check the manufacturer’s specifications to confirm that the ion air bar meets your cleanroom class (e.g., ISO 7, ISO 8). Additionally, avoid using forced air models with high airflow rates, as this can stir up dust in the cleanroom. Instead, use low-airflow forced air models or natural convection models in cleanrooms to minimize dust movement. For example, a natural convection ion air bar is ideal for a Class 10 cleanroom, as it does not generate airflow that can stir up dust.
Power supply problems, such as voltage fluctuations or loose connections, can also affect the performance of ion air bars. Voltage fluctuations can reduce ion output, leading to insufficient static neutralization, while loose connections can cause intermittent operation or electric shocks. To address this, ensure that the power supply is connected to a stable power source, and use a surge protector to prevent voltage spikes. Check the high-voltage cable for loose connections or damage, and replace it if necessary. Regularly inspect the power supply for signs of overheating or damage, and replace it if it is not operating properly. Additionally, ensure that the power supply is properly grounded, as poor grounding can affect ion output and safety. For example, a loose power connection may cause the ion air bar to stop generating ions intermittently, leading to static buildup on components.
Another common challenge is recharging of components after neutralization, which occurs when the neutralized charges are not properly dissipated. This is typically caused by poor grounding of the target components or equipment. To solve this, ensure that all production equipment (conveyor belts, workstations, robotic arms) is properly grounded, and use a grounding tester to verify the ground resistance. Additionally, ensure that the ion air bar itself is properly grounded, as this helps to dissipate excess charges. If components are still recharging, consider adding a static dissipative mat or conductive conveyor belt to help dissipate charges more effectively. For example, a conductive conveyor belt can help dissipate neutralized charges from components as they move through the production line.
Static electricity is a persistent and costly threat to electronic production lines, causing component damage, reduced yield rates, equipment downtime, and safety risks. As electronic components become increasingly miniaturized and sensitive, the need for effective static removal solutions has never been more critical. Ion air bars have emerged as the most reliable and versatile solution for electronic production lines, offering non-contact, continuous static neutralization that protects sensitive components, integrates seamlessly with automated processes, and ensures consistent production quality.
Throughout this article, we have explored the key role of ion air bars in electronic production line static removal, including how they work, their key benefits, how to select and install them, and how to address common challenges. Ion air bars generate balanced positive and negative ions to neutralize static charges, delivering these ions via forced air or natural convection to target components. They offer wide coverage, continuous operation, and compatibility with cleanroom environments, making them ideal for large-scale, automated electronic production lines. Compared to other static removal technologies, ion air bars provide superior effectiveness and versatility, making them the preferred choice for electronic manufacturers.
By selecting the right ion air bar for your production line—considering factors such as coverage area, operating distance, static load, and cleanroom compatibility—and following proper installation and maintenance practices, you can mitigate static risks, reduce defects, and improve production efficiency. Regular cleaning, grounding checks, and performance testing will ensure that your ion air bars operate at optimal levels, protecting your sensitive components and maximizing yield rates. Additionally, addressing common challenges such as uneven ion distribution and emitter contamination will help to maintain consistent static neutralization and minimize downtime.
In today’s competitive electronic production industry, maximizing efficiency and product quality is essential for success. Ion air bars provide a cost-effective, reliable static removal solution that helps manufacturers achieve these goals, reducing costs associated with defects, rework, and downtime. Whether you operate a small electronic assembly line or a large-scale semiconductor manufacturing facility, ion air bars can help you protect your components, improve your production processes, and stay ahead of the competition. By investing in ion air bar static removal solutions, you can ensure that your electronic production line operates smoothly, efficiently, and safely, delivering high-quality products to your customers.
