Aerospace composite materials, such as carbon fiber reinforced polymers (CFRP), glass fiber reinforced polymers (GFRP), and advanced hybrid composites, have become indispensable in modern aircraft and spacecraft structures due to their high specific strength, stiffness, corrosion resistance, and fatigue performance. However, the manufacturing of aerospace-grade composites involves complex multi-step processes—lay-up, resin impregnation, curing, machining, and assembly—that are highly sensitive to electrostatic phenomena. Static electricity generated during these processes can lead to fiber misalignment, foreign object attraction, resin flow disturbance, dust contamination, safety hazards, and quality instability.
Ion wind bars, also known as ionizing air bars or ion wind rods, are widely used electrostatic control devices capable of generating balanced positive and negative ions and inducing airflow without mechanical motion. In recent years, ion wind bars have been increasingly adopted in aerospace composite manufacturing to mitigate electrostatic risks, enhance process stability, and improve product quality. This paper presents a comprehensive and systematic analysis of the application of ion wind bars in aerospace composite materials production. It covers the fundamentals of electrostatic generation in composite processes, the physical principles of ion wind technology, system design and integration, application scenarios across the manufacturing chain, performance evaluation, safety considerations, and future development trends. The work aims to provide a detailed technical reference for aerospace manufacturing engineers, materials scientists, and industrial researchers.
Aerospace composites; ion wind bar; static electricity control; carbon fiber; electrostatic mitigation; manufacturing quality; advanced materials
The aerospace industry has experienced a continuous shift from traditional metallic materials toward advanced composite materials over the past several decades. Modern commercial aircraft, military platforms, launch vehicles, and satellites rely extensively on composite structures to achieve weight reduction, fuel efficiency, and enhanced structural performance. In some next-generation aircraft, composite materials account for more than 50% of the structural weight.
Despite their advantages, aerospace composites present significant manufacturing challenges. The production processes involve handling electrically insulating fibers and polymer matrices under dry, low-humidity, and clean-room-like conditions. These factors create an environment highly susceptible to electrostatic charge generation and accumulation. Uncontrolled static electricity can degrade manufacturing precision, contaminate critical surfaces, and compromise both safety and quality.
Ion wind bars have emerged as an effective and industry-proven solution for electrostatic control in composite manufacturing environments. By continuously emitting ions and generating a gentle airflow, ion wind bars neutralize surface charges and prevent electrostatic buildup without introducing mechanical vibration or particulate contamination. Their non-contact, scalable, and controllable nature makes them particularly suitable for aerospace applications, where reliability and cleanliness are paramount.
This paper provides an in-depth discussion of how ion wind bars are applied throughout the aerospace composite manufacturing lifecycle. The analysis integrates physical principles with practical engineering considerations and industrial case studies.
Static electricity in composite manufacturing arises from multiple mechanisms:
Triboelectric Charging: Friction and separation between fibers, prepregs, backing films, tooling surfaces, and rollers generate electrostatic charges due to differences in electron affinity.
Material Properties: Carbon fibers are electrically conductive, while polymer matrices and glass fibers are insulating, leading to complex charge distributions at interfaces.
Process Operations: Cutting, automated fiber placement (AFP), automated tape laying (ATL), winding, and machining introduce continuous mechanical contact and separation.
Environmental Conditions: Low humidity environments commonly used to protect prepregs increase surface resistivity and inhibit charge dissipation.
Charges generated during manufacturing can accumulate on fibers, resin films, tooling, and intermediate products. Due to the low conductivity of many polymeric components, these charges may persist for extended periods. Non-uniform charge distribution can lead to localized electric fields that influence material behavior.
Electrostatic effects can manifest in various detrimental ways:
Fiber repulsion or attraction, causing misalignment
Attraction of airborne dust and debris
Disturbance of resin flow during infusion
Adhesion problems between plies
Increased risk of electrostatic discharge (ESD)
Ion wind is a form of electrohydrodynamic (EHD) flow generated when ions produced by corona discharge are accelerated by an electric field and collide with neutral air molecules. This momentum transfer creates a directed airflow capable of transporting ions over significant distances.
Ion wind bars utilize arrays of sharp electrodes energized by high-voltage, low-current power supplies to generate controlled corona discharge. The resulting ion flow neutralizes static charges on nearby surfaces.

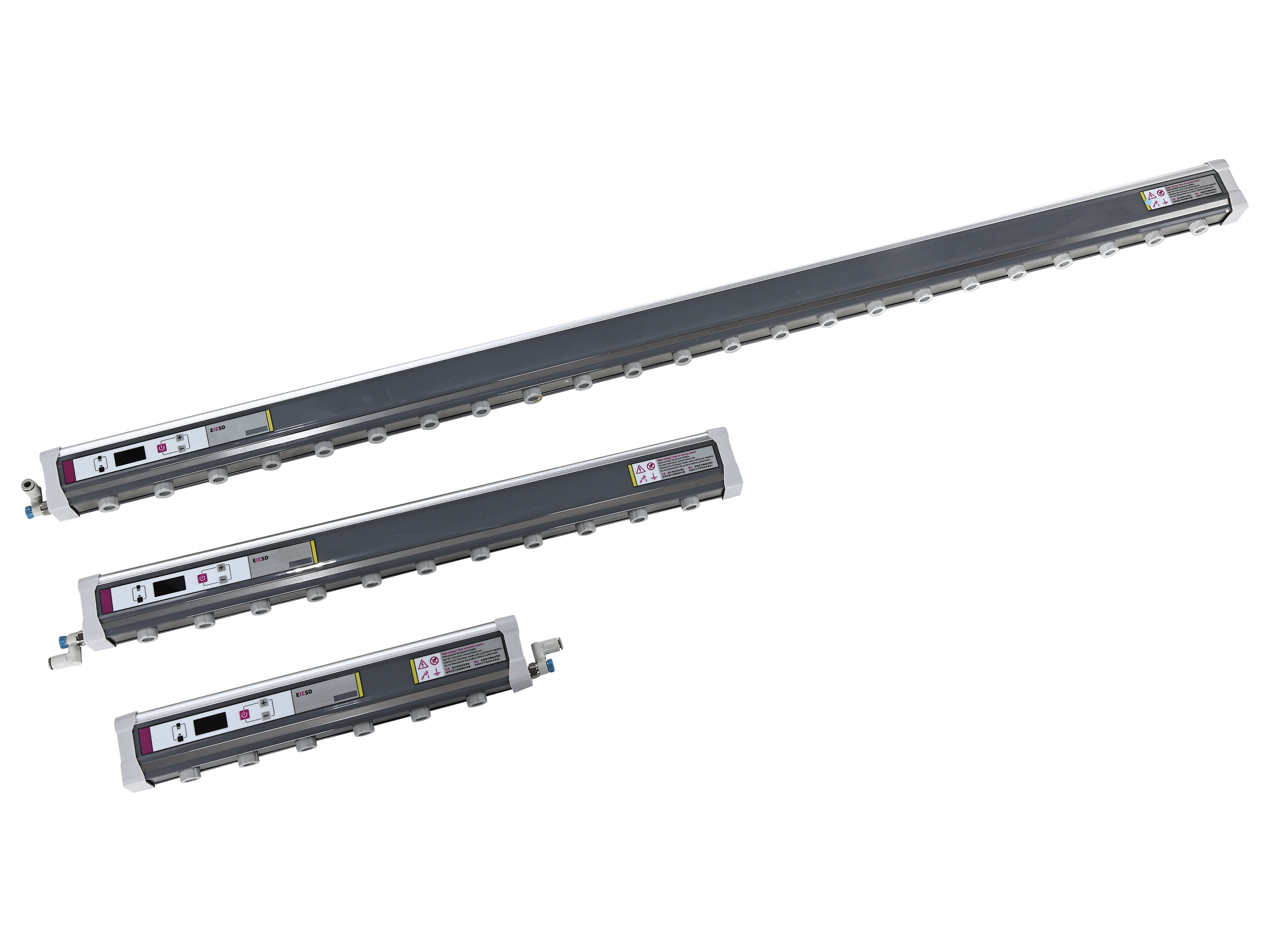

A typical ion wind bar consists of:
High-voltage ionizing electrodes (pins or wires)
Insulating or semi-conductive housing
Integrated power supply or external HV source
Grounding and shielding elements
The design is optimized to ensure uniform ion emission, minimal ozone generation, and stable long-term operation.
Ion wind bars may operate in balanced mode (equal positive and negative ions) or biased mode, depending on application requirements. Balanced ionization is preferred in aerospace manufacturing to avoid introducing net charge.
Ion wind bars are strategically placed near critical process zones, such as fiber lay-up stations, cutting tables, resin infusion areas, and inspection lines. Key parameters include distance to the material surface, orientation, and coverage width.
In automated systems such as AFP and ATL, ion wind bars are synchronized with machine operation to provide continuous electrostatic control without interfering with process speed or accuracy.
Aerospace composite manufacturing often requires clean environments. Ion wind bars used in these settings must meet stringent cleanliness standards, with low particle emission and controlled ozone levels.
During manual and automated lay-up, ion wind bars prevent fiber spreading, edge lifting, and unintended adhesion. This improves ply placement accuracy and reduces rework.
In AFP and ATL processes, static electricity can cause tape wandering and compaction inconsistencies. Ion wind bars stabilize tape behavior and enhance process repeatability.
Electrostatic charges influence resin flow paths and wetting behavior. Ion wind bars help maintain uniform resin impregnation by neutralizing surface charges.
During vacuum bag removal and part demolding, static charges can attract contaminants or cause sudden discharges. Ion wind bars reduce these risks and improve handling safety.
Composite machining generates charged dust particles. Ion wind bars reduce particle adhesion to component surfaces and measurement equipment, improving inspection accuracy.
Surface potential meters, electrostatic field sensors, and charge decay time measurements are used to evaluate ion wind bar performance.
Industrial data show significant reductions in contamination defects, fiber misalignment, and resin-rich/poor zones when ion wind bars are properly implemented.
Electrostatic control contributes to improved process stability, higher yield rates, and reduced scrap in aerospace composite production.
Ion wind bars reduce the likelihood of ESD events that could damage sensitive electronics or ignite flammable vapors.
Corona discharge produces ozone and nitrogen oxides. Aerospace-grade ion wind systems are designed to limit byproduct concentrations below regulatory thresholds.
Regular cleaning and calibration are necessary to maintain consistent ion output. Robust design ensures long service life in industrial environments.
The use of ion wind bars in aerospace manufacturing must comply with relevant standards related to ESD control, clean manufacturing, and occupational safety. Integration is often aligned with aerospace quality management systems.
Examples from commercial aircraft composite wings, fuselage barrels, satellite structures, and rocket motor casings illustrate the practical benefits of ion wind bar implementation.
Challenges include optimizing ion coverage for large structures, balancing electrostatic control with airflow sensitivity, and integrating systems into legacy production lines.
Future research focuses on intelligent ion wind systems with feedback control, integration with digital manufacturing platforms, and advanced materials for low-emission electrodes.
Ion wind bars play a critical role in controlling static electricity throughout aerospace composite materials manufacturing. By mitigating electrostatic risks, they enhance product quality, process reliability, and operational safety. As aerospace composite usage continues to expand, ion wind technology will remain an essential enabler of high-performance and high-quality manufacturing.
In aerospace composite manufacturing, electrostatic forces do not act in isolation. They are inherently coupled with mechanical forces acting on fibers, tapes, and prepreg layers. Carbon fibers and prepreg tapes are lightweight and flexible, making them particularly sensitive to electrostatic attraction or repulsion. Even weak electrostatic forces can alter fiber trajectories, induce local waviness, or affect ply nesting during lay-up.
Ion wind bars contribute to process optimization by minimizing electrostatic–mechanical coupling effects. By neutralizing surface charges in real time, they reduce unintended forces that would otherwise compete with mechanical compaction forces applied by rollers or placement heads. This improves fiber alignment accuracy and laminate uniformity, which are critical for achieving designed mechanical properties in aerospace structures.
Resin behavior during infusion and impregnation processes is influenced not only by pressure gradients and viscosity but also by electrostatic interactions at material interfaces. Charged fiber surfaces can attract or repel polar resin molecules, subtly affecting wetting behavior and flow uniformity. In large or thick composite parts, these effects may accumulate and contribute to resin-rich or resin-starved regions.
The application of ion wind bars reduces surface charge density on fibers and tooling, thereby stabilizing electrostatic boundary conditions during resin transfer molding (RTM) and vacuum-assisted resin infusion (VARI). This leads to more predictable resin flow paths and enhances the repeatability of infusion processes, particularly in large aerospace components such as wing skins and fuselage panels.
Advanced aerospace manufacturing increasingly relies on digital twins and process simulation. Incorporating electrostatic phenomena into multi-physics models remains a challenge, as it requires coupling electric field calculations with airflow, particle transport, and mechanical deformation. Ion wind bars introduce an additional electrohydrodynamic component that must be considered in high-fidelity simulations.
Recent research efforts have begun to integrate simplified electrostatic neutralization models into composite manufacturing simulations. These models represent ion wind bars as boundary conditions that impose charge decay rates or controlled ion fluxes. Such approaches enable engineers to predict the impact of electrostatic control on defect formation and process stability, supporting data-driven optimization of ion wind bar placement and operating parameters.
Ion wind bars operate alongside other environmental control measures, including humidity regulation, temperature control, and cleanroom airflow management. The interaction between ion-induced airflow and existing ventilation systems must be carefully managed to avoid unintended disturbances, such as localized turbulence or particle redistribution.
In aerospace facilities, coordinated control strategies are increasingly adopted. Ion wind bars are integrated into centralized manufacturing execution systems (MES), allowing their operation to be synchronized with environmental setpoints and process states. This systems-level approach maximizes electrostatic control effectiveness while maintaining compliance with cleanliness and process stability requirements.
Beyond technical performance, the economic and environmental implications of ion wind bar deployment are important factors in aerospace manufacturing. Improved electrostatic control reduces scrap rates, rework, and inspection failures, directly lowering production costs. Enhanced process stability also shortens cycle times and improves equipment utilization.
From a sustainability perspective, ion wind bars contribute indirectly by reducing material waste and energy consumption associated with rejected parts. Modern designs emphasize energy-efficient power supplies and low ozone generation, aligning electrostatic control solutions with broader sustainability goals in aerospace manufacturing.
