Capacitors are fundamental components in modern electronic systems, widely used in power electronics, telecommunications, automotive systems, and consumer devices. As capacitor technologies evolve toward higher density, miniaturization, and improved performance, sensitivity to electrostatic discharge (ESD) has become a critical concern in assembly processes.
Electrostatic charges generated during capacitor manufacturing—especially in automated assembly lines—can lead to dielectric breakdown, parameter drift, and latent defects. Ionizing air bars (ion bars) have become a key technology for mitigating these risks by neutralizing static charges in real time.
This article provides a comprehensive analysis of ionizing air bar applications in capacitor assembly processes, including working principles, integration strategies, performance optimization, environmental considerations, and future trends.
Capacitors, whether ceramic, electrolytic, film, or tantalum, are essential for energy storage, filtering, and signal processing. Modern manufacturing processes involve high-speed automation, precision placement, and complex material handling.
However, these processes also introduce significant electrostatic risks due to:
High-speed friction between materials
Insulating packaging components
Dry cleanroom environments
Repetitive mechanical motion
Electrostatic discharge—even at low voltage levels—can compromise capacitor integrity, particularly in multilayer ceramic capacitors (MLCCs) and thin-film capacitors.
Ionizing air bars are widely adopted in capacitor assembly lines to neutralize electrostatic charges, ensuring product reliability and manufacturing consistency.
Different capacitor types have varying sensitivity to electrostatic discharge:
Multilayer Ceramic Capacitors (MLCCs)
Aluminum Electrolytic Capacitors
Tantalum Capacitors
Film Capacitors
Among these, MLCCs are especially vulnerable due to their thin dielectric layers.
Typical capacitor assembly includes:
Electrode preparation
Dielectric layering
Stacking or winding
Pressing and sintering
Termination application
Encapsulation
Testing and sorting
Packaging
Electrostatic risks are present at nearly every stage, especially during handling and transport.
Modern lines use:
Conveyor systems
Robotic pick-and-place units
Vision inspection systems
Tape-and-reel packaging
Automation improves efficiency but increases static generation.
Static charge is generated through:
Triboelectric charging (material contact and separation)
Conveyor belt movement
Plastic trays and carriers
Airflow friction
ESD can cause:
Dielectric breakdown
Internal microcracks
Capacitance instability
Increased leakage current
Reduced lifespan
One of the most dangerous effects is latent damage:
Components pass initial testing
Fail prematurely in the field
Lead to costly recalls and reliability issues
Ionizing air bars generate ions using high-voltage corona discharge:
Sharp emitter points ionize air molecules
Produce positive and negative ions
Neutralize charged surfaces
A balanced ion output ensures:
Effective neutralization
Prevention of reverse charging
Typical balance target: within ±10 V.
Many ion bars use compressed air to:
Extend ion reach
Improve neutralization speed
Target specific areas
Ion bars are installed at:
Raw material input stations
Carrier tray transfer points
Purpose:
Prevent initial charge accumulation
Critical stage for MLCCs and film capacitors:
Thin dielectric layers are highly sensitive
Static charges can cause layer misalignment
Ion bars help stabilize materials during stacking.

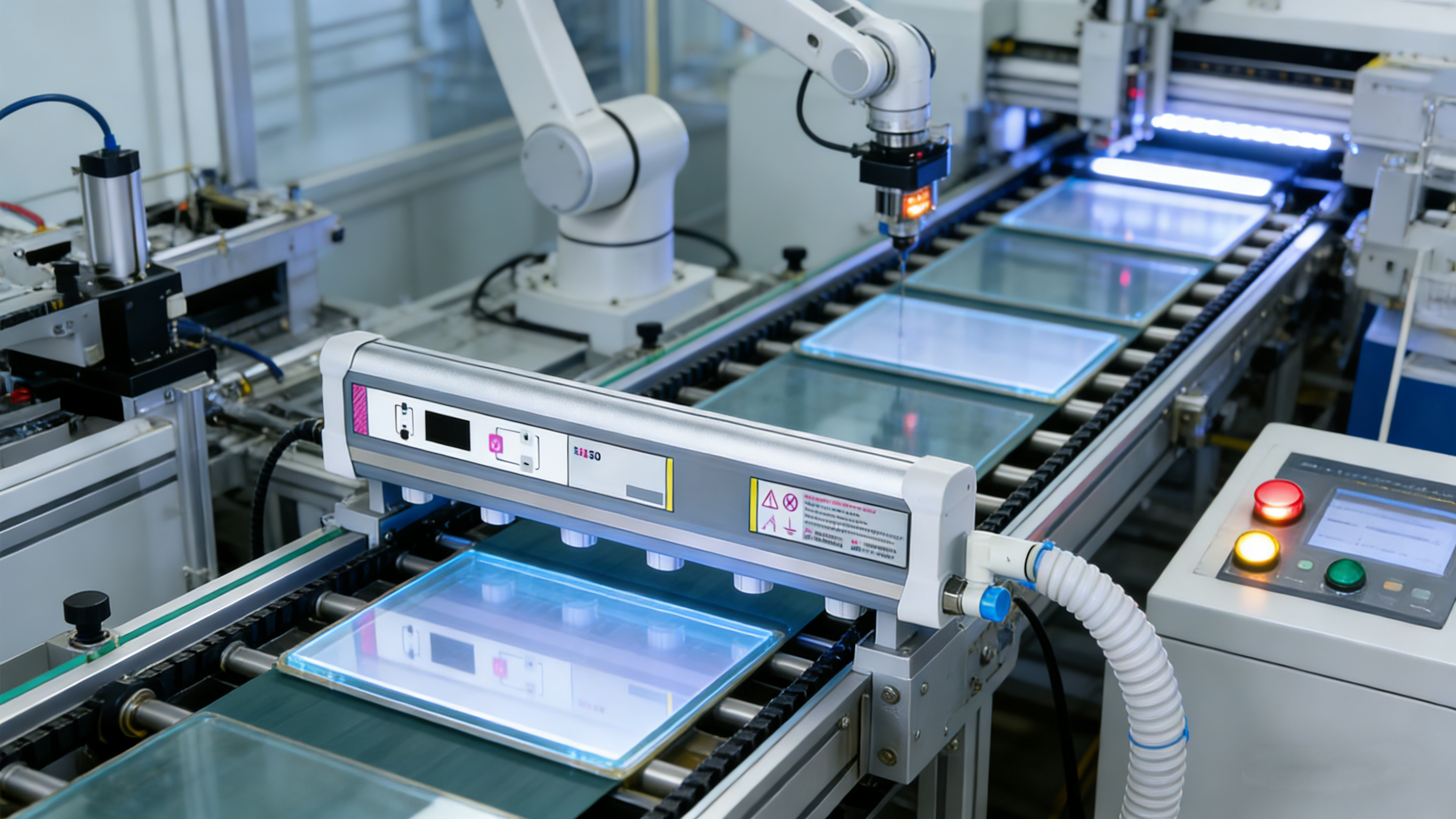

Conveyors are major static generators.
Ion bars:
Installed above belts
Neutralize moving components
Prevent charge buildup
Robotic handling introduces:
Friction-induced charging
Rapid charge accumulation
Ion bars near pick heads ensure:
Safe component transfer
Reduced defect rates
Sensitive measurement equipment can be affected by static:
Ion bars stabilize test environments
Improve measurement accuracy
Tape-and-reel packaging generates significant static:
Plastic materials are highly insulating
Ion bars neutralize charges before sealing
Effective placement includes:
Close proximity to charge sources
Coverage of critical zones
Avoiding shadowed areas
Typical working distance:
100 mm to 500 mm
Too far:
Reduced ion density
Too close:
Uneven coverage
Key factors:
Laminar airflow preferred
Avoid turbulence
Adjustable air pressure improves targeting
Ion bars can be connected to:
PLC systems
Sensors
Smart monitoring platforms
Benefits:
Real-time control
Adaptive ion output
Indicates how quickly static is neutralized.
High-performance requirement:
Less than 2 seconds
Measures ion balance.
Ideal:
Close to 0 V
Higher density improves performance but must be controlled.
Consistent performance is essential for:
Continuous production
High yield
Low humidity increases static risks.
Ion bars compensate effectively.
Capacitor manufacturing often occurs in controlled environments:
Ion bars must be low particle emission
Materials must be cleanroom compatible
Affects ion mobility and system efficiency.
Emitter points accumulate contamination:
Reduces ion output
Requires regular cleaning
Periodic calibration ensures:
Accurate ion balance
Stable performance
Advanced systems include:
Real-time feedback
Alarm functions
Performance tracking
Reduced defects
Higher reliability
Lower rejection rates
Stable production
Consistent handling conditions
Reduced variability
Fewer failures
Lower warranty costs
Solution:
Optimize airflow
Reduce distance
Solution:
Control ventilation systems
Use directional airflow
Solution:
Use self-cleaning emitters
Implement predictive maintenance
Provides:
Better balance control
Reduced offset voltage
Features:
IoT connectivity
Remote monitoring
Data analytics
For integration into:
Small equipment
Precision tools
In a high-speed MLCC assembly line:
Static voltage exceeded 1500 V
Ion bars reduced levels to below 50 V
Yield improved by 12%
Defect rates significantly decreased
Smart factories
Automated control systems
Adaptive ion output
Predictive maintenance
Energy-efficient designs
Reduced environmental impact
Ionizing air bars play a critical role in capacitor assembly processes by effectively neutralizing electrostatic charges and preventing ESD-related damage. Their integration into automated manufacturing systems enhances product quality, improves yield, and ensures long-term reliability.
As capacitor technologies continue to evolve, the importance of advanced electrostatic control solutions will only increase. Ionizing air bars, combined with intelligent monitoring and optimization systems, represent a cornerstone of modern high-precision manufacturing.
