Fanless ionizing bars, also referred to as passive or airflow-independent ionizing bars, play a critical role in electrostatic control where forced airflow is undesirable or prohibited. Unlike traditional ionizing bars equipped with fans or requiring compressed air, fanless ionizing bars rely on electric field-driven ion transport, ambient airflow, or process-induced movement to neutralize static charges. This paper provides a comprehensive and systematic discussion of the application of fanless ionizing bars in specialized environments. It examines their operating principles, design characteristics, advantages and limitations, and detailed application scenarios across semiconductor manufacturing, flat panel display production, lithium battery fabrication, printing, medical and pharmaceutical cleanrooms, and explosive or hazardous environments. The paper further explores selection guidelines, installation practices, performance evaluation, and future development trends, forming a complete technical reference for engineers and system integrators.
Electrostatic electricity is an unavoidable phenomenon in modern industrial processes involving insulating materials, high-speed motion, low humidity, or frictional contact. Uncontrolled static charges can lead to particle attraction, material adhesion, process instability, electrostatic discharge (ESD) damage, and, in extreme cases, ignition hazards. Ionization-based static elimination has become one of the most effective and widely adopted solutions.
Traditional ionizing systems often employ fans or compressed air to transport ions to the target surface. While effective, these systems introduce airflow, turbulence, noise, and potential contamination. In many sensitive or constrained environments, forced airflow is unacceptable. Fanless ionizing bars address this gap by providing static neutralization without active air movement, making them uniquely suitable for specialized environments.
This article focuses on the application of fanless ionizing bars, emphasizing why and how they are used in specific environments where airflow-free operation is essential.
Fanless ionizing bars generate positive and negative ions using high-voltage corona discharge at sharp emitter electrodes. Unlike fan-assisted systems, the transport of ions relies on:
Electric field-driven ion migration
Natural convection
Object or web motion within the process
In many applications, the proximity of the ionizing bar to the charged object compensates for the absence of forced airflow.
Without a fan, ion density decreases more rapidly with distance. Therefore, fanless ionizing bars are typically installed closer to the target surface, often within 20–100 mm. Their performance is highly dependent on geometry, electrode spacing, voltage waveform, and environmental conditions.
Common power configurations include:
AC high-voltage systems
Pulsed DC systems
Balanced DC systems with feedback control
Pulsed DC designs are increasingly preferred due to superior balance control and diagnostic capability.
The defining feature of fanless ionizing bars is the complete absence of internal fans or external air sources. This results in:
Zero airflow disturbance
Silent operation
Reduced particle movement
Fanless designs are typically slimmer and lighter, allowing installation in confined spaces such as narrow machine frames, vacuum chambers (with modifications), or near delicate components.
Without motors or compressors, fanless ionizing bars consume significantly less power, improving energy efficiency and system reliability.
Suitable for cleanroom and contamination-sensitive environments
No risk of airflow-induced process disturbance
Lower maintenance requirements
Improved reliability due to fewer moving parts
Shorter effective working distance
Strong dependence on installation geometry
Reduced performance in stagnant air conditions
Understanding these trade-offs is essential for proper application.
In semiconductor fabs, airborne particle control is critical. Fanless ionizing bars are widely used in wafer handling, inspection, and transfer modules where airflow could disrupt laminar flow or introduce contaminants.
During die bonding, wire bonding, and molding, static charges can attract particles or damage sensitive devices. Fanless ionizers provide localized charge neutralization without affecting process stability.
Fanless ionizing bars are designed using low-outgassing materials and smooth surfaces, making them compatible with ISO Class 1–5 cleanrooms.

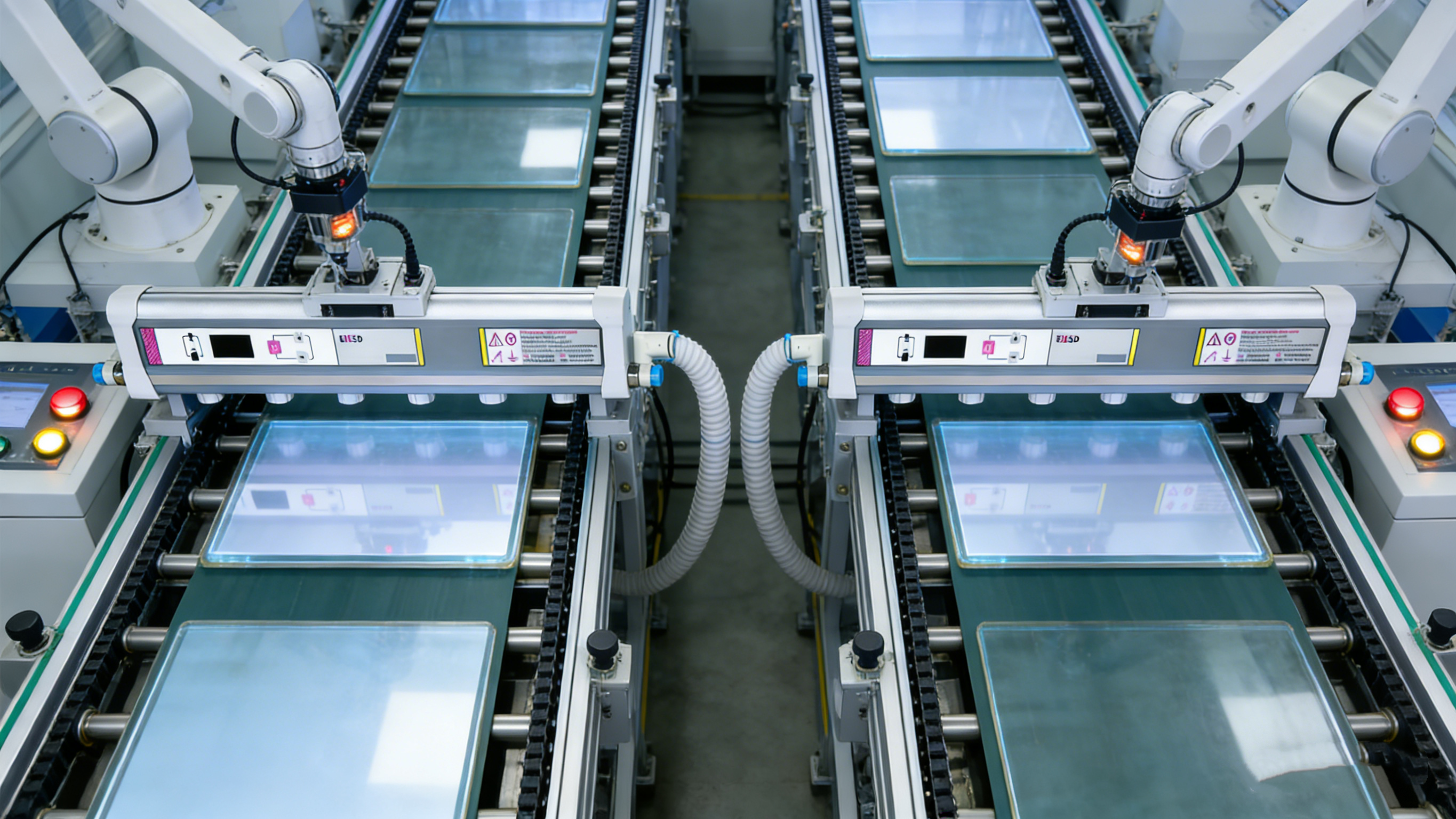

Large glass substrates generate significant static charges during transport and cleaning. Fanless ionizing bars are installed close to glass edges or surfaces to prevent particle attraction without disturbing precision alignment.
In coating and exposure steps, airflow can cause thickness non-uniformity or defects. Fanless ionization ensures electrostatic control while preserving process accuracy.
Lithium battery manufacturing often takes place in ultra-low humidity dry rooms, where static generation is severe. Fanless ionizing bars are preferred because they do not introduce moisture or airflow that could compromise dryness.
Static charges on electrode films can cause misalignment or particle attraction. Fanless ionizers provide stable static control in confined equipment layouts.
In high-speed web processes, fanless ionizing bars are mounted close to moving webs to neutralize static without flutter caused by airflow.
Airflow can distort droplet trajectories or coating uniformity. Fanless ionization supports high-resolution printing and coating quality.
In pharmaceutical filling lines and medical device assembly, fanless ionizing bars prevent static-related contamination while meeting strict hygiene standards.
Sensitive instruments benefit from silent, vibration-free static control provided by fanless ionizers.
In environments with flammable gases or dust, fanless ionizing bars reduce ignition risk by eliminating motors and airflow sources.
Static discharge can ignite powders or vapors. Properly certified fanless ionizers contribute to safer operations.
Optimal performance requires precise positioning relative to the target surface. Empirical testing is often necessary to determine ideal distances.
Proper grounding is essential to ensure effective ion balance and operator safety.
Standardized test methods are used to evaluate fanless ionizer performance under realistic conditions.
Humidity, temperature, and airflow patterns significantly affect performance and must be considered during system design.
Fanless ionizing bars are increasingly integrated with PLCs, MES, and Industry 4.0 platforms for monitoring and diagnostics.
With no moving parts, fanless ionizing bars offer high reliability. Periodic electrode cleaning and performance verification remain necessary.
Emerging trends include smarter control electronics, improved electrode materials, and hybrid designs combining fanless operation with adaptive ion control.
Fanless ionizing bars provide indispensable static control solutions in environments where airflow-free operation is mandatory. By understanding their principles, limitations, and application-specific requirements, engineers can effectively deploy these devices to enhance product quality, safety, and process stability.
In fanless ionizing bars, the dominant mechanism for ion transport is the electric field established between the emitter electrodes and nearby grounded objects. Once ions are generated through corona discharge, they experience Coulomb forces that drive them toward oppositely charged or grounded surfaces. Unlike fan-assisted systems, where airflow dominates ion movement, fanless systems rely heavily on field strength, electrode geometry, and installation distance.
The effectiveness of this mechanism is strongly influenced by the electric field gradient. Sharp electrode tips, optimized spacing, and carefully controlled high-voltage waveforms enhance ion acceleration while minimizing recombination losses. In practice, this results in highly localized but stable ion delivery, particularly effective at short distances.
Although fanless ionizing bars do not generate airflow, ambient air movement and process-induced motion play a secondary but important role. Moving webs, rotating parts, or robotic handlers naturally entrain air, assisting ion transport. In cleanroom environments with laminar airflow, fanless ionizers integrate seamlessly, supplementing existing airflow patterns without introducing turbulence.
Ion recombination is a key limitation in fanless systems. At longer distances, positive and negative ions tend to recombine before reaching the target. Design strategies to mitigate this include:
Reducing emitter-to-target distance
Increasing ion generation frequency
Using pulsed DC waveforms to temporally separate ion polarities
Understanding these mechanisms is essential for effective application design.
Fan-assisted ionizing bars generally offer longer working distances and faster decay times under open-air conditions. However, this advantage diminishes in confined or sensitive environments. Fanless ionizing bars excel in applications requiring precise, localized static control.
A comparative performance envelope analysis reveals that fanless ionizers provide superior stability and cleanliness within short-range applications, particularly when installed within 50 mm of the target surface.
Fans and compressed air systems inherently mobilize particles. In contrast, fanless ionizing bars minimize particle disturbance, making them preferable in semiconductor, pharmaceutical, and optical manufacturing.
The absence of motors results in silent operation and zero vibration. Energy consumption is limited to the high-voltage power supply, often an order of magnitude lower than fan-based systems when evaluated over continuous operation.
In wafer handling systems, static charges on FOUPs and wafers can attract particles or cause handling errors. Fanless ionizing bars are installed inside load ports and mini-environments, where airflow is strictly controlled. Their compact size and airflow-free operation allow integration without disrupting pressure balance.
Quantitative studies have shown significant reductions in particle adders and improved yield when fanless ionization is applied at critical transfer points.
High-resolution inspection tools are extremely sensitive to vibration and airflow. Fanless ionizing bars provide localized static neutralization around wafer edges and reticles without affecting measurement accuracy.
As glass substrate sizes continue to increase, static charge density grows proportionally. Fanless ionizing bars are distributed along transport paths, providing uniform charge neutralization without inducing substrate deflection or misalignment.
In advanced packaging processes, precise placement and bonding are critical. Fanless ionization ensures electrostatic stability in tightly controlled assembly environments.
Low humidity dramatically increases surface resistivity, exacerbating static buildup. Fanless ionizing bars operate reliably in dry rooms without introducing moisture, making them indispensable in battery electrode production.
Localized static control prevents electrode misalignment, particle attraction, and material damage. Case studies indicate improved throughput and reduced defect rates.
Fan-assisted airflow can induce web flutter, leading to registration errors. Fanless ionizing bars eliminate static while preserving mechanical stability.
Electrostatic forces influence droplet behavior at micron scales. Fanless ionization supports high-resolution patterning and uniform coating thickness.
Medical and pharmaceutical environments impose strict cleanliness and material requirements. Fanless ionizing bars meet these constraints by eliminating airflow-driven contamination.
Static control improves yield and reduces particle-related defects in syringe, vial, and implantable device manufacturing.
In hazardous environments, static discharge is a recognized ignition risk. Fanless ionizing bars reduce risk by neutralizing charge without introducing ignition-capable components.
Properly designed fanless ionizers can be certified for ATEX and IECEx zones, provided that electrical energy and surface temperatures are strictly controlled.
Optimal placement often requires empirical tuning. Computational simulations and on-site testing are commonly used to refine installation geometry.
Effective grounding is essential for ion balance and safety. Dedicated ground paths are recommended over shared machine grounds.
Although fanless ionizing bars have fewer failure modes, electrode contamination remains a concern. Periodic inspection and cleaning schedules must be established.
Advanced systems incorporate current monitoring and balance tracking to predict maintenance needs before performance degrades.
When evaluated over multi-year operation, fanless ionizing bars often demonstrate lower total cost of ownership due to reduced maintenance and energy use.
In high-value manufacturing, improved static control translates directly into higher yield and reduced safety risk.
Research into nanostructured and coated electrodes aims to improve ion efficiency and contamination resistance.
Integration with digital manufacturing platforms enables real-time monitoring and optimization.
Engineers selecting fanless ionizing bars must consider environment, distance, cleanliness, and regulatory requirements. A structured selection matrix supports informed decision-making.
Fanless ionizing bars occupy a critical niche in modern static control technology. Their unique ability to neutralize static electricity without introducing airflow makes them indispensable in specialized environments. Through careful design, installation, and integration, fanless ionizing bars deliver reliable, clean, and efficient static control across a wide range of advanced industrial applications.
