Charge Distribution of Ionizing Air Bars in Dust-Laden Air Environments

Abstract

Ionizing air bars are widely used for electrostatic neutralization in manufacturing environments where particulate contamination is often unavoidable. In dust-laden air, the behavior of bipolar ions becomes significantly more complex due to ion–particle interactions, space charge distortion, particle charging dynamics, airflow turbulence, and field redistribution. These processes alter charge density distribution, ion balance stability, neutralization efficiency, ozone chemistry, and long-term reliability.

This paper presents a comprehensive theoretical and applied analysis of charge distribution mechanisms when ionizing air bars operate in dusty atmospheres. The study integrates plasma physics, aerosol science, electrostatics, particle charging theory, fluid dynamics, and materials degradation modeling. Particular attention is given to nonlinear coupling between particle concentration, ion mobility reduction, space charge accumulation, and emitter surface contamination. Practical engineering implications for high-speed industrial environments are also discussed.

---

1. Introduction

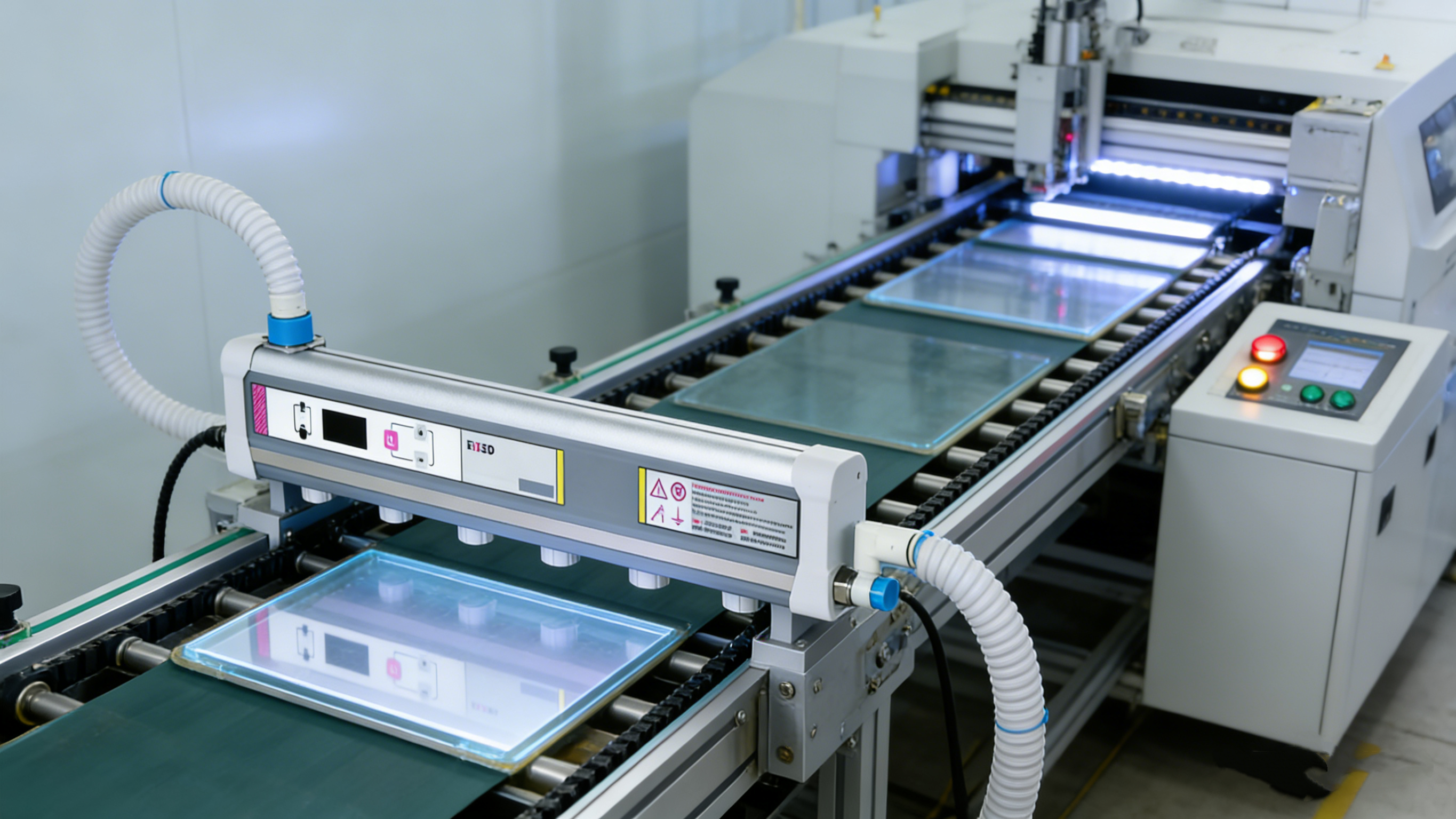

Ionizing air bars generate bipolar ions via corona discharge from high-voltage emitter needles. These ions are transported by forced airflow toward charged surfaces to neutralize static electricity. In ideal clean air conditions, ion transport can be approximated by drift–diffusion models. However, in dust-laden environments such as:

• Roll-to-roll film production

• Printing and packaging lines

• Textile processing

• Automotive assembly

• Plastics molding

• Semiconductor back-end processes

airborne particles fundamentally alter ion transport physics.

Dust particles:

• Capture ions

• Become charged carriers themselves

• Modify local electric fields

• Increase recombination

• Distort space charge distribution

As a result, charge distribution near the ionizer and target surface becomes highly nonuniform and time-dependent.

---

2. Fundamental Corona Discharge in Clean Air

In clean air, ion density nin_ini follows:

∇⋅(μiniE−Di∇ni)=S−R\nabla \cdot (\mu_i n_i \mathbf{E} - D_i \nabla n_i) = S - R∇⋅(μiniE−Di∇ni)=S−R

Where:

• μi\mu_iμi = ion mobility

• $\mathbf{E}$ = electric field

• DiD_iDi = diffusion coefficient

• $S$ = ion generation rate

• $R$ = recombination rate

Charge distribution is primarily governed by:

1. Electric field geometry

2. Airflow velocity

3. Ion mobility

4. Bipolar balance

Under steady state, space charge near the emitter stabilizes.

---

3. Introduction of Dust: A New Charge Carrier Population

In dusty air, an additional species must be considered: aerosol particles.

Particle population density:

np(d)n_p(d)np(d)

Where $d$ is particle diameter.

Particles interact with ions via:

• Diffusion charging

• Field charging

• Ion attachment

• Electrostatic attraction

Thus, total charge density becomes:

ρ=e(ni+−ni−)+∑qpnp\rho = e(n_i^+ - n_i^-) + \sum q_p n_pρ=e(ni+−ni−)+∑qpnp

Where qpq_pqp is particle charge.

This fundamentally alters field distribution.

---

4. Ion–Particle Charging Mechanisms

4.1 Diffusion Charging

Dominant for small particles (< 0.2 µm).

Random thermal motion causes ions to attach.

Charge accumulation follows Fuchs theory:

dqpdt=4πaDinie\frac{dq_p}{dt} = 4\pi a D_i n_i edtdqp=4πaDinie

Where:

• $a$ = particle radius

Over time, particles reach equilibrium charge.

---

4.2 Field Charging

Dominant for larger particles (> 1 µm).

External electric field drives ions toward particle surface.

qp∝a2Eq_p \propto a^2 Eqp∝a2E

Stronger near emitter due to intense field gradient.

---

4.3 Combined Charging

Most industrial dust spans wide size distributions. Therefore, both mechanisms operate simultaneously.

Result:

• Broad charge distribution spectrum

• Mixed polarity particles

• Time-dependent charge evolution

---

5. Spatial Redistribution of Charge Density

5.1 Near-Emitter Region

High ion density leads to rapid particle charging.

Consequences:

• Ion depletion

• Increased space charge from particles

• Local electric field distortion

Particle-laden sheath forms near emitter.

---

5.2 Mid-Field Region

Charged particles drift under:

F=qpE+6πηav\mathbf{F} = q_p \mathbf{E} + 6\pi \eta a \mathbf{v}F=qpE+6πηav

Ion–particle recombination increases.

Ion density decreases faster than in clean air.

---

5.3 Target Surface Region

Charged dust deposits on surfaces.

Surface charge now includes:

• Residual electrostatic charge

• Deposited charged particles

• Ion-induced neutralization

This leads to patchy surface potential distribution.

---

6. Space Charge Effects in Dusty Air

Increased particle charge density modifies Poisson’s equation:

∇2ϕ=−ρϵ0\nabla^2 \phi = -\frac{\rho}{\epsilon_0}∇2ϕ=−ϵ0ρ

Particle accumulation can:

• Shield electric field

• Reduce ion drift velocity

• Cause polarity imbalance

• Induce local field reversal

High dust concentration may create quasi-neutral plasma-like regions.

---

7. Ion Mobility Reduction

Effective mobility becomes:

μeff=μi1+βnp\mu_{eff} = \frac{\mu_i}{1 + \beta n_p}μeff=1+βnpμi

Where $\beta$ represents ion attachment probability.

Higher dust concentration → lower ion mobility → slower neutralization.

---

8. Turbulence and Particle Clustering

Industrial airflow is rarely laminar.

Turbulence induces:

• Particle clustering

• Nonuniform ion capture

• Localized recombination hot spots

Charge distribution becomes highly heterogeneous.

---

9. Polarity Imbalance in Dust Environments

Ionizing bars typically produce balanced positive and negative ions.

However:

• Positive and negative ions may attach to particles at different rates

• Particle material affects charge retention

• Secondary electron emission differs

This leads to drift in ion balance over time.

---

10. Particle Deposition on Emitter Needles

Charged particles are attracted to high-field emitter tips.

Consequences:

• Field enhancement at particle edges

• Micro-arcing

• Increased ozone production

• Accelerated erosion

Charge distribution becomes unstable.

---

11. Ozone Chemistry in Dusty Atmospheres

Dust surfaces catalyze ozone reactions.

Ozone reacts with:

• Organic particles

• Metallic dust

• Moisture films

This produces secondary reactive species affecting long-term charge transport.

---

12. Time Evolution of Charge Distribution

Initially:

• Ion-dominated charge density.

With prolonged operation:

• Particle-dominated charge density.

• Ion depletion increases.

• Space charge stabilizes at higher particle contribution.

Long-term equilibrium differs significantly from clean-air model.

---

13. Mathematical Multi-Species Model

Coupled equations:

Ion continuity:

∂ni∂t+∇⋅(nivi)=S−R−A\frac{\partial n_i}{\partial t} + \nabla \cdot (n_i \mathbf{v_i}) = S - R - A∂t∂ni+∇⋅(nivi)=S−R−A

Particle charge equation:

dqpdt=f(ni,E,a)\frac{dq_p}{dt} = f(n_i, E, a)dtdqp=f(ni,E,a)

Poisson equation:

∇2ϕ=−e(ni+−ni−)+qpnpϵ0\nabla^2 \phi = -\frac{e(n_i^+ - n_i^-) + q_p n_p}{\epsilon_0}∇2ϕ=−ϵ0e(ni+−ni−)+qpnp

Airflow equation:

ρDvDt=−∇P+μ∇2v\rho \frac{D\mathbf{v}}{Dt} = -\nabla P + \mu \nabla^2 \mathbf{v}ρDtDv=−∇P+μ∇2v

Fully coupled CFD–plasma–aerosol model required for accurate prediction.

---

14. Experimental Observations

Studies show:

• Neutralization time increases by 20–60% in dusty air.

• Ion density decreases proportionally to particle concentration.

• Particle deposition increases emitter maintenance frequency.

• Residual surface voltage variance increases.

---

15. Long-Term Performance Degradation

Dust-induced effects accumulate:

1. Emitter contamination

2. Insulator surface leakage

3. Ion balance drift

4. Reduced neutralization efficiency

5. Increased ozone

Maintenance intervals shorten significantly.

---

16. Engineering Mitigation Strategies

16.1 Pre-Filtration

Install HEPA or electrostatic filters upstream.

Reduces particle concentration near emitter.

---

16.2 Optimized Airflow Design

Laminar airflow reduces clustering.

Improves uniform charge distribution.

---

16.3 Emitter Coatings

Low-adhesion coatings:

• TiN

• DLC

• Ceramic nano-coatings

Reduce particle sticking.

---

16.4 Pulsed Discharge Mode

Prevents continuous particle accumulation.

Reduces steady-state space charge.

---

16.5 Automatic Cleaning Systems

Integrated brush or ultrasonic cleaning.

Maintains stable field geometry.

---

17. Industrial Case Examples

Roll-to-Roll Film Manufacturing

High dust from polymer slitting increases ion capture, leading to incomplete neutralization.

Textile Processing

Fibrous particles create extreme charge heterogeneity.

Injection Molding

Plastic fumes plus dust accelerate emitter contamination.

---

18. Nonlinear Threshold Effects

There exists critical dust concentration:

np,critn_{p,crit}np,crit

Above which ion density collapses rapidly.

System transitions from ion-dominated to particle-dominated regime.

This explains sudden performance degradation.

---

19. Safety Implications

Highly charged dust may:

• Ignite in flammable environments

• Accumulate on equipment

• Increase ESD risk

Ionizers must be carefully managed in combustible dust environments.

---

20. Future Research Directions

• AI-based charge distribution prediction

• Real-time aerosol–ion sensing integration

• Adaptive voltage control

• Hybrid electrostatic–mechanical dust mitigation

• Advanced plasma simulation in multiphase flow

---

21. Conclusion

In dust-laden air environments, the charge distribution generated by ionizing air bars becomes a complex multiphase electrostatic system involving ions, particles, airflow, and electric field coupling. Key findings include:

• Dust captures ions and becomes secondary charge carriers.

• Space charge redistribution modifies electric field structure.

• Ion mobility decreases with particle concentration.

• Charge heterogeneity increases with turbulence.

• Long-term emitter contamination destabilizes discharge.

Understanding these coupled mechanisms is essential for designing ionization systems capable of stable operation in industrial dusty environments. By integrating plasma physics, aerosol science, and engineering design, long-term reliability and electrostatic control performance can be significantly improved.
